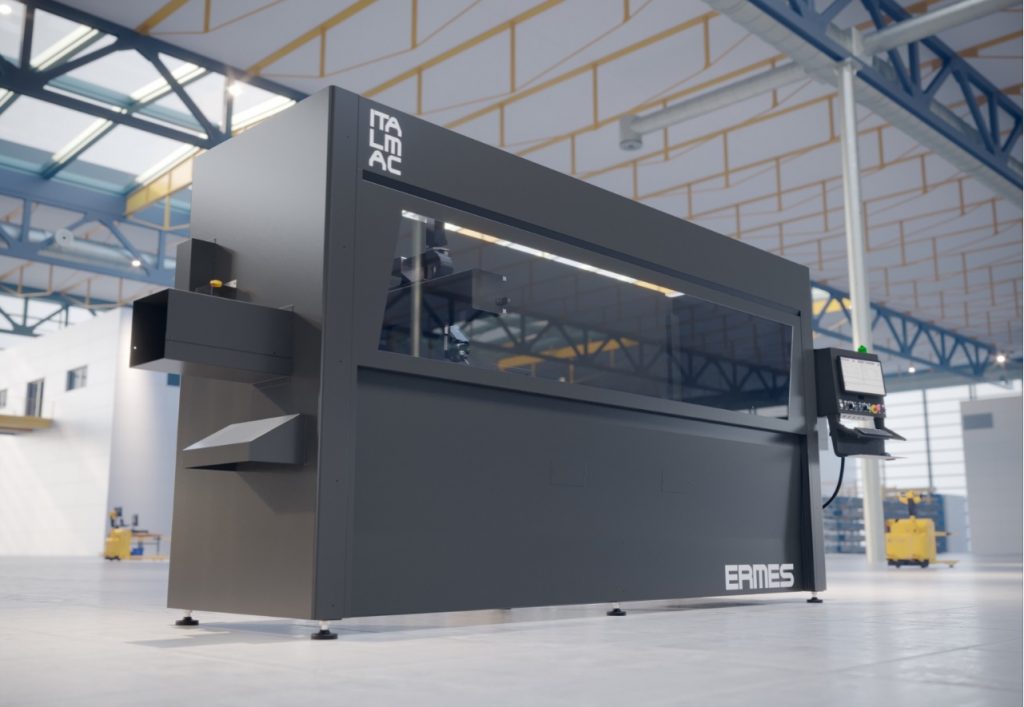

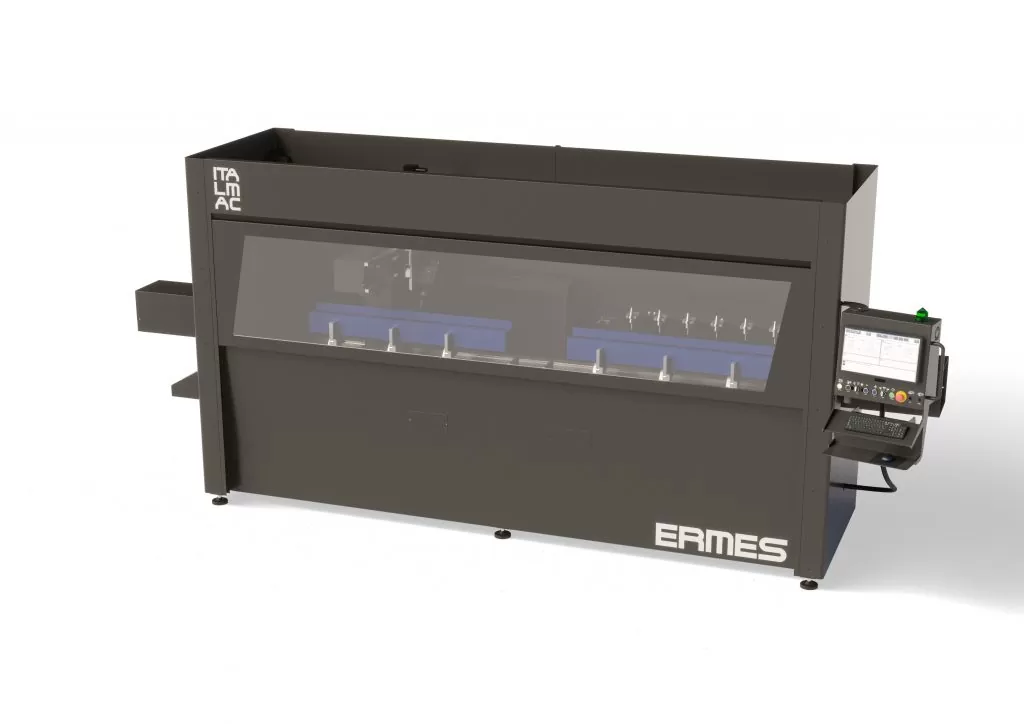

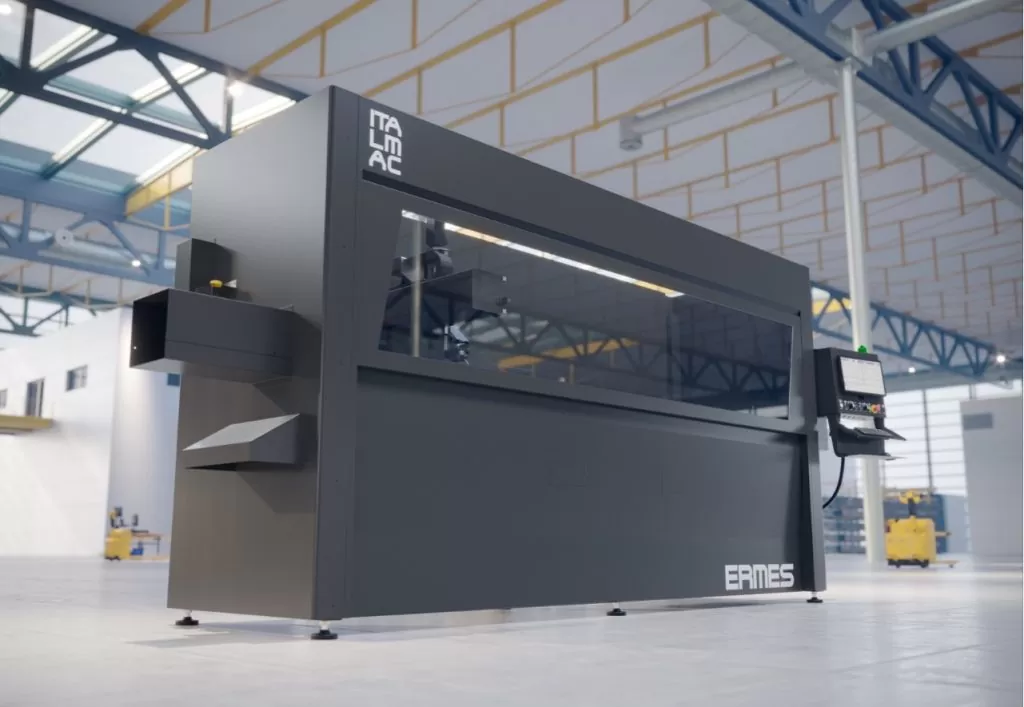

Industrial 4-axis CNC machine for aluminium milling
If you’re looking for a top-quality industrial 4-axis CNC machine for aluminium milling, Ermes is the perfect solution. Designed for multiple production processes, this unique and reliable machine is highly profitable and can improve the production capabilities of those who use it.

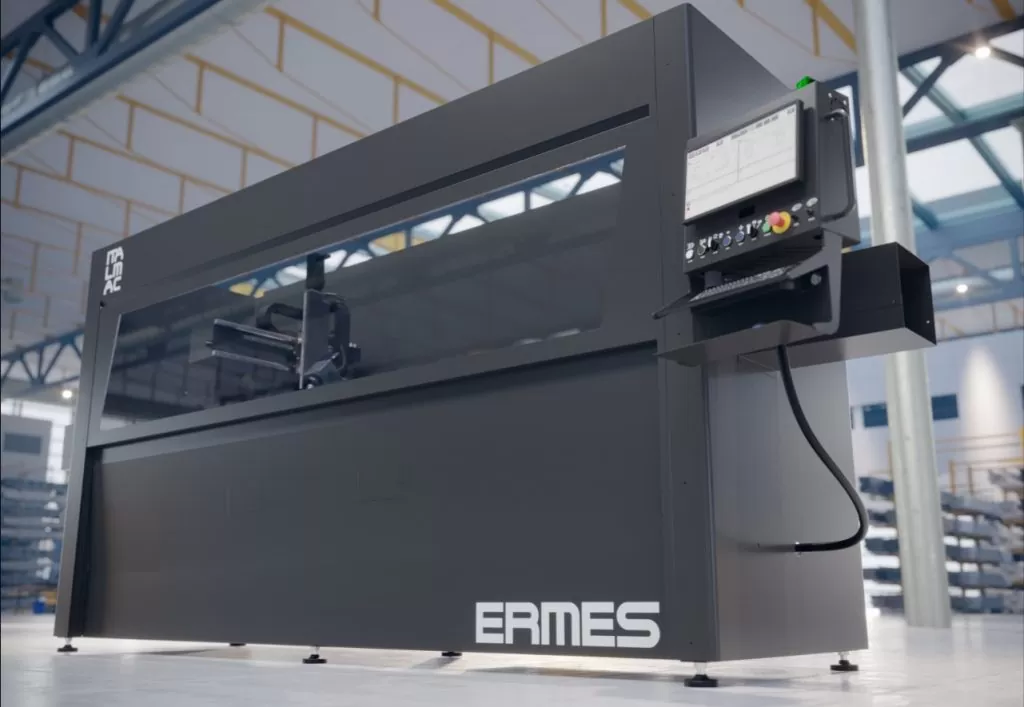

Ermes is equipped with 4 automatic clamps and a high-power electro-spindle that can process the profile at any angle between -90° and +90°, thanks to its 4 rotating axes. With a power of 5.5 kW and 24,000 rev/min, Ermes CNC makes it easy to manage all production requirements. The ergonomic and compact control panel, like the whole machine, offers the operator easy access to the loading/unloading of the pieces.
The Ermes CNC equipment is completed by an 8-position tool change. The entire machine is managed by CNC, through the Italcam – a complete and flexible CAD/CAM software that guarantees geometric programming, 3D visualizations, clamps optimization, STEP import, parametric programming, worklist from external management import, and much more.
The compact and sturdy center of Ermes, combined with:

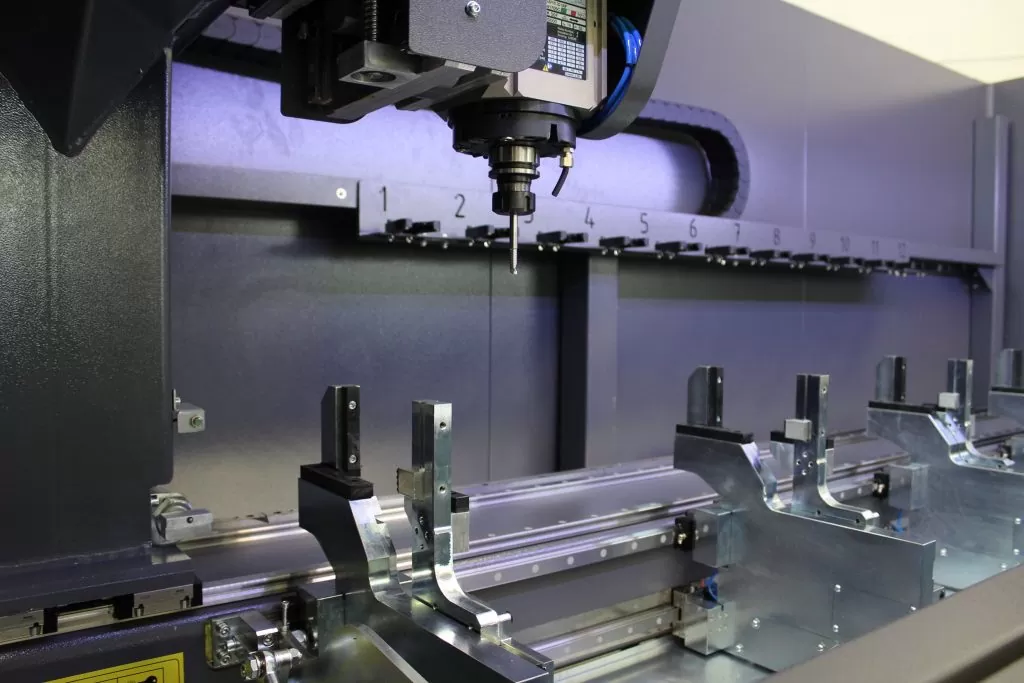

- Equipped with 4 fully automatic clamps
- Innovative super compact 24.000 rpm HSK F50 spindle
- Four interpolated axes that allow you to work at any angle
- Fully integrated Cad/cam software
| Data | Value |
|---|---|
| Model | 4.0 |
| Dimensions | 5200 x 1,800 x 2,500 mm |
| Weight | 2100 kg |
| Power of the electric spindle | 5,5 kW – HSKF50 |
| N. references of zero | 2 (pneumatic) |
| N. standard clamps | 4 |
| Tool storage | 12 positions tool holder |
| X axis | 3,450 mm |
| Y axis | 600 mm |
| Z axis | 265 mm |
| Axis speed | X 80 m/min, Y 60 m/min, Z 30 m/min |
