Windows

CNC machines dedicated to the timber windows industry – CNC angular centres and fully robotic, automated lines for the production of many windows sets a day.

Get familiar with our offer of CNC machines for the complete production of timber windows.

Sort:

Steton

INDEX

Programmer with 10,4 touch screen colour monitor for the electronic control of machine functione: vertical stroke for tenoning spindle, stroke of tenoning carriage, vertical stroke 1st profiling spindle and vertical stroke of 2nd profiling spindle. Storage of all machine programs, data and tools.

Steton

INTEGRA

Electronic working plants for windows series “INTEGRA”. The angular plants of this series can be composed with a tenoning machine Thema Plus or 2 Plus and a profiling machine Single or Twin. They are suitable for mounting multiple cutter profiles, for the combined machining of different types of standard windows, doors or wood aluminium windows without the need to change the tooling. Profiling machine can be complete with the optional electronic counter-fence, which doesn’t require to be put into position and manual pre-setting.

Steton

TF 2/270 E

TF 2 is an extremely flexible working station, specially studied for the production of windows and several kind of doors by small and medium sized workshops. On a single machine the operator can perform cutting-off and tenoning (angled too), profiling, glazing bead profiling and separating, assembled frame and sash squaring.

Steton

PROFILING INDEX

The electronic profiling machine INDEX includes two 320 mm. spindles, glazing bead group, feedere with 12 wheels, speed variator, contrast fence. The 1st spindle has a double rotation sense, allowing its use both as a 1st profiler and as a chipbreaker when the outside squaring is made.

Steton

INTEGRA – MASTER

Electronic profiling machine INTEGRA types MASTER. With “FLIPPER” spindle (patented), 90 mm, which can be positioned at right and left, top milling unit, 1st profiling shaft 620 mm, glazing bead unit, 2nd profiling shaft 620 mm. and hardware groove unit (optional).

Steton

ITEGRA – TWIN

Electronic profiling machine model INTEGRA model TWIN. With 1st profiling shaft double rotation sense right/left with timed oil/pneumatic control for chip-breaking when squaring, 620 mm, 2nd profiling shaft 620 mm with top fixing contra-point bearing.

Steton

ITEGRA – SINGLE

Electronic profiling machine series INTEGRA model SINGLE. Control unit with 10,4″ TFT colour touch-screen monitor to control working programs and with possibility of data exchange.

Futura

ELITE 400

Elite 400 is a tenoning machine complete with a blade unit and a vertical tenoning spindle.

Steton

THEMA 2 PLUS

Electronic tenoning machine THEMA 2 PLUS. With Pc Flex 1000 with TFT monitor for general control of machine functions. The carriages are swivelling together with the fence and allow the angled cutting-off and tenoning in the best conditions. At 90º, it is possibile to process two pieces in a single pass-through.

Steton

POWER

Electronic tenoning machine model POWER. Pc Flex 1000 with 15″ TFT monitor for general control of machine functions, comlete with USB port. Storage of machine data, tools and programs. Control of electronic fence (optional) according to working program with angle display of tenoning carriage and automatic calculation of piece length properly adjusted according to tilting.

Steton

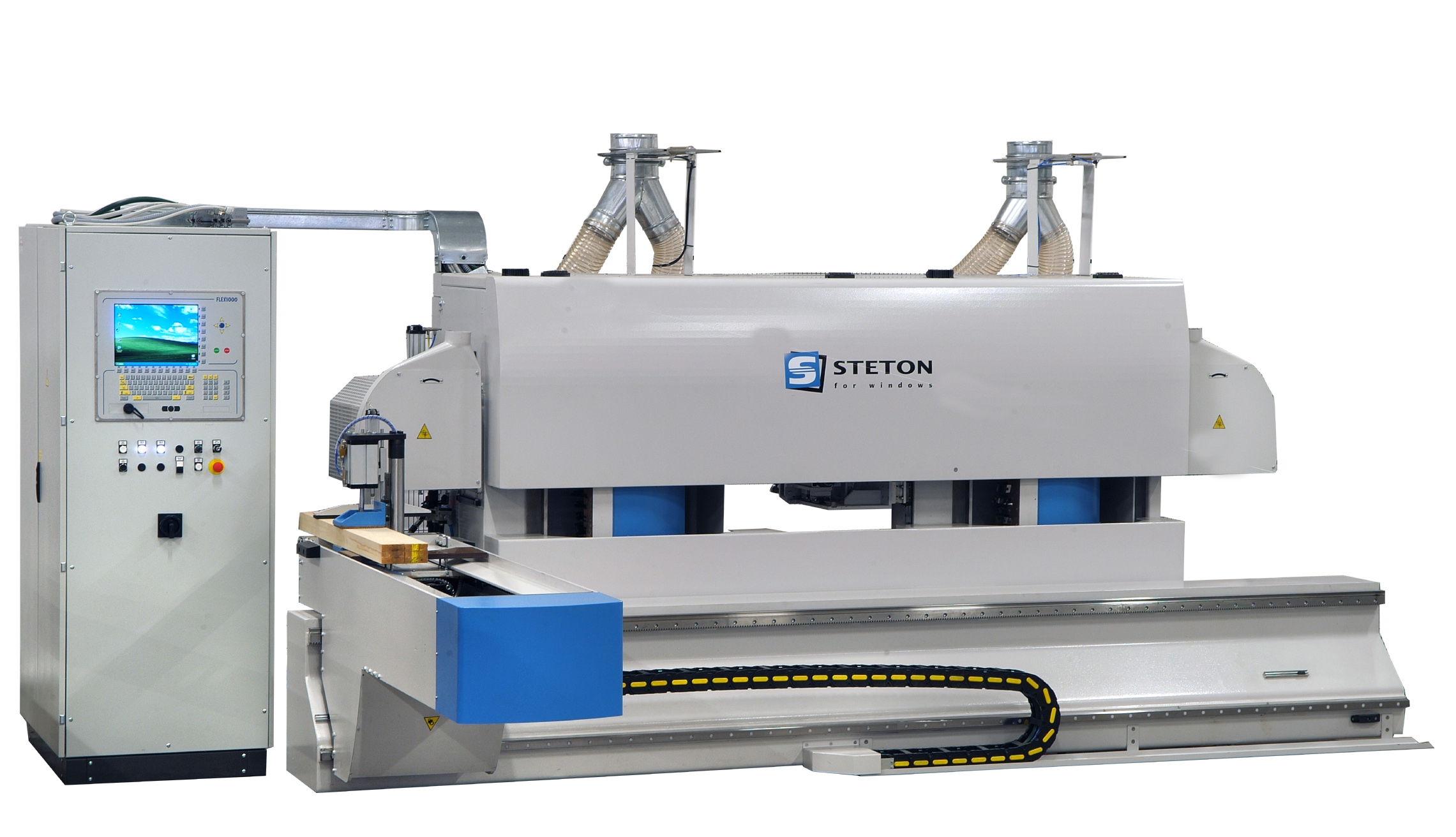

DUAL

Electronic tenoning machine model DUAL. With PC flex 1000 with 15″ TFT monitor for general control of machine functions, complete with USB port. Model THEMA 2 PLUS have a second tenoning shaft 620 mm. Standard: electronic fence and PC Flex 15″ control.
