Tel: +44 (0) 197 825 4472Thor
Perfect for rail, transportation, aerospace, electrical pipelines and tensile structures

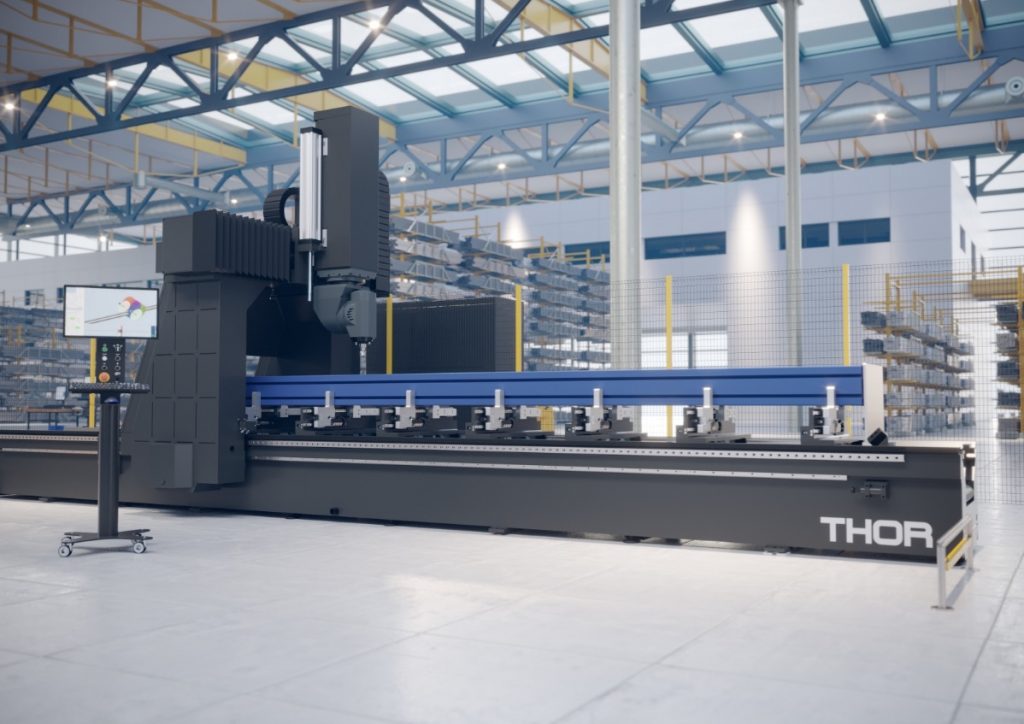

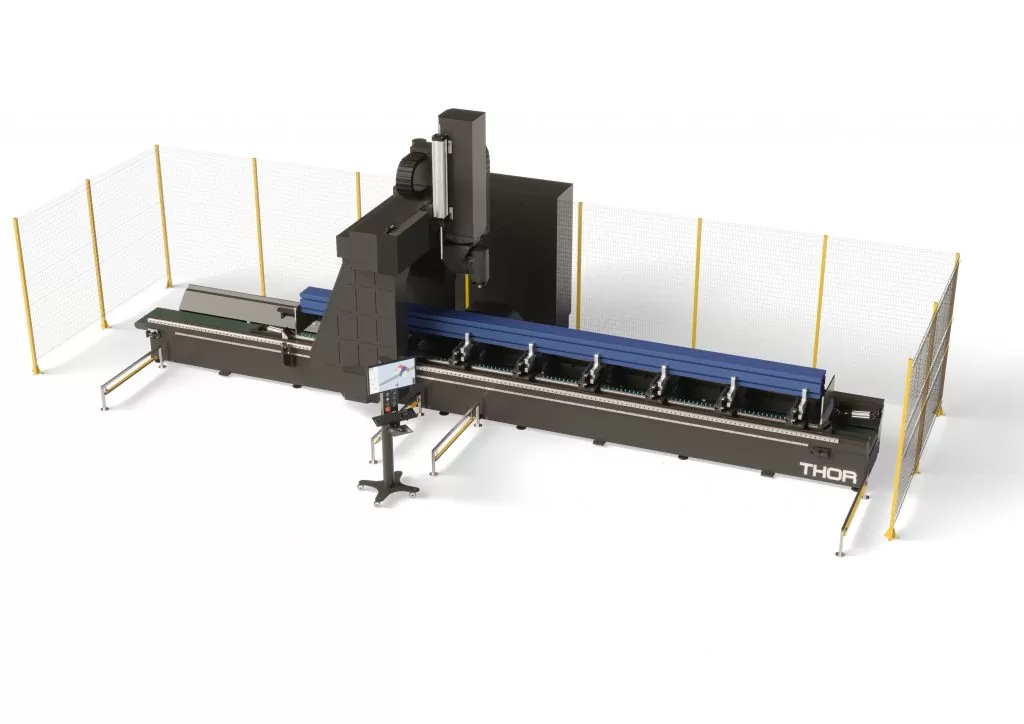

Thor is a top-of-the-line machining center designed for heavy-duty operations and boasts a machinable section of 450 x 550 mm.
Available in 4, 9, 11 meters versions, it is particularly suitable for working steel and aluminium.
Thor is provided with powerful 20, 24 or 30 kW electro spindles, both asynchronous and synchronous, which, thanks to the liquid cooling system, guarantee maximum efficiency. The machine can be used in the medium-heavy industrial sectors.

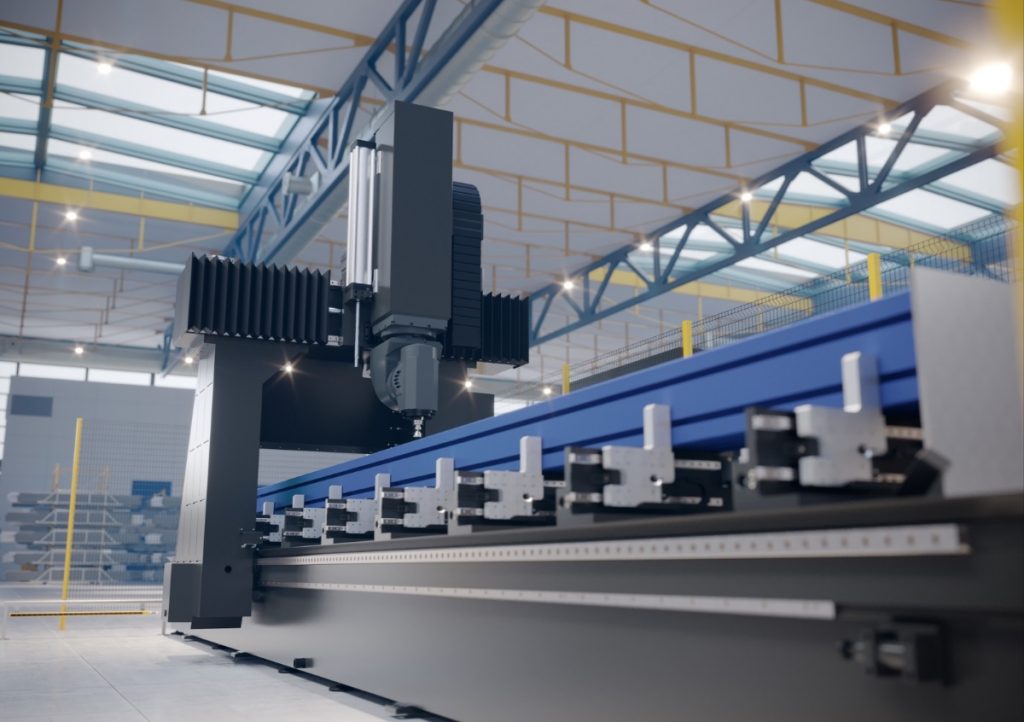

Thor is a rigid center with a gantry structure with play recovery and hydraulically closing clamps, that guarantee a secure grip. It is also equipped with: a tilting head which (thanks to its hydraulic brakes, guarantees rigidity during machining); a tool change from 15 to 30 positions; an automatic tool feeler and a belt for evacuating metal chips. Cooled electrical panel, kept at a constant temperature and the sturdy mobile console give this centre a couple of extra elements to stand out.
Strenghts:
- For medium and heavy industries. Suitable for iron, steel and aluminium processing.
- Electrospindles are very powerful both asynchronous and synchronous with a power of 20, 24 and 30 kW.
- Imposing machining center that allows for stability and firmness in machining.
- Workable section of 450 x 550 mm.
| Data | Value |
|---|---|
| Dimensions | model 4.0: 7,900 X 3,150 X 3,100 mm model 9.0: 10,800 X 3,150 X 3,100 mm model 11.0: 14.800 X 3.700 X 3.300 mm |
| Weight | model 4.0: 8,500 kg model 9.0: 9,800 kg model 11.0: 11.400 kg |
| Power of the electric spindle | 20, 24 or 30 kW |
| N. references of zero | model 4.0: 2 pneumatic model 9.0: 4 pneumatic model 11.0: 4 pneumatic |
| N. standard clamps | model 4.0: 8 automatic model 9.0: 10 automatic model 11.0: 12 automatic |
| Tool storage | 15 positions tool holder fixed on the carriage (expandable up to 30) |
| X axis | model 4.0: 5,450 mm model 9.0: 8,300 mm model 11.0: 10,250 mm |
| Y axis | 1.550 mm |
| Z axis | 790 mm |
| Axis acceleration | X 60 m/min, Y 60 m/min, Z 40 m/min |
