Ulisse

4-axis milling machine for aluminium and PVC

Ulisse CNC is the perfect choice for industrial sectors with high demands for CNC milling machines that can handle a variety of materials.

Ask about product

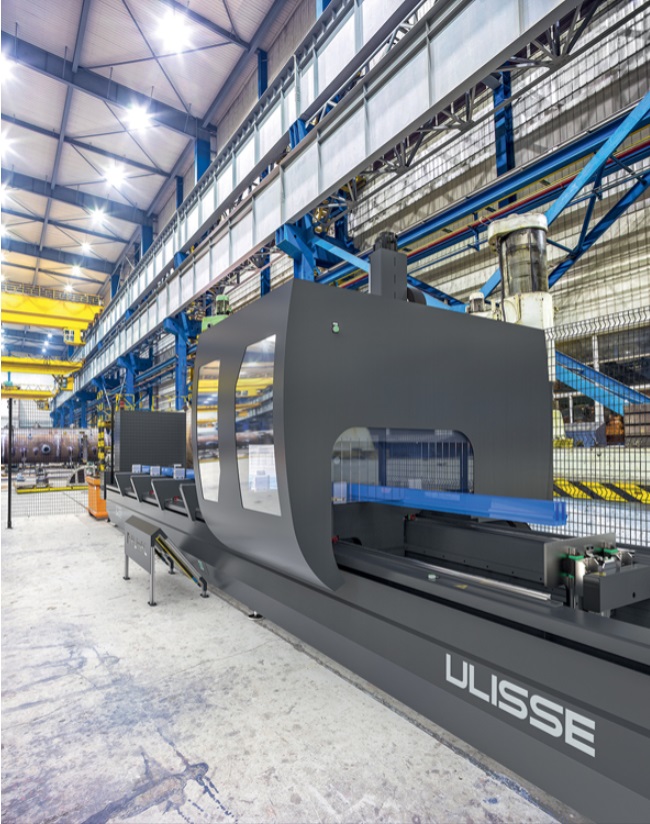

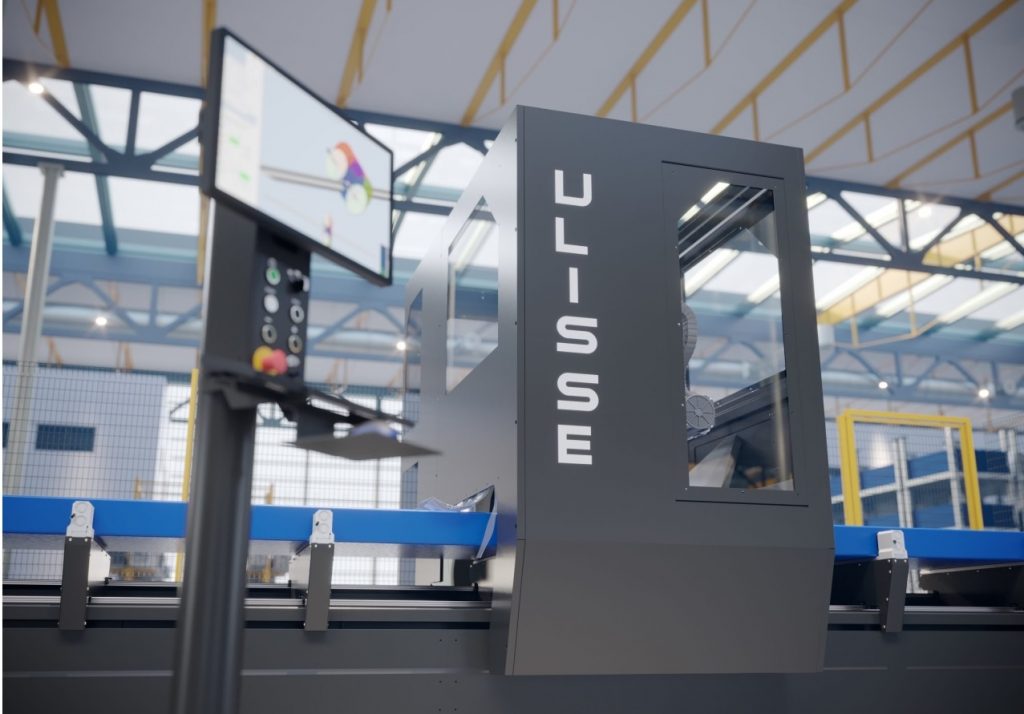

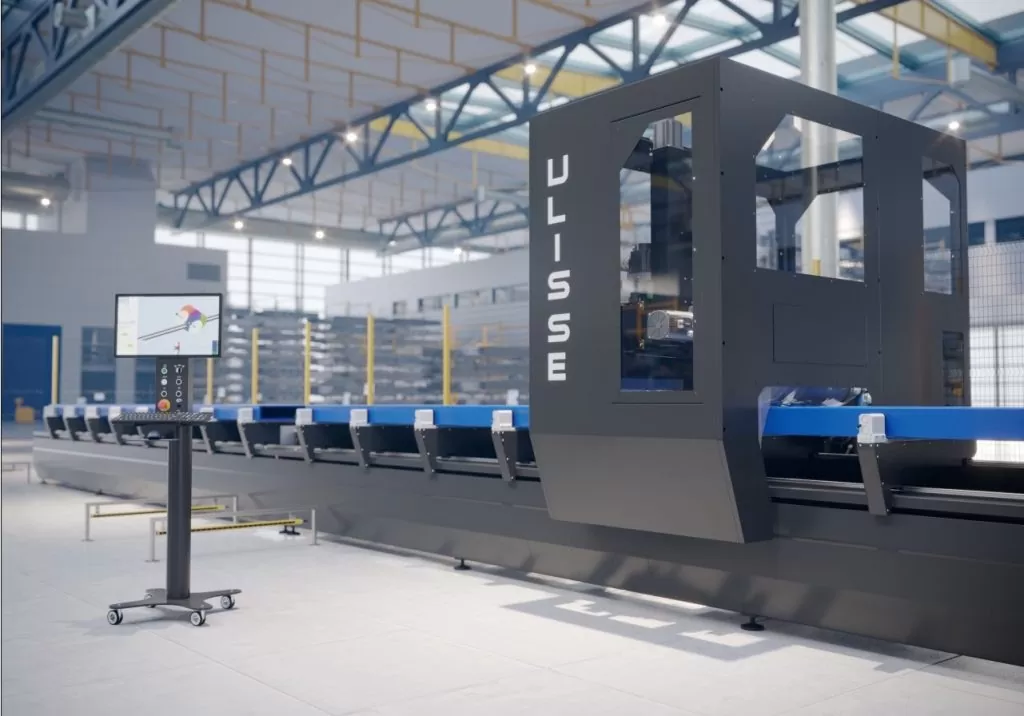

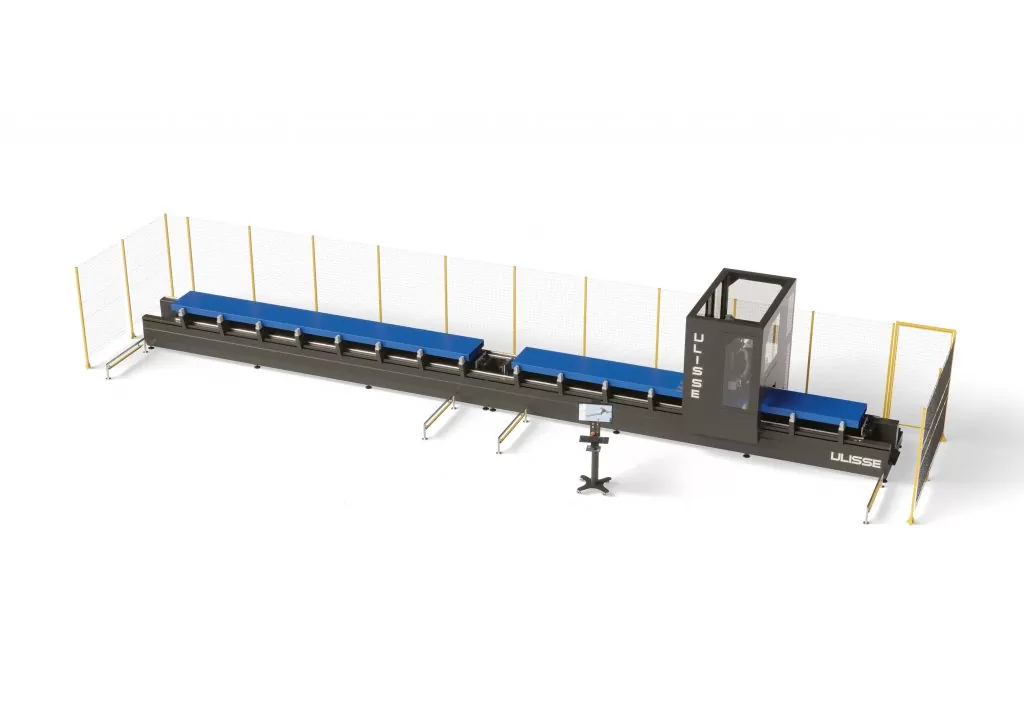

Ulisse CNC is the ideal machine for an industrial sector with increased demands. This 4-axis CNC includes a large operating area, the largest available in this sector, with a dimension of 700 x 300 mm. Available in the standard versions of 4, 7 and 9 meters, Ulisse CNC can be extended up to 11 and 13.5 meters in length. In all sizes, it can be made in the version with or without a cabin, and with a single or double work area. Special versions of this machine have been created for the processing of fibreglass, steel and all materials that can be machined with cutters.

The tools are cooled with emulsified oil by the pumps placed on the mobile carriage. On request, it can also be performed by a water-oil unit with a recycling pump.

Ulisse CNC is an extremely versatile machine, it can be equipped with vacuum maintenance cabins complete with treated guides and dedicated components. The machine is able to perform heavy work on steel, machining for the aeronautical sector or for particular materials that can be exposed to temperature variations. This machine is also available in larger sizes, able to process sandwich panels and PVC panels, complete with clamping of 1,100 mm and rollers for supporting the profiles.

Strengths:

  • Length from 4 to 13 meters, with single or double loading area
  • Maximum load section 700 x 12,000 mm.
  • Powerful 500 mm blade that can be equipped with a 3 kW spindle.
  • Ideal for processing sectional panels, sandwich panels and PVC.
Characteristic data
DataValue
Dimensions model 4.0: 6,300 x 3,100 X 2,400 mm
model 7.0: 9,300 x 3,100 x 2,400 mm
model 9.0: 11,300 x 3,100 X 2,400 mm
Weight model 4.0: 2,800 kg
model 7.0: 4,400 kg
model 9.0: 5,200 kg
Power of the electric spindle model 4.0: 5 kW
model 7.0: 6.6 kW
model 9.0: 9 kW
N. references of zero model 4.0: 2 pneumatic
model 7.0: 2 pneumatic
model 9.0: 4 pneumatic
N. standard clamps model 4.0: 4 automatic
model 7.0: 8 automatic
model 9.0: 10 automatic
Tool storage8 positions tool holders fixed on the carriage (expandable up to 30)
X axismodel 4.0: 4,420 mm
model 7.0: 7,420 mm
model 9.0: 9,420 mm
Y axis1,140 mm
Z axis490 mm
Axis accelerationX 80 m/min, Y 60 m/min, Z 30 m/min
