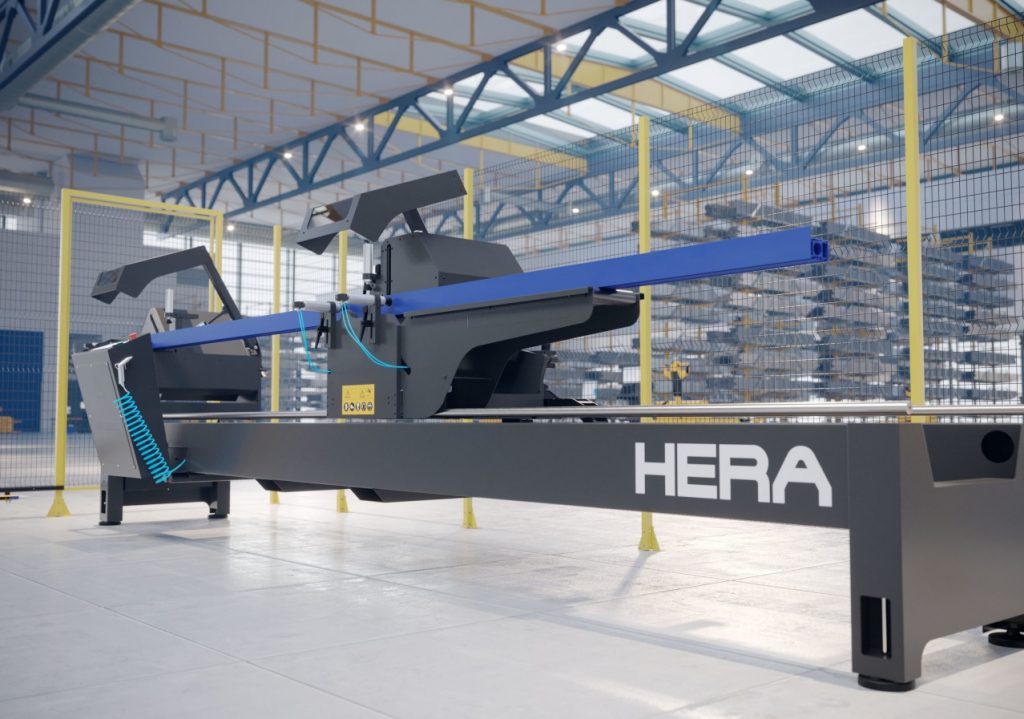

Double head mitre saw with wide angle
Hera is a 2-head aluminium mitre saw with pneumatic movement that allows cutting at external angles from 90° to 45° with all intermediate gradations.
The machine is equipped with a 450 mm blade. Safety is guaranteed thanks to the air descent protections that protect the operator while ensuring maximum visibility on the cutting area.
Hera is also equipped with a convenient touch screen display placed on the central control that allows you to manage all its functions quickly. An electronic profile thickness meter, intermediate media and an industrial label printer for job identification are available as an option.Hera is an aluminium mitre saw ideal not only for cutting aluminium, but also PVC bars at various lengths and thicknesses and a variety of angles.
| Data | Value |
|---|---|
| Dimensions | model 4.0: 5,700×1,700×1,900 mm model 5.0: 6,700×1,700×1,900 mm model 6.0: 7,700×1,700×1,900 mm |
| Weight | model 4.0: 1800 kg model 5.0: 2000 kg model 6.0: 2200 kg |
| Blade engine power | 2.2 kW |
| Blade rotation | 2800 rpm – 50/60 Hz |
| Cutting angles | -22.5° to +135° |
| Lung cut min. | 280 mm |
| Lung cut max. | model 4.0: 4010 mm model 5.0: 5010 mm model 6.0: 6010 mm |
| Standard Morse No. | 2 +2 |
| Data | Value |
|---|---|
| Dimensions | model 4.0: 5950 x 1400 x 1650 mm model 5.0: 6950 x 1400 x 1650 mm |
| Weight | model 4.0: 800 Kg model 5.0: 900 Kg |
| Blade engine power | 2.2 kW |
| Blade diameter | 450 mm |
| Blade rotation | 2800 rpm – 50/60 Hz |
| Lung cut min. | 340 mm |
| Lung cut max. | model 4.0: 4000 mm model 5.0: 5000 mm |
| Standard clamps No. | 2 +1 |
