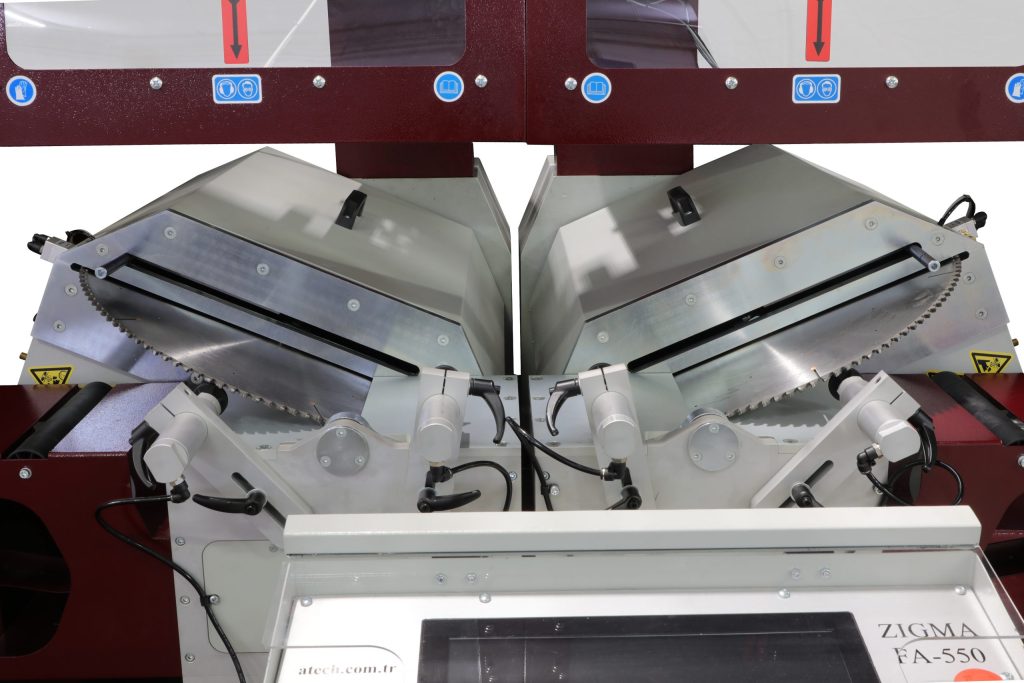

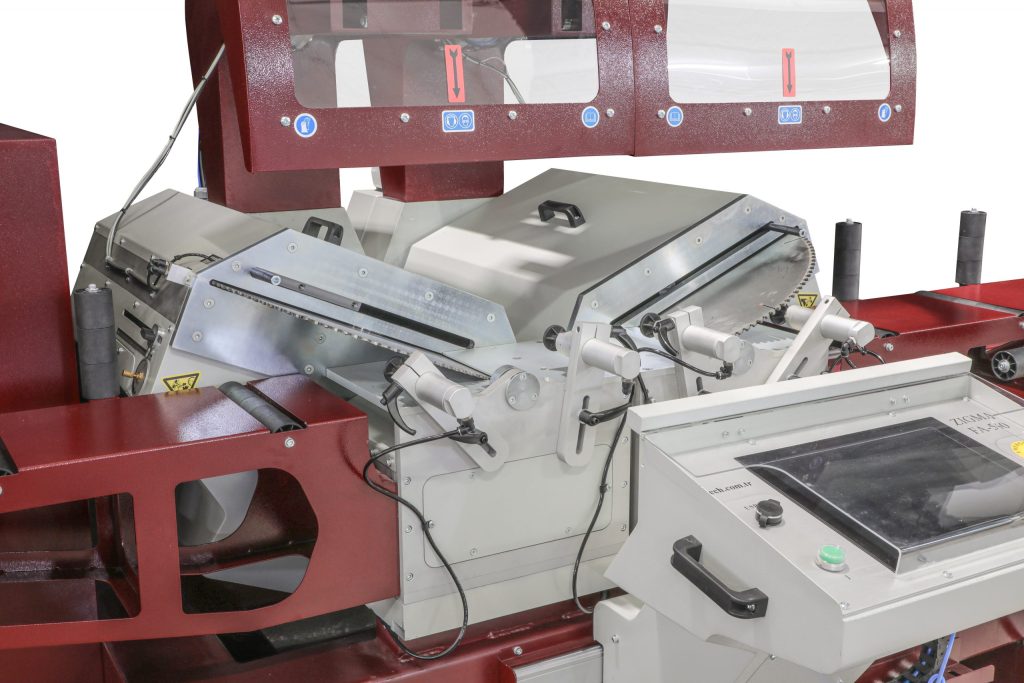

Servo controlled double miter saw
Zigma 550FA is a full-automatic double head saw machine designed to cut aluminium, PVC, and wooden profiles, straight or angled with its Ø550 mm saw blades.
Technical data:
- 2 x 3,0 kW Motor
- 15” PC touch screen
- With its servo motor the head angles and head movements can be positioned precisely
- By servo motor angles between -22,5 and +45 can be positioned automatically.
- Robust machine body
- With a hydro-pneumatic cutting unit the speed of the blade can be adjusted precisely.
- The saw blade stroke is adjustable from the top. That means, that you can limit how far the saw blade comes out.
- Cuts greater than the strok
- Slicing, angle slicing, pieces of cutting profiles list and etc. are programmable.
Optional equipment:
- Printer
- Spray mist lubrication system
- 2 pcs. Vertical clamps.
- Chip collector monifold
- 4,0 kW Electric motor
- Conveyor on fixed saw head
- Spray lubrication system
