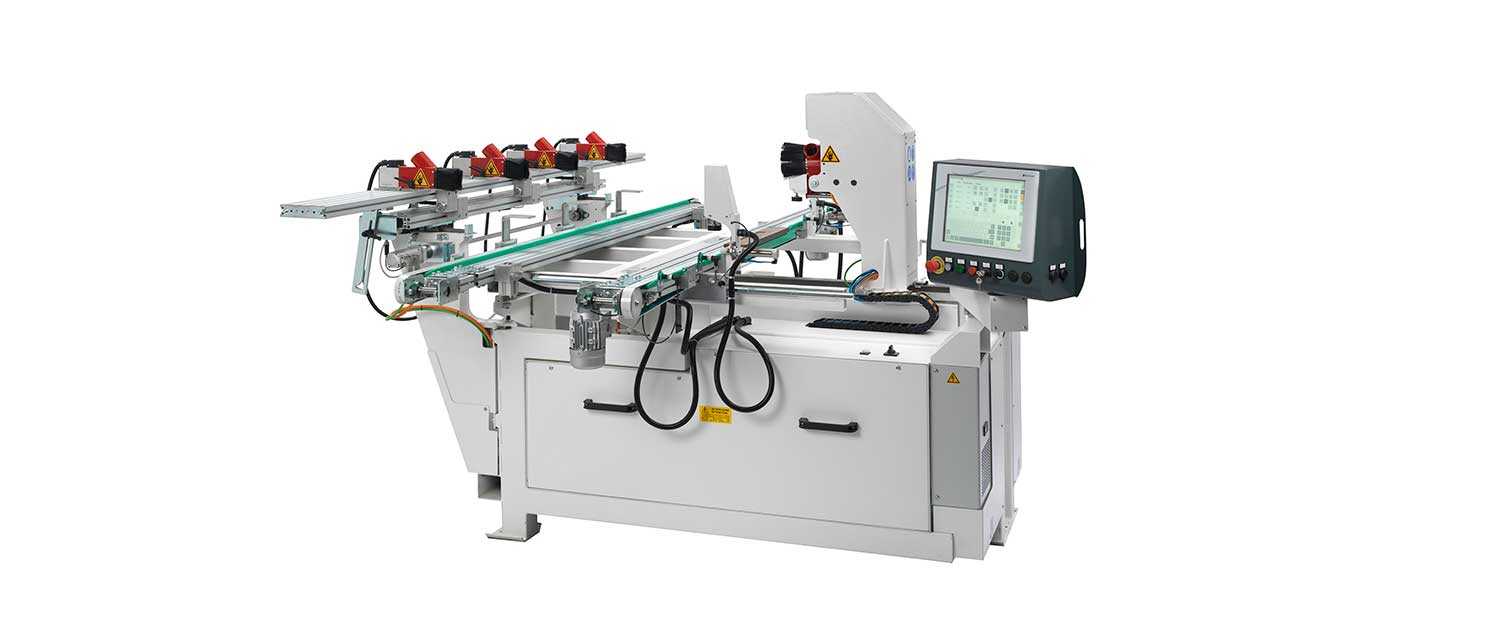

TEKNO PRIME

It is designed for door manufacturers with the paumelle hinge system, the milling machine is characterised by solidity and ease of use, always offering the best ratio between quality and price.

The TEKNO PRIME machine is suitable for the woodwork of doors and frames for those countries adopting paumelle hinges and concealed hinges systems.
After a simple setting of the woodwork to be performed, the machine will (through the loading and unloading belts) load the door to be processed and then start the milling and drilling process previously set.

CNC with 5 controlled axes: work island or as a line machine

Designed for door processing, it allows the milling operations to be carried out in just a single position.
Significant time saving thanks to its fully electronic-driven management.
No extra components needed, to start the production cycle, simply call up the recipe and press Start.
The machine can be set both as a “work island” and as a “line machine”.

Advantages in CNC woodworking

• Can also be installed in working lines
• Production process in about 2 minutes, with a single positioning
• Colour touch panel
• Pre-set macros for a quick parameter setting
• Remote technical support
• Machine body internal manufacturing

User-friendly Technology

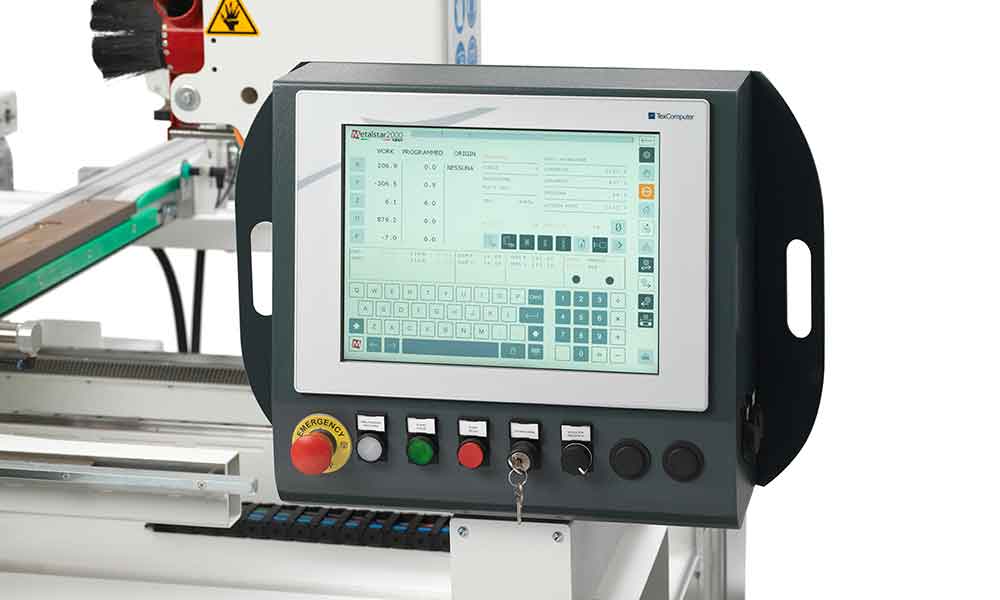

The machine is equipped with a console with a 15″ colour touch screen monitor.
Functional technology, all operations are managed through pre-set macros to help creating the recipes in a simple and intuitive manner.

Simplicity with a Low Investment

High-end components such as linear guides and ball runner blocks, “smart” drives with automatic parameter setting and conditioned control panel.
Air and oil atomisation pressurises and lubricates all moving axes.

Remote Assistance

Metalstar staff will be happy to assist you with all your needs by connecting remotely to your control, so as to provide you with step-by-step assistance.

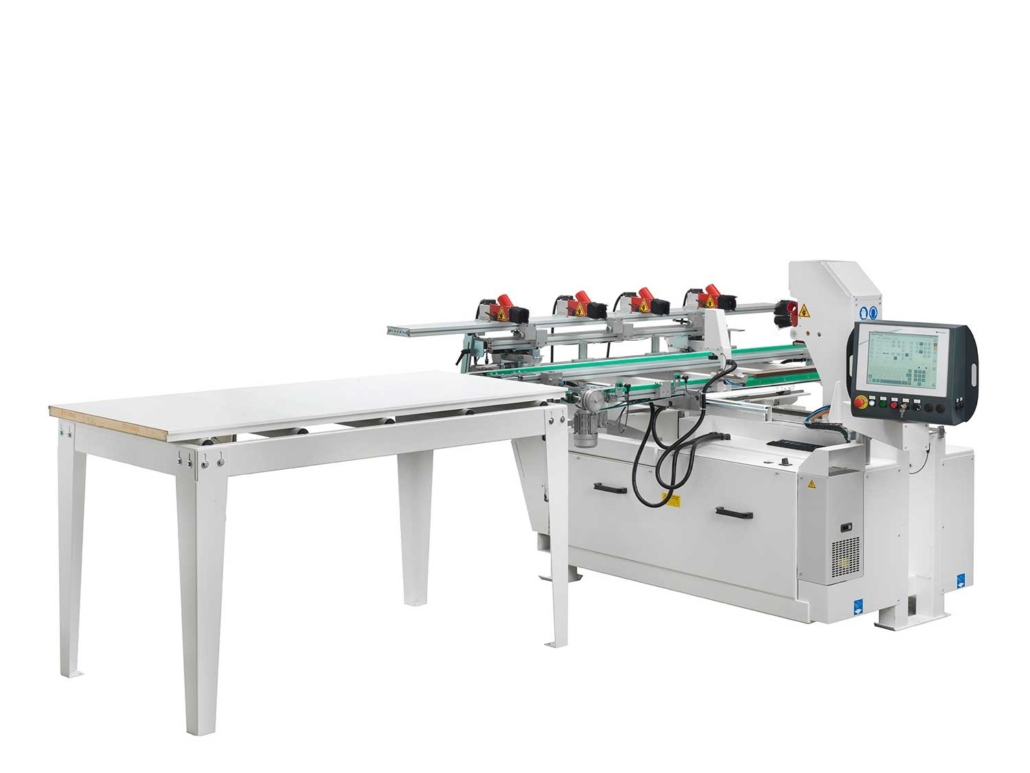

Work Island and In-line Machine

The machine can be set up both as a work island and as a line machine.
Loading and unloading roller conveyors are available to facilitate the operator’s work.

(optional)

Door Machining: Lock Side

Motor inclination 0° and 90° for machining the lock, key slot and handle hole.
Automated control management.
Equipped with a feeler pin to identify millimetric differences in the width and thickness of the workpiece.
Suction hood equipped with a blower for cleaning the workpiece during the processing phase.

Door Machining: Hinge Side

Electro-spindles for simultaneous milling operations for hinge insertion.
A set of milling cutters from the best brands is supplied.

Frame Machining: Flexibility

The flexibility of this milling machine allows the same machining operations to be carried out both on doors and frames.
The powerful pneumatic fixture operation is able to straighten the workpiece if this is curved.
The milling electro-spindles locked in vertical position perform milling operations to insert its hardware.

Technical data

Data	Value
Paumelle hinge working area from rh and lh stops	2500 mm
Minimum door width	550 mm
Maximum door width	1100 mm
X-axis working stroke	600 mm
Y-axis working stroke	930 mm
Z-axis working stroke	300 mm
U-axis working stroke	700 mm
Electro-spindles for lock machining	no. 1
Electro-spindles for milling hinge and paumelle hinge sides	no. 3
Hinge motors’ power	0.5 hp – 0.37 kw
Lock side milling motor power	3 hp – 2,2 kw
X-y-z-axes motors’ power	2.4 n/m
P-axes motors’ power	1.2 n/m
Axes driven by brushless motors	x – y – z – p
Loading and unloading belts	standard-type
Motorised stretcher to simplify the door lodging	standard-type
Automatic centralised lubrication of all working axes	standard-type
No.1 milling cutter dia. 16 mm	standard-type
No. 3 milling cutters dia. 14 mm	standard-type

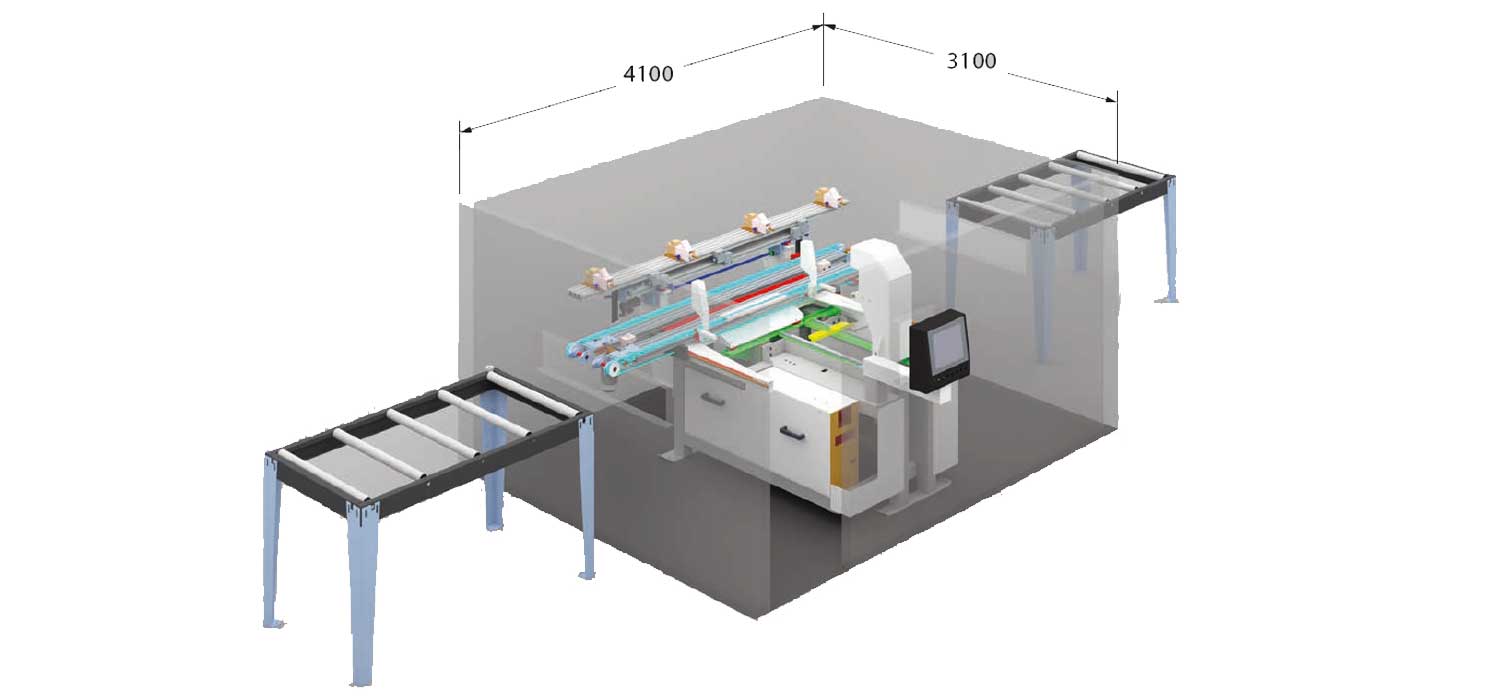

Dimensions	2300 x 3100 x 1750 mm
Weight	1200 kg
Container load dimensions	2243 x 3200 x 1765 mm

Optional features

Extra electro-spindles for milling the hinge/paumelle hinge side	Kit for frame machining
Door loading/unloading roller conveyors	Feeler pin to identify millimetric differences in the width and thickness of the workpiece.

•
•
•
•
