Tel: +44 (0) 197 825 4472Schnitzer Zigana 4 AXIS
Male and female tenoning lathe

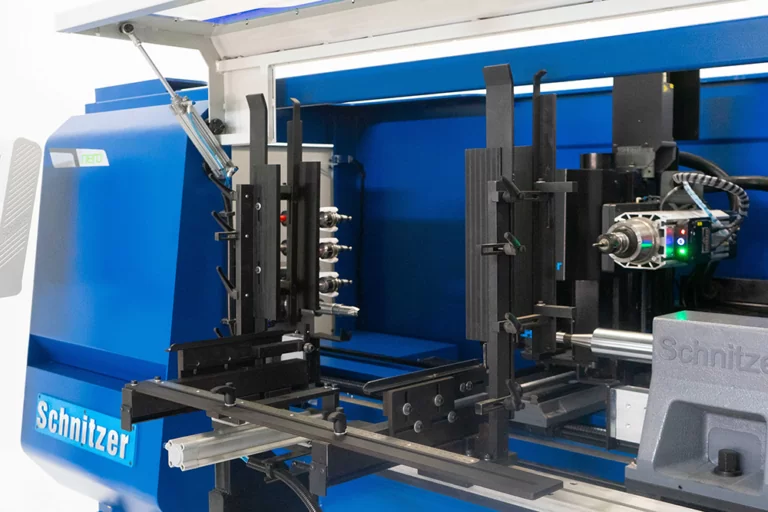

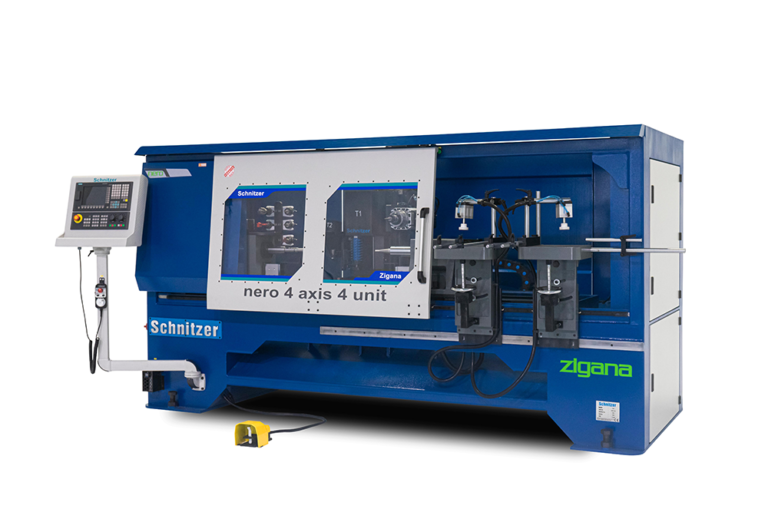

Schnitzer Zigana is a CNC lathe developed on the basis of a German patent. The machine is made to the highest world standards and will meet the requirements of every wood-turning plant. Zigana is processing elements with the use of 4 independent axes and 4 independent tools. It has male and female tenoning option. A version with a component magazine will certainly facilitate the operator’s work in the case of serial production.
Zigana is a machine that will find application in every woodworking plant, and its speed, precision and quality of the elements made will surprise many new users.

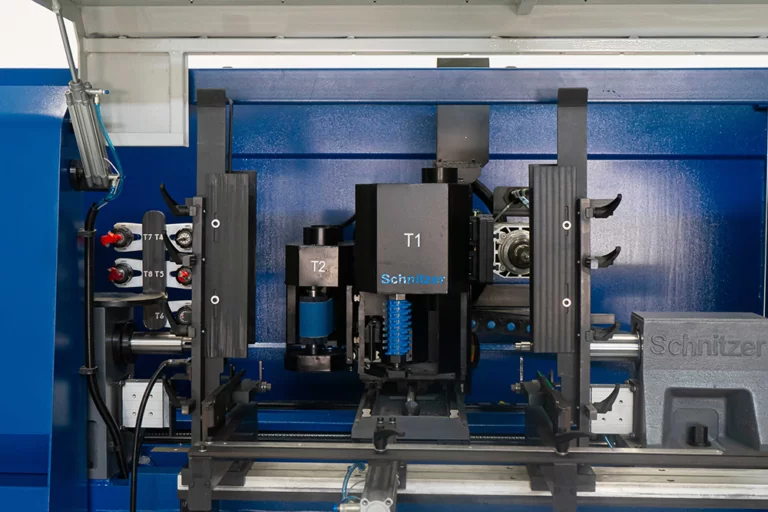

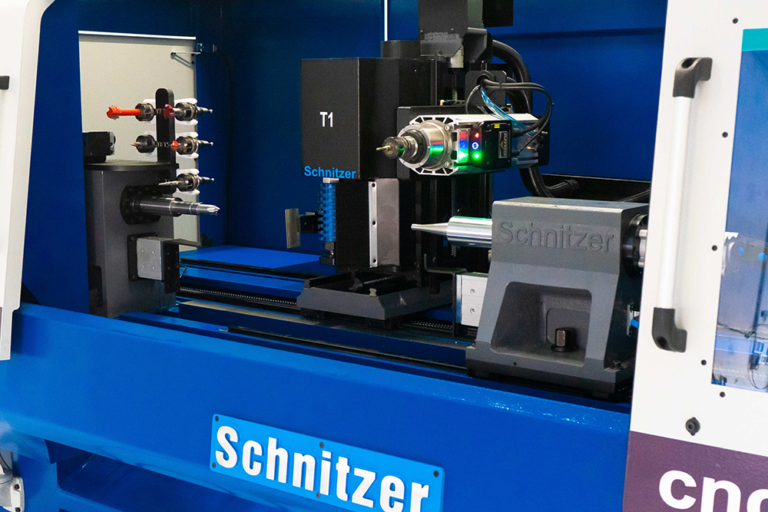

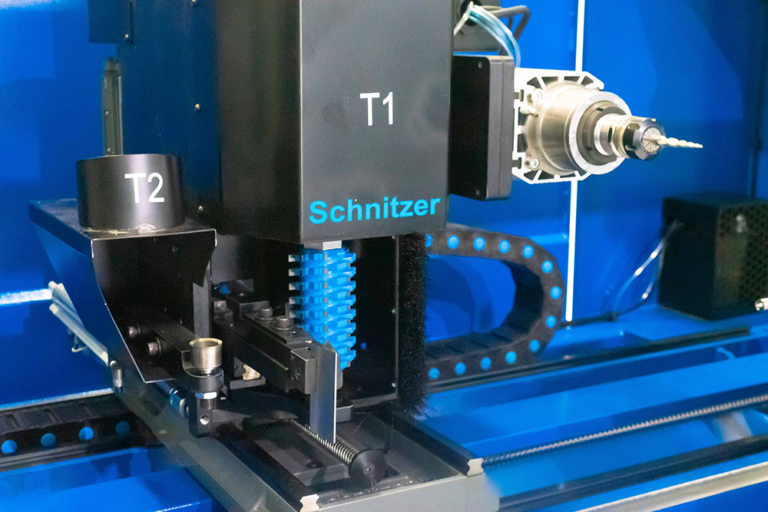

4 TOOL UNITS
- Unit 1: Ball Knife
- Unit 2: Triangle Blade
- Unit 3: Milling
- Unit 4: Sanding
| Unit 1 | Ball Knife |
| Unit 1 | Triangle Blade |
| Unit 1 | Milling |
| Unit 1 | Sanding |
| Data | Value |
|---|---|

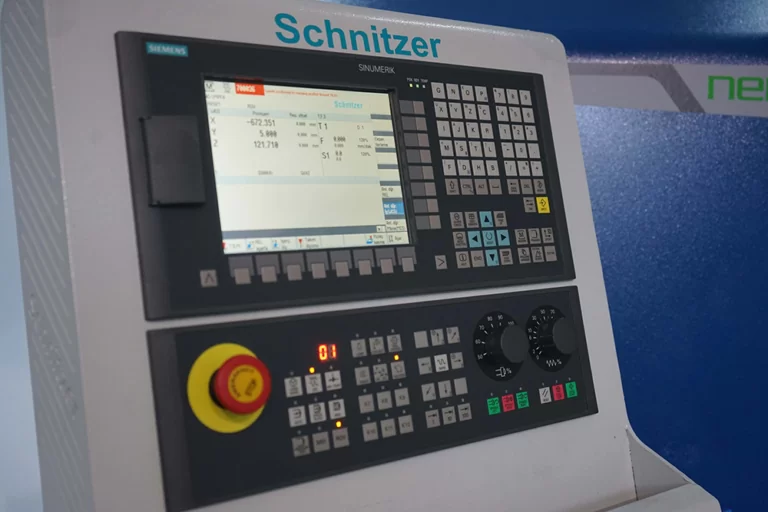

| Siemens control unit | ✔ |
| Maximum Square | 160 x 160 mm (Auto Feed 100×100 mm) |
| Maximum Length | 1200 mm |
| Long Axis Speed | 70 m/min. |
| Short Axis Speed | 40 m/min. |
| Y Axis | 30 m/min. |
| Operating Power | 22 kW |
| X-Axis | 1.5 kW. Servo Motor with Absolute Encoder (Siemens) |
| Z Axis | Servo Motor with 1 kW Absolute Encoder (Siemens) |
| Y Axis | 0.75 kW Absolute Encoder Servo Motor (Siemens) |
| A-Axis | 3.7 kW 6000 rpm Servo Spindle motor (Siemens) |

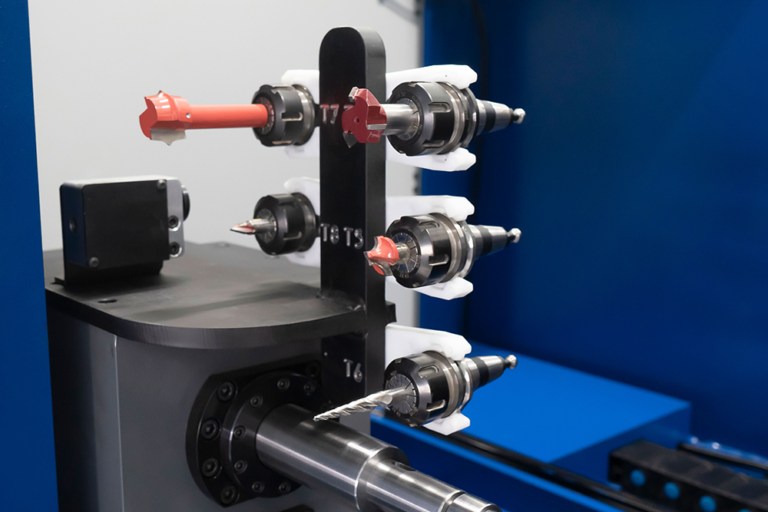

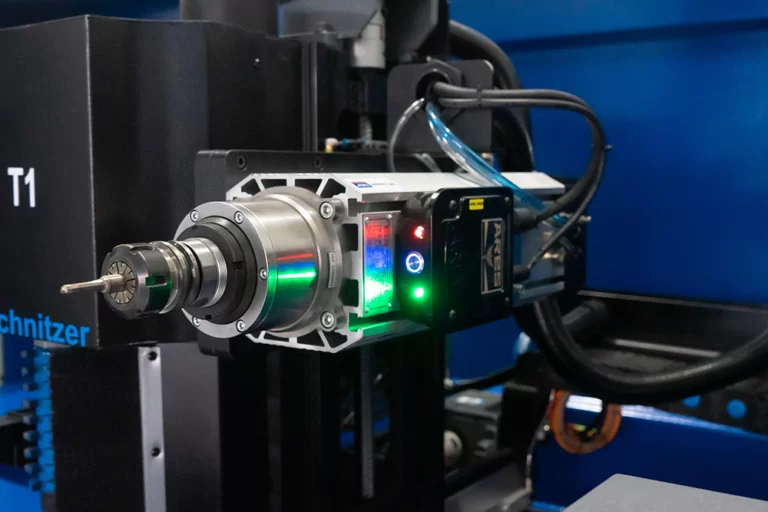

| Automatic Tool Change Mill (Arel 4 Kw 18000 RPM) | ✔ |
| Weight | 3100 kg |

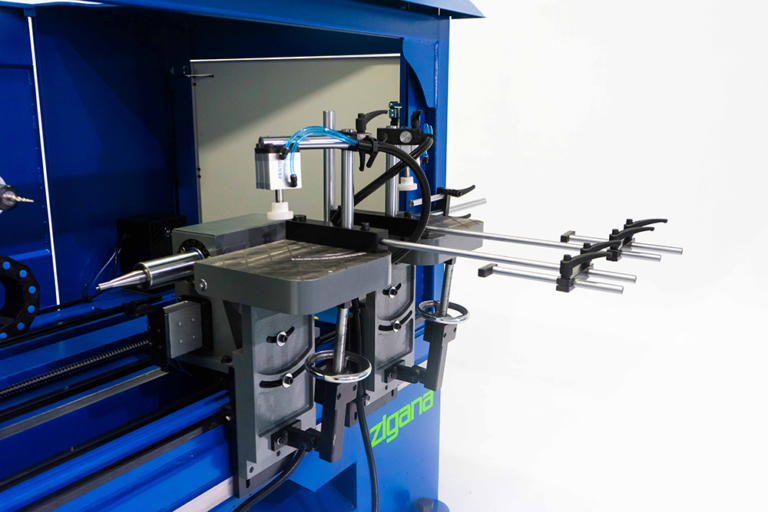

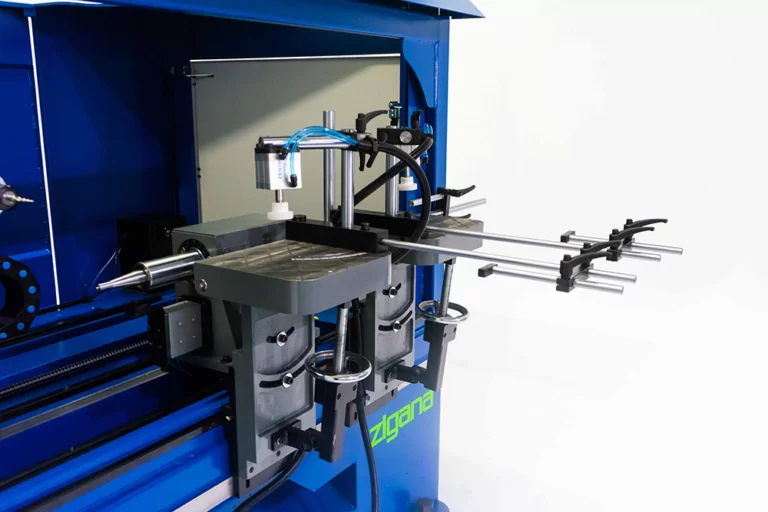

| Part Centering | Pneumatic |
| Linear Motion System | PMI |
| Clamping piece | Pneumatic |
| Centering Section | ✔ |
| Auto Centering | ✔ |
| Automatic Lubrication | ✔ |
| Handwheel | ✔ |
