Tel: +44 (0) 197 825 4472GOMA – FC-10 Finger Jointing Line
Line with 18 kW tenoner for horizontal and vertical joints
Efficient finger jointing line GOMA FC-10 starts from a rotary loading table, a powerful 18kW tenoner – model 10KZ6, and press PZ6/2. The line was built to handle boards with a width of 20-70mm and a height of 30-160mm.
Characteristics:
- set for making micro-grips joints for large-scale and mass production
- able to produce 2 patterns of finger joints: zig zag wood joint and line-style wood joint (vertical and horizontal)
- 1-person service
- high capacity
- production line with the highest capacity
- high-power working power generators
- high working feeds
- accelerated handling movements translate into high performance. Depending on the assumed capacity, additional buffering conveyors are built into the string, which speed up the production process
Standard equipment:

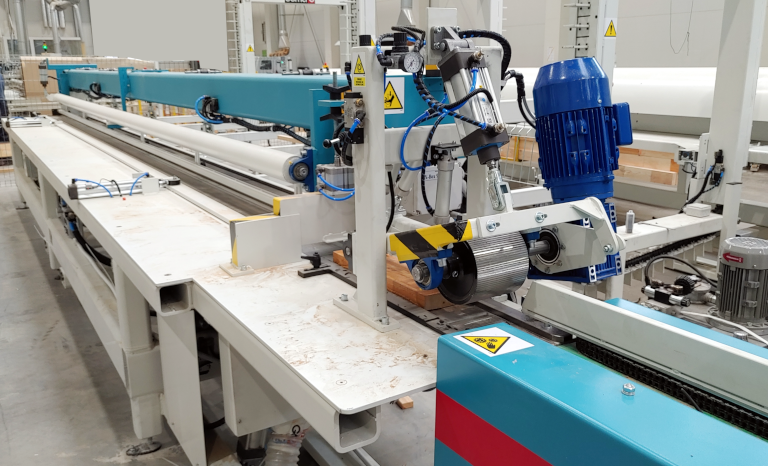

- chain feeder in front of the press
- upper cutting unit – 2 pcs.
- bottom cutting unit – 2 pcs.
- turning machine
- device for cutting to lengths

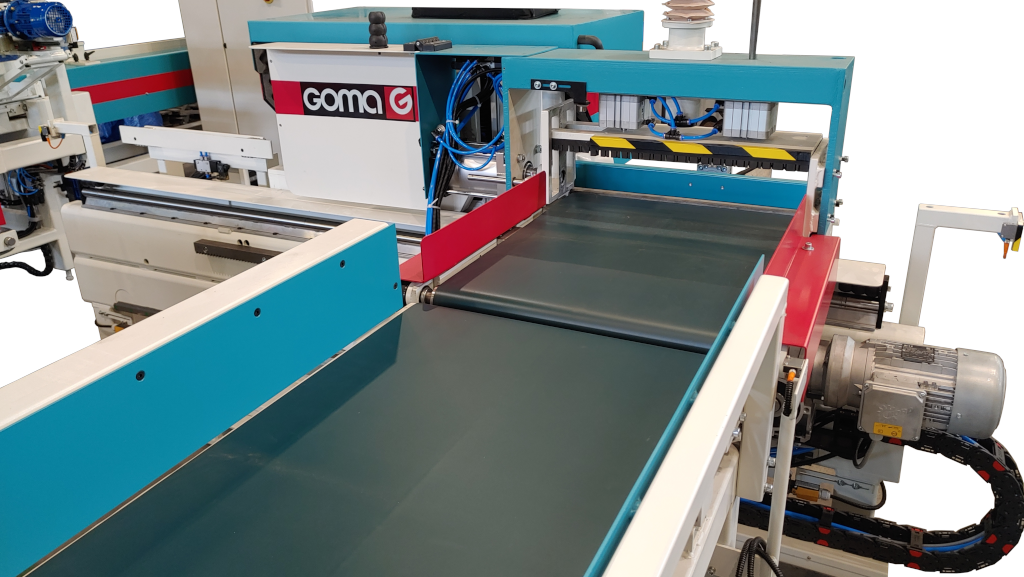

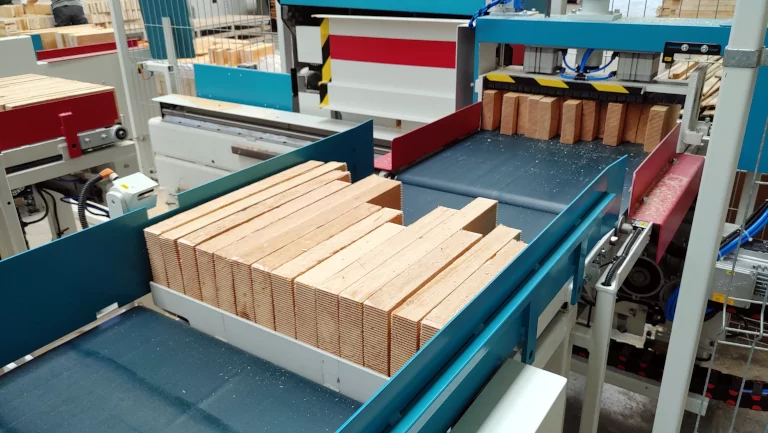

TENONER FC-10 KZ6
PRESSING UNIT FC-10 PZ6/2
| Data | Value |
|---|---|
| Milling Spindle | Ø 50×210 mm |
| Spindle Rotations | 6000 r/min |
| Motor | 18,5 kW |
| Tool Dimensions | Ø 250×160 mm |
| Sawing Spindle | Head Trim |
| Special Chipper | Ø 300×8 mm |
| Motor | 6 kW/ 3000 r/min |
| Table | Smooth Feed |
| Width x Height | 600 x 30÷160 mm |
| Glue Nozzle | Same Shape as Cutter |
| Data | Value |
|---|---|
| Element width min./max. | 30 mm/155 mm |
| Element thickness min./max. | 20 mm/55mm |

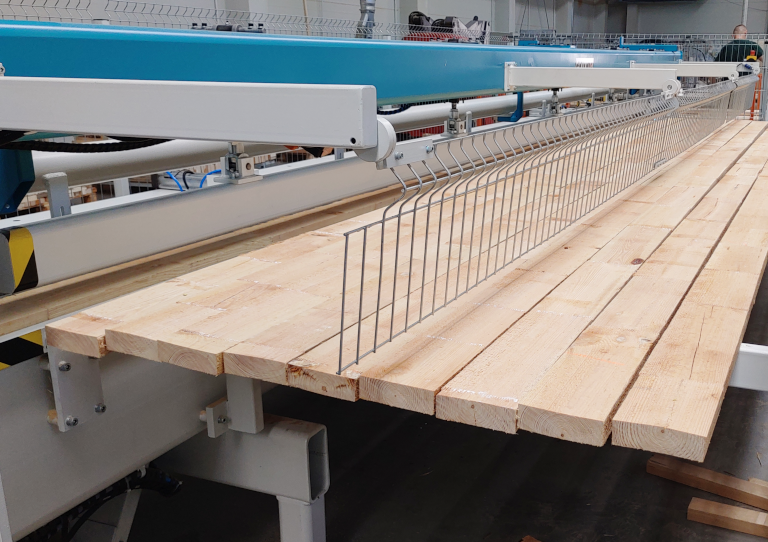

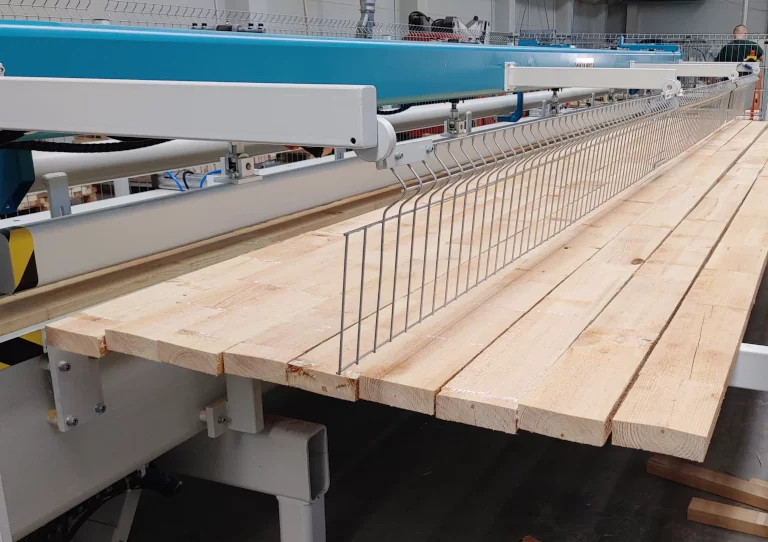

| Length of Finished Board | 6050 mm |
| Pressing Force | 3 – 7.5 – 10T |
| Hydraulic Power Pack | 3 kW/100 (140) bar |
