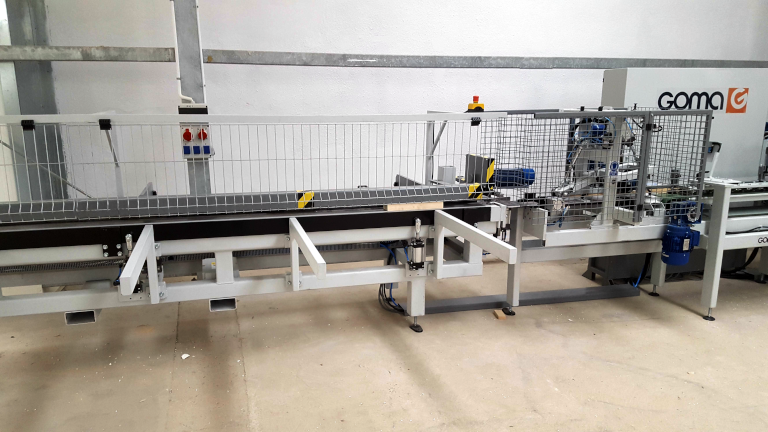

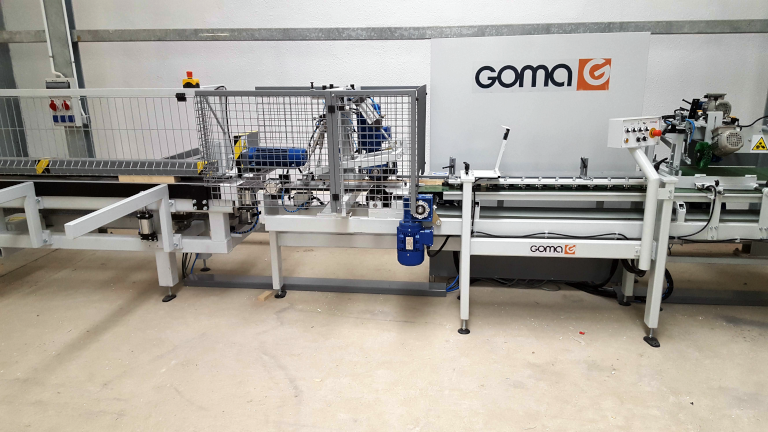

GOMA – AFC-10 Finger Jointing Line

Semi-Automatic Finger Jointing Line for Efficient Medium-Scale Wood Production

Semi-automatic finger jointing line for medium-scale production, operated by one person, offering moderate output efficiency.

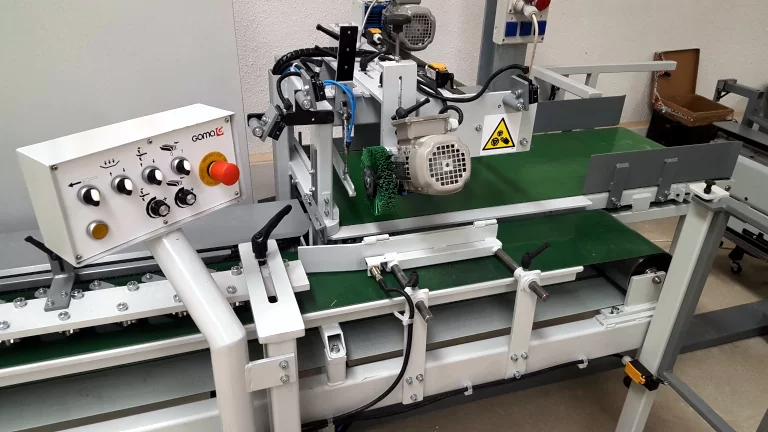

The AFC-10MLKT tenoning machine is designed for processing wood and wood-based materials. It is used to produce tenons, forks, finger joints (micro-joints), and other end profiles on components such as friezes, strips, and lamellas. The machine processes wide material packages and is particularly suitable for creating finger joints, with a minimum workpiece length of 200 mm.

The AFC-10HK6 press is designed for longitudinal joining of pre-milled and glue-coated slats, boards, and similar elements. The input material consists of sawn or planed wood, with end surfaces prepared for joining, for example in the form of finger joint profiles, ensuring strong and precise bonding.

CHARACTERISTIC:

• medium capacity production line,
• high-power working aggregates,
• high working feeds,
• accelerated handling movements translate into high performance. Depending on the assumed capacity, additional buffering conveyors are built into the string, which speed up the production process.



TENONER

Data	Value
Spindle fi	50×19
Maximum milling height	120 mm
Tool	160
The width of the conveyor belt in the table	500 mm
Possibility to use undercutters when connecting “on the line”	✔

PRESS FC-10HK6

Data	Value
Press force	10T
Maximum width, height	140 mm, 40 mm
Working length	6 m (other on request)
Number of cycles on average	1 cycle / min
Capacity	up to 2 cycles / min

•
•
•
•
