Tel: +44 (0) 197 825 4472FLEXA

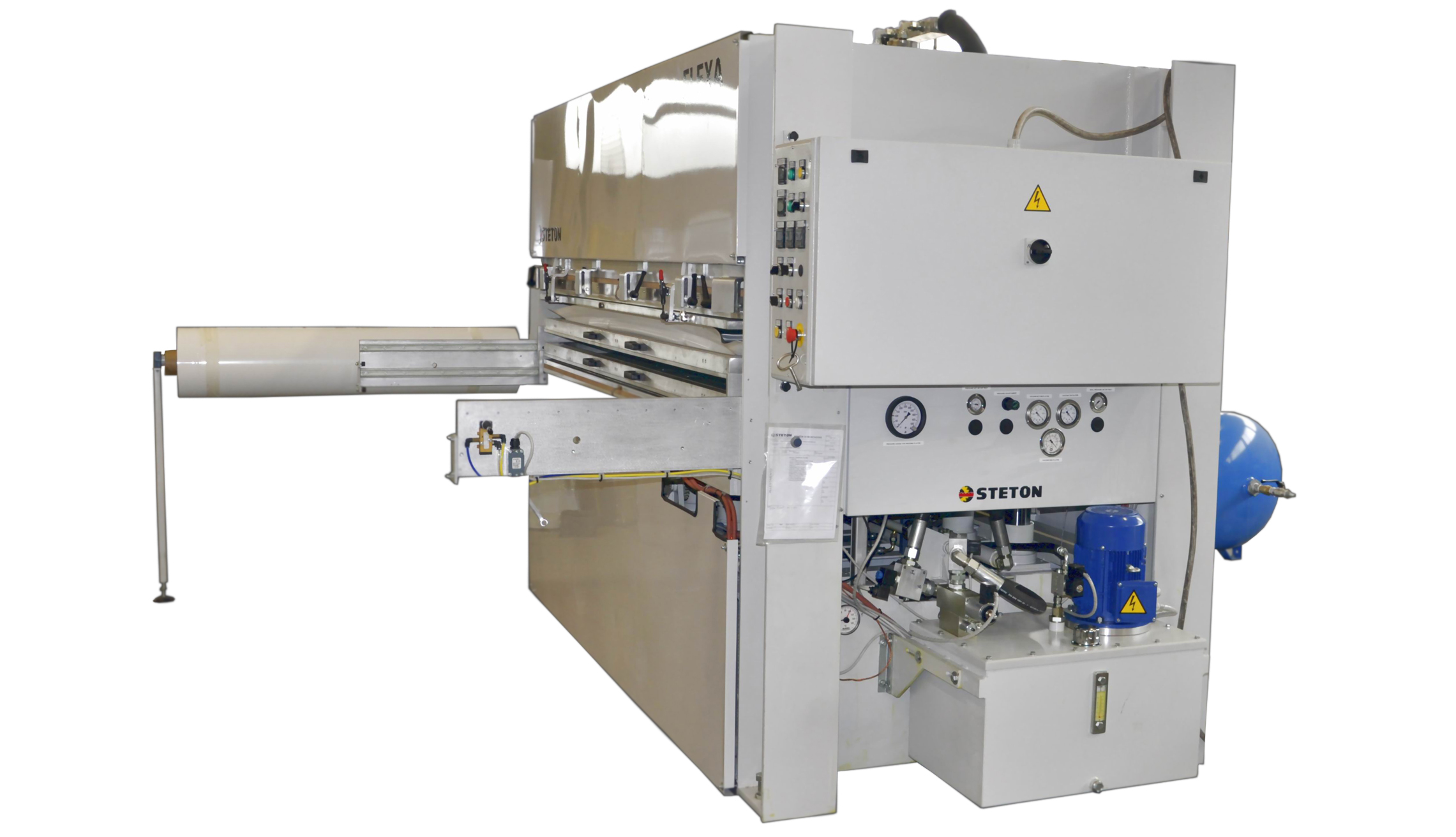

The moulding press FLEXA is used to cover shaped panels with thermoplastic sheets (PVC) from one side and/or veneer from one or two sides.
Press structure profile welded beams, is suitable to bear the high pressures required by this kind of processing.
Top platen electrically heated.
The bottom mobile platen is driven by a group of racks acting along the platen width and length and granting a perfect parallelism during platen rise/fall.
It can be equipped with extractable aluminium tray (one or two) to facilitate manual loading/unloading. O RING silicon sealing wire between fixed platen and extractable tray.
Heating of pressurising air by means of electric exchanger; the air heating circuit has been conceived to ensure an even heating on the total surface for a perfect final result.

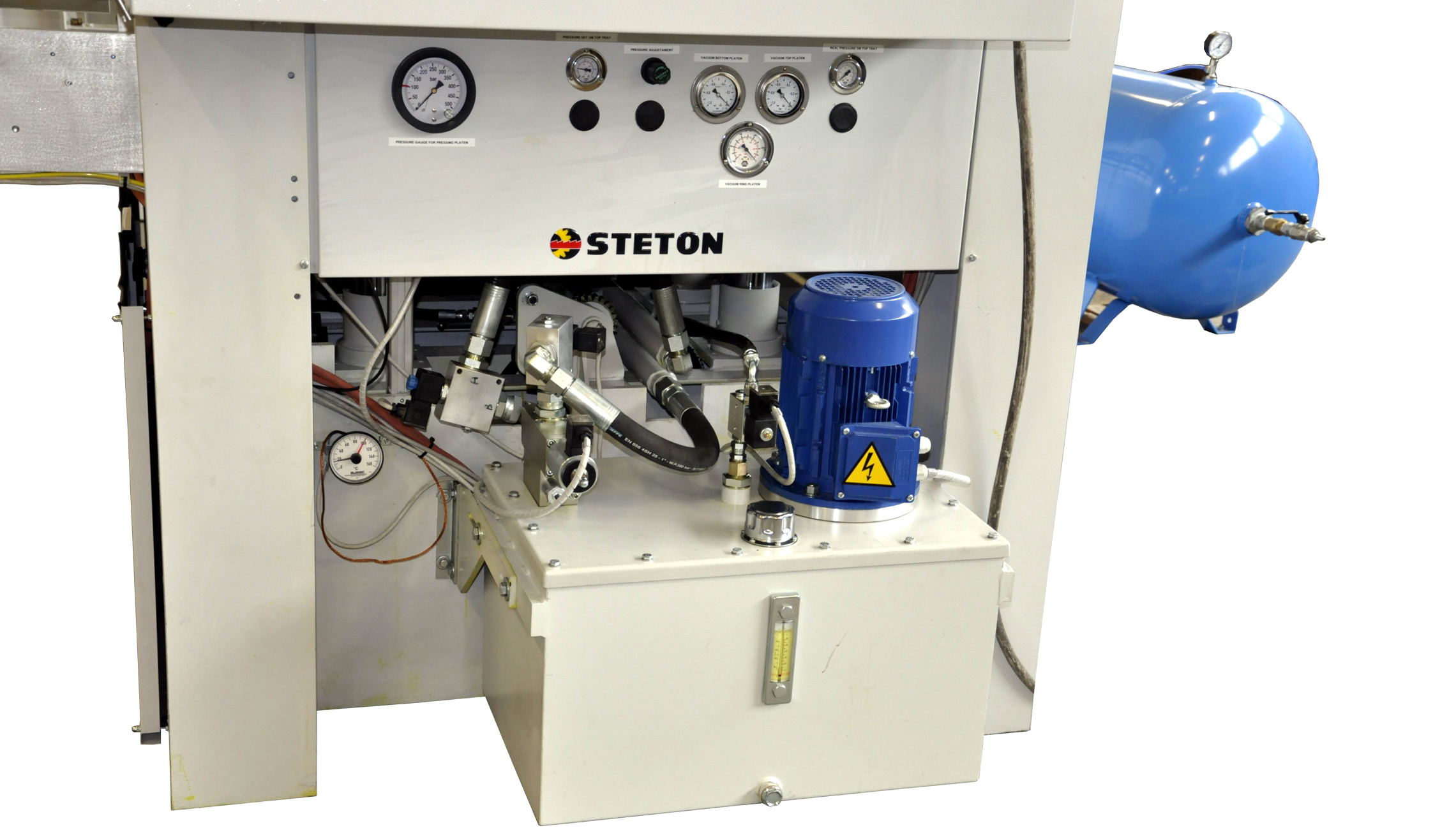

Air tank connected to the plant. Vacuum device equipped with high power pump for immediate air vacuum.

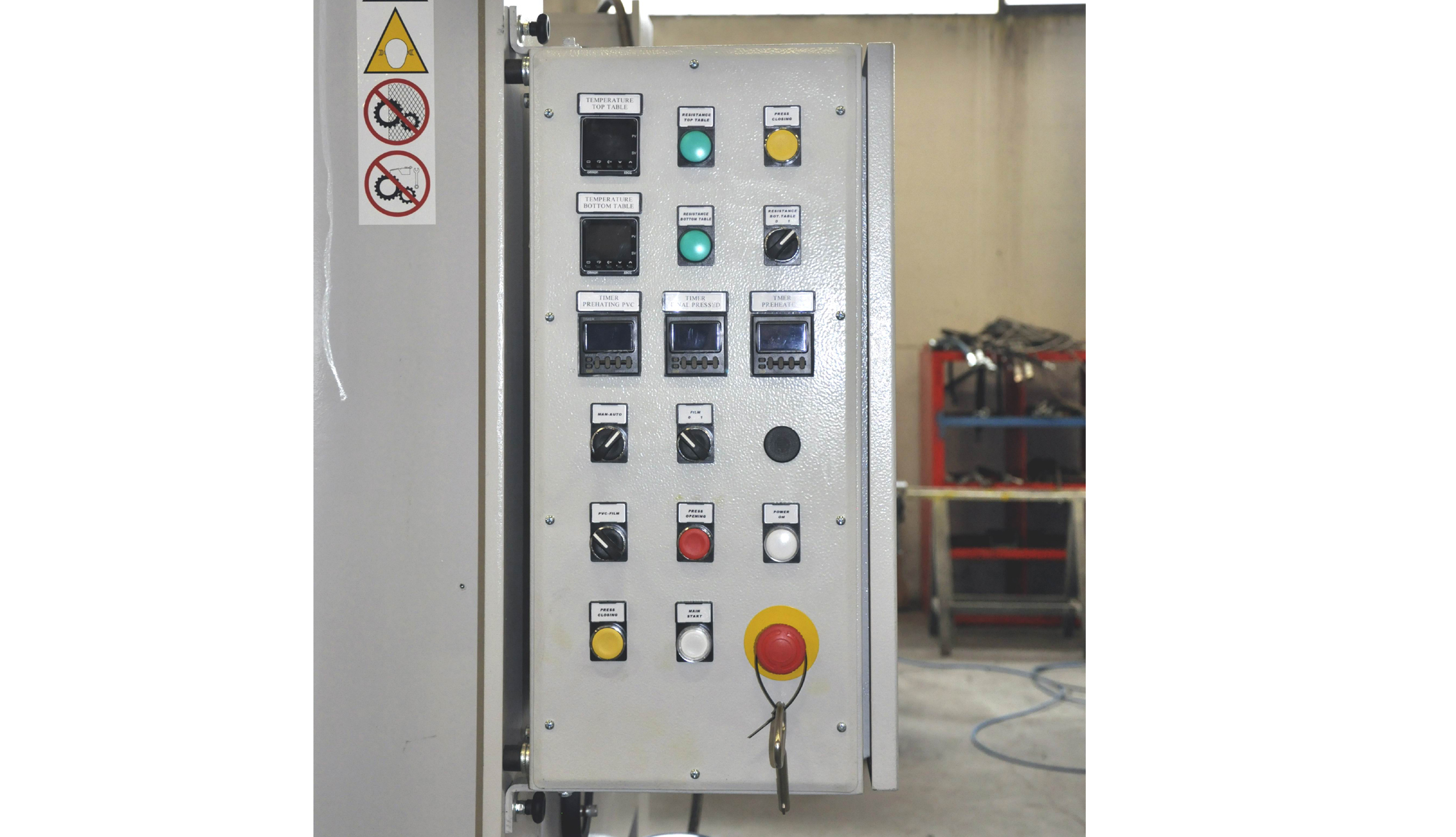

Electric control board with PLC to control the working cycle step by step:
- Hydraulic pressure on the platen and air pressure inside the pressurisation chamber
- Air temperature
- Automatic pressure reset device
- Time for automatic opening
- Time for gluing control
- Opening/closing pushbuttons
Optional:
- Manual cutter for PVC cut
- Spare membrane 25/14 30/14
- Loading/unloading tray 25/14 – 30/14
- Double loading/unloading tray 25/14 – 30/14
| Data | Value |
|---|---|
| Specific working pressure | 6 kg/cm2 |
| Cylinders diamter | Ø 85 mm |
| Stroke of cylinders | 450 mm |
| Useful working dimensions | 2350×1250 / 2850×1250 mm |
| Nr. of pressing cylinders | 12 |
| Total pressure | 200 / 240 ton |
