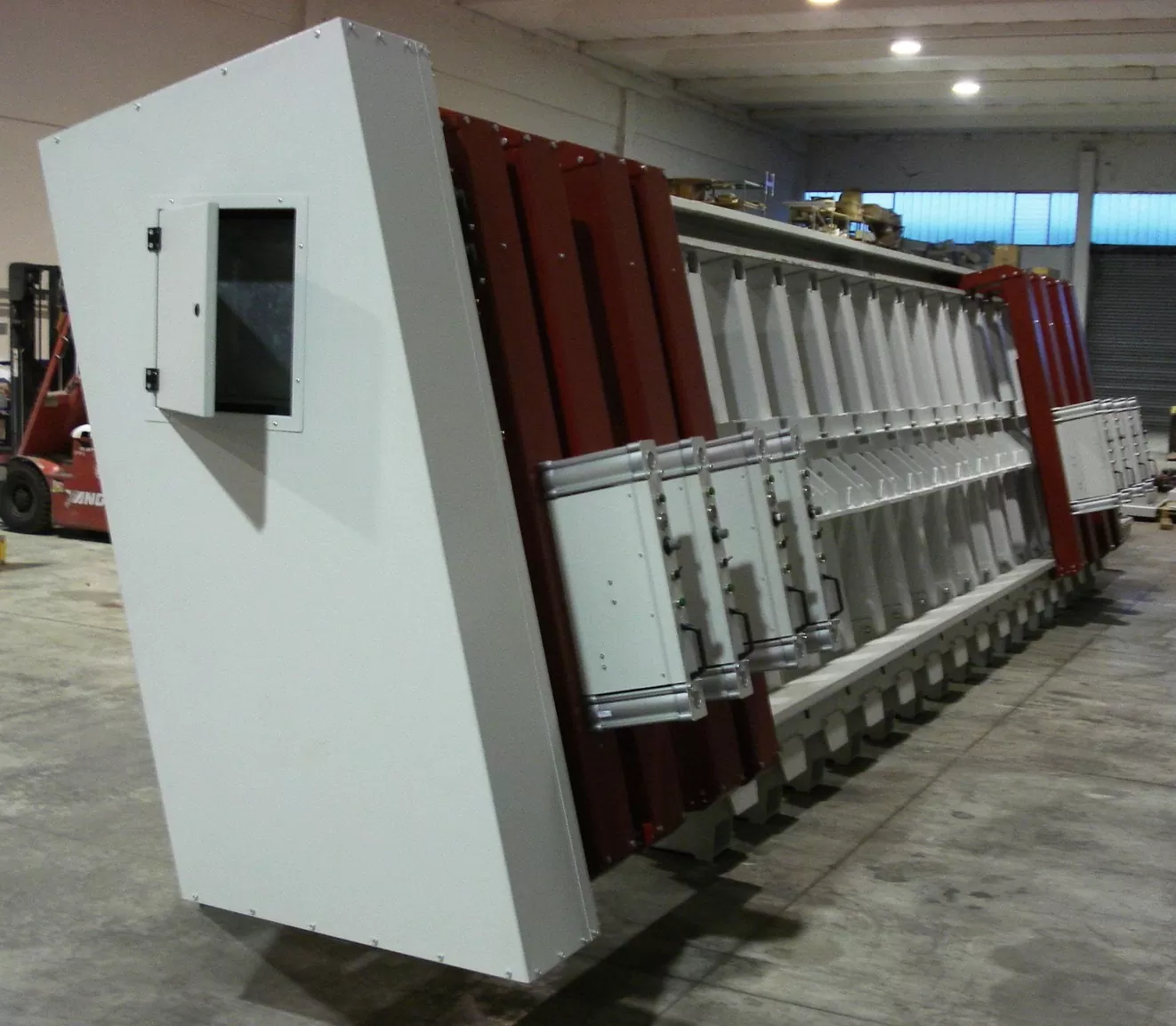

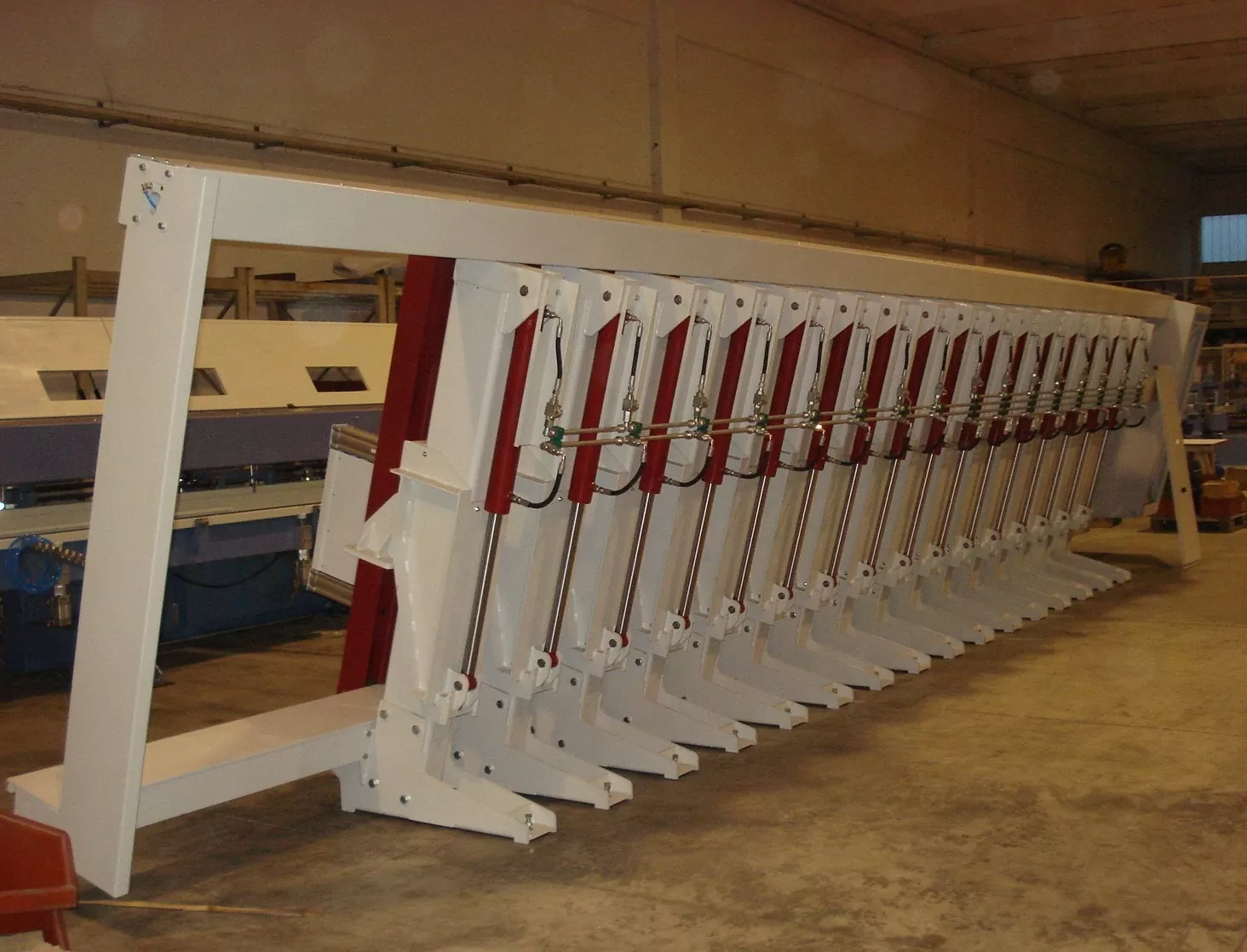

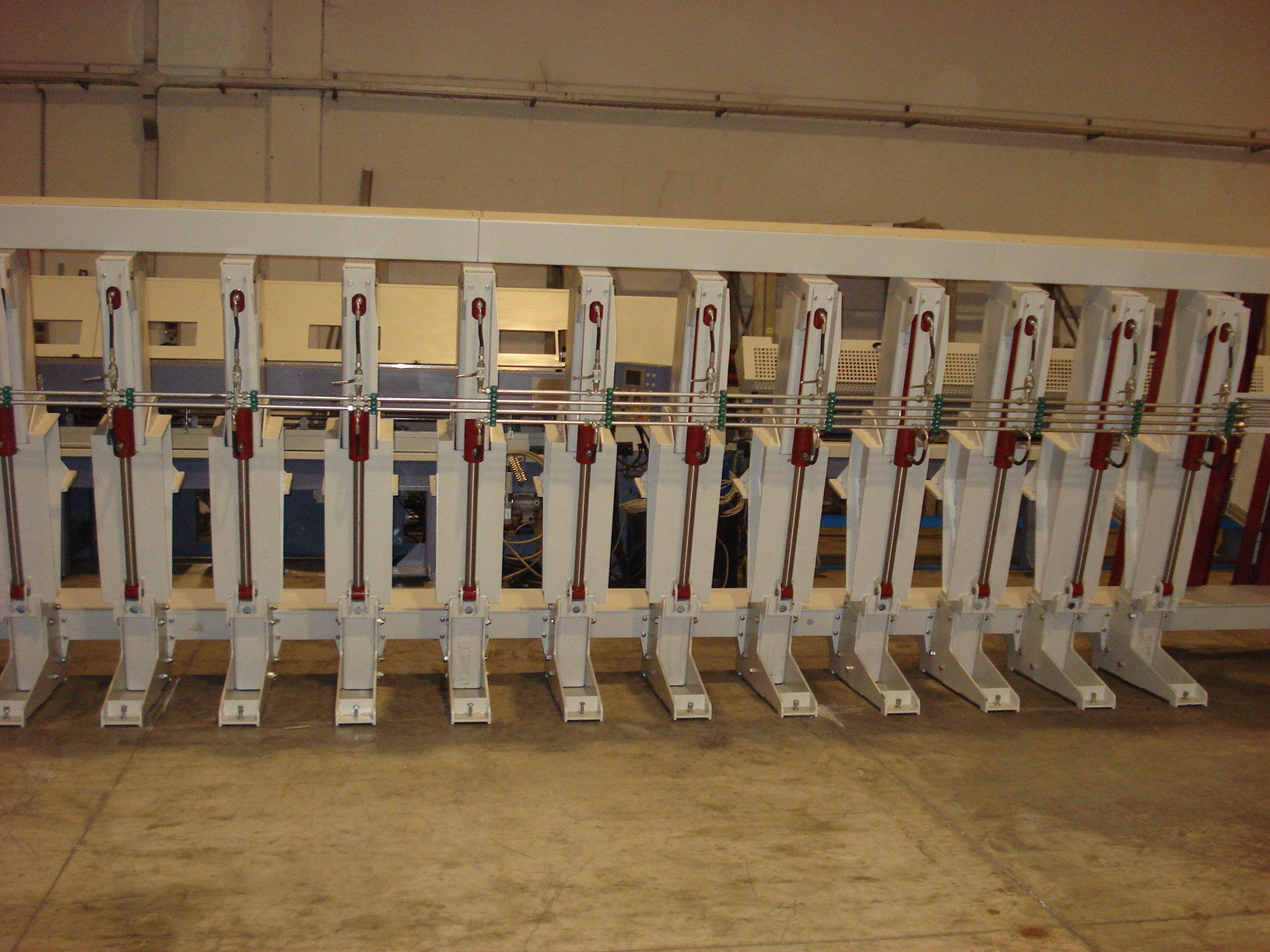

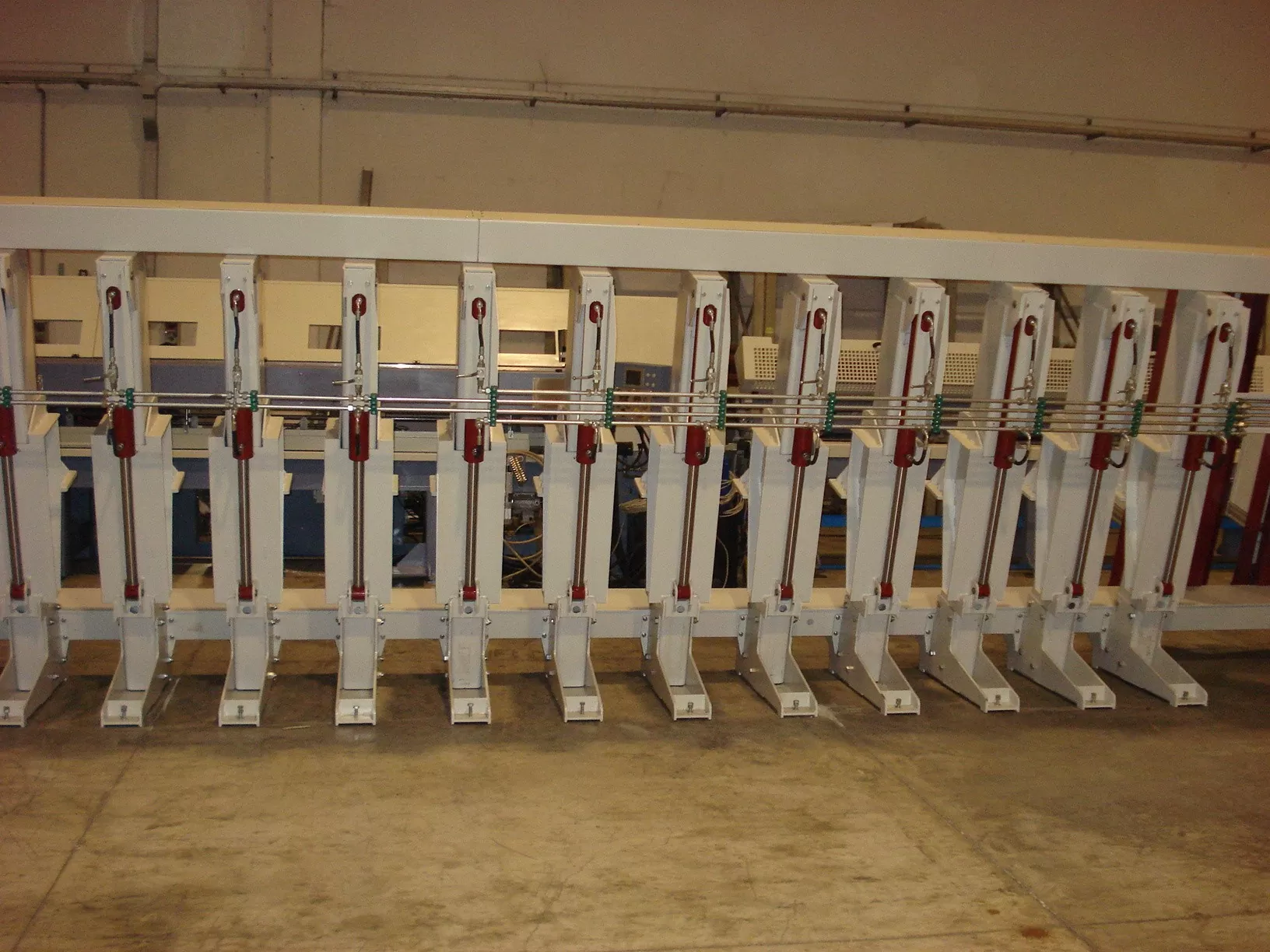

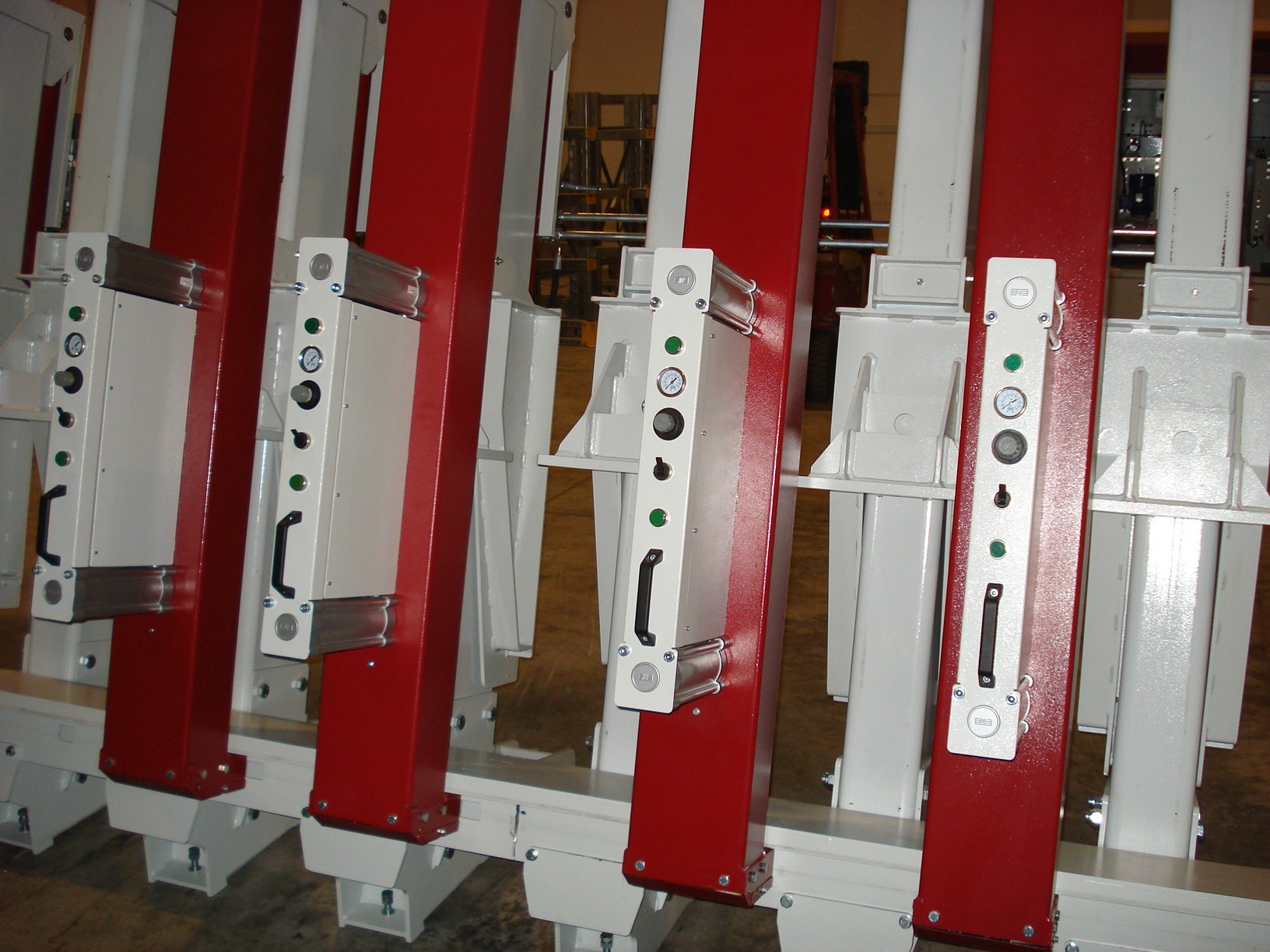

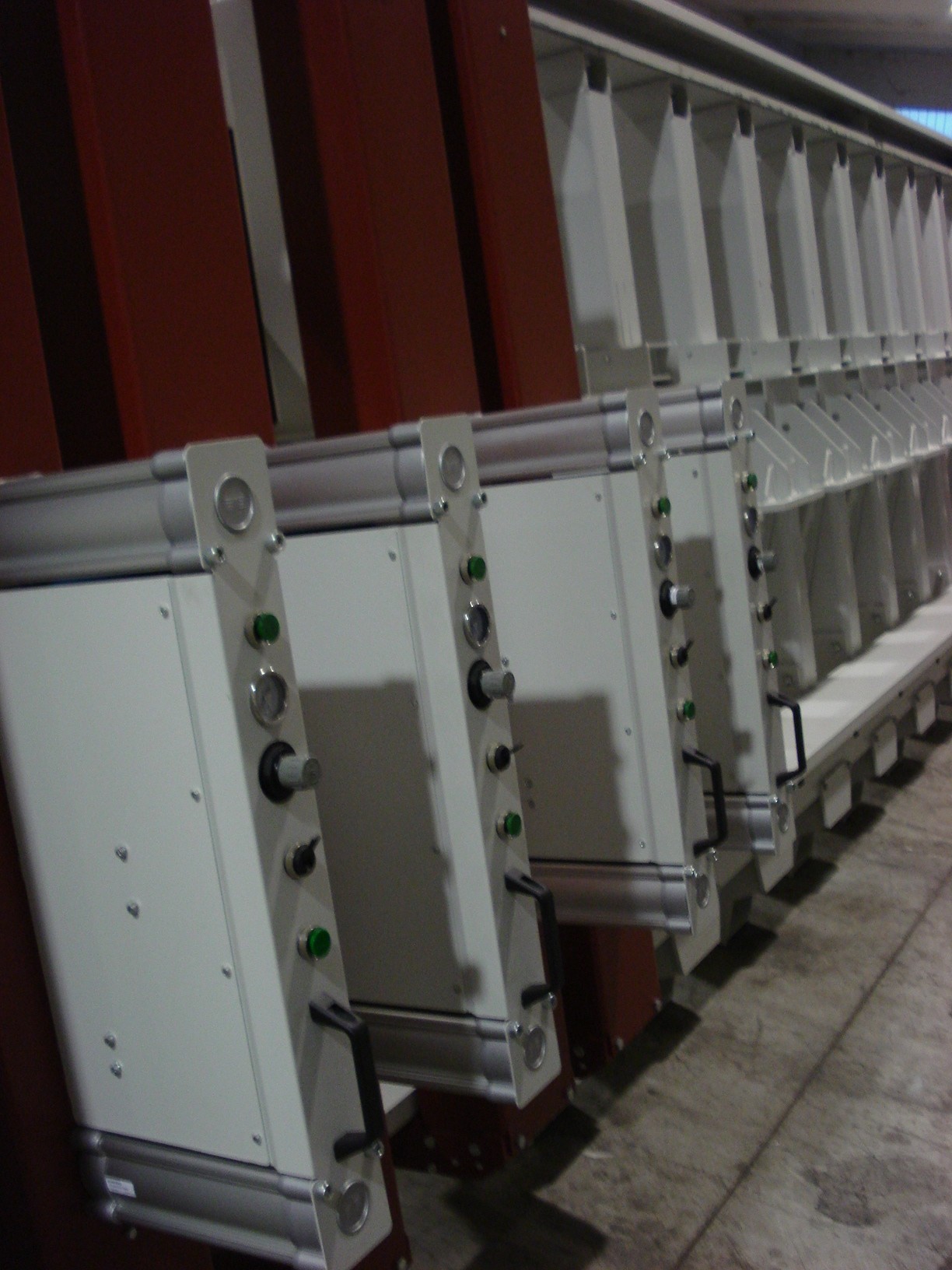

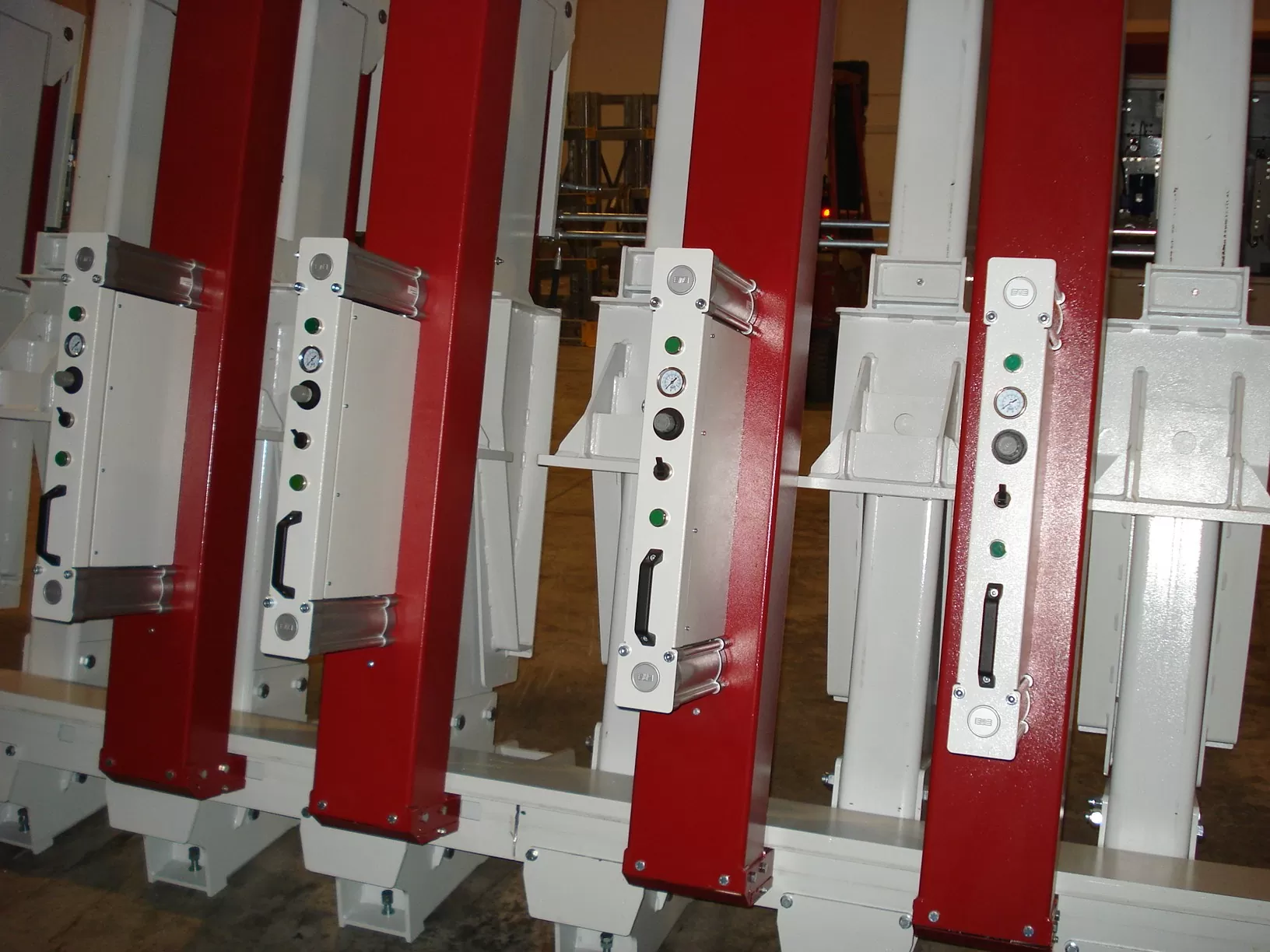

COLD GLUING PRESS “TRADEMAK” mod. “STL 820/120-20” for lamellas and glulam
For lamellas and glulam
Technical data
| Data | Value |
|---|---|
| Lenght | 11500 mm |
| Width | 1260 mm |
| Height | 2280 mm |
| Weight | 6000/7000 Kg |
| Max. working lenght | 8200 mm |
| Max. working width | 230 mm |
| Min. working width | 50 mm |
| Max. working height | 1200 mm |
| Min. working height | 600 mm |

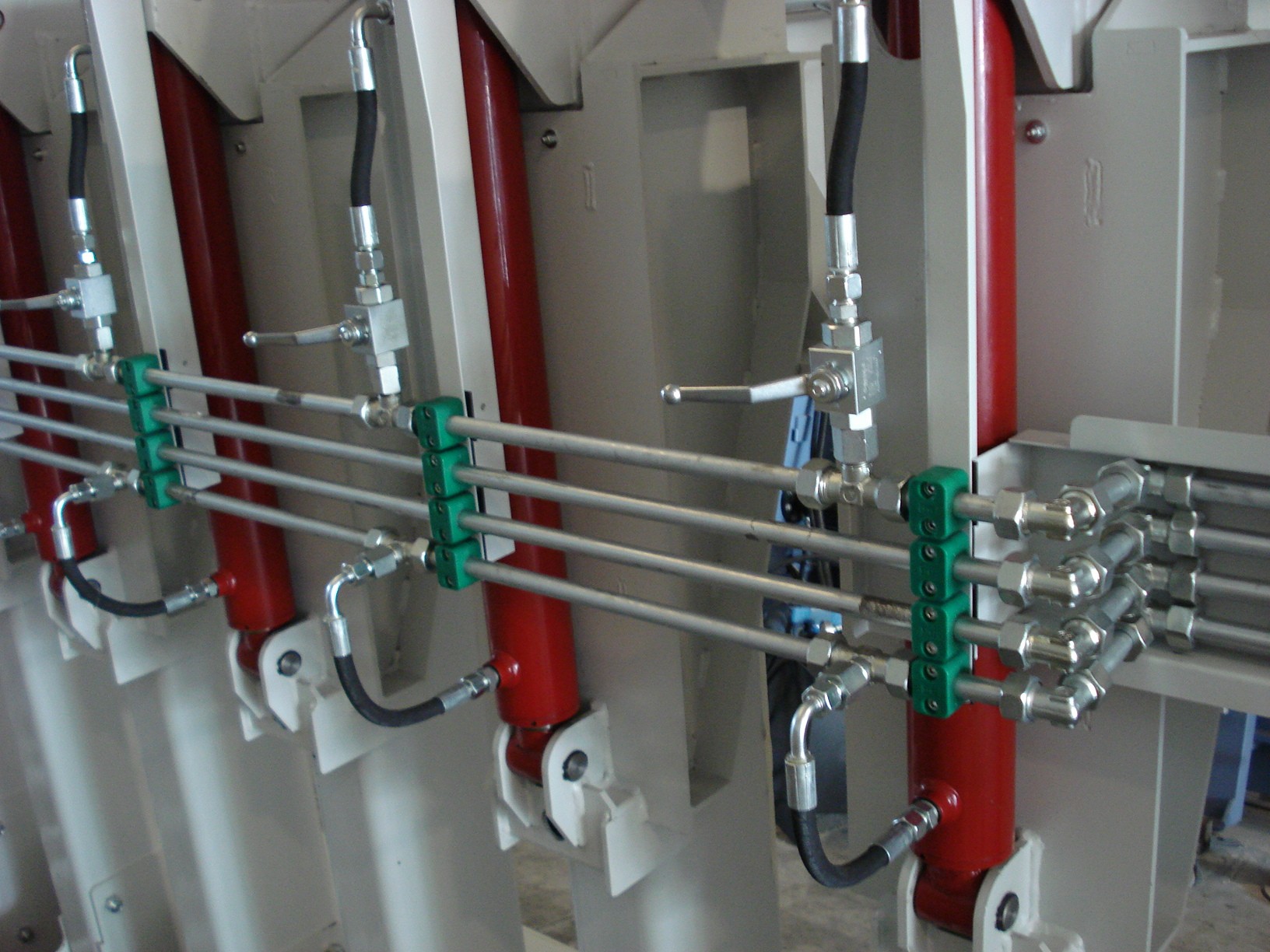

| Cylinder’s diameter | 80 Ø mm |
| Cylinder’s stroke | 600 mm |
| Thrust pressure per cylinder | 12 Kg/cmq |

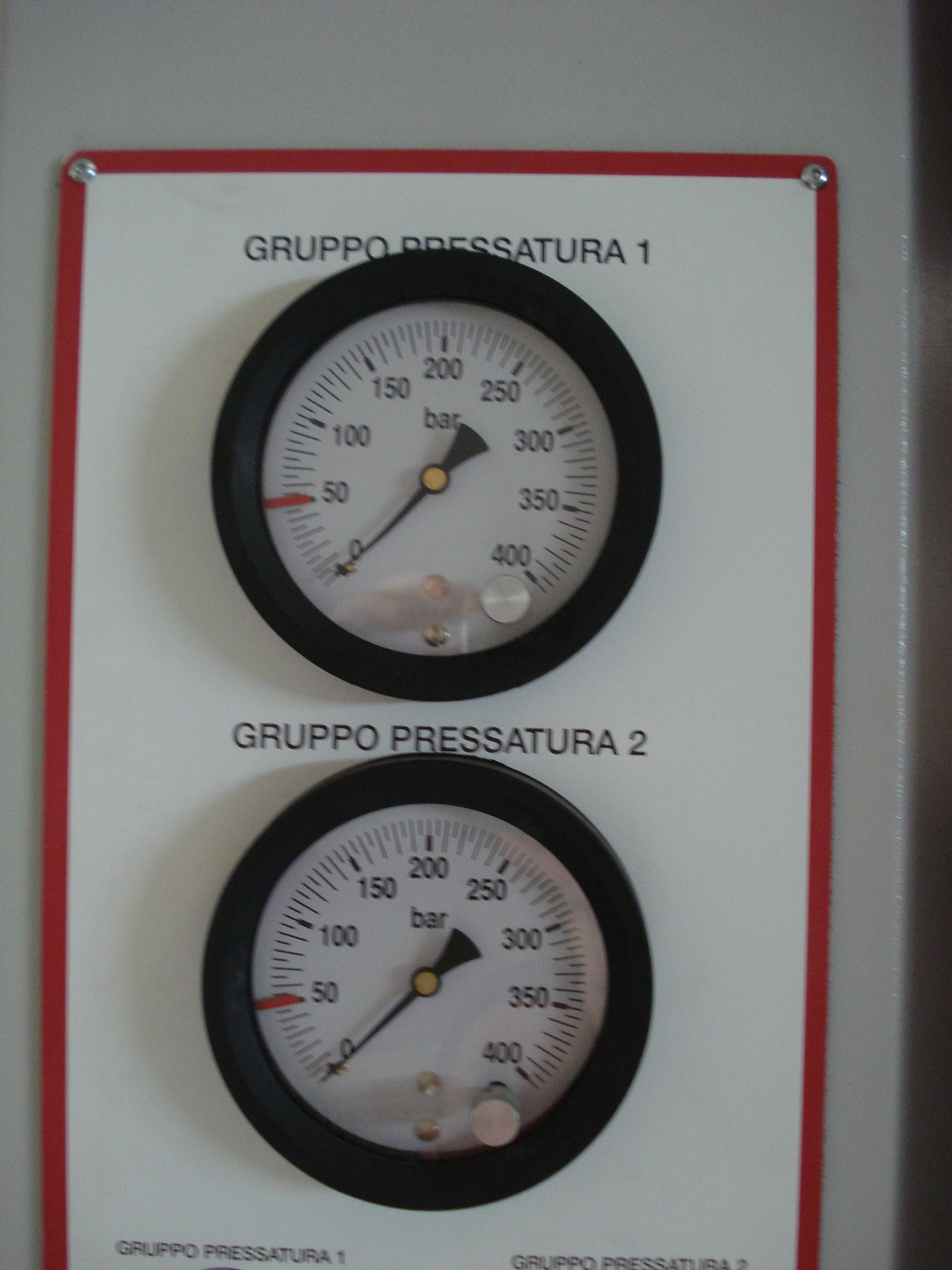

| Working pressure | 150 Bar |
| Total thrust | 120 (kg 120.000) Tons |
| Oleodinamic power unit | 3,5/4 Kw |

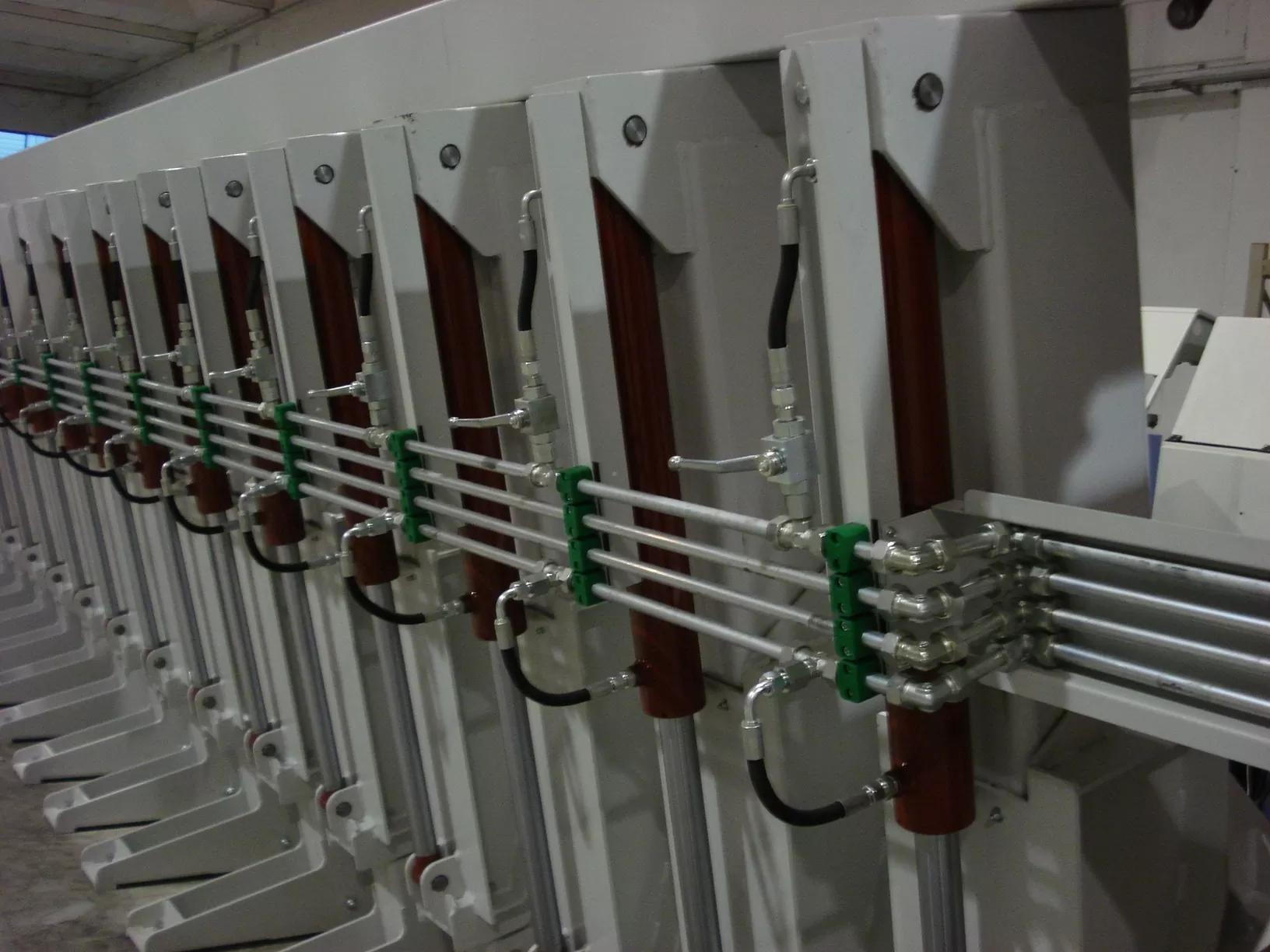

| N. vertical pistons | 16 nr. |
| Vertical pistons distance | 500 mm |
| Contrast crossbars | 8 nr. |
| Crossbars distance | 1000 mm |
| Adjustable vertical and horizontal pressure | ✔ |
