P.ONE

Its vast standard equipment includes a worktable of 2300 mm, pneumatic pressure onto the drive rollers, starting the motors by pressing the button, pneumatic pre-planing roller, motorised lifting, transmission of the rollers to the universal joints.

The technical features of P.ONE model allow staying on the vertical spindles (right and left spindles) on the 4th upper horizontal unit (thickness) shaped tools with a minimum diameter of 110 mm and a maximum of 180 mm, thus making possible a working capacity with a high degree of finishing.

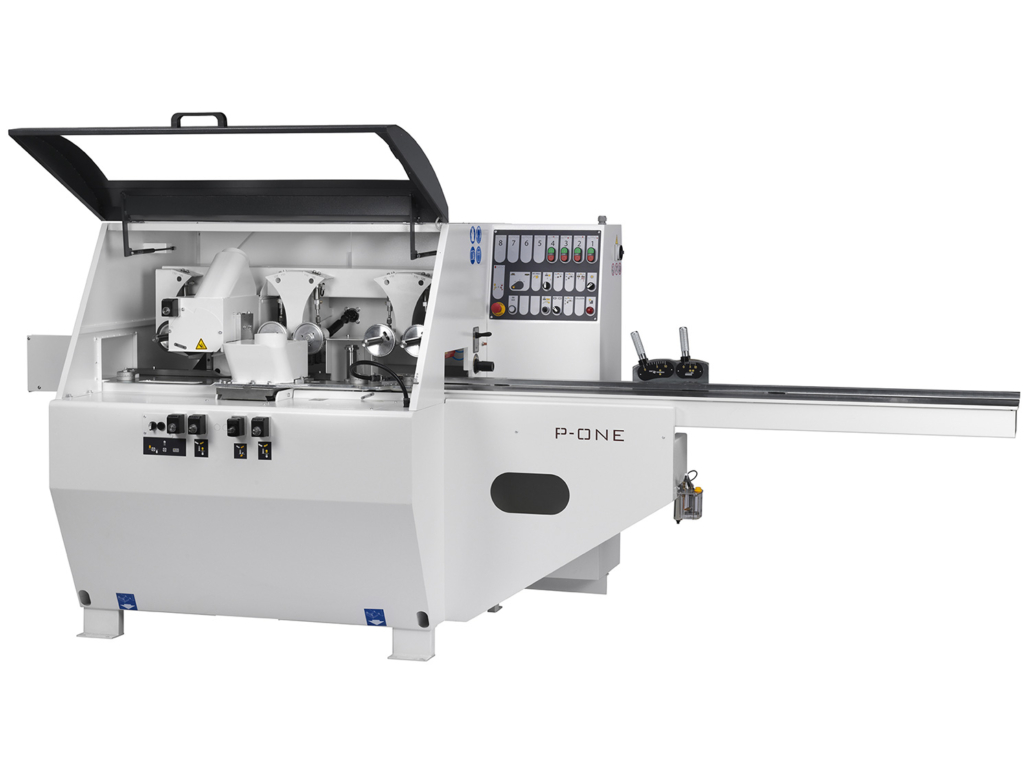

P.ONE 4 Model

4-spindle version with considerable opportunities for use, both as a wood moulder machine and as a 4 sided planer moulder, to perform excavations and more working operations on 3 sides of the wood.
Increasingly high-performance machine due to the wide range of its accessories available as standard.

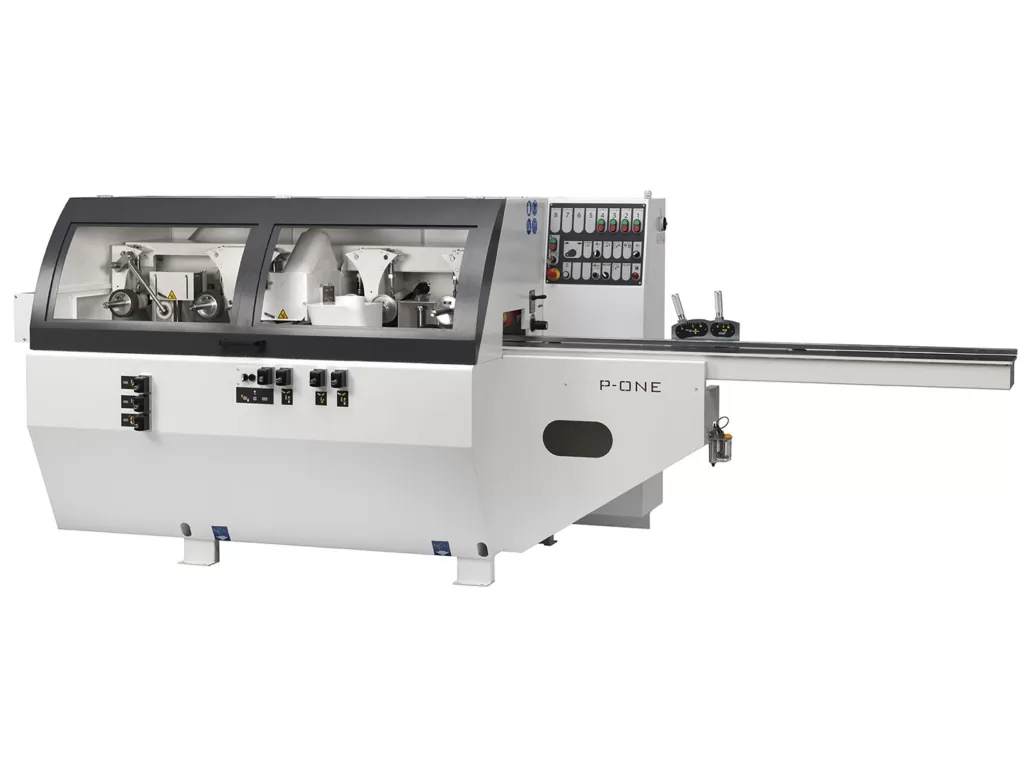

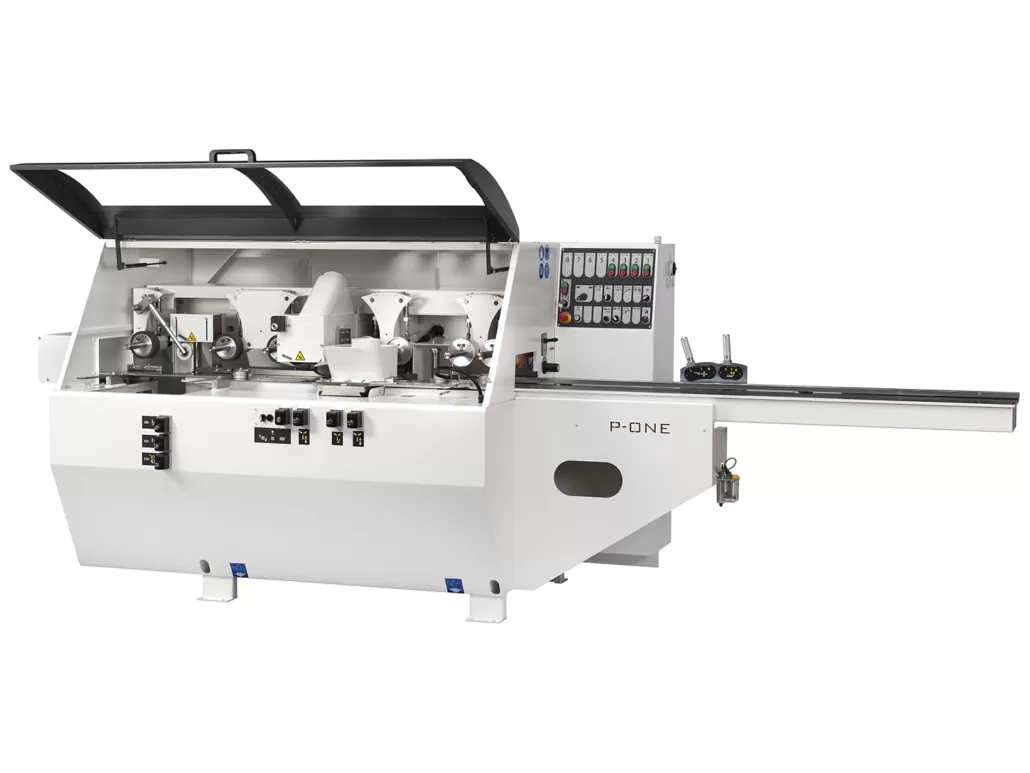

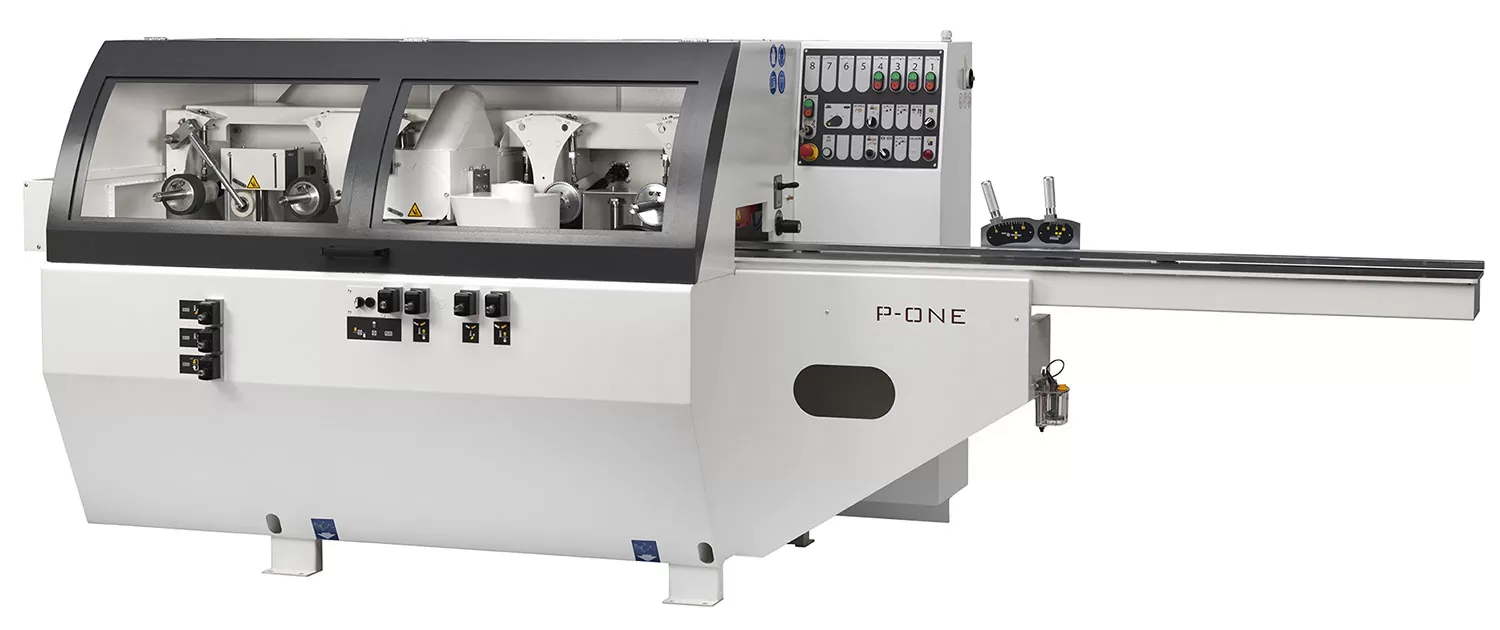

P.ONE 4+UNIVERSALE Model

4-spindle version plus a universal spindle that, as such, allows to the wood to be processed on one of the 4 sides, depending on the final product that the operator wants to obtain, thus making the machine extremely versatile in carrying out a waste range of working.
Complex profiles and excavations in the lower part of the wood could be made in a single step.

Advantages in Woodworking

• 100% made in Italy
• In-house manufacturing of the machine body
• Internal small parts produced on site
• Quality at very competitive prices
• Wood max 230×130 and motor independent for each spindle
• Feeding system by means cardan joints
• Axial stroke vertical spindles 40 mm
• Precise, safe and fast setting of the machine
• Maximum safety (according to the UE)
• Tests before delivery

Monobloc machine bed

Machine bed and top beam designed to ensure high rigidity and stability of the machinery.
Both are built with a monobloc iron structure, stabilized, sandblasted and painted with epoxy-polyester powder resistant to impact, light reflections and weather for durability.

Air blowers and atomisation of the worktable

Even for the more problematic categories of wood pieces correct handling will be ensured.
The system can be integrated with oil-air mixed atomisation (optional) to further improve wood pieces conveying.

Compact drive system

Thanks to the reduced thickness, these belts are very flexible and can be suitable even for heavy-duty performances.
Our pulleys are designed and manufactured with the most precision for a perfect fit with the belt grooves.
An optimal & highly silent synergy that does not transmit vibrations.

Performance

Tool diameter from 110mm minimum to 180mm maximum.
Axial stroke of 40mm on vertical spindles for the management of multiple profiles.

Tandem

Located in front of the right spindle including toothed rollers to reduce the distance between the standard wheels.
In this way, the machine can also draw and process short workpieces.

(optional)

100% Quality at 0 Km

The machines are entirely produced and assembled in Italy, every single piece is assembled in our headquarters in Rimini.
Our company has laser cutting, welding and NC machining departments for a 0 km product.
All the machines are scrupulously tested before shipment, on request tests are carried out with the customer’s cutter blocks for a machine already ready to use.

Universal head

It can be used on all sides and offers the possibility of having an additional shaft on each side.
Suitable for inclined milling. 360° flexibility.
Completely redesigned universal shaft by applying, also in this case, linear guides and recirculating ball sliding blocks on the vertical (Z) and horizontal (Y) handling.
Application that improves smoothness in axis movement without hindering accuracy.

Low power-consumption solutions

The drive is made up of a motor-gearbox to make the most of the motor’s kW.
A power transmission that is synonymous with innovative, power-saving solutions.

2 axis PLC

Touchscreen PLC to store recipes.
Icons for saving, opening and deleting recipes are easy and intuitive, very similar to that of PCs.
Automatic axis positioning and start of spindles motors at the touch of a button.

(optional)

3rd Spindle motorisation and electronic displays for width and height

As an alternative to the PLC we propose an economical system to speed up the machine setting by means of 2 buttons, 1 for rapid movement of the spindle, the other for positioning to the nearest tenth of a millimetre.

(optional)

Technical data

Data	Value
Max. Working width (with tool dia 125 mm)	230 mm
Min. Working width (with tool dia 125 mm)	25 mm
Max. Working height (with tool dia 125 mm)	130 mm
Min. Working height (with tool dia 125 mm)	8 mm
Feed speed with inverter	4/20 m/min
Spindle speed	6000 rpm
Toolholder spindle dia	ø 40 mm
Tool diameter for 1st horizontal spindle	ø 125 mm
Min/max moulding tools diameter for 2nd-3rd-4th spindle	ø 110 – 180 mm
Min/max universal spindle tools diameter (if it is present)	ø 110 – 180 mm
Max tool length for horizontal spindles	230 mm
Max tool length for vertical spindles	130 mm
Diameter and thickness pre-grooving cutter head	ø 145 – 12 mm
Work table length	2300 mm
Axial adjustment for vertical spindles under the worktable	40 mm
Planer spindle motor power	5,5 hp (4 kw)
Rh spindle motor power	5,5 hp (4 kw)
Lh spindle motor power	5,5 hp (4 kw)
Top horizontal spindle motor power	7,5 hp (5,5 kw)
Universal spindle motor (if it is present)	5,5 hp (4 kw)
Feed motor power	2 hp (1,5 kw)
Rise and fall motor power	0,5 hp (0,37 kw)
Feeding system by means of cardan joints, double chain drive and speed variator with inverter	standard
Pneumatic pressure on drive units	standard
Poly-v belts drive on all spindles, they bear the best efficiency of motors power	standard
Indipendent motor unit to each spindle	standard
Air blowers on the table to optimize wood pieces conveying	standard
Manual work table lubrication	standard
Pre-planer roller with pneumatic exclusion on control panel	standard
Direct motor start by light push-buttons from control panel	standard

Optional

Min working width 15 mm	Additional drive spindle extension in front of 3rd unit, complete with gear roller 45mm
Motorized adjustment 3rd spindle	Short piece device (tandem)
Display with leds	Automatic worktable lubrication
2-axis plc	Centralized lubrication of guides
Set of planing cutter heads	Increased motor power top spindle

•
•
•
•
