Planer and 4-sided planer P.ONE BASIC

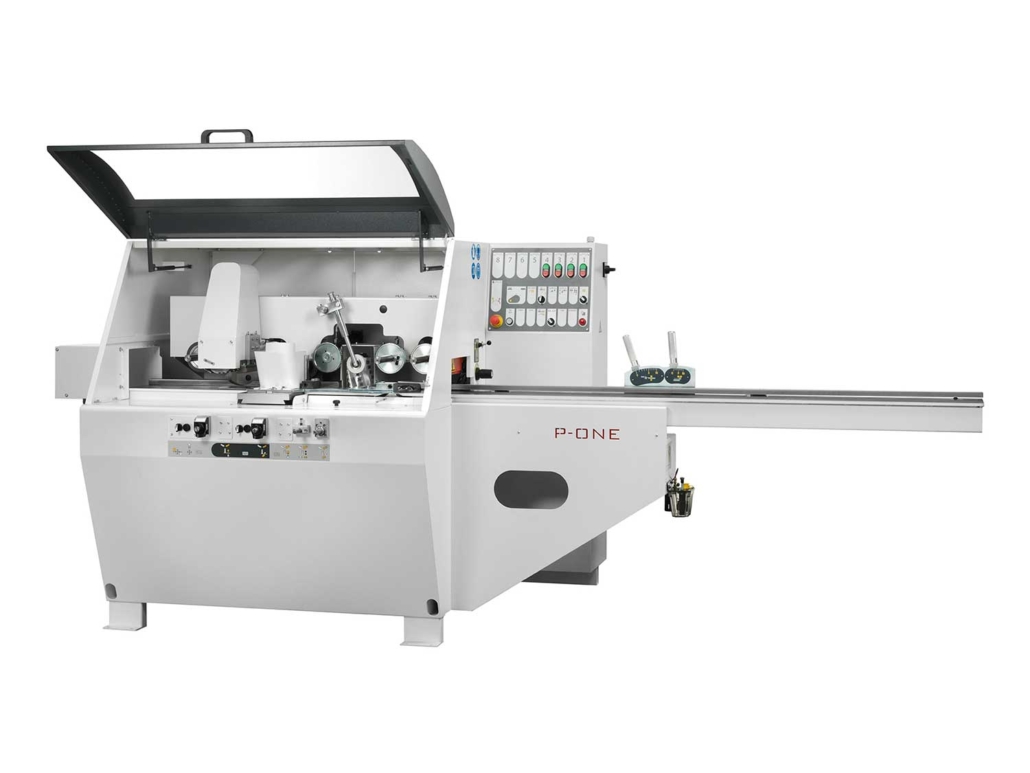

P.ONE BASIC is an automatic 4-sided planer with 4 spindles, compact and robust, able to work wood of up to 230 mm in width and 130 mm in height.

Ask about product

It is ideal for joineries, because of its excellent performance with fast and accurate processing and the best ratio between quality and price.

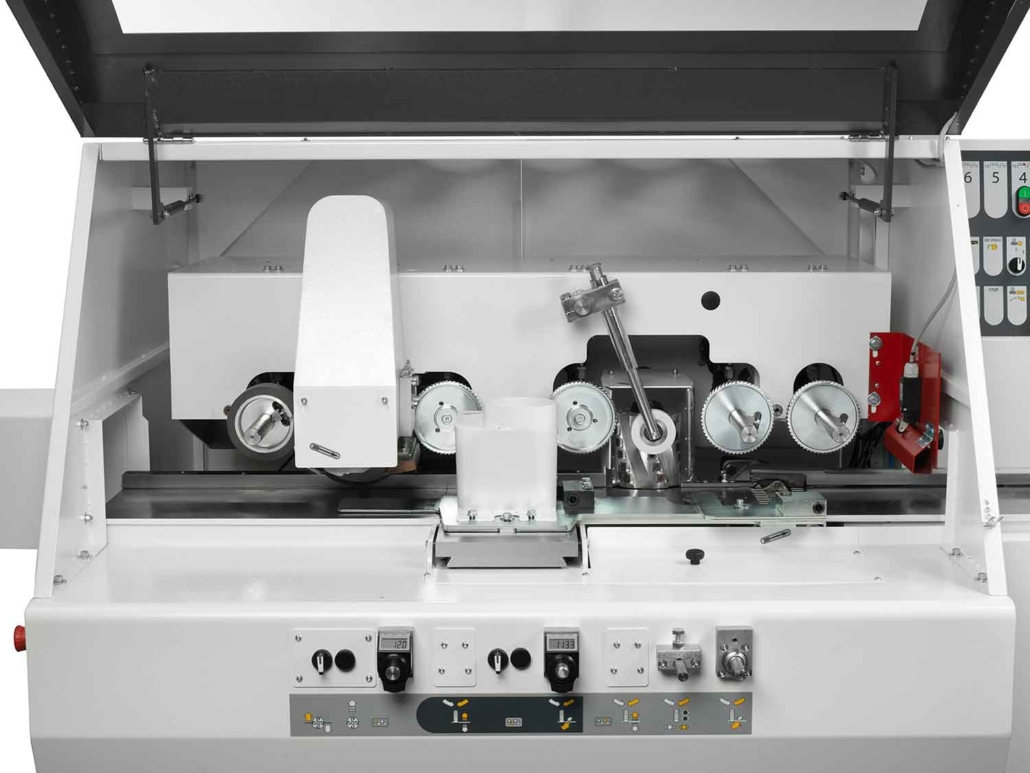

Each operating spindle is driven by an independent motor and the starting is made through a start/stop push-button panel. The drive rollers use robust and reliable universal joints and is equipped with pneumatic pressure cylinders.

For straightening and planing operations on wood purchased from joiner’s workshops

P.ONE BASIC is extremely useful in straightening and planing operations required on wood purchased from joineries.

When the wood is crooked and/or raw, the machine makes it a perfect board and therefore suitable for subsequent production processes.
It meets all the safety requirements of the European Union.

Advantages in Woodworking

  • 100% made in Italy
  • In-house manufacturing of the machine body
  • Internal small parts produced on site
  • Quality at very competitive prices
  • Wood max 230×130 and motor independent for each spindle
  • Feeding system by means cardan joints
  • Precise, safe and fast setting of the machine
  • Maximum safety (according to the UE)
  • Tests before delivery

Pneumatic system

Perfect straightening requires synergy of many mechanical factors combined with electronics and pneumatics.
The P.ONE Basic is built with each of these elements in mind.
The drive units are kept under pressure by pneumatic pistons and the inlet roller is designed with a pneumatic ON-OFF exclusion so that from the operator’s position it is possible to decide whether the machine should straighten or plan.
The latter can be requested with automatic exclusion.

Less dust is equivalent to energy saving

Suction system designed for a long-lasting machine.
Hoods have been designed for a constant and easy wood chips flow, thus significantly reducing power consumption.

Compact drive system

Thanks to the reduced thickness, these belts are very flexible and can be suitable even for heavy-duty performances.
Our pulleys are designed and manufactured with the utmost precision for a perfect fit with the belt grooves.
An optimal & highly silent synergy that does not transmit vibrations.

Independent motor

Each operating unit is equipped with its own motor.
Possibility of installing a motor that adapts to the machining operations required.

Low power-consumption solutions

The drive is made up of a motor-gearbox to make the most of the motor’s kW: a power transmission that is synonymous with innovative, power-saving solutions.

Monobloc machine bed

Machine bed and top beam designed to ensure high rigidity and stability of the machinery.
Both are built with a monobloc iron structure, stabilized, sandblasted and painted with epoxy-polyester powder resistant to impact, light reflections and weather for durability.

Air blowers and atomisation of the worktable

Even for the more problematic categories of wood pieces correct handling will be ensured.
The system can be integrated with oil-air mixed atomisation (optional) to further improve wood pieces conveying.

2 axis PLC

Touchscreen PLC to store recipes.
Icons for saving, opening and deleting recipes are easy and intuitive, very similar to that of PCs.
Automatic axis positioning and start of spindles motors at the touch of a button.

(optional)

Technical data
DataValue
The maximum working sections230mm wide and 130mm high
The minimum working sections25mm wide (15mm opt) and 8mm high
Max. Working width (with tool dia 125 mm)230 mm
Min. Working width (with tool dia 125 mm)25 mm
Max. Working height (with tool dia 125 mm)130 mm
Min. Working height (with tool dia 125 mm)8 mm
Feed speed7/14 m/min
Spindle speed6000 rpm
Toolholder spindle diaø 40 mm
Diameter and length tools: Horizontal spindleø 125 – 230 mm
Diameter and length tools: Vertical spindleø 125 – 130 mm
Diameter and thickness pre-grooving cutter headø 145 – 12 mm
Work table length2300 mm
Planer spindle motor power5,5 hp (4 kw)
Rh spindle motor power5,5 hp (4 kw)
Lh spindle motor power5,5 hp (4 kw)
Top horizontal spindle motor power5,5 hp (4 kw)
Feed motor power1,4-2 hp (1,1-1,5 kw)
Rise and fall motor power0,5 hp (0,37 kw)
Feed system by double chain and cardan jointsstandard
Pneumatic pressure on drive unitsstandard
Poly-v belts drive on all spindles, they bear the best efficiency of motors powerstandard
Each spindle is equipped with an independent motor unitstandard
Air blowers on the table to optimize wood pieces conveyingstandard
Manual work table lubricationstandard
Pre-planer roller with pneumatic exclusion on control panelstandard
Direct motor start by light push-buttons from control panelstandard
Optional
Min working width 15 mmAdditional drive spindle extension in front of 3rd unit, complete with gear roller 45 mm
Feed speed with inverter 4-20mt/1’Motorized adjustment 3rd unit
Short piece device (tandem)Display with leds
Automatic work table lubrication2-axis plc
Increased motor power top spindleSet of planing cutter heads
