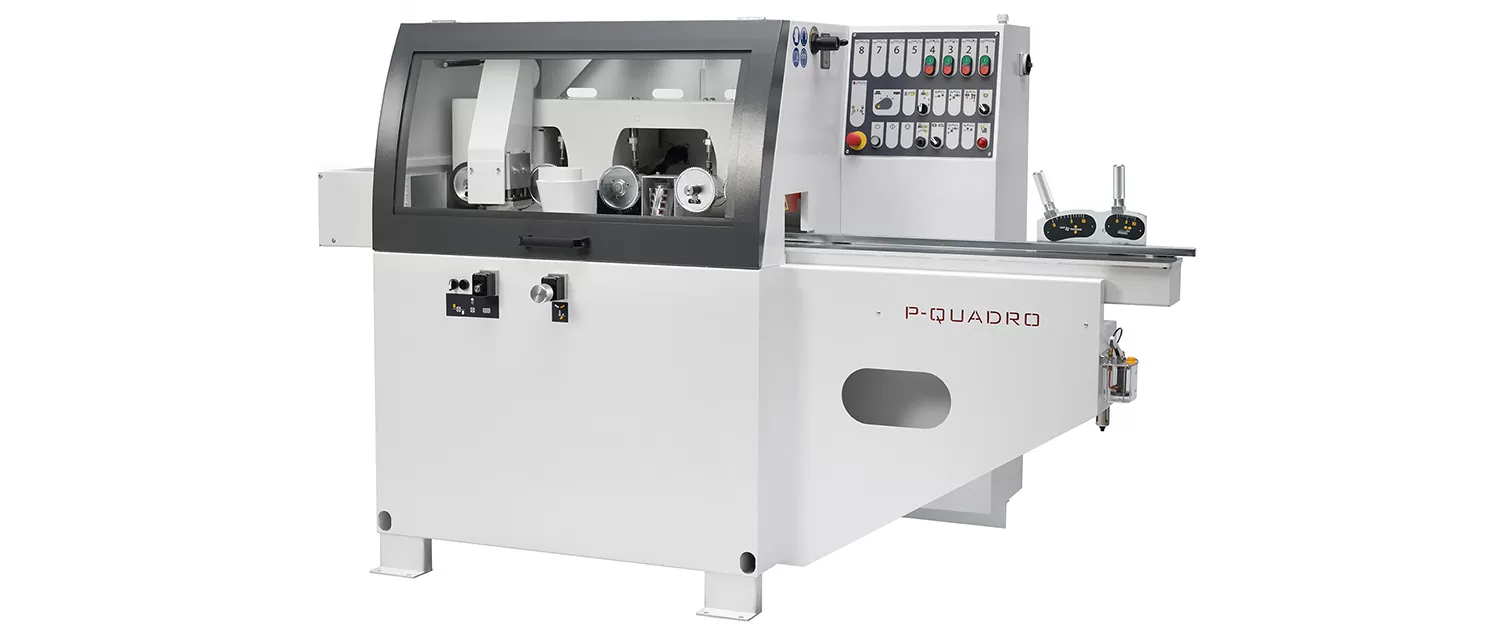

Planer and four sided planer P.QUADRO 4

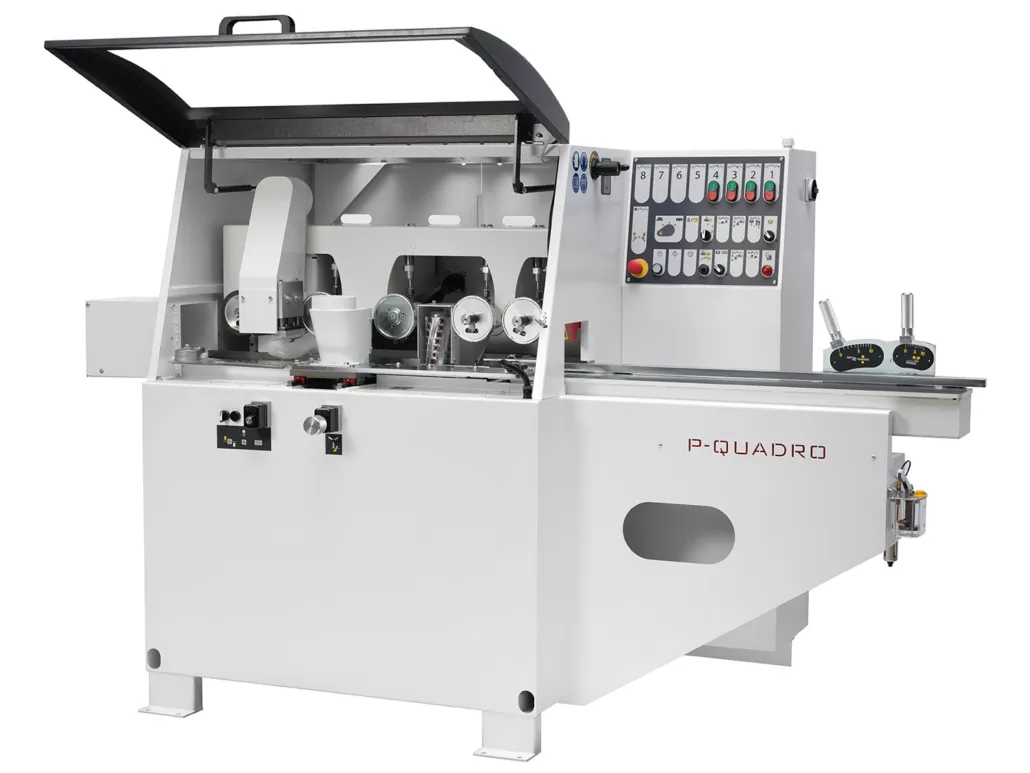

P.QUADRO 4 is a compact and efficient straightener particularly suitable for small joineries, with CE marking and auto braking motors.
Smallest but ultra-modern in mechanics’ concept

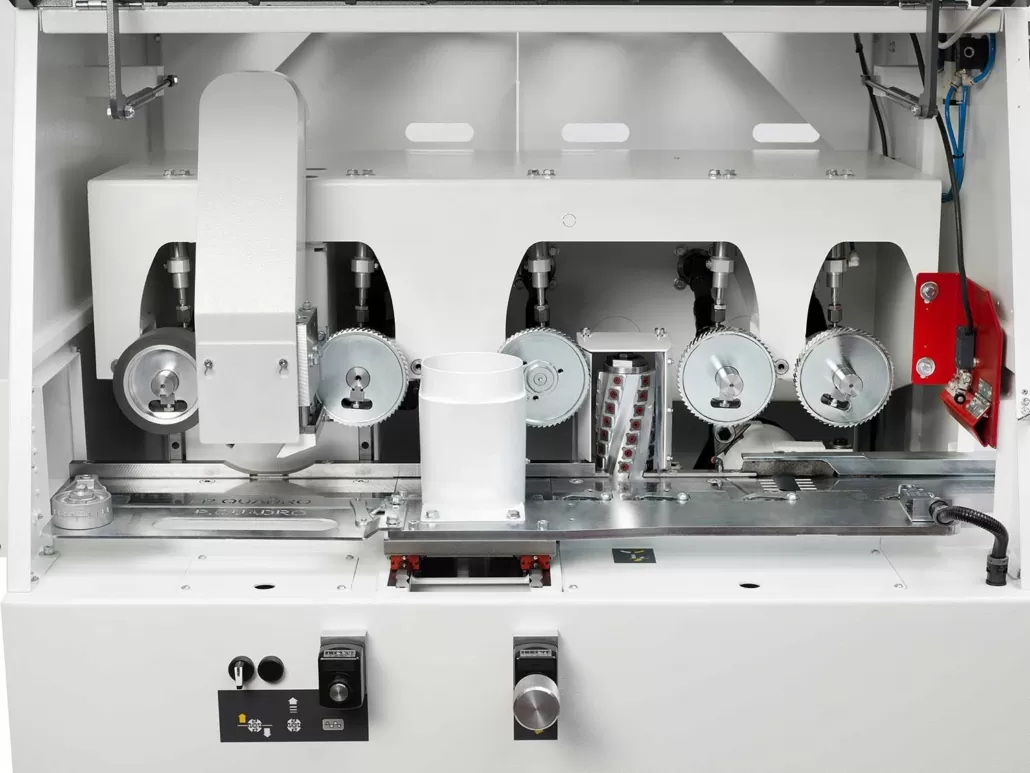

The machine is equipped with Poly-V belts to ensure maximum motor efficiency, air blowers for a better smoothness of the wood that can be further helped by a drop by drop system that mixes air and oil for resinous and wet woods.
The machine P.QUADRO 4, with 4 spindles, ensures a perfect straightening of the wood without vibrations.
Advantages in Woodworking
- 100% made in Italy
- Machine completely produced and assembled in Italy
- Quality at very competetive prices
- Compact structure
- Working piece 250 mm with cardan joints for feed system
- Dedicated motor for each working group
- Precise and fast setting of the machine
- Maximum safety (according to the UE)
- Tests before delivery
Space saving
Innovation and its compactness are the characteristics that make it unique.
P.QUADRO 4 can be moved by pallet truck, allowing easy handling within the factory.
Compact drive system
Thanks to the reduced thickness, these belts are very flexible and can be suitable even for heavy-duty performances.
Our pulleys are designed and manufactured with the utmost precision for a perfect fit with the belt grooves.
An optimal & highly silent synergy that does not transmit vibrations.
Less dust is equivalent to energy saving
Suction system designed for a long-lasting machine.
Hoods have been designed for a constant and easy wood chips flow, thus significantly reducing power consumption.
Low power-consumption solutions
The drive is made up of a motor-gearbox to make the most of the motor’s kW: a power transmission that is synonymous with innovative, power-saving solutions.
Feed speed by inverter.
Independent motor
Each operating unit is equipped with its own motor.
Possibility of installing a motor that adapts to the machining operations required.
Air blowers and atomisation of the worktable
Even for the more problematic categories of wood pieces correct handling will be ensured.
The system can be integrated with oil-air mixed atomisation to further improve wood pieces conveying.
Monobloc machine bed
Machine bed and top beam designed to ensure high rigidity and stability of the machinery.
Both are built with a monobloc iron structure, stabilized, sandblasted and painted with epoxy-polyester powder resistant to impact, light reflections and weather for durability.
| Data | Value |
|---|---|
| The maximum working sections | 130mm wide and 130mm high |
| The minimum working sections | 25mm wide (15mm opt) and 8mm high |
| The machine can process single pieces | of 250 mm length |
| Planer spindle motor power (1st unit) | kW 4 (HP 5,5) |
| Rh spindle motor power (2nd unit) | kW 4 (HP 5,5) |
| Lh spindle motor power (3rd unit) | kw 4 (hp 5,5) |
| Top horizontal spindle motor power (4th unit) | kw 4 (hp 5,5) |
| Feed motor power (with feed speed by inverter) | kw 0,75 (hp 1) |
| Rise and fall motor power | kw 0,37 (hp 0,5) |
| Feed speed | from 3,5 to 16 mt/min |
| Max. Working width (with tool dia 80 mm) | 130 mm |
| Min. Working width (with tool dia 80 mm) | 25 mm |
| Max. Working height (with tool dia 80 mm) | 130 mm |
| Min. Working height (with tool dia 80 mm) | 8 mm |
| Min. workpiece length (single piece) | 250 mm |
| Spindle speed | 6000 rotations per minute |
| Feed roller dia (toothed and rubber-coated) | 130 mm |
| Toolholder spindle dia | 35 mm |
| Planing tools dimensions (horizontal) | 80 x 140 mm |
| Planing tools dimensions (vertical) | 80 x 140 mm |
| Infeed table length | 1260 mm |
| Feeding system by means of cardan joints, double chain and speed variator with inverter | standard-type |
| Poly-v belts drive on all spindles, they bear the best efficiency of motors power | standard-type |
| Indipendent motor unit to each spindle | standard-type |
| Air blowers on the table to optimize wood pieces conveying | standard-type |
| Manual work table lubrication | standard-type |
| Pre-planer roller with pneumatic exclusion on control panel | standard-type |
| Direct motor start by light push-buttons from control panel | standard-type |
| Pneumatic pressure on drive units | standard-type |
| Set of planing cutter heads | standard-type |
| Additional drive spindle extension in front of 3rd unit, complete with gear roller 45mm | Increased motors powers |
| Idle roller in front of RH spindle | 2-axis PLC |
