Tel: +44 (0) 197 825 4472CZ-1/U mobile

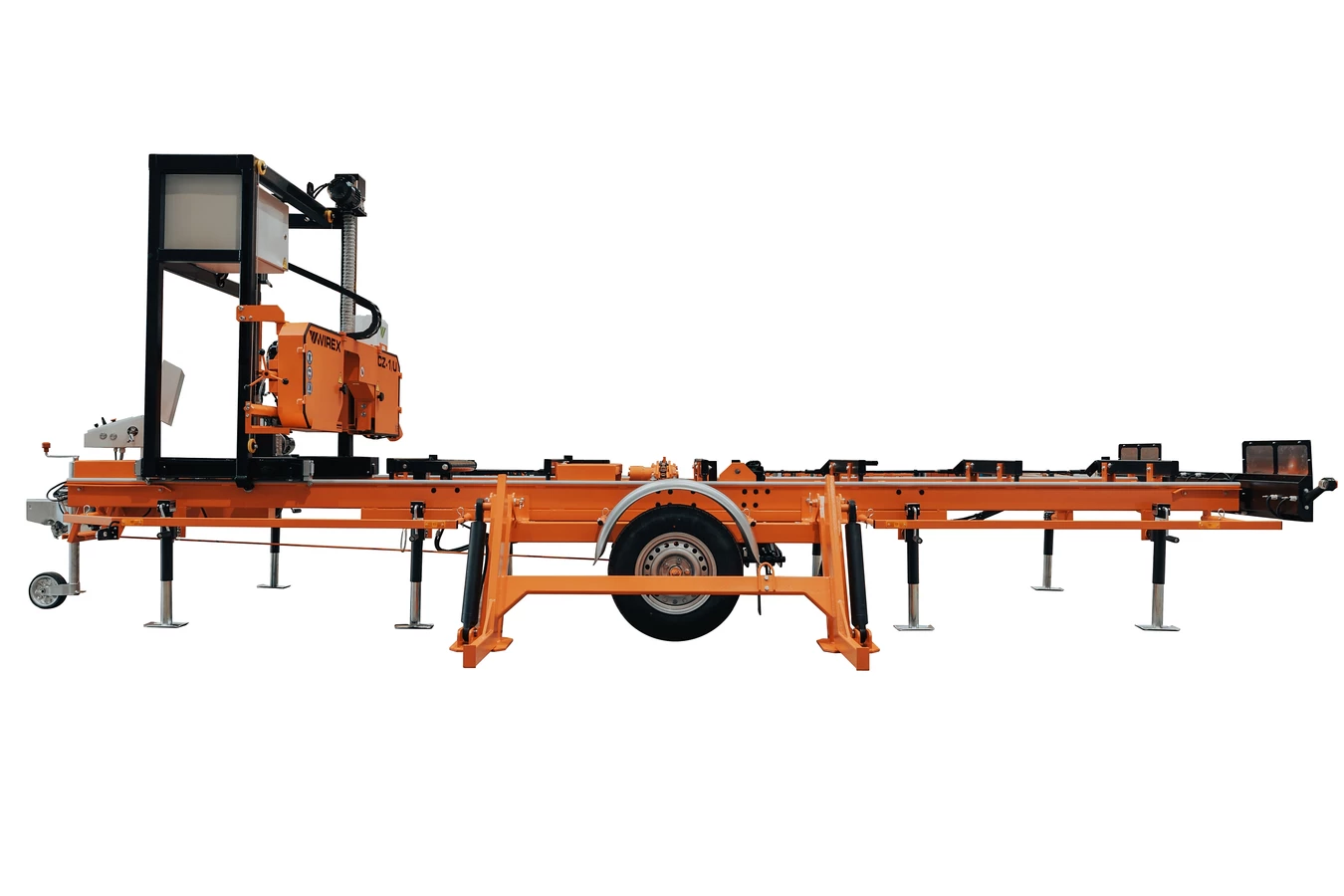

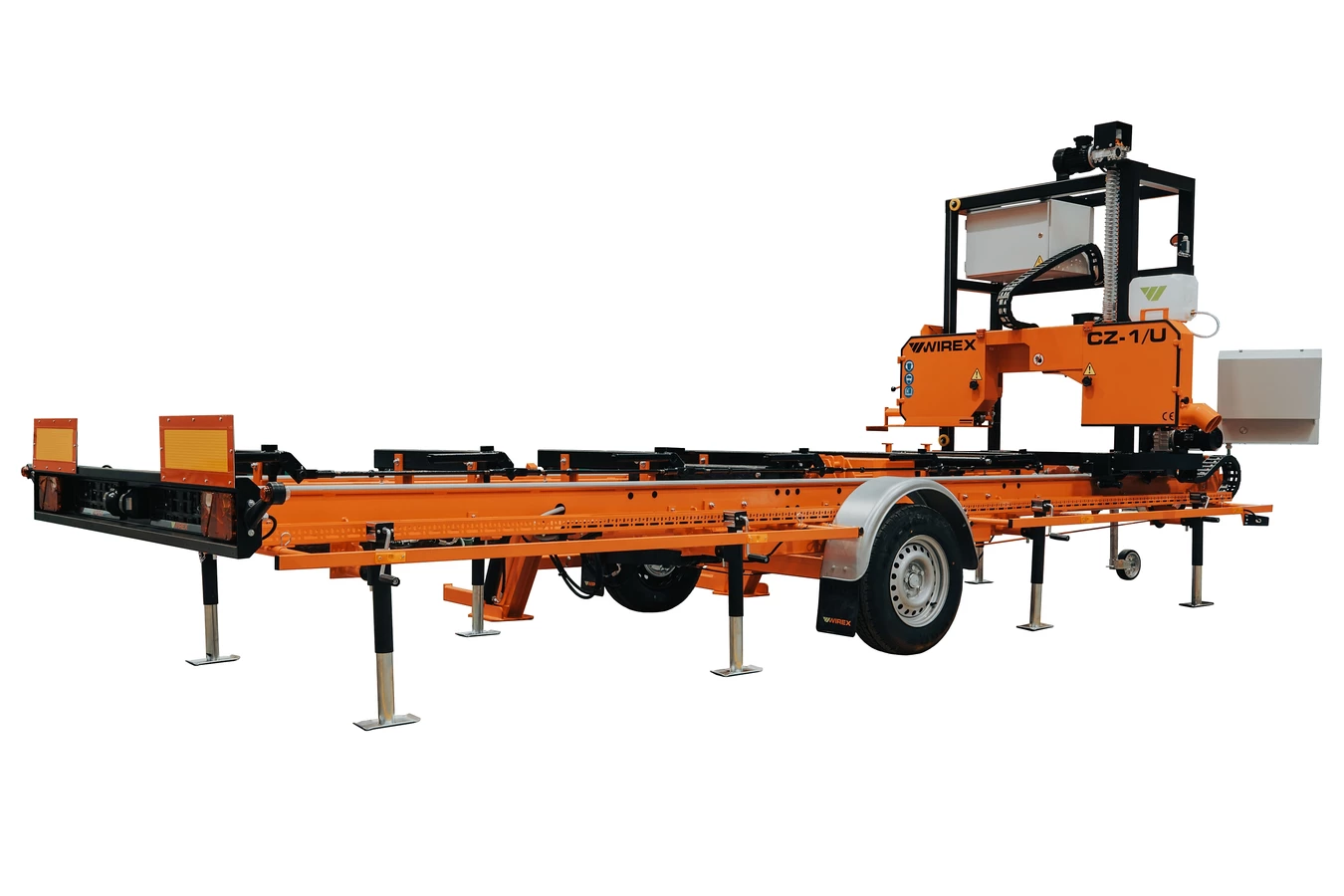

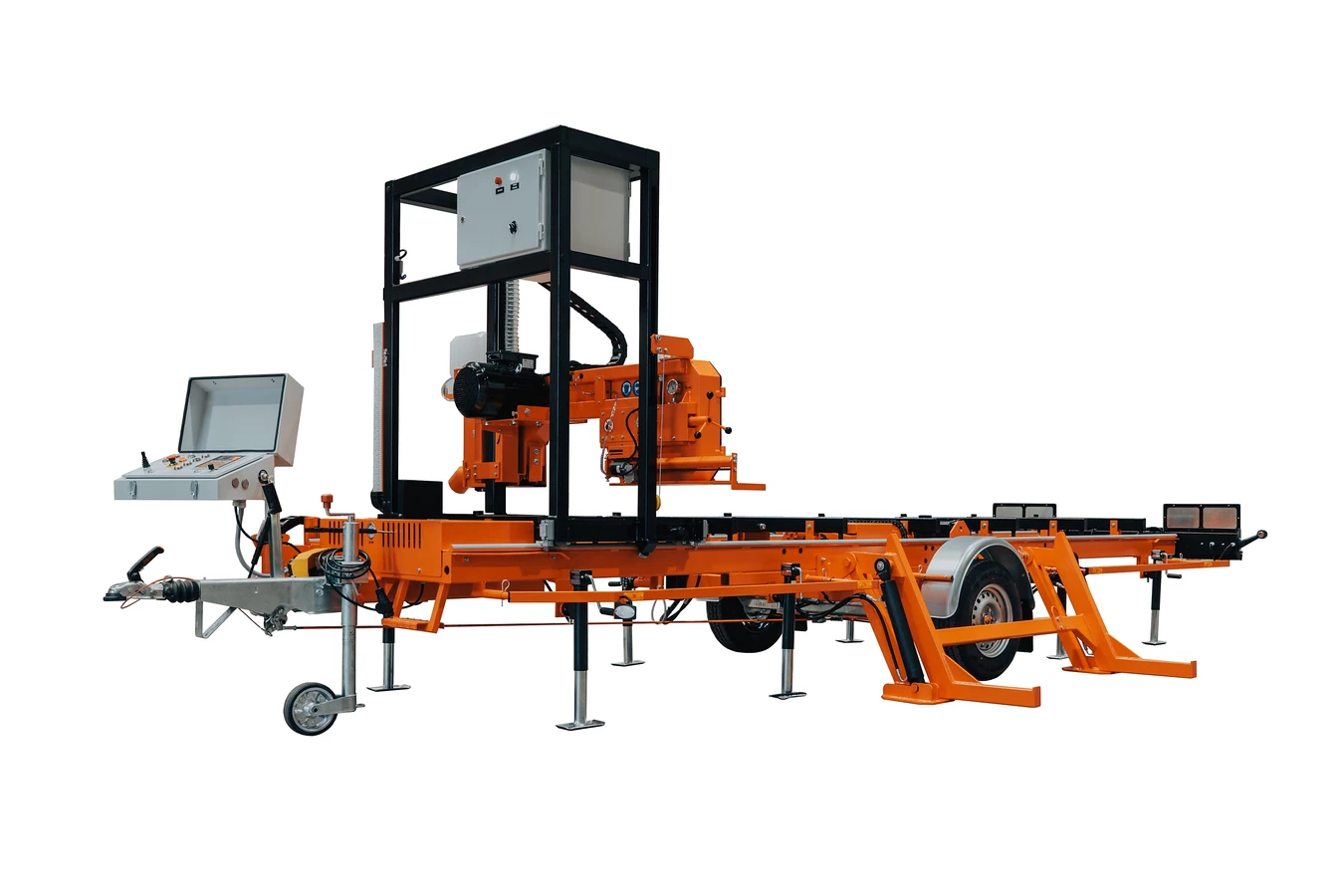

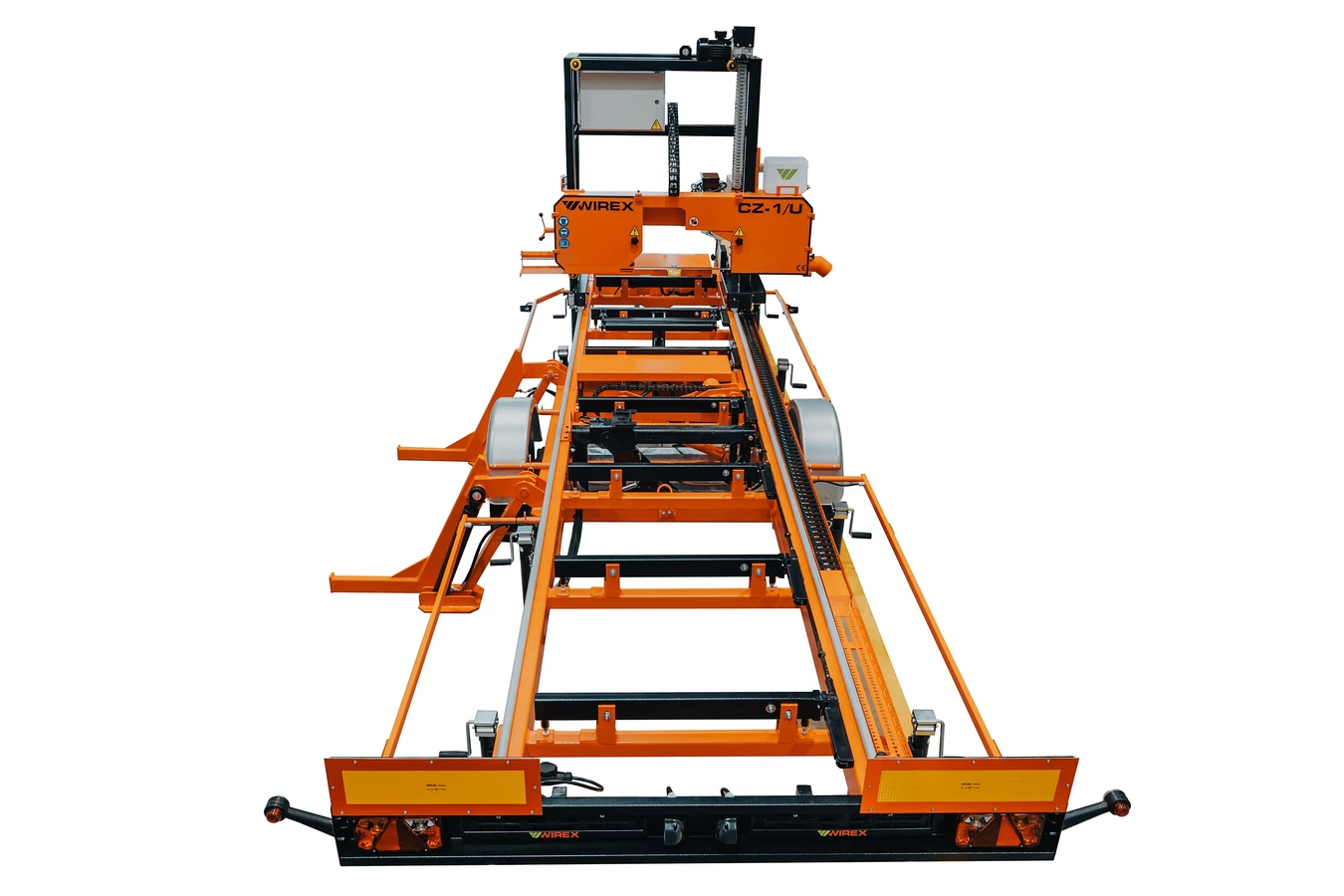

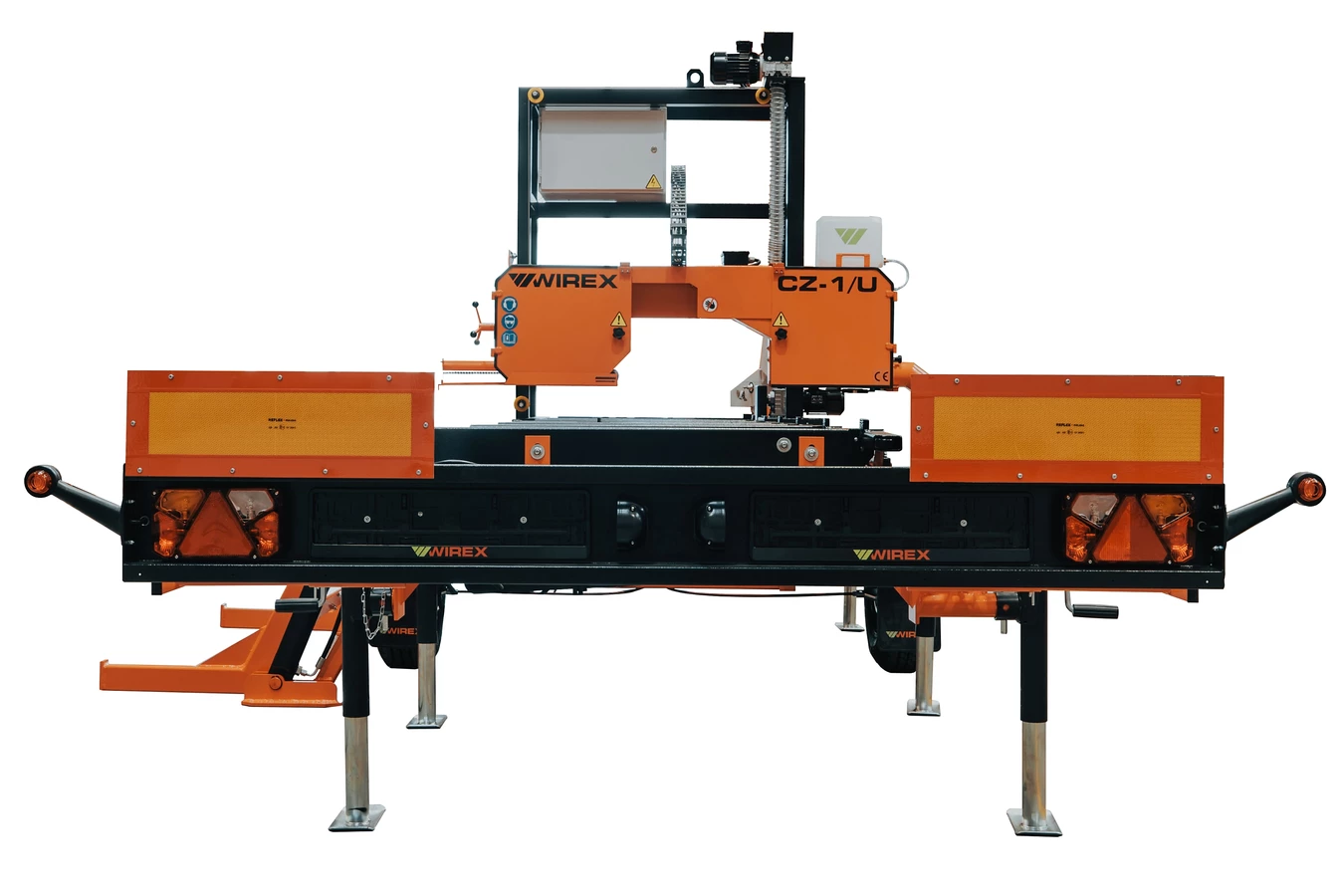

The CZ-1/U mobile sawmill is a streamlined version of the CZ-1/M, specifically designed for efficient log processing. Its robust construction allows for cutting round wood with diameters up to 800 mm, making it suitable for a variety of applications. The sawmill is equipped with hydraulic elements that facilitate easy log handling, ensuring a smoother workflow and reducing manual labor.
In addition to its cutting capabilities, the sawmill features a single mobile axis that enables seamless relocation, allowing you to quickly set up at different job sites, whether in a forest, on a construction site, or at your facility. This portability ensures that you can adapt to various working conditions, making it an ideal choice for contractors, lumber producers, and hobbyists alike.
With its user-friendly design and efficient operation, this mobile sawmill not only enhances productivity but also provides flexibility for on-site wood processing. Whether you’re looking to handle small projects or larger-scale operations, this sawmill offers the reliability and performance you need to get the job done effectively
Optional equipment
- bed extension 3 m long (length of cut 7,6 m)
- main motor shift to 12 kW
- controller ISP-010
- debarker
- chain log turner
- claw log turner
- leveling roller, standard (up/down)
- leveling roller with drive (up/down & forward/backward)
- hydraulic clamp
- shock absorber (2 units)
- laser
- stationary control panel (by hydraulic divider)
| Data | Value |
|---|---|
| Dimensions |
|
| Weight | 1600 kg |
| Log diameter | 800 mm |
| Length of cut (standard) | 4600 mm |
| Min. thickness of obtained plank | thicnkess of the last plank 25 mm |
| Main motor power | 8,1 kW |
| Power supply | 400 V (3-phases) |
| Cutting head |
|
| Band wheels diameter | 475 mm |
| Band saw specification |
|
| Blade tension roller slide | electrical – joystick controlled |
| Thickness of cut setting | manual on measuring strip via up/down buttons |
| Hydraulic |
|
| Operator control panel | by the vertical support with cutting head |
| Other information | single axle |
| Capacity per hour | up to 3 m3 |
