Tel: +44 (0) 197 825 4472CZ-1/WZM

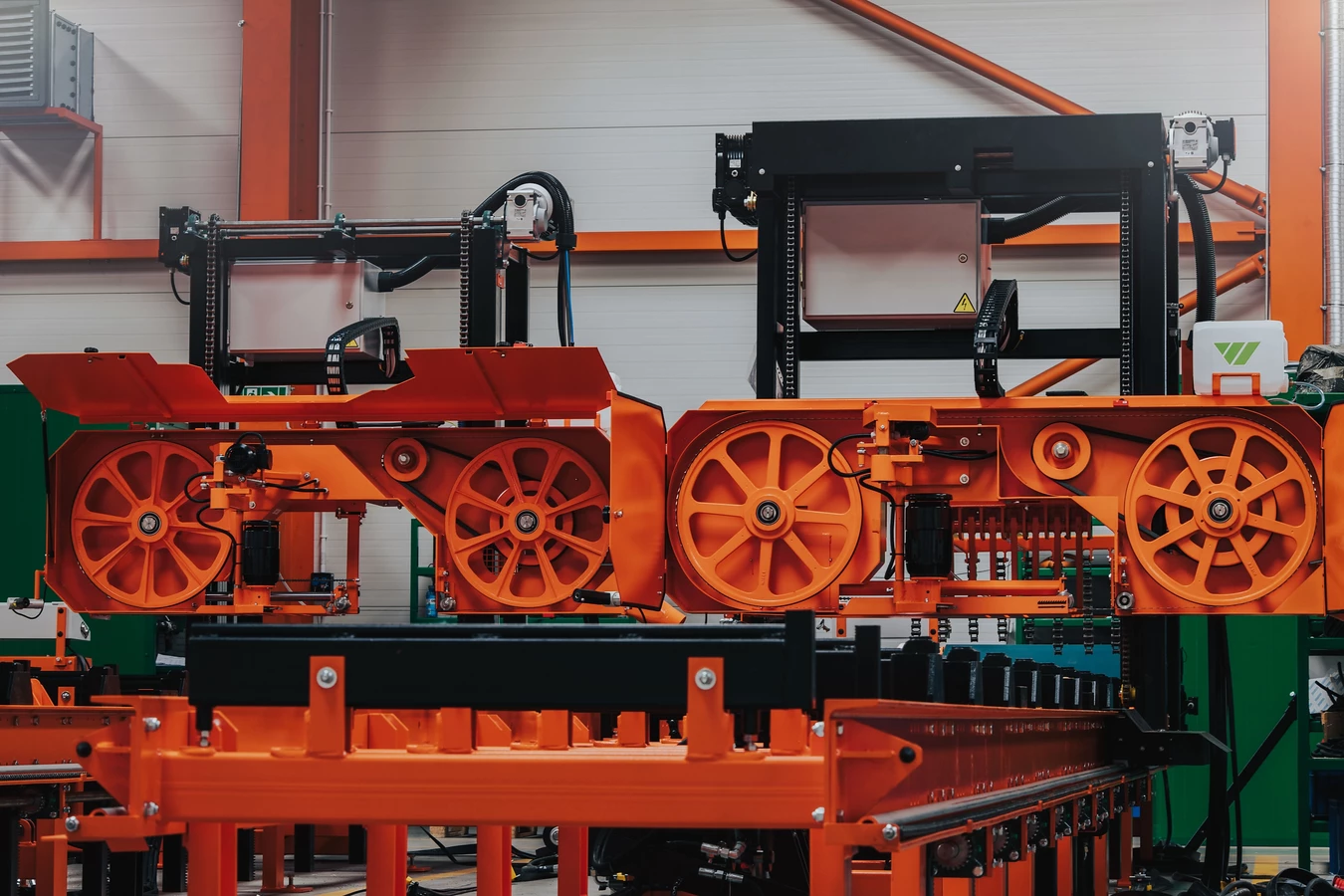

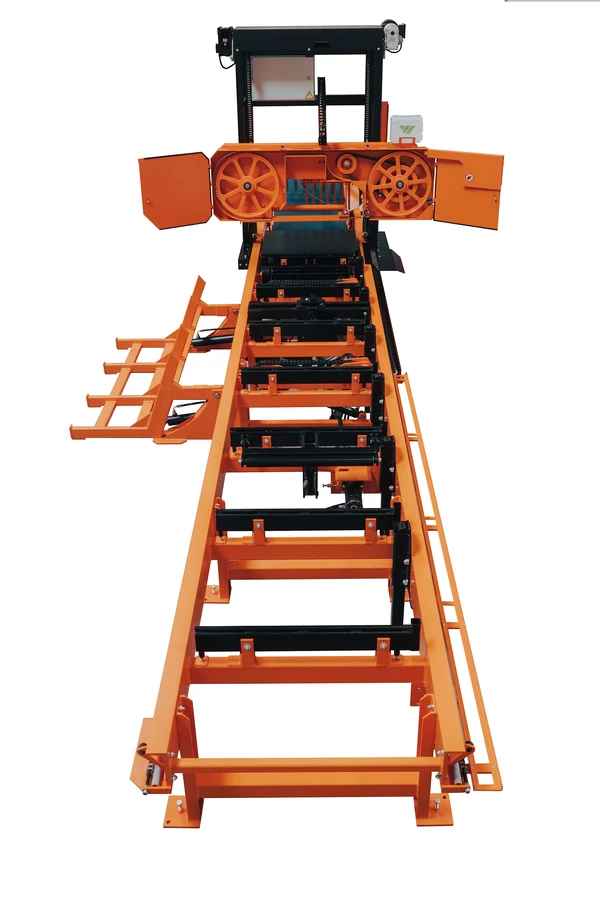

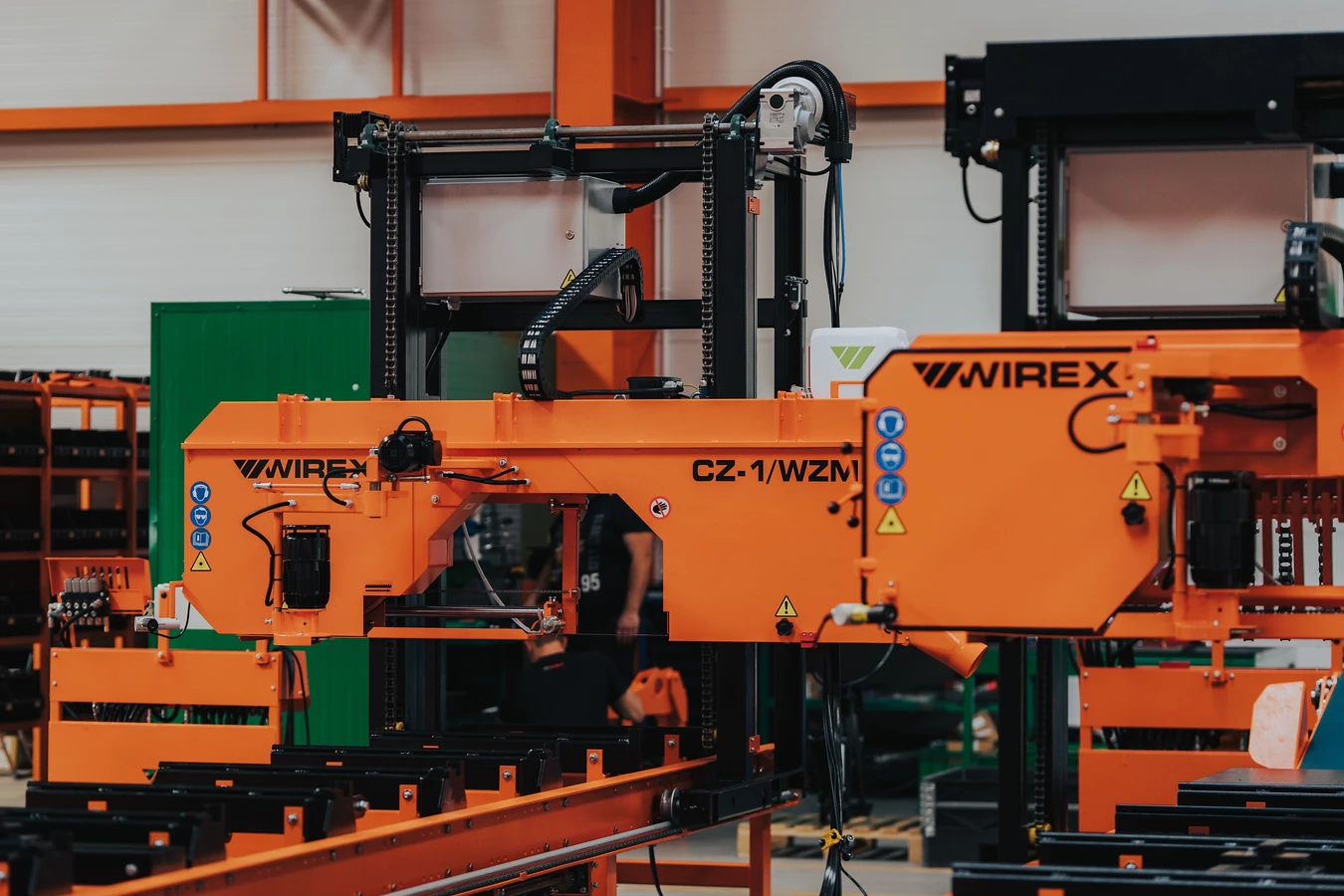

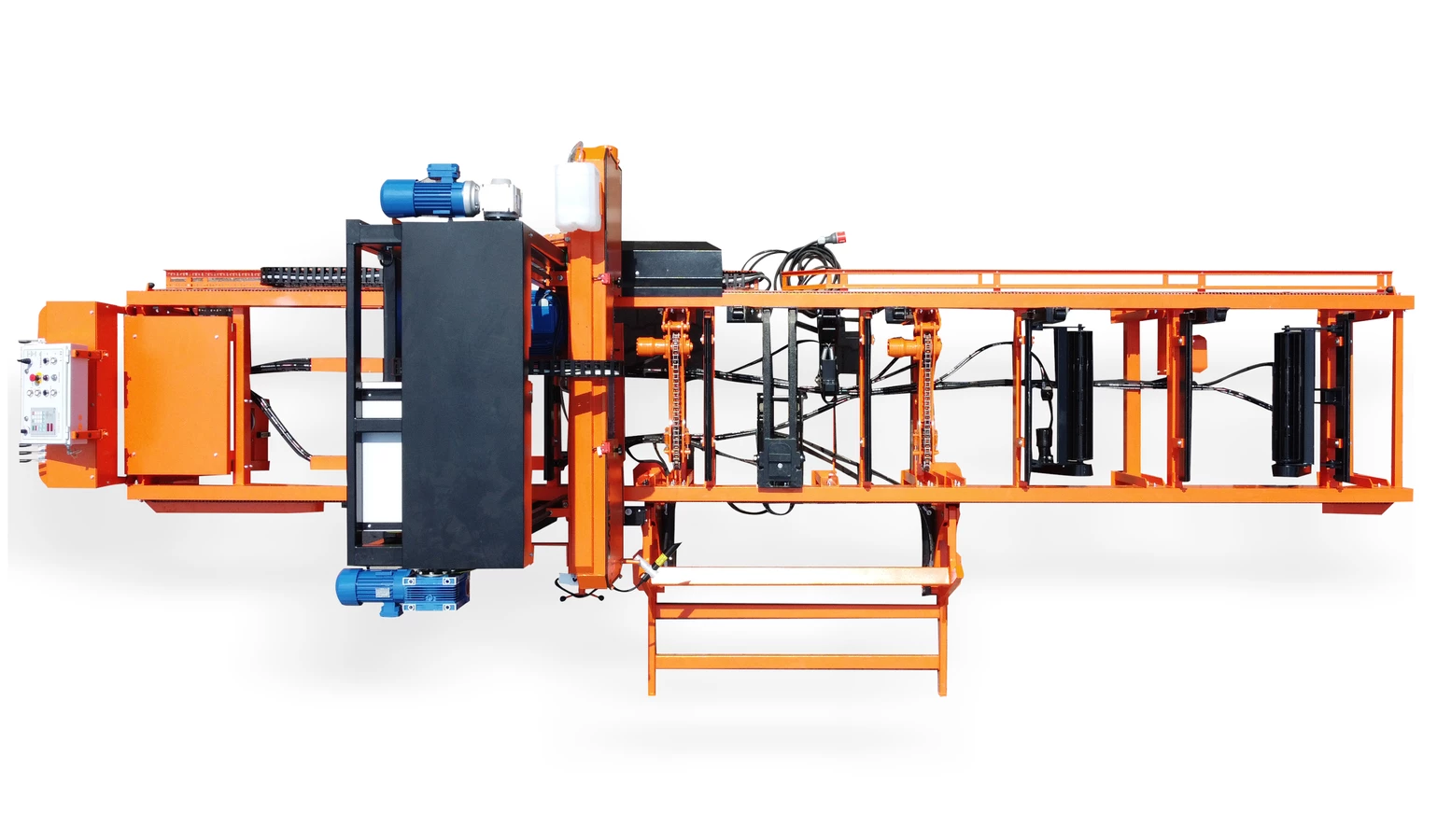

The CZ-1/WZM sawmill was developed in collaboration with our long-term customers who have extensively used our basic CZ-1/ZM model. This sawmill addresses market demands for a faster and more efficient industrial machine, making it ideal for high-volume production environments.
Equipped with advanced technology, the CZ-1/WZM ensures precision cutting and improved workflow, helping to streamline operations. Additionally, it can be enhanced with a variety of optional equipment, allowing for customization based on specific needs or production requirements.
With its robust design and versatility, the CZ-1/WZM is perfect for businesses looking to optimize their wood processing capabilities while maintaining high standards of quality and performance. Whether you’re expanding production or replacing older equipment, the CZ-1/WZM is designed to meet the challenges of modern woodworking.
Optional equipment
- bed extension 4 m long (length of cut 10,5 m)
- debarker
- chain log turner
- claw log turner
- leveling roller, standard (up/down)
- leveling roller with drive (up/down & forward/backward)
- hydraulic clamp (3-cylinders) dual-column
- hydraulic scissor grip clamp
- loading arm – basic length 1,7 m
- main motor shift to 20 kW
- laser
- operator seat
- boards drag-back system (max. length of elements 6 m)
- band wheels shift from Ø 600 to Ø 700 mm (feed speed rate 4 ÷ 45 m/min)
- sideway board drop system (3 – arms, width 2,5 m)
- loading ramp RZ/CZ-1
- low-level loading ramp (3 chain tracks)
- belt conveyor for boards collection, length 6 m
- belt conveyor for boards collection, length 1,4 m with hydraulic lift
- operator’s cabin
- monitoring
| Data | Value |
|---|---|
| Dimensions |
|
| Weight | 2700 kg |
| Log diameter | 1000 mm (band saw guiding rollers inter-distance 740 mm) |
| Length of cut (standard) | 6500 mm |
| Main motor power | 16,2 kW |
| Power supply | 400 V (3-phases) |
| Cutting head |
|

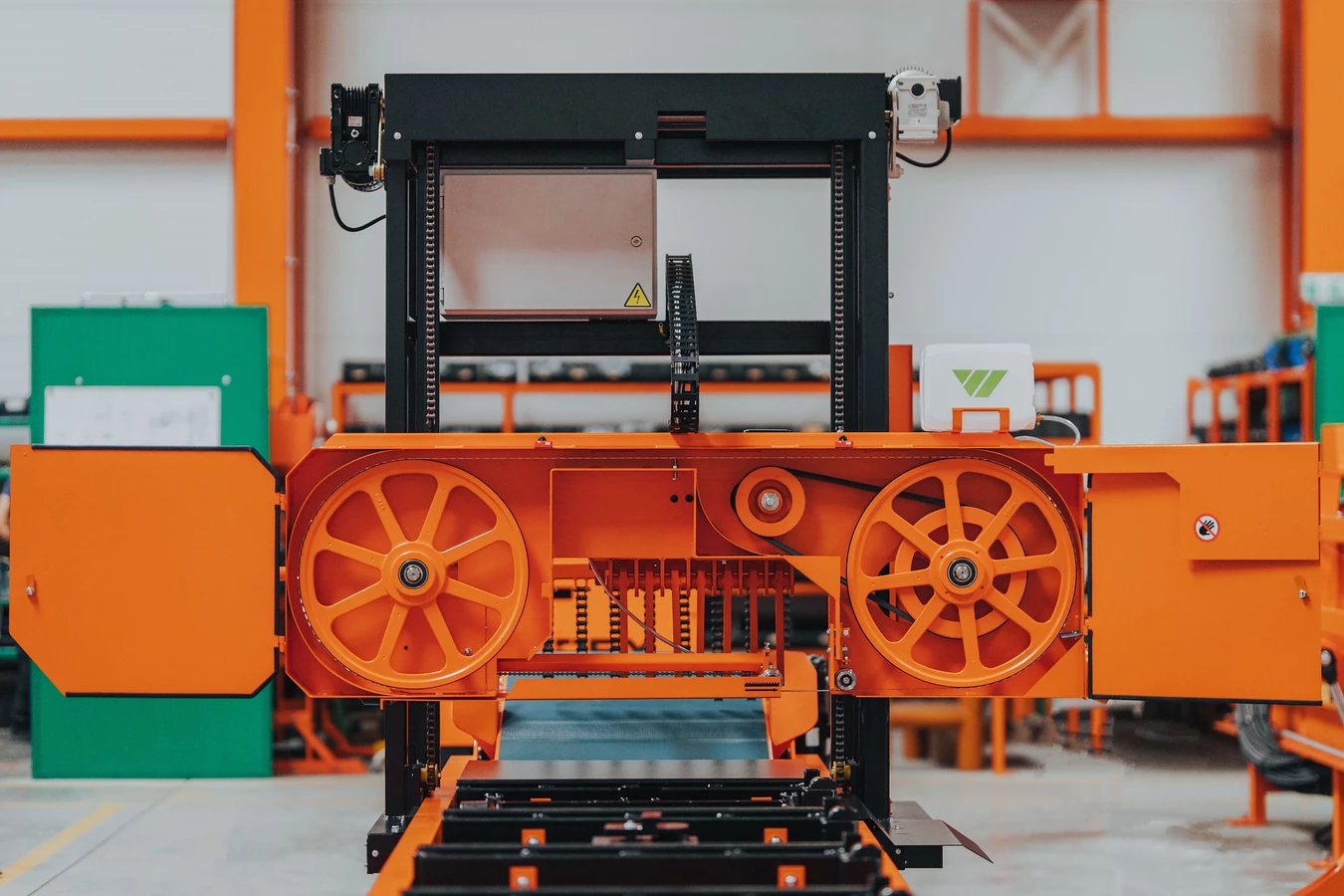

| Band wheels diameter | 600 mm |
| Band saw specification |
|
| Blade tension roller slide | electrical – adjustable by joystick |
| Thickness of cut setting | controller ISP-010 |
| Hydraulic |
|

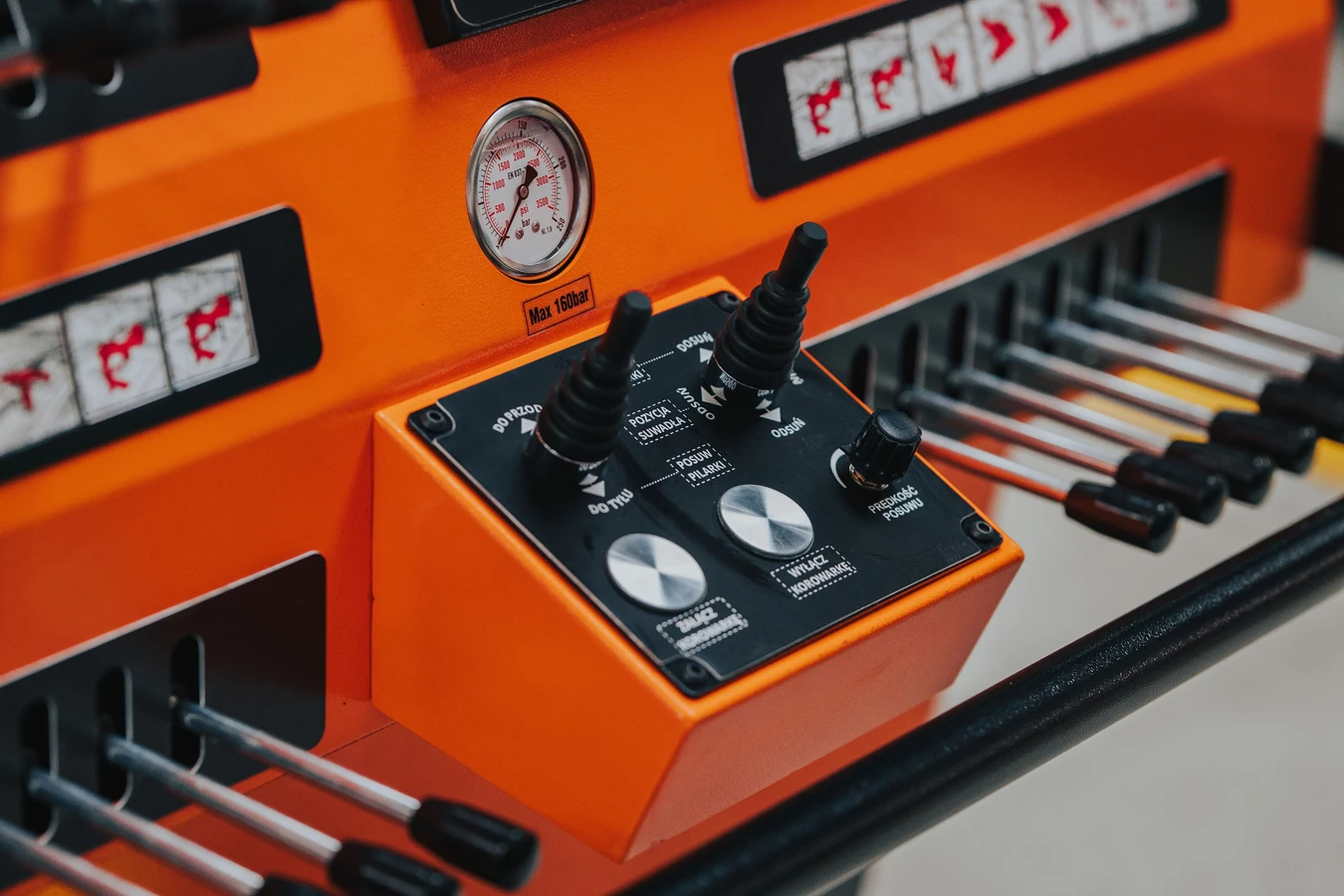

| Operator control panel | stationary, fixed by the hydraulic control panel |
| Capacity per hour | up to 3,5 m3 |
