KP-900 AUTOMAT/EASY CUT

KP-900 AUTOMAT/EASY CUT Basic Cutting Modes

Manual Mode

You can set the length of each cut by either moving the material using the buttons on the panel or by adjusting the length on the control panel’s dial. To start the cut, simply press the button on the control board. This mode is ideal for making individual sequential cuts.

Automatic Mode

1. Set a single cut dimension for the entire length of the input material. When you initiate the cut with the pedal, the entire material will automatically be cut to this specified length. Once the cut is complete, the feeder will return to the preset length for the input material. This mode is ideal for producing pallet blocks and allows for quick adjustments between different lengths during frequent material changes.
2. You can also configure a combination of cut dimensions for the entire length of the input material. Pressing the pedal will automatically cut the material into these specified lengths. After the cut, the feeder resets to the input material’s preset length. The machine’s memory can store up to 10 programs, each with 10 length settings, enabling easy rewriting, editing, adding, and deleting of programs. This mode is perfect for maximizing material yield and is particularly beneficial for producing cross-sections for various packaging products. In automatic mode, you can also set automatic front and rear trims.

Sturdy and solid construction with a robust cover

in the cutting area ensures high work safety.

Material Flow

In the basic configuration, the saw has a LEFT orientation, meaning the material flow is from right to left.

The quality of individual components, materials, and processing

Ensures trouble-free operation and long life in demanding working conditions.

Safety features in the basic equipment

Include an electronic packet guard to prevent material collisions with the upper pressure system, along with an end flap featuring a safety switch to avoid unintended material ejection beyond the operator’s reach. Emphasis is placed on features that protect both the operator from injury and the machine from damage.

Automatic Loading System

The automatic loading system is included in the standard configuration of the KP-900 AUTOMAT/EASY CUT crosscut saw. It features a pushing device that operates along a precise linear rail with bearings, ensuring durability and accurate positioning of the workpiece for cutting.

Integrated Side and Top Pressure

Ensures the secure fixation of the material during cutting, both to the work table and the rear support. This guarantees precise, perpendicular cuts without any unintended movement of the material.

Clear LCD Touch Display

Enables easy and comfortable machine control. The individual control elements are well-visible, reduce operator eye strain, and provide a perfect overview. Maximum ergonomics and the designed software ensure complete control over the machine.

Work Table at the Input Before Cutting

Facilitates easy and comfortable machine operation. The individual control elements are clearly visible, minimizing eye strain for the operator and offering an excellent overview. Optimal ergonomics and the intuitive software ensure full control over the machine.

Basic Fixed Table at the Output After Cutting

This standard table measures two meters in length and features partial coverage in the cutting area. The operator can safely remove the cut material without the risk of encountering cut-offs, chips, or injury from the cutting disc. The table has an 8° tilt, but if the saw is equipped with a cross-loading conveyor at the input, the table tilt is adjusted to 0°.

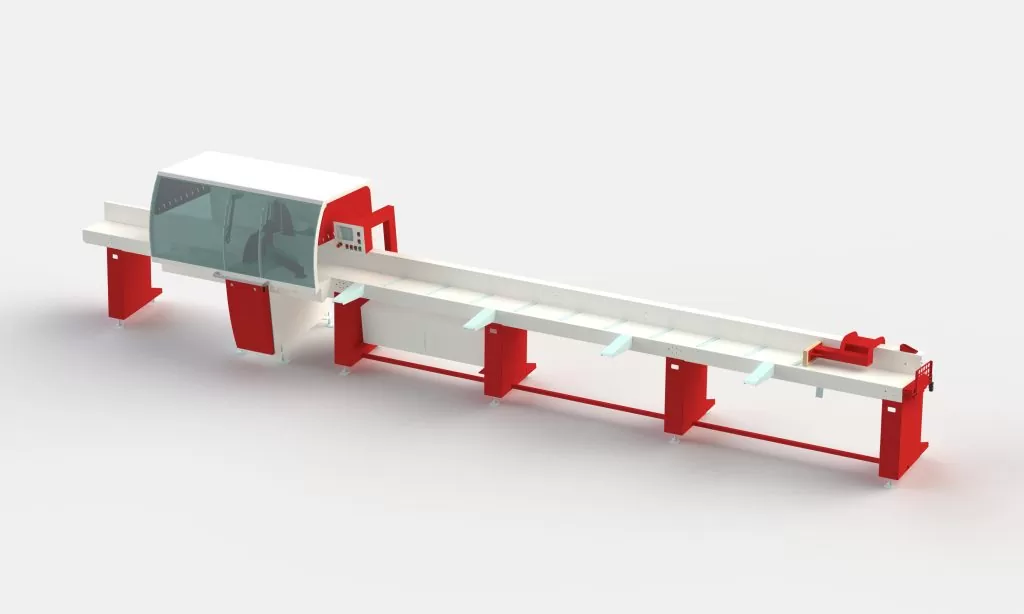

KP-900 AUTOMAT/EASY CUT

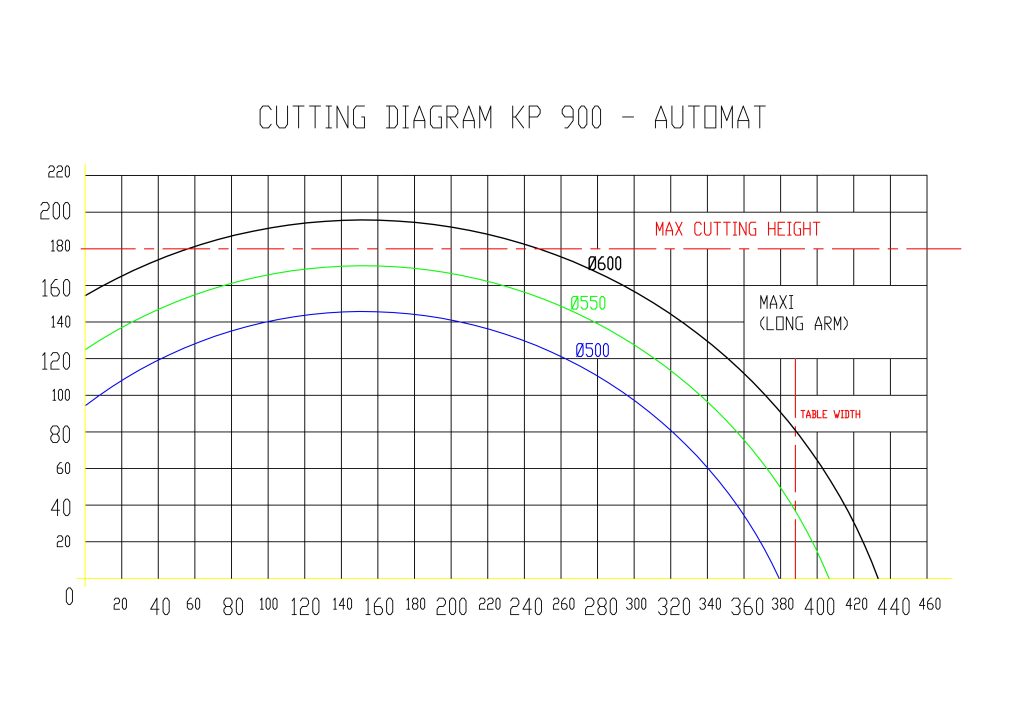

KP-900 AUTOMAT/EASY CUT cutting diagram

Optional equipment

Störi Mantel automatic crosscut saws can be enhanced or customized with a variety of optional equipment. Here, we showcase the basic options, but if you have specific needs or inquiries, we would be delighted to discuss them with you.can be complemented or configured with a wide range of optional equipment.

Saw

• Right-hand configuration – material flow is from left to right.
• More powerful motor – the saw can be equipped with an 15 kW or 22 kW motor.
• Saw blade of a different diameter – optionally, the saw can be fitted with a 550 mm diameter blade.
• Lifting feeder – pneumatic or mechanical lifting of the feeding arm above the placed material when the feeder returns to the restart position.
• Special Model – simplifies the shortening of low-quality material. The operator checks and visually evaluates each piece at the input, choosing lengths using special added buttons in the cutting scheme. The modified feeder with automatic length measurement then measures the material, and the saw cuts it according to the input.

Cutting Conditions

• Finger pressure guide – increases the accuracy and perpendicularity of the cut. Presses the material against the support during cutting, preventing unintended movement during the cut.
• Side pressure guide at the output – useful where long pieces are shortened. The pressure guide increases the accuracy and perpendicularity of the cut.

Mechanization at the Input

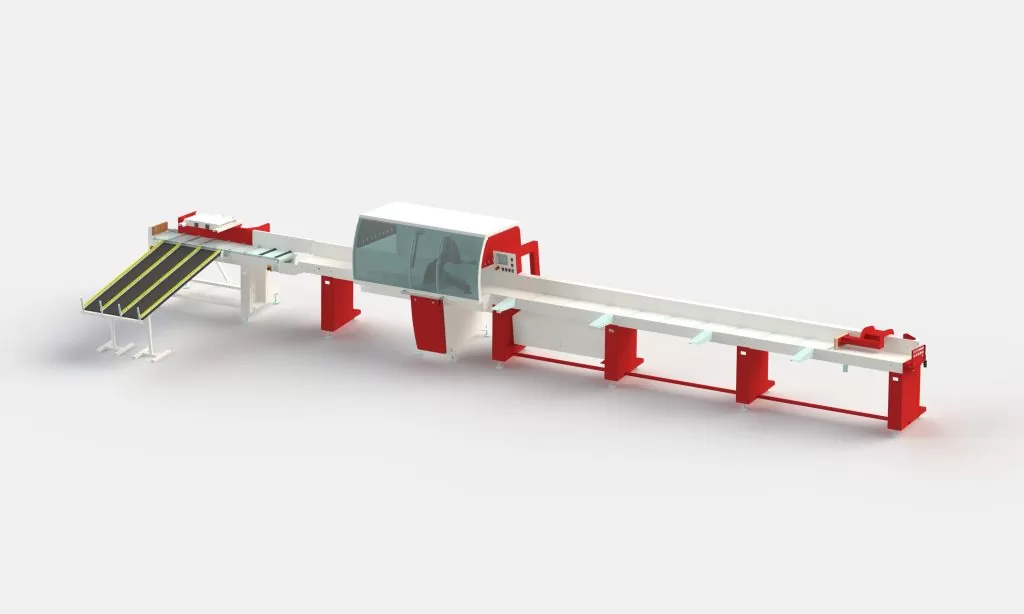

• Cross-chain feed conveyor – can be 1 or 2 meters long. The number of conveyor arms is determined by the length of the saw’s input table and can be customized according to customer preferences.

Mechanization at the Output

• Extension of the basic fixed output table (smooth)
• Output fixed table with rollers – facilitates the easy handling of long and heavy material.
• Driven or non-driven roller conveyor – can be up to 4 meters long and 400 mm wide.
• Automatic ejector with inclined collecting table (gravity chutes) – simplifies the sorting of shortened material. Automatic saws can have up to two ejectors.
• Rake conveyor for cutoffs or blocks.

Special Equipment

• Heating of the electrical distribution panel and control panel – necessary if the machine is located in unheated spaces.

KP 900 Automat

Data	Value
Length of the entry table	3,2 – 7,2 m
Tilting the input table	8°
Saw Orientation	left Option: right
Cross table extension	yes-short Option: yes – chains
Fixed table	2 m Option: Optional extension
Mechanization at the output	– Option: Optional
LCD touch screen	8″
Start of the cutting cycle	pedal
Cutting accuracy	+/- 0.5 mm
Feed rate	Continuous regulation
Disc diameter	550 mm Option: 500 mm
Inner diameter of the clamping hole	80 mm
Propulsion	AC servo
Loader speed	max. 1 m/s
Performance	7,5 kW Option: 11 kW, 15 kW
Dust extraction	2x Ø 120 mm – 30 m/s
Compressed air	pressure min. 0.6 Mpa
Capacitive air consumption	250 l/min.
Voltage	~3×400 V/50Hz

KP 900 Easy Cut

Data	Value
Length of the entry table	3,2 – 7,2 m
Tilting the input table	8°
Saw Orientation	left Option: right
Fixed table	2 m Option: Optional extension
Mechanization at the output	– Option: Optional
LCD touch screen	15″
Start of the cutting cycle	pedal
Cutting accuracy	+/- 0.3 mm
Feed rate	Continuous regulation
Disc diameter	600 mm Option: 550 mm
Inner diameter of the clamping hole	80 mm
Propulsion	AC servo
Loader speed	max. 1 m/s
Performance	7,5 kW Option: 11 kW, 15 kW
Dust extraction	2x Ø 120 mm – 30 m/s
Compressed air	pressure min. 0.6 Mpa
Capacitive air consumption	250 l/min.
Voltage	~3x400V/50Hz

•
•
•
