Cross cut saw
The UKS crosscut saw is versatile for cutting both wooden and non-wooden materials to specific lengths or processing raw materials based on the equipment’s capabilities, such as manually removing defects.
The key distinction among various UKS trimming saws is the saw blade’s movement trajectory, enabling the cutting of different material widths with the same blade diameter (refer to the cutting diagram in the “More Information” section).
Basic Construction
The saw features a robust welded frame supporting a pivoting arm equipped with a saw unit. A pneumatic system controls the arm’s movement, allowing for smoothly adjustable feed speed into the cut.
Trimming saws are available in a LEFT configuration (material flow from right to left), but saw placement can vary based on available space.
Material handling and measurement are enhanced by a range of optional conveyors, which can be driven or non-driven and come with various measuring elements (see the “Optional Equipment” section for more details).
Safety Features
The equipment includes several safety features to protect workers during operation, such as:
- Two-handed activation for cutting
- A front fixed cover between the cutting area and the operator (with an option for a retractable design, see the “Optional Equipment” section)
- An upper cover for the saw blade that provides pneumatic pressure to securely hold the material in place during cutting.
This machine complies with stringent EU regulations and directives.

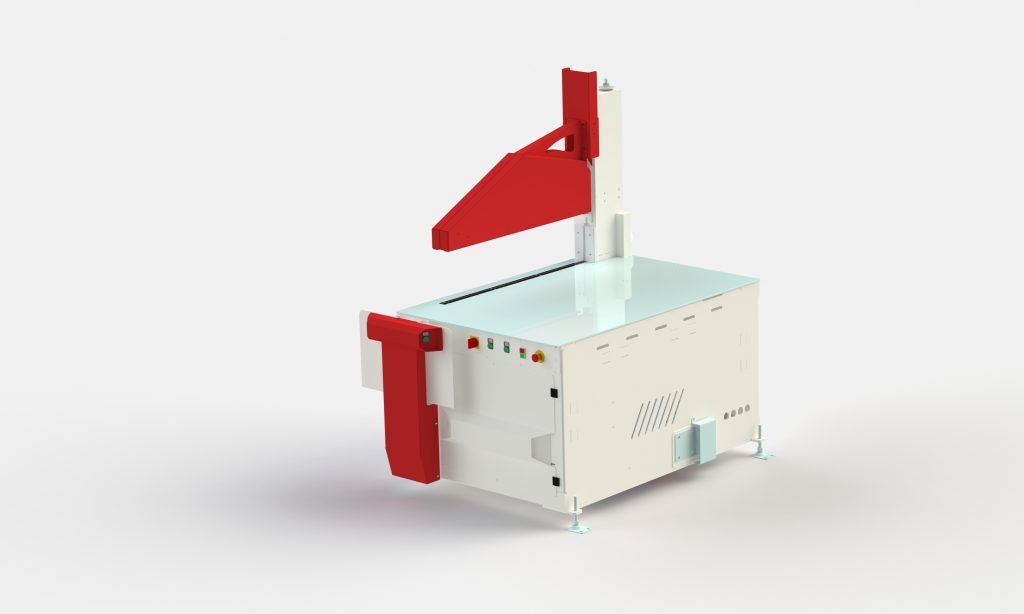

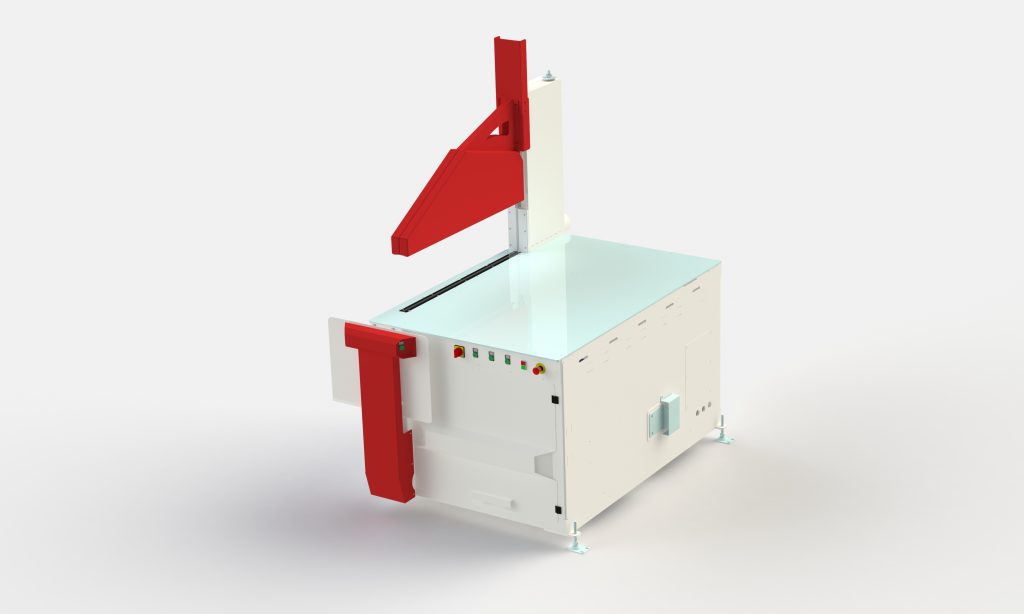

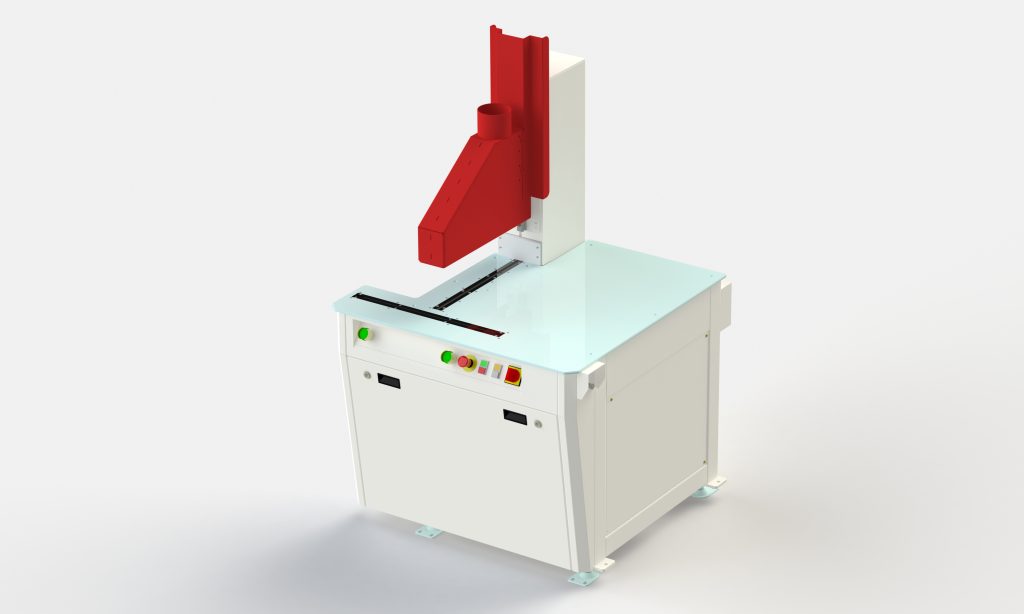

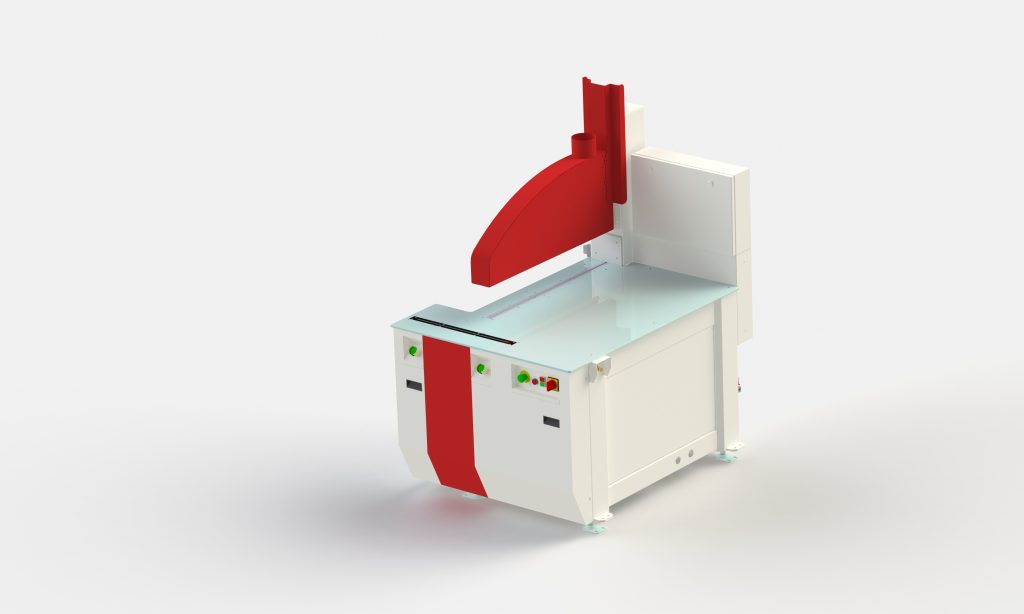

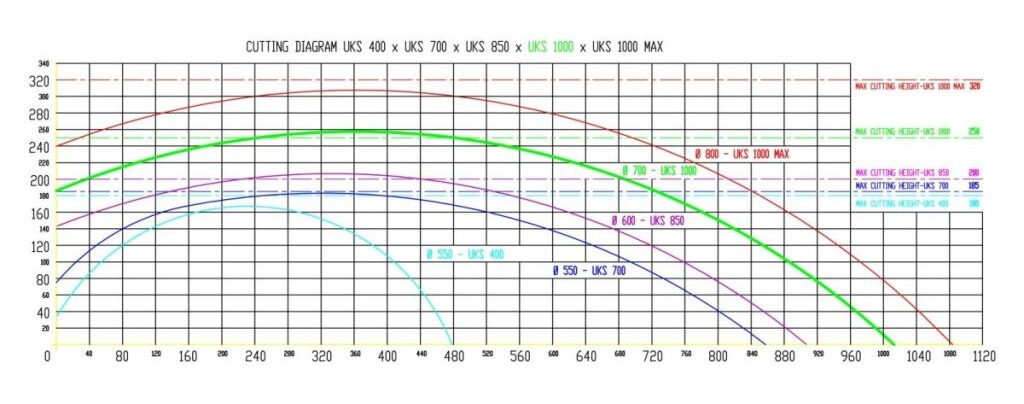

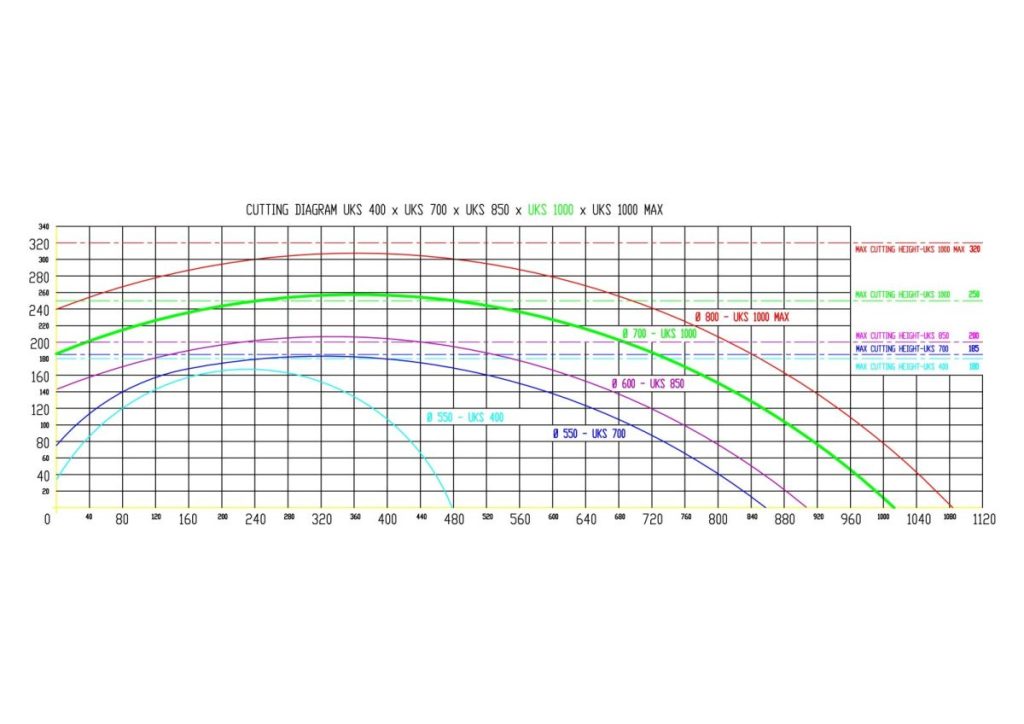

UKS crosscut saw cutting diagram
Optional equipment
UKS trimming saws can be enhanced or customized with various optional equipment. Below are the basic options available, but if you have specific needs or questions, we are happy to discuss them with you.
Saw
- Right-hand configuration – material flow is from left to right.
- More powerful motor – the saw can be equipped with a 7.5 kW, 11 kW, 15 kW motor.
- Saw blade of a different diameter – the saw can optionally be fitted with a 550 mm diameter blade.
- Hydraulic arm feed with saw blade – optionally, this system can operate not on a pneumatic but on a hydraulic system.
Safety Features
- Lifting pneumatic cover – automatically extends upon initiating the cut.
- Fully covered saw with foot-operated cutting activation – complete covering of the saw suitable for situations where the saw needs to be activated remotely (e.g., when integrated into an automatic production line, etc.).
Input and Output Mechanization
- Rollers on the saw table – for easier material movement across the saw table.
- Non-driven roller conveyor with integrated scale – for easier movement of long material. The conveyor does not have its own drive and have a width of 600 mm with roller spacing of 200 or 300 mm. The length of the conveyor is based on customer request and depends on the maximum length of material at input and output.

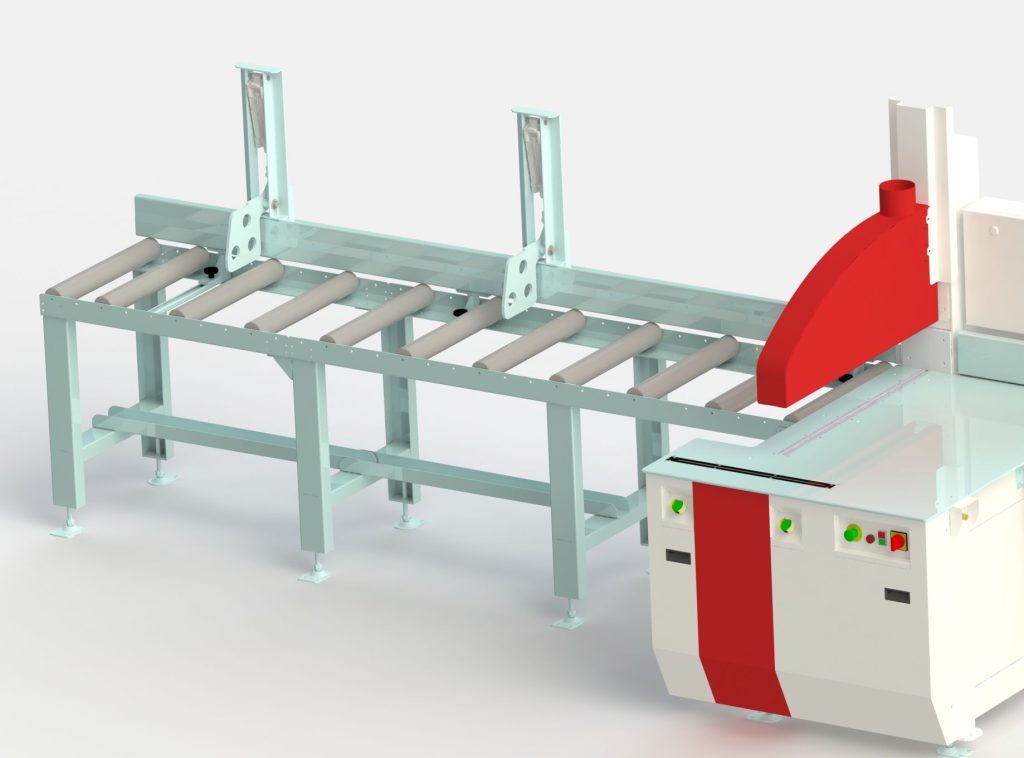

- Driven roller conveyor with integrated scale – for easier movement, especially of heavier materials. The conveyor has its own drive and have a width of 600 mm with roller spacing of 200 or 300 mm. The length of the conveyor is based on customer request and depends on the maximum length of material at input and output.
Material Measurement
- Manual stop – allows manual adjustment and folding of the stop to the desired cut length using an integrated scale. The number of stops is not limited.
- Pneumatic stop – allows manual adjustment of the stop to the desired cut length using an integrated scale, but its automatic folding using buttons located next to the saw control. The number of stops is not limited.
- Laser cutting marking
| Data | Value |
|---|---|
| Dimensions (W x H x D) | 1051 x 1750 x 1082 mm |
| Working height of the saw | 860 mm |
| Saw Orientation | left Option: right |
| Cutting tool stroke system | pneumatic Option: hydraulic |
| Feed rate | continuous regulation |
| Cutting parameters (max. h x w) | according to the cross-section diagram |
| Front cover | fixed Option: pneumatic lifting |
| Blade diameter | 550 mm Option: 500 mm |
| Inner diameter of the clamping hole | 80 mm |
| Performance | 5.5 kW Option: 7.5 kW |
| Dust extraction | 2x Ø 120 mm – 30 m/s |
| Compressed air | pressure min. 0.6 Mpa |
| Capacitive air consumption | 7.5 l/cycle |
| Voltage el. | ~ 3×400 V/50 Hz |
| Start of the cutting cycle | two-hand start Option: foot pedal (only for saws with full cover) |
| Data | Value |
|---|---|
| Dimensions (W x H x D) | 1106 x 1790 x 1538 mm |
| Working height of the saw | 870 mm |
| Saw Orientation | left Option: right |
| Cutting tool stroke system | pneumatic Option: hydraulic |
| Feed rate | continuous regulation |
| Cutting parameters (max. h x w) | according to the cross-section diagram |
| Front Cover | fixed Option: lifted pneumatically |
| Blade diameter | 550 mm Option: 500 mm |
| Inner diameter of the clamping hole | 80 mm |
| Performance | 5.5 kW Option: 7.5 kW |
| Dust extraction | 2x Ø 120 mm – 30 m/s |
| Compressed air | pressure min. 0.6 Mpa |
| Capacitive air consumption | 26 l/cycle |
| Voltage el. | ~ 3×400 V/50 Hz |
| Start of the cutting cycle | two-hand start Option: foot pedal (only for saws with full cover) |
| Data | Value |
|---|---|
| Dimensions (W x H x D) | 1271 x 1820 x 1611 mm |
| Working height of the saw | 880 mm |
| Saw Orientation | left Option: right |
| Cutting tool stroke system | pneumatic Option: hydraulic |
| Feed rate | continuous regulation |
| Cutting parameters (max. h x w) | according to the cross-section diagram |
| Front cover | fixed Option: lifted pneumatically |
| Disc diameter | 600 mm Option: 550 mm |
| Inner diameter of the clamping hole | 80 mm |
| Performance | 5.5 kW Option: 7.5 kW, 11 kW, 15 kW |
| Dust extraction | 2x Ø 120 mm – 30 m/s |
| Compressed air | pressure min. 0.6 Mpa |
| Capacitive air consumption | 26 l/cycle |
| Voltage el. | ~ 3×400 V/50 Hz |
| Start of the cutting cycle | Two-hand start Option: foot pedal (only for saws with full cover) |
| Data | Value |
|---|---|
| Dimensions (W x H x D) | 1260 x 1820 x 1727 mm |
| Working height of the saw | 880 mm |
| Saw Orientation | left Option: right |
| Cutting tool stroke system | pneumatic Option: hydraulic |
| Feed rate | continuous regulation |
| Cutting parameters (max. h x w) | according to the cross-section diagram |
| Front cover | fixed Option: lifted pneumatically |
| Disc diameter | 700 mm Option: 600 mm |
| Inner diameter of the clamping hole | 80 mm |
| Performance | 11 kW Option: 15 kW |
| Dust extraction | 2x Ø 120 mm – 30 m/s |
| Compressed air | pressure min. 0.6 Mpa |
| Capacitive air consumption | 30 l/cycle |
| Voltage el. | ~ 3×400 V/50 Hz |
| Start of the cutting cycle | two-hand start Option: foot pedal (only for saws with full cover) |
