Tel: +44 (0) 197 825 4472FWR 500/1
Cutting planks to length
The Single Blade FWR 500/1 Trim Saw is designed to cut planks to a specified length with precision. The material is prepared according to the length set on the pneumatically lifted stopper, ensuring accuracy in every cut. With its robust construction, the saw is ideal for high-volume production environments. The easy-to-use interface and adjustable settings allow operators to quickly adapt to different project requirements. Additionally, safety features are integrated to protect users during operation, making it both efficient and reliable for continuous use. Its design minimizes waste and maximizes productivity, making it a valuable asset in any woodworking facility.

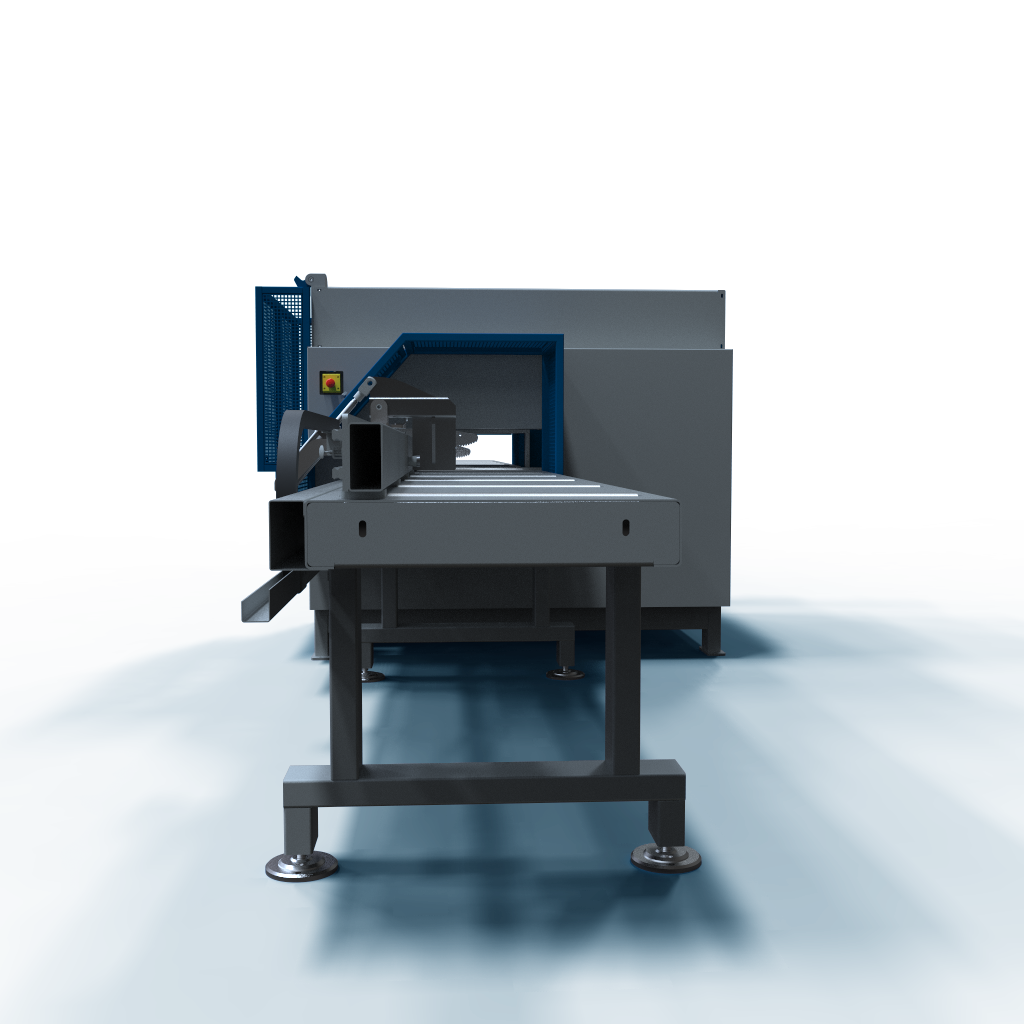

The machine features 6-meter infeed and outfeed roller tables and requires a pneumatic supply with a minimum pressure of 6 bar. Designed as a production line, allowing for continuous and automatic operation. The FWR 500/1 Trim Saw is equipped with vertically mounted blade directly on the motor shaft. The motor and saw are placed on a movable support, enabling the carriage to move transversely to the material during cutting. This design ensures efficient and precise cutting performance.
Additional equipment:
- Conveyor belt for waste
- Side discharge table
- Motorized roller table
| Data | Value |
|---|---|
| Length | 8,625 mm |
| Height | 1665 mm |
| Width | 2144 mm |
| Data | Value |
|---|---|
| Spindle motor power | 6.2 / 7.5 / 9.2 kW |
| The rotational speed of the saws | 2850 mm |
| Roller drive motor power | 1.6 kW |
| Data | Value |
|---|---|
| Min. Length of the prism after formatting | 800 mm |
| Prism length after formatting | 3100 mm |
| Prism width | 480 mm |
| Thickness of the prism | 145 mm |
| Circular saw diameter | 500 mm |
| Data | Value |
|---|---|
| Feed motor power | 1.6 kW |
| Smooth feed speed | 0 – 20 m / min |
