Tel: +44 (0) 197 825 4472TTPP 450-700
Circular sawmill with vertical & horizontal cutting

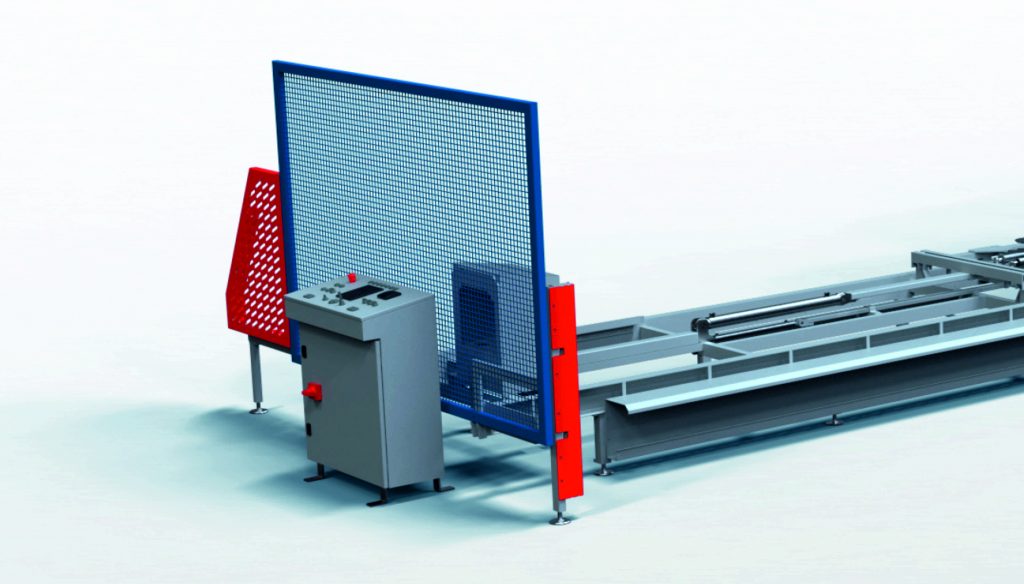

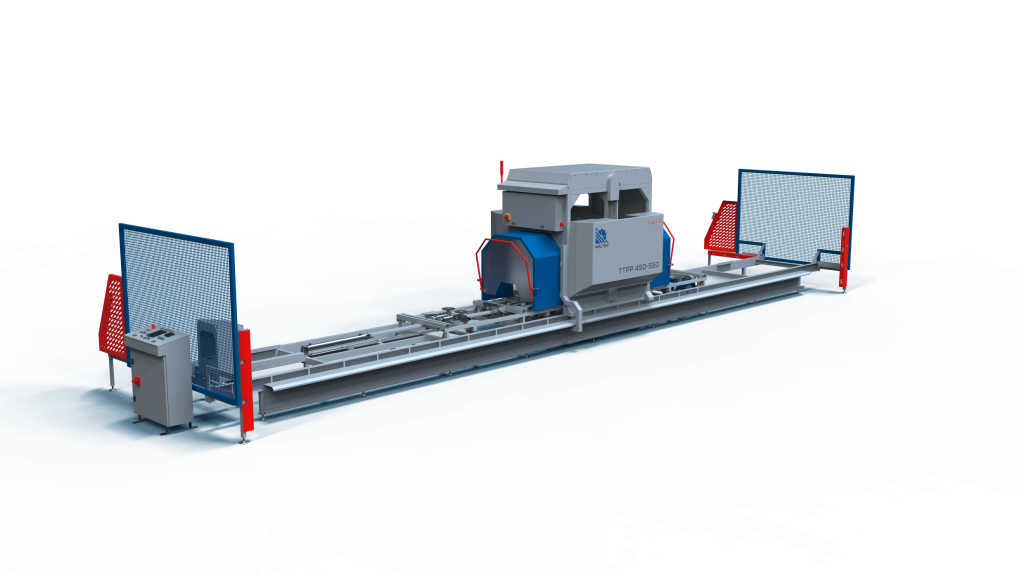

The TTPP 450 – 700 Vertical-Horizontal Sawmill is designed to cut finished elements directly from logs. Thanks to its unique saw mounting method, it can cut ready-made elements on both sides without needing idle runs. Each cut produces a finished piece efficiently.
Replaces two machines:
TTPP 450-700 is ideal for producers of construction sawn timber and is perfect for smaller companies making their own wooden building elements. A vertical-horizontal circular sawmill replaces at least two machines typically used for this work: a traditional band saw and an edger.
Additional equipment:
- Hydraulic clamps and leveling of logs – length 6000 mm
- Log rotation
- Hydraulic loading
- Flat belt transporter for – length 6000 mm
- Tilted belt transporter for offcuts
Dimensions
Motor
Cutting parameters
Feed system
| Data | Value |
|---|---|
| Length | 3320 mm |
| Width | 2220 mm |
| Height | 2130 mm |
| Track length | 13 380 mm |
| Data | Value |
|---|---|
| Main motor power | 12 – 23.8 kW |
| Spindle speed | 1400 rpm |
| Data | Value |
|---|---|
| Maximum diameter of the log | 1000 mm |
| Minimum log length | 2000 mm |
| The maximum dimension of the element | 200 x 200 mm |
| Circular saw diameter | 450 – 700 mm |
| Data | Value |
|---|---|
| Power of the feed factor | 1.6 kW |
| Feed speed | 0 – 30 m / min |
