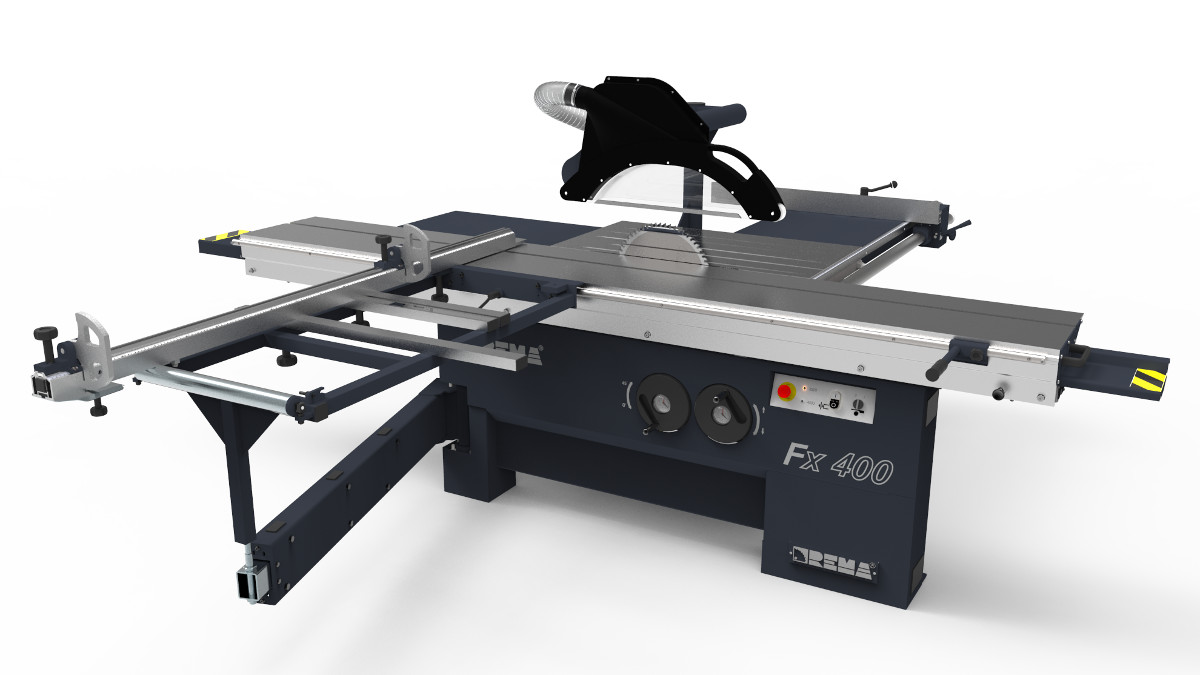

Fx400 Panel Saw

Stable Drive Unit

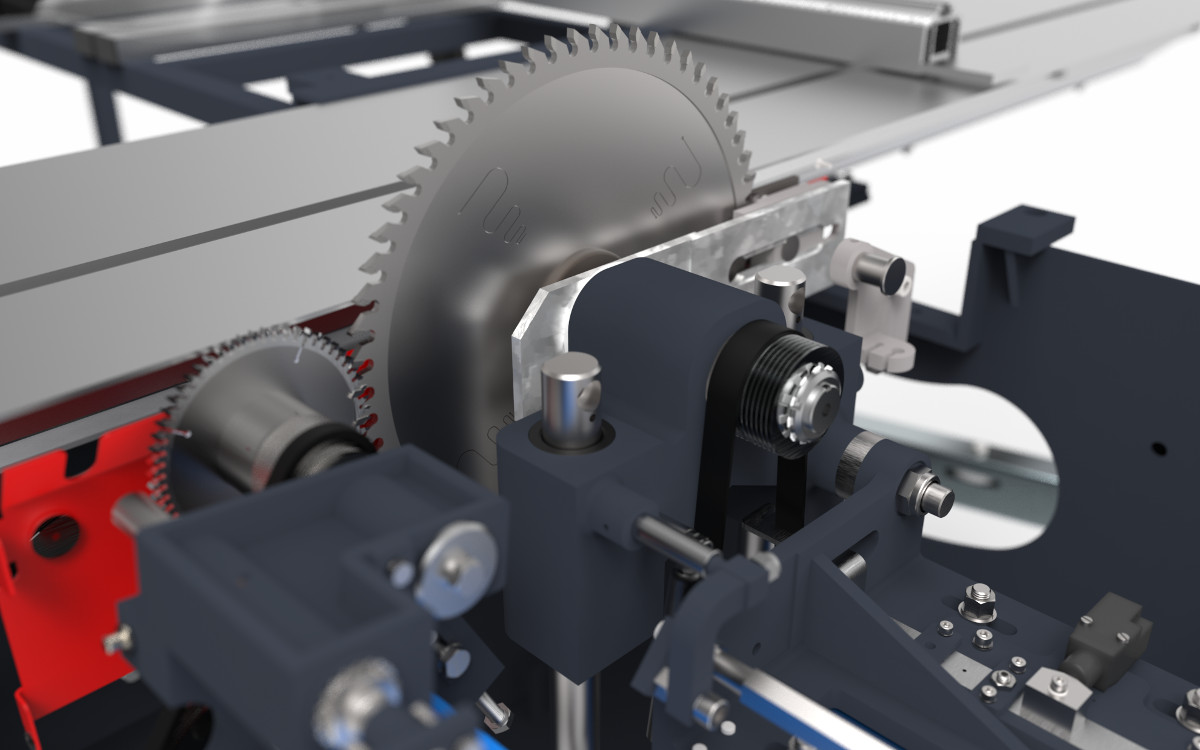

The saw’s drive unit is integrated into the body on robust cast iron arches, featuring a classic design with a solid main spindle and a belt transmission system offering two speeds: 3500 and 4500 rpm. The innovative tool-free “Rapid” saw mounting system ensures quick and secure blade installation, providing exceptional rigidity to the entire setup. The motor plate simplifies the installation of either 3.9 or 6.0 kW motors.

Steel Body

The Rema Fx400 features a robust steel construction that provides exceptional rigidity and resistance to deformation. The format table assembly is securely fixed to the body with four bolts, ensuring stable operation and maintaining cutting geometry. The main table, made of large cast iron, sits atop the body and is supported by four adjustable displacers for easy positioning relative to the format table. Additionally, the underside of the body is equipped with leveling mechanisms and stabilizing anchor installation points for enhanced stability.

Interchangeable Sides

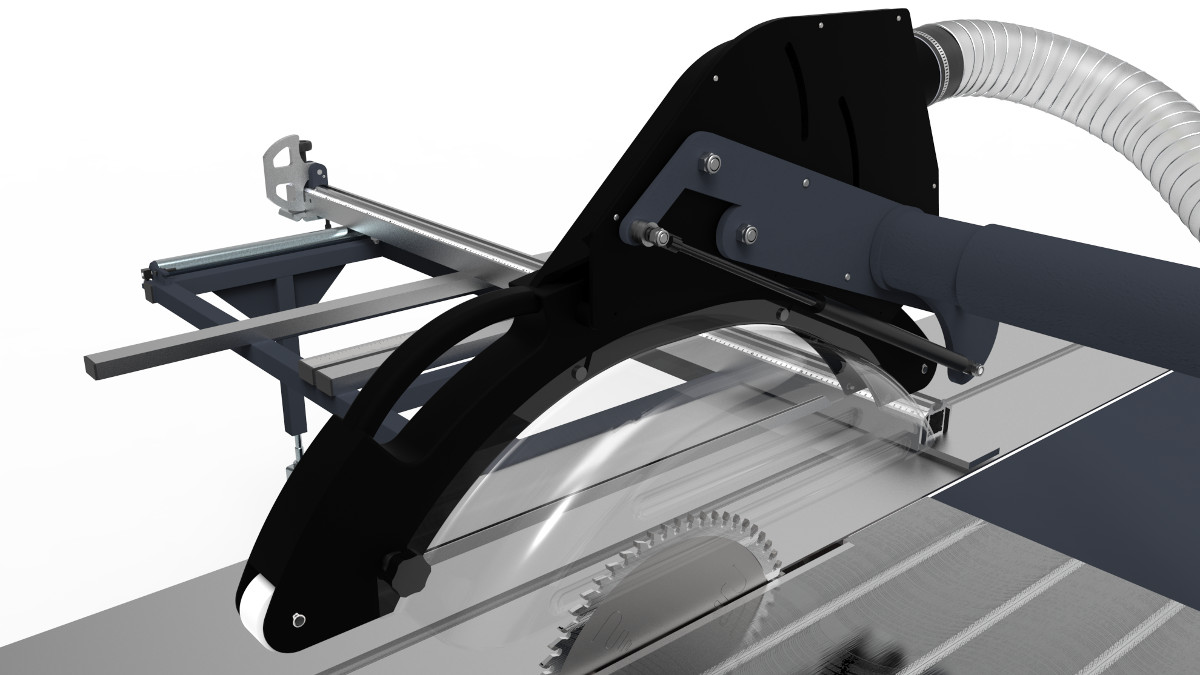

The saw’s top guard features interchangeable sides for cutting at angles up to 45° as well as for right-angle cuts. It is also equipped with rollers to assist in guiding the material smoothly.

Reliable Motor

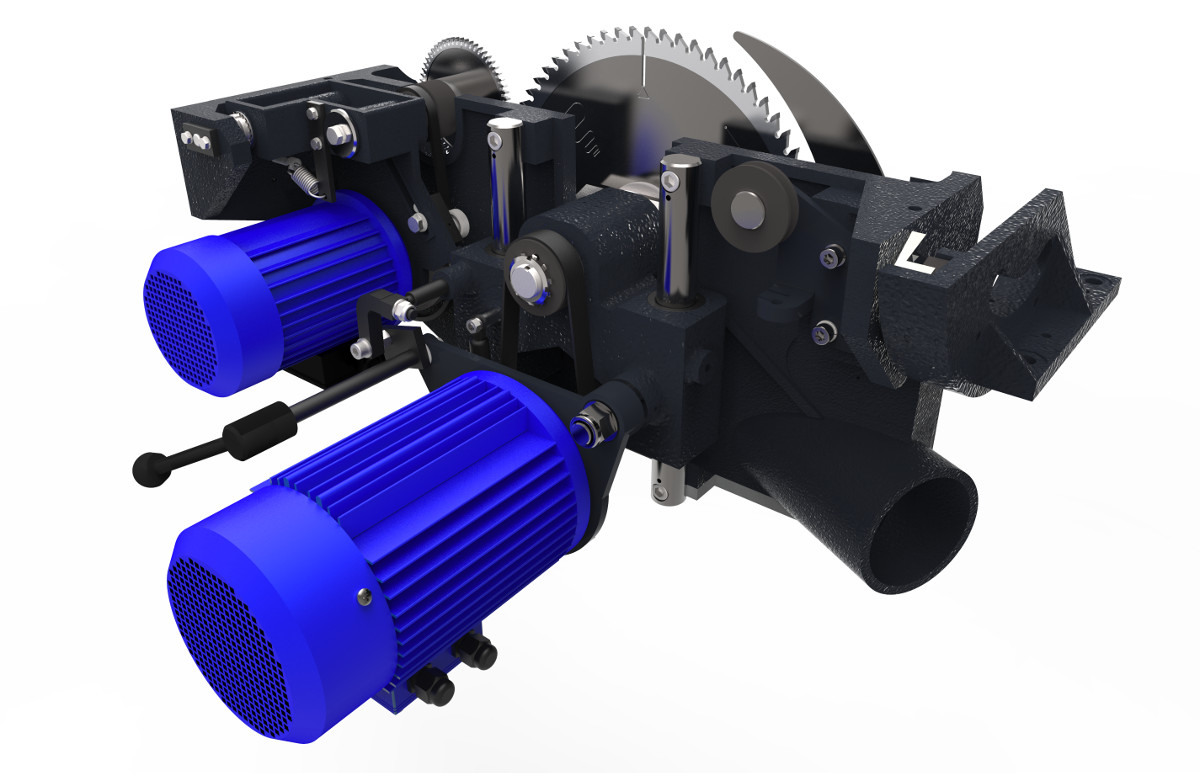

The motor plate allows the straightforward installation of either 3.9 or 6.0 kW motors, with the main spindle operating at speeds of 3500 and 4500 rpm. Additionally, it is powered by a 0.75 kW undercutting spindle, which runs at 8500 rpm.

Start/stop function

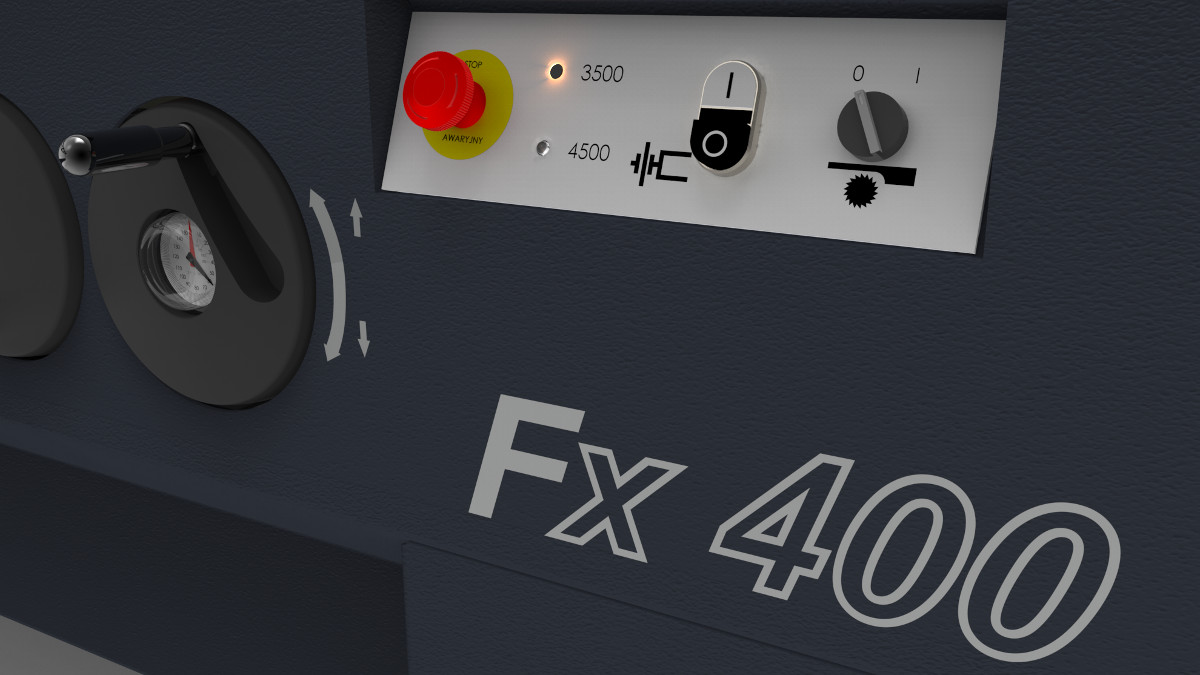

The desktop in the basic version. From left, safety “stop” switch, indication of the current speed of the main spindle, start/stop button, two-position rotary switch for the undercutting spindle.

Precision Readout

The electronic readout of the transverse ruler allows reading the width of the cut with a bumper on the transverse ruler from 50 -1630 mm, with an accuracy of 0.1 mm.

Rigid Format Table

The format table of Rema Fx400 features a high-rigidity, anodized multi-chamber design. It includes a cover and scrapers to protect against dust generated during cutting. The table is guided by four steel rods hardened to 60 HRC and equipped with a carriage that has steel rollers. Stability is enhanced by 12 eccentrically positioned guide rollers.

Precision Cutting

The electronic cutting width reader ensures precise and repeatable material cutting. Utilizing a new generation of absolute measurement technology, Rema Fx400 offers an accuracy of 0.1 mm for reliable readings.

Parameters of the drive unit

Data	Value
Main engine power	6kW
Motor spindle undercut	0,75kW
The diameter of the saw blade spindle undercut	⌀120 – Φ125mm
The rotational speed of the spindle undercut	8500obr./min.
The diameter of the tip of the main spindle	⌀30mm
The diameter of the tip of the spindle undercut	⌀20mm
The rotational speed of the main spindle	3500, 4500obr./min.

The geometrical dimensions of the saw

Data	Value
Dimensions sliding table	table 1900: 416 x 1900mm table 2500: 416 x 2500mm table 3010: 416 x 3010mm
Table dimensions	554 x 1008 mm
Working height of the table	885 mm

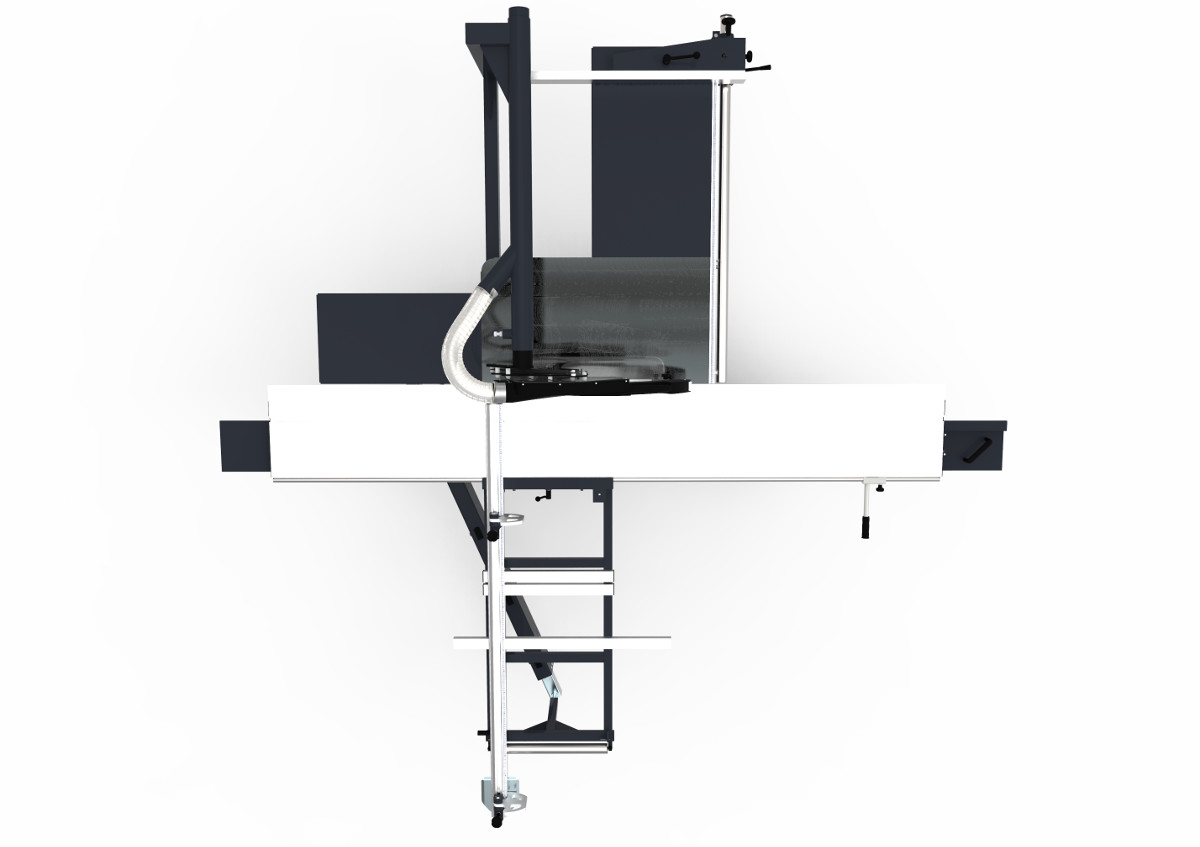

Saw dimensions

Data	Value
Length	2400 mm for table 1900mm 2500 mm for table 3000mm 3010 mm for table 3500mm
Width	3500mm + extension, total 5000mm
Maximum height	1310mm
The outer diameter of the sawdust – the upper cover	⌀80mm
The outer diameter of the sawdust – the bottom nozzle	⌀125mm
The demand of air suction bottom	900m3/h
Air consumption covers the top	360m3/h
The air speed in the suction nipples	28m/s
Weight	800kg

Technical and operational

Data	Value
The diameter of the main saw blade	⌀300 – 400 mm mm
Vertical adjustment height of the main saw	for a saw ⌀300: 0 – 90mm for a saw ⌀315: 0 – 97,5mm for a saw ⌀350: 3 – 115mm for a saw ⌀400: 45 – 140mm
Height of saw blade adjustment at 45°	for a saw ⌀300: 65mm for a saw ⌀315: 69mm for a saw ⌀350: 80mm for a saw ⌀400: 100mm
Tilting circular saw	0 – 45°
The length of sawing using auxiliary table	for movable table 190: 1900mm for movable table 250: 2500mm for movable table 300: 3000mm
Bumper	60 – 1780mm
Slide	1905 – 3200mm
Bumper with digital reading	60 -1630mm
Max. the longitudinal distance from the saw	Standard: 1050 mm, Option: 1300 mm

•
•
•
•
•
•
