Fx550

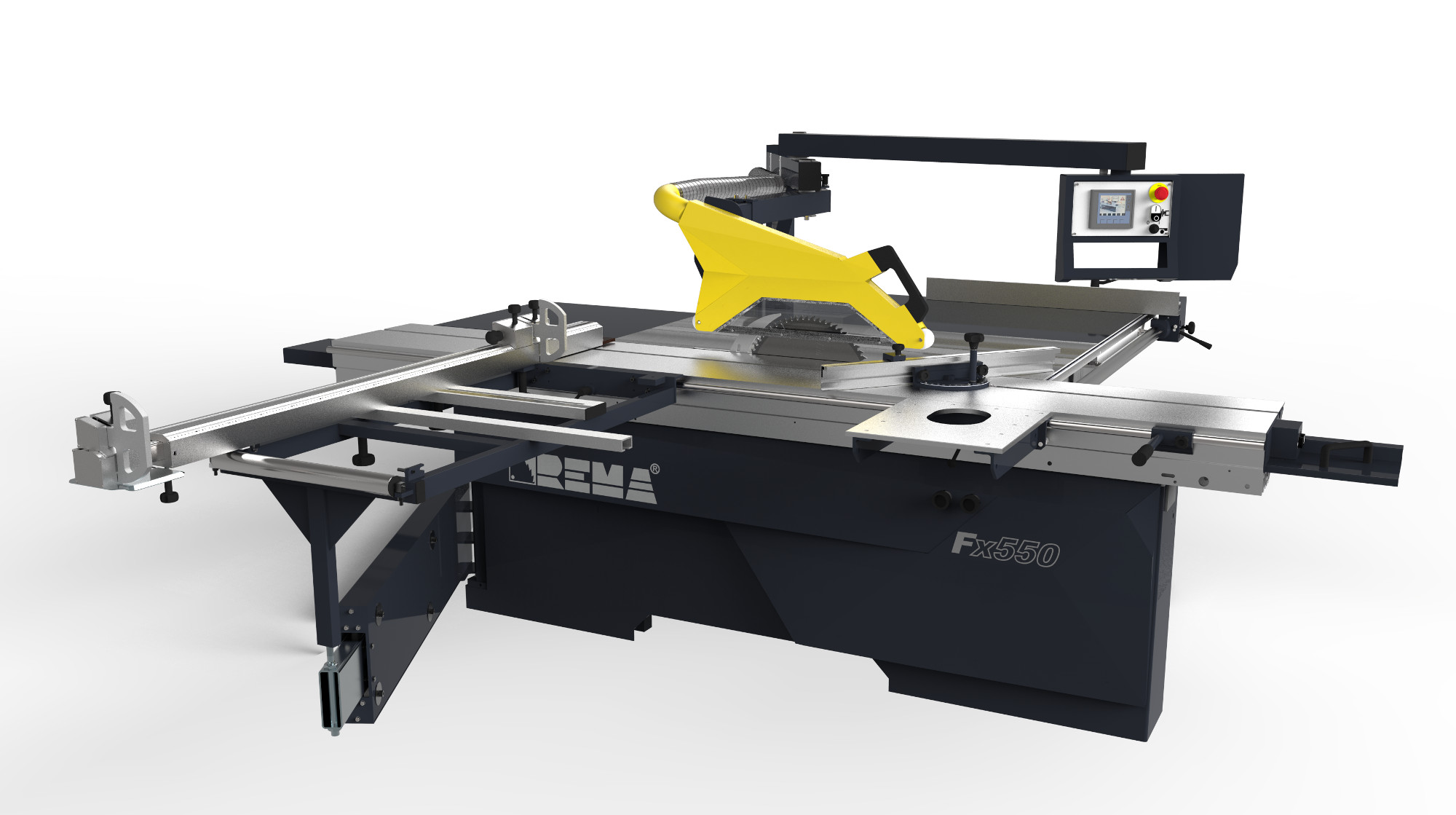

The machine’s reliability stems from its sturdy frame and durable internal components. It can cut a variety of materials with a maximum height of 200 mm (using a Φ550 saw blade). The standard 6kW S1 motor effortlessly handles solid wood and all types of furniture panels, even when cutting multiple pieces at once. With ergonomic features and a fresh design, REMA Fx550 panel saw enhances your work experience and makes every job more enjoyable.

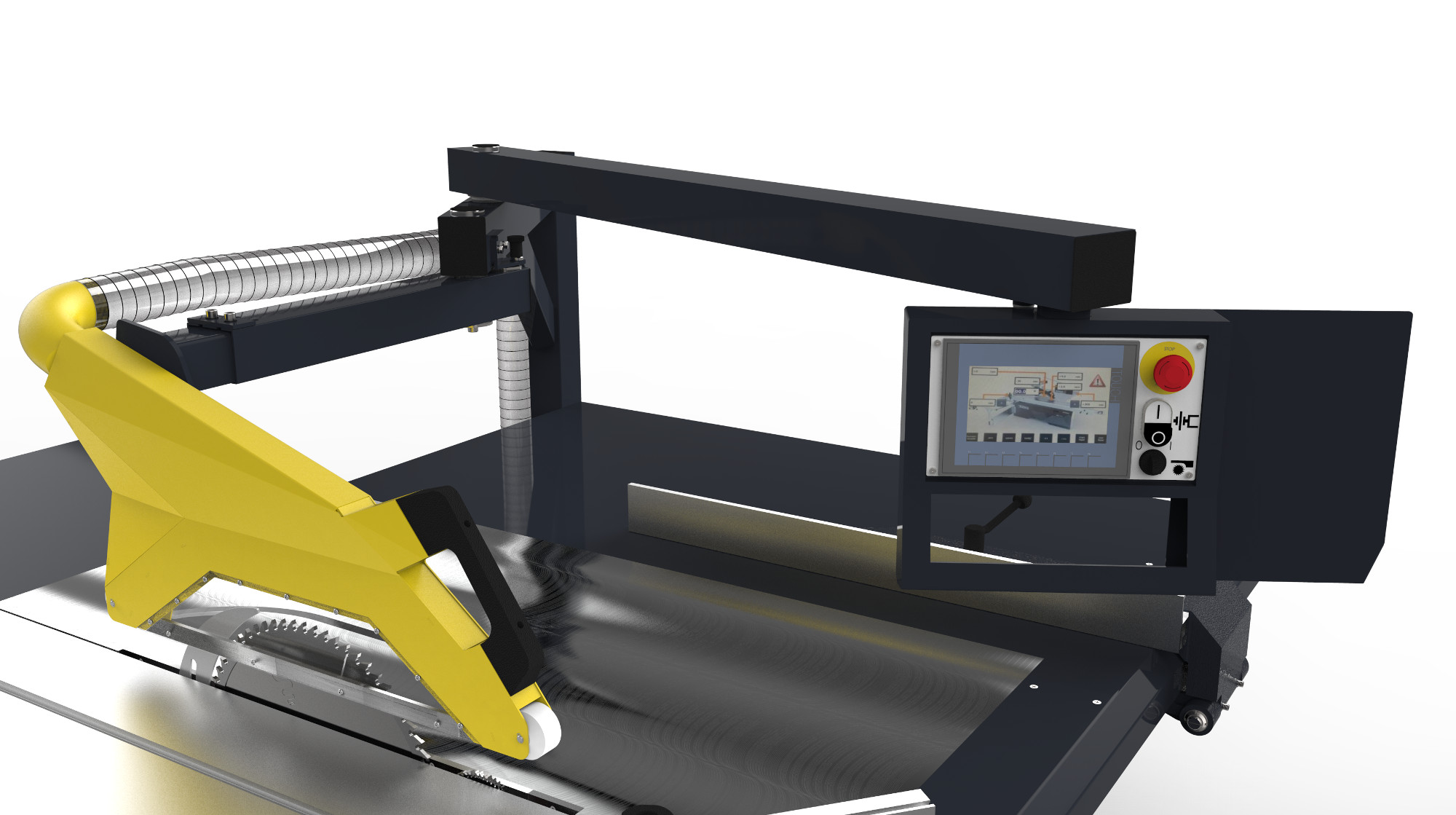

The REMA Fx550 features an easy-to-access high-resolution touch panel that provides complete control over the machine. It includes a new crosscut fence stopper with a precise adjustment system and an optional electronic reader that boasts 0.1 mm accuracy. The enhanced crosscut fence swing support offers greater strength and simplified maintenance, with the option to add two independent stoppers equipped with electronic readers.

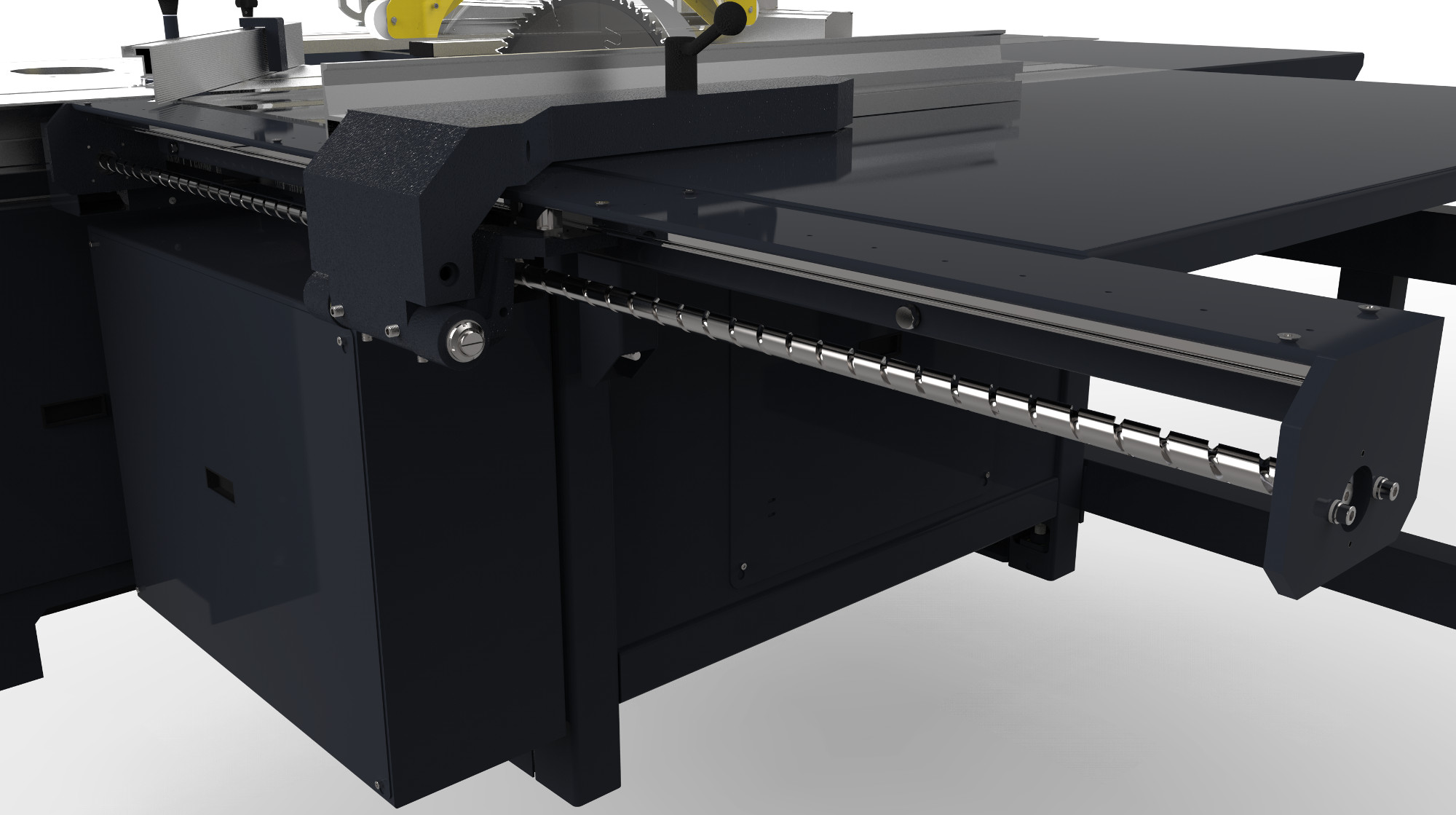

An electronic reader for the rip fence, available with an absolute memory function and 0.1 mm accuracy, is also optional for both manual and 2-axis versions. The new automatic rip fence system allows for quick and precise adjustments, ensuring a collision-free approach to the main saw blade.

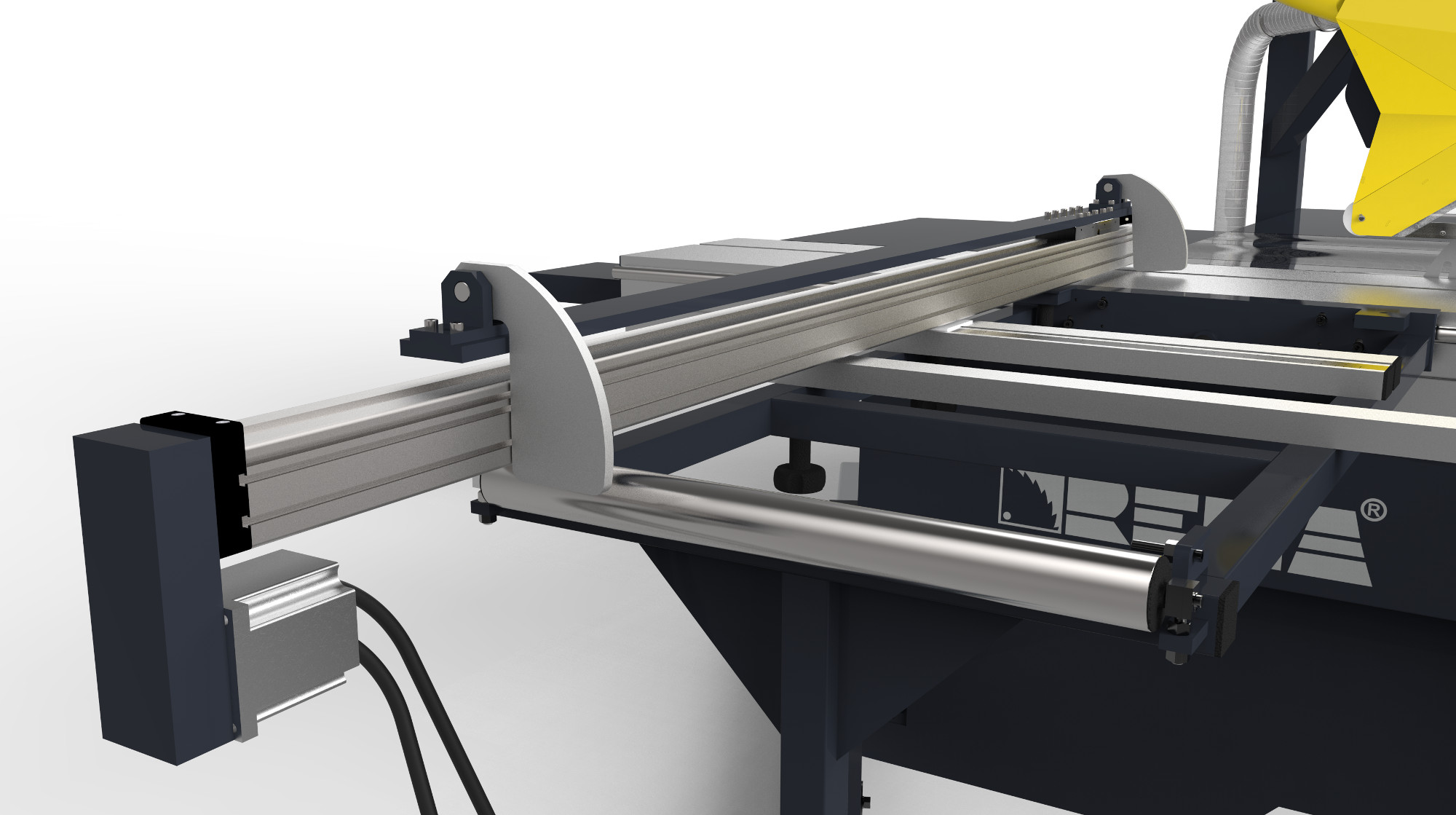

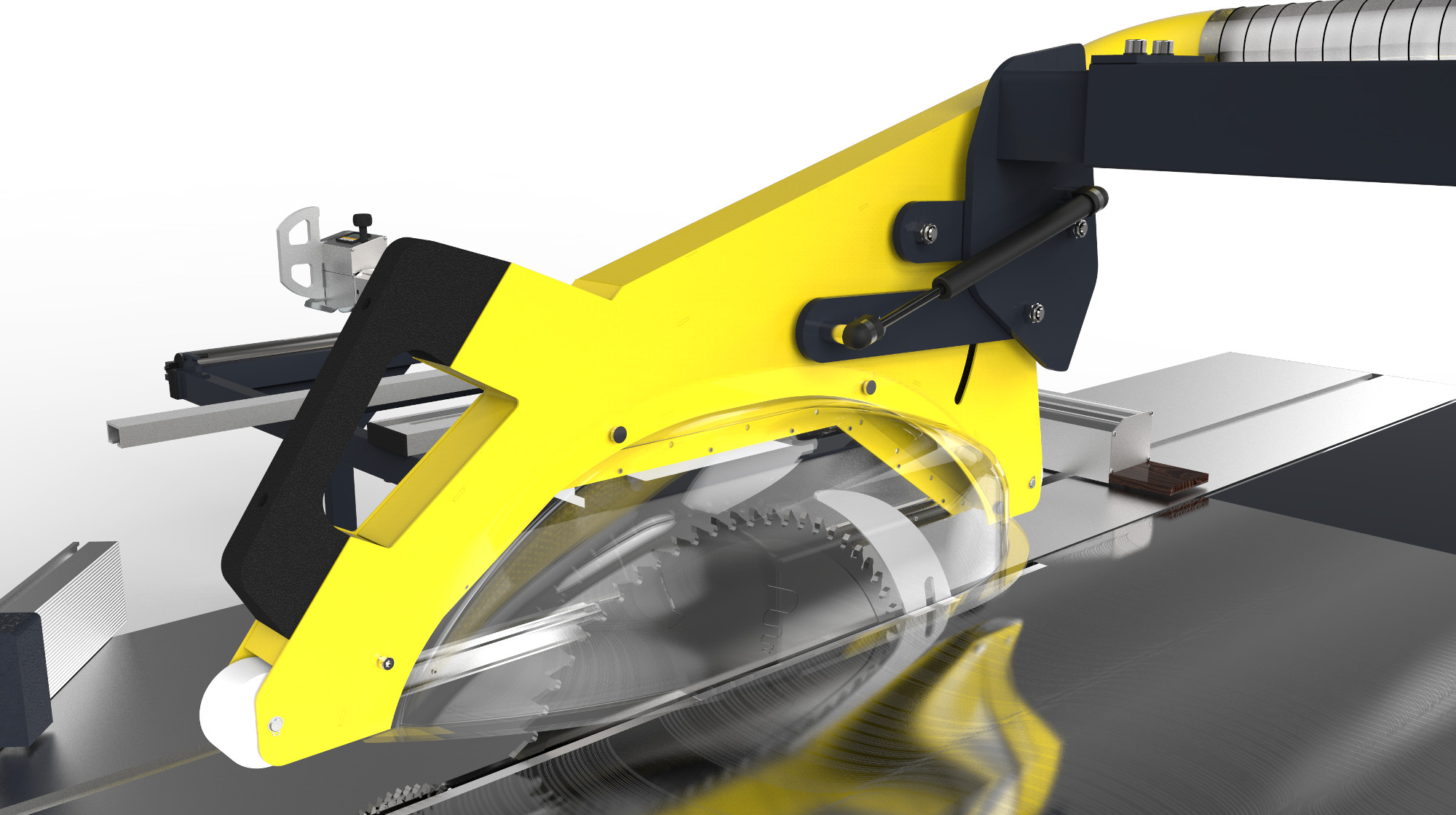

The innovative upper guard is easy to adjust with an ergonomic handle, and a gas spring facilitates smooth height adjustments based on material size. The 6-axis version includes a new automatic crosscut fence controlled directly from the touch panel.

With a redesigned cutting unit, the saw blade can accommodate a maximum diameter of Φ550 mm (excluding the scoring blade), while robust cast iron components ensure long-lasting performance. The innovative spindle shaft features a larger diameter and compensating springs, resulting in quieter operation and reduced vibrations.

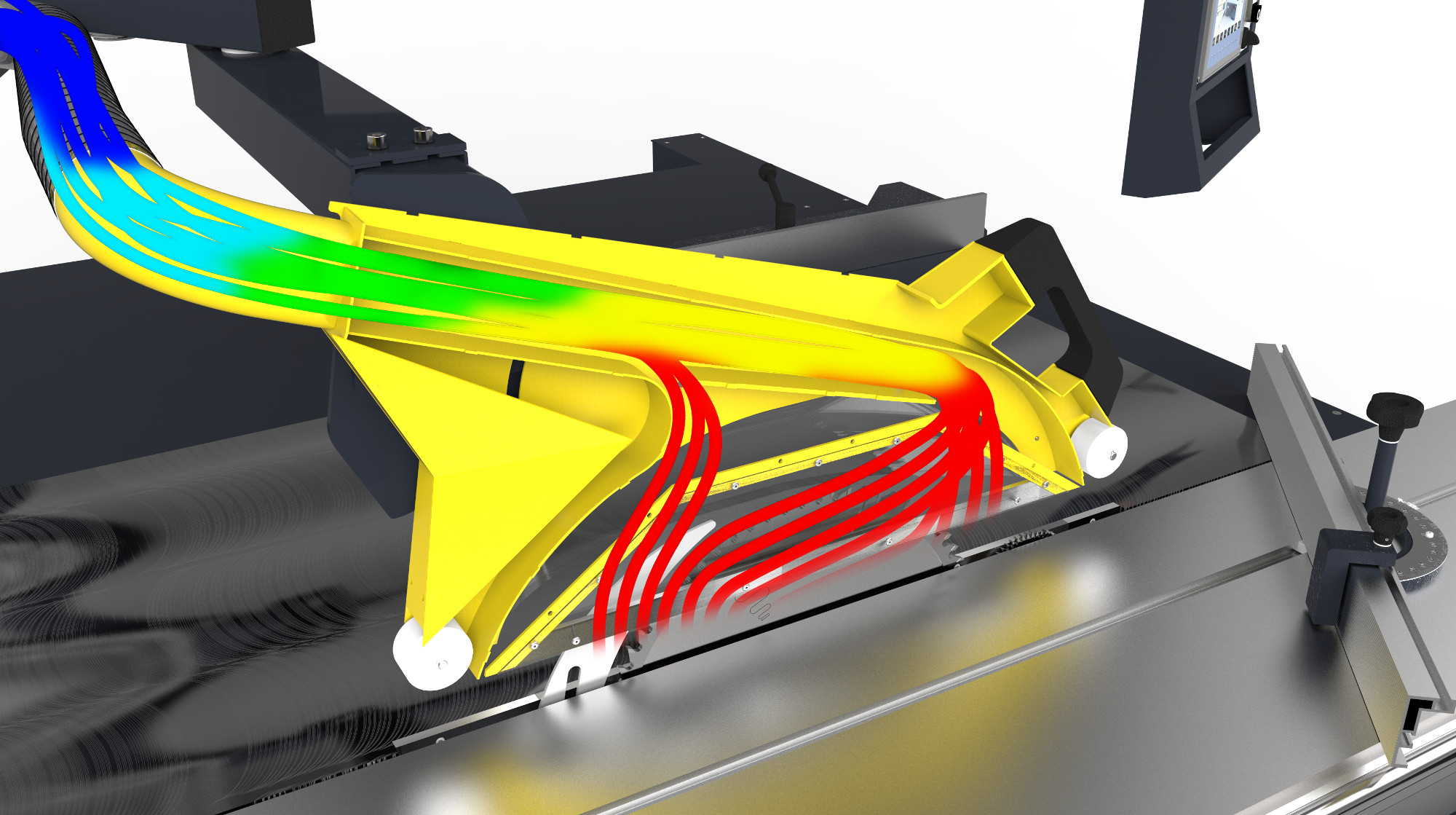

The iron cradle is optimized for effective dust extraction, with a minimized space below the scoring unit and a shorter outlet for easier shavings removal. The upper guard incorporates a hidden innovation that effectively captures shavings through two suction zones with enhanced parameters.

Constructed from steel sections connected with special lockers and welded for superior rigidity, the machine frame is built to meet the highest standards found in top-tier panel saws.

The Rema Fx550 panel saw is available in five basic configurations:

1. 6-axis: Servo-driven adjustments, 7-inch professional touch panel, with positioning for crosscut fence, rip fence, main saw blade height and angle, and scoring unit height and vertical position.
2. 5-axis: Servo-driven adjustments, 7-inch professional touch panel, with positioning for rip fence, main saw blade height and angle, and scoring unit height and vertical position.
3. 3-axis: Servo-driven adjustments, 4-inch professional touch panel, with positioning for rip fence, main saw blade height and angle.
4. 2-axis: Servo-driven adjustments, 4-inch professional touch panel, with positioning for main saw blade height and angle.

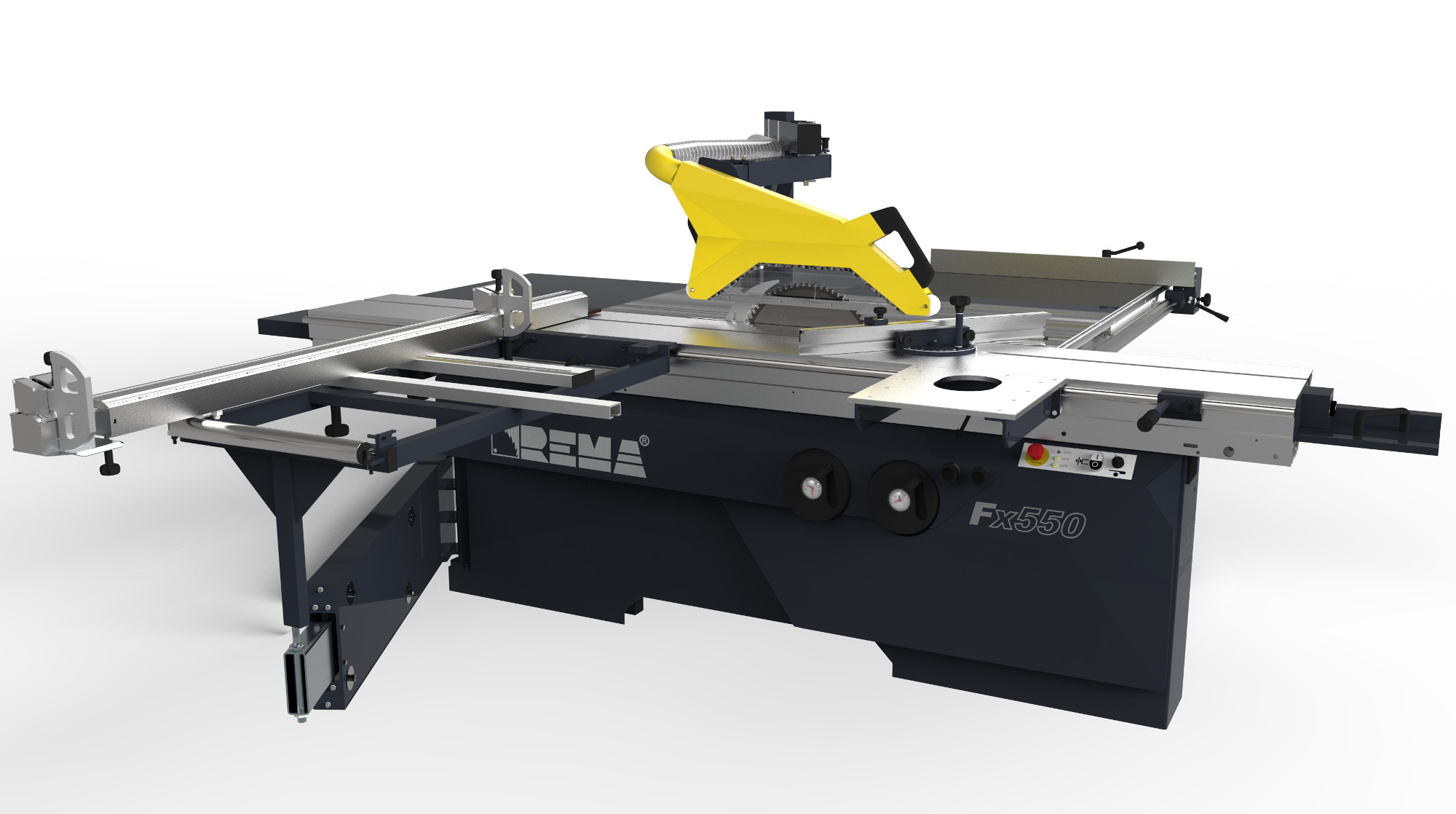

5. Manual: Adjustments for height and angle of the main saw blade.

Parameters of the drive unit

Data	Value
Main engine power	6 kW Option: 7,5kW
Motor spindle undercut	0,75kW
The diameter of the saw blade spindle undercut	⌀120 – Φ130mm
The rotational speed of the spindle undercut	8500obr./min.
The diameter of the tip of the main spindle	⌀30mm
The diameter of the tip of the spindle undercut	⌀20mm
The rotational speed of the main spindle	2800 / 3665 / 4800obr./min.

The geometrical dimensions of the saw

Data	Value
Dimensions sliding table	table 250: 416 x 2500mm table 300: 416 x 3010mm table 320: 416 x 3200mm table 390: 416 x 3900mm
Table dimensions	705 x 1500 mm
Working height of the table	890 mm

Saw dimensions

Data	Value
Length	3000 mm for table 250mm 3500 mm for table 300mm 3700 mm for table 320mm 4400 mm for table 390mm
Width	3776mm + extension, total 5025mm
Maximum height	1580mm
The outer diameter of the sawdust – the upper cover	⌀80mm
The outer diameter of the sawdust – the bottom nozzle	⌀125mm
The demand of air suction bottom	900m3/h
Air consumption covers the top	360m3/h
The air speed in the suction nipples	28m/s
Weight	1400kg

Cutting parameters

Data	Value
The diameter of the main saw blade	⌀300 – Φ550mm
Vertical adjustment height of the main saw	for a saw ⌀300: 0 – 75mm for a saw ⌀350: 15 -100mm for a saw ⌀400: 40 – 125mm for a saw ⌀450: 73 – 150mm for a saw ⌀500: 90 – 175mm for a saw ⌀550: 120 – 200mm
Height of saw blade adjustment at 45°	for a saw ⌀300: 0 – 50mm for a saw ⌀350: 10 – 70mm for a saw ⌀400: 28 – 85mm for a saw ⌀450: 50 – 105mm for a saw ⌀500: 63 – 122mm for a saw ⌀550: 85 – 140mm
Tilting circular saw	0 – 45° Option: 0 – 46°
The length of sawing using auxiliary table	for movable table 320: 3200mm for movable table 390: 3700mm for movable table 300: 3000mm for movable table 250: 2500mm
Bumper	170 – 1840mm
Bumper with microadjustment	170 – 1682mm
Slide	1950 – 3200mm
Bumper with digital reading	213 – 1845mm
Bumper with digital reading with microadjustment	213 – 1685mm
Max. the longitudinal distance from the saw	1400mm

•
•
•
•
•
•
•
•
