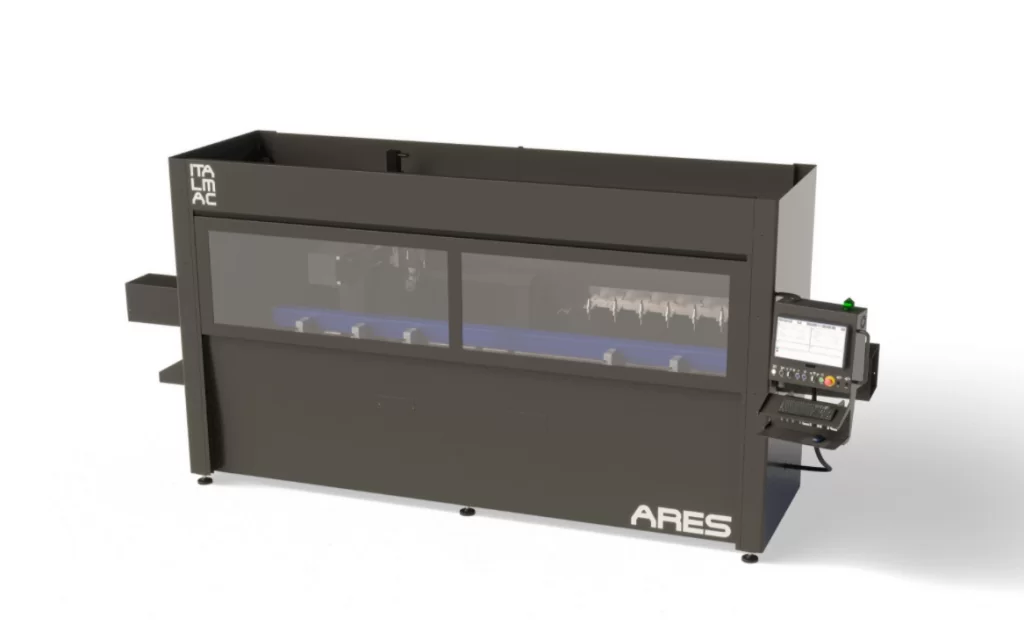

Ares

Versatile, highly productive and easy to use 3 axis CNC

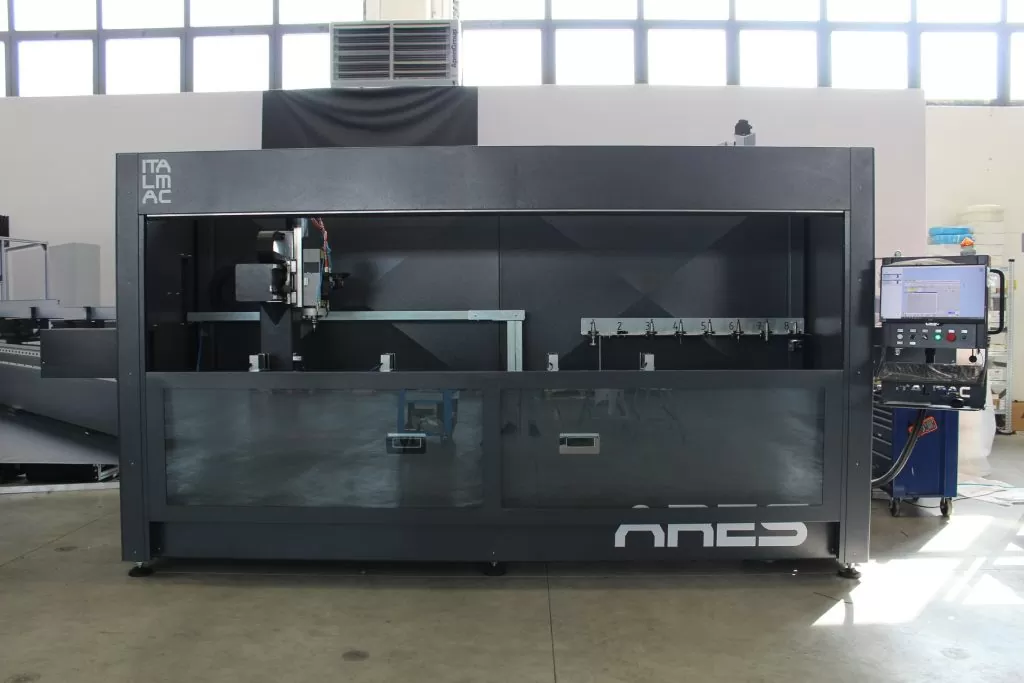

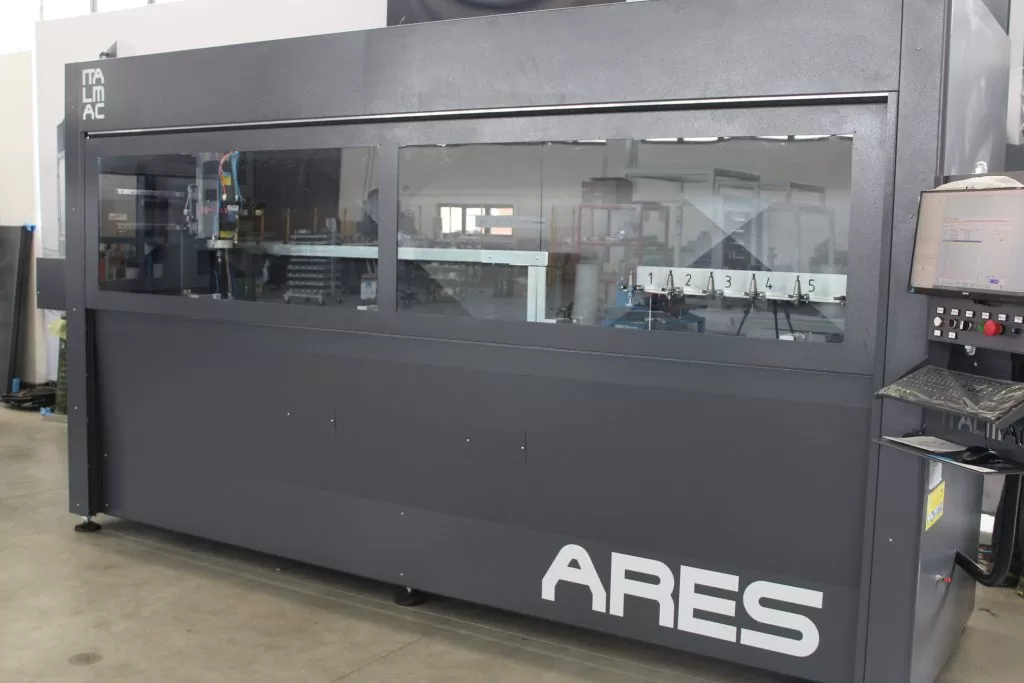

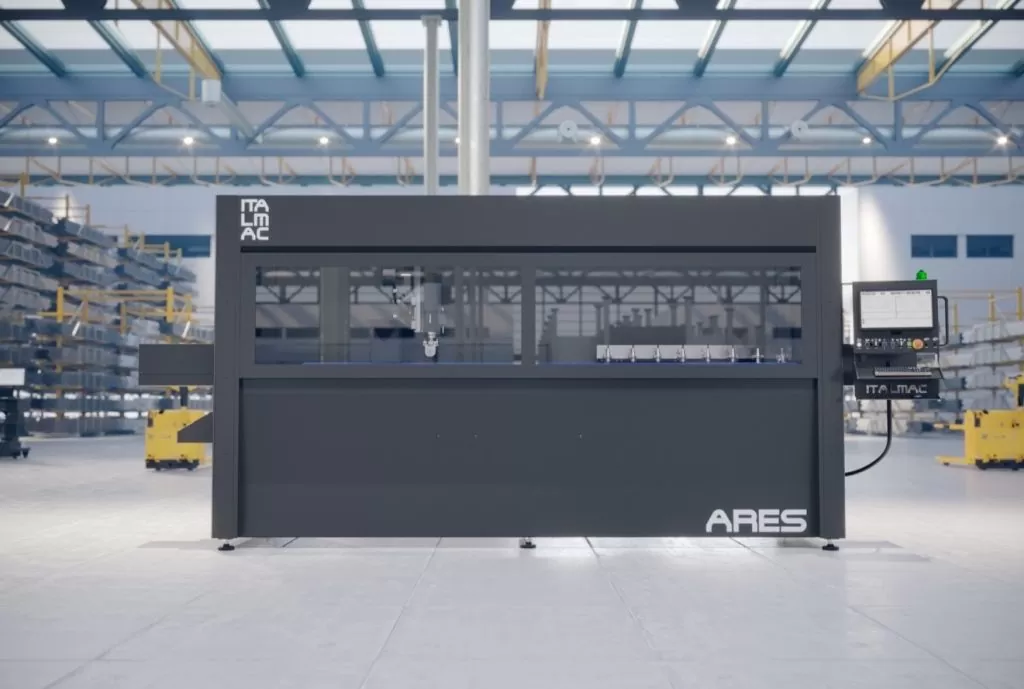

Ares 3-axis CNC machining centre has a large 8-position magazine, with the possibility of being equipped with 2 additional positions for containing even larger cutters. Ares CNC is equipped with a cabin, tool changer, automatic clamps, and standard tools.

Ask about product

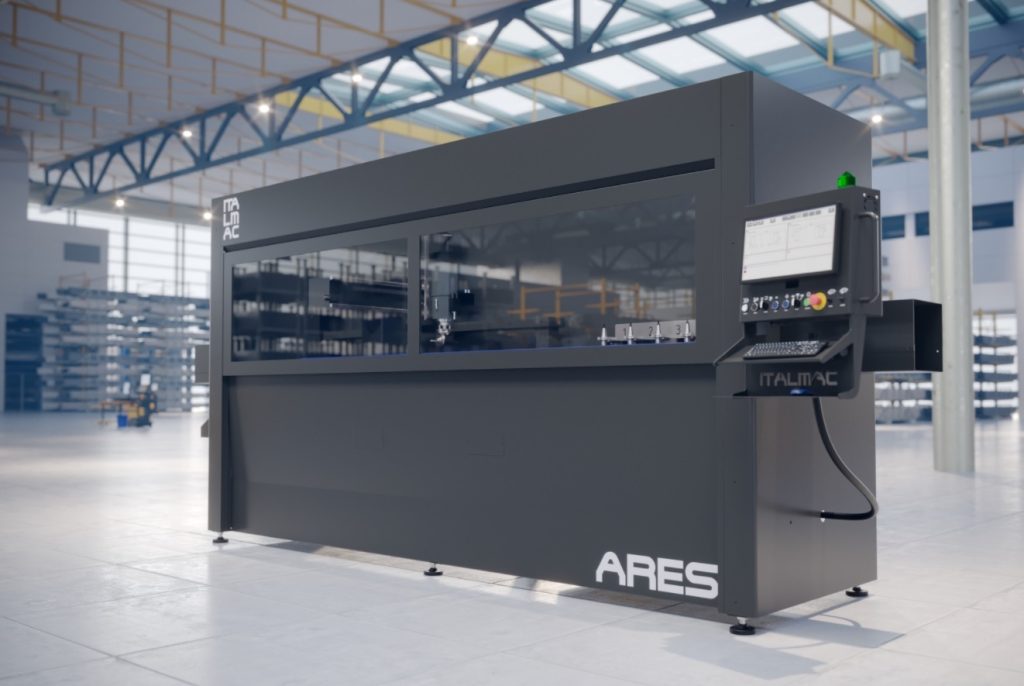

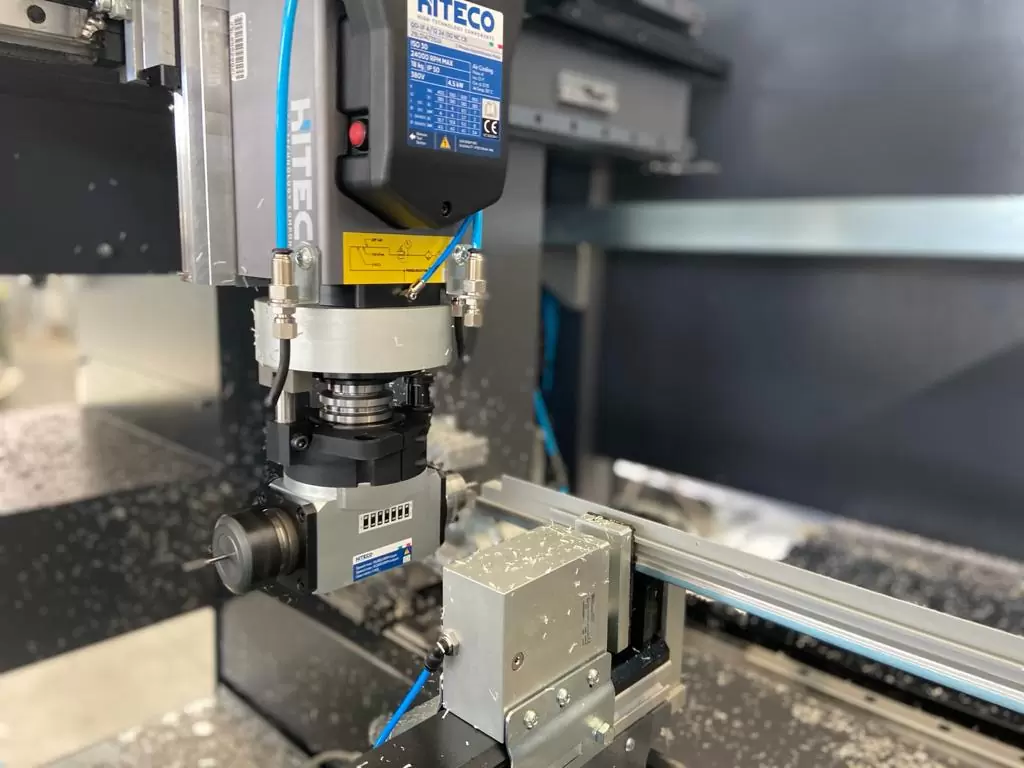

Ares CNC is equipped with a cabin, tool changer, automatic pliers and standard tools. The ergonomic control panel requires very little space – the entire machine in just 6 m² allows you to carry out even the most complex machining processes. Ares CNC, thanks to its special flange, allows to insert adjustable angular heads for lateral processing and, again on request, it can also be modified for the frontal processing of profiles.

These characteristics make Ares a versatile machine and a safe choice for those who need a highly productive and, at the same time, easy-to-use 3-axis CNC centre.

Strengths:

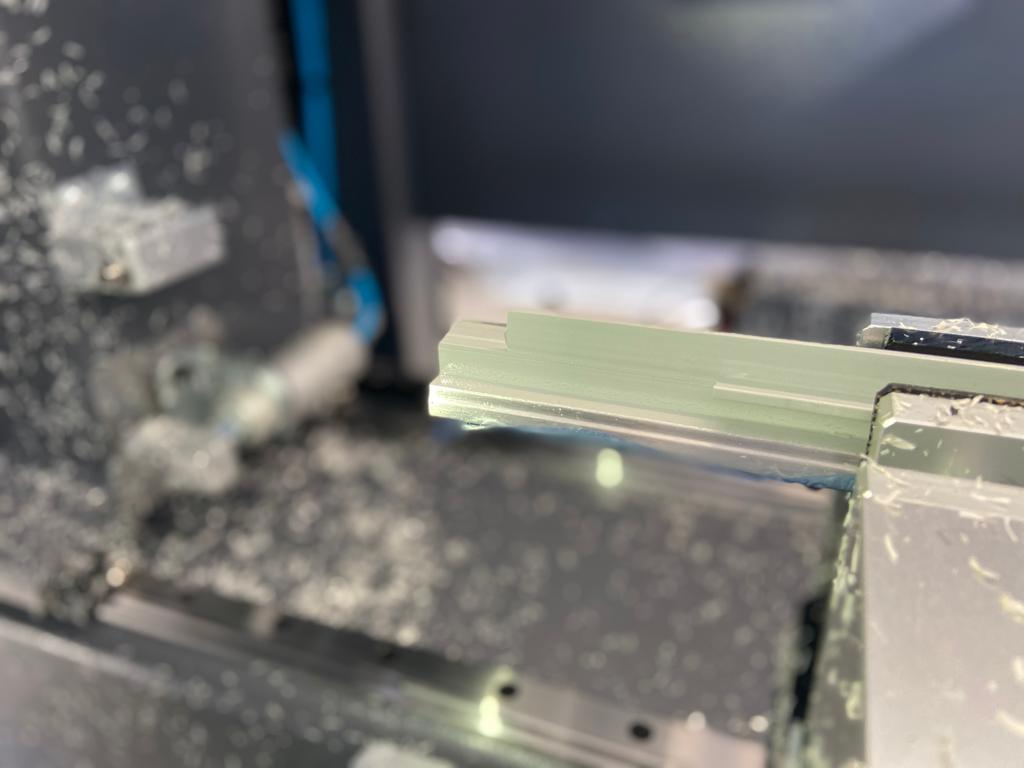

  • In just e6 m2, it produces complex profiles and processes.
  • Side and front processing of profiles. Optional 2-station extra magazine for large cutters.
  • Easy-to-use software to speed up processing.

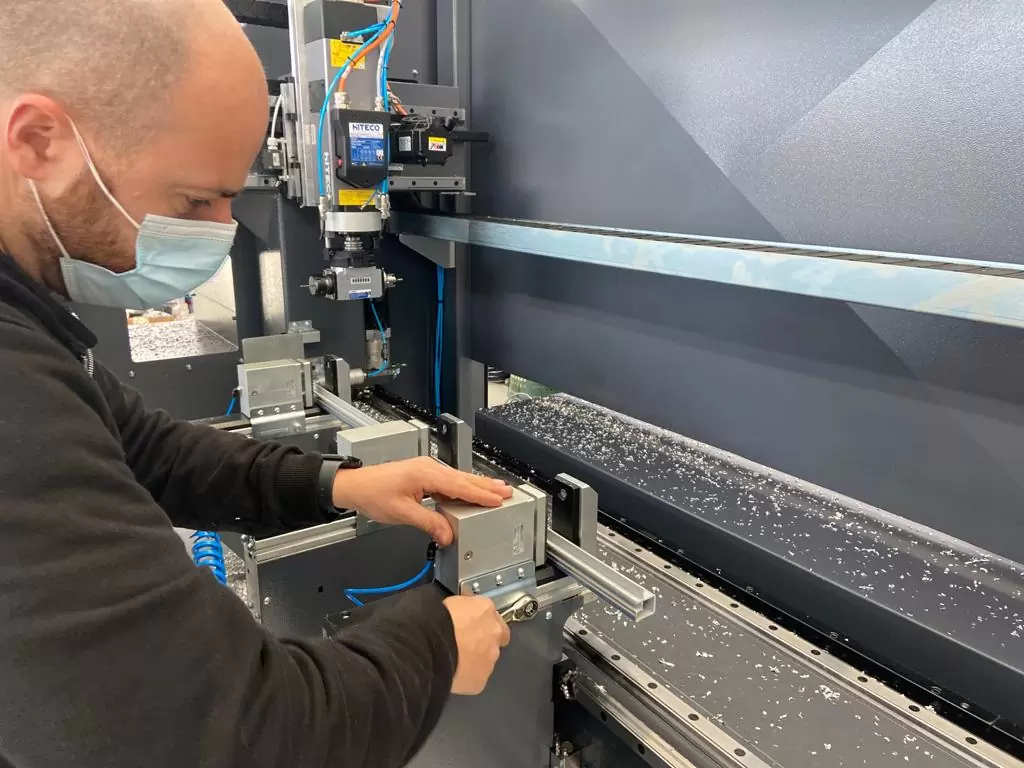

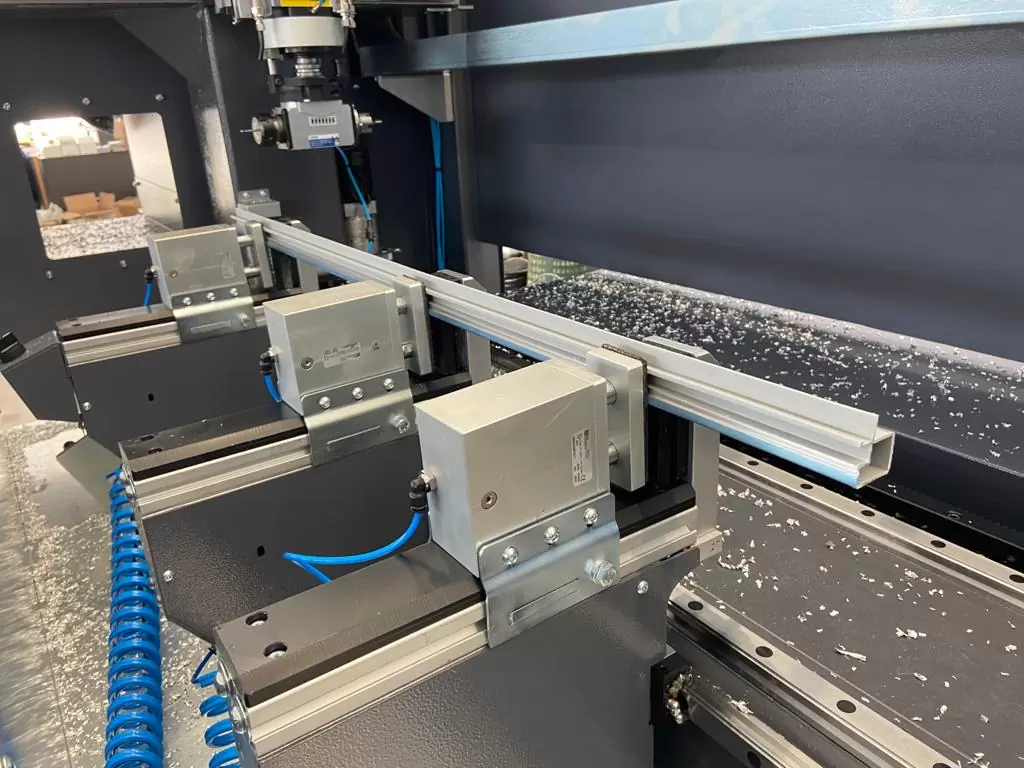

  • Cabin, tool change, automatic clamps and standard tools already included.



Characteristic data
DataValue
Model3.0
Dimensions4,600 x 1,675 x 2,260 mm
Weight1,800 kg

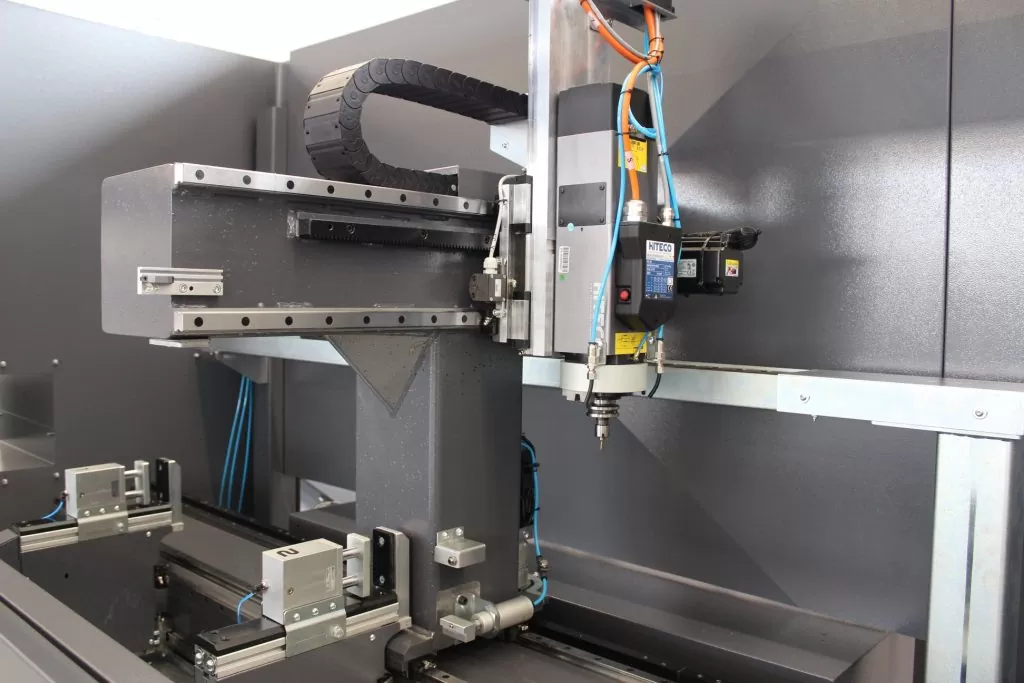

Power of the electric spindle4 kW
N. references of zero2 (manuals)
N. standard clamps4
Tool storage8 positions tool holder
X axis3,450 mm
Y axis600 mm
Z axis265 mm
Axis speedX 60 m/min, Y 60 m/min, Z 15 m/min
