Tel: +44 (0) 197 825 4472Kronos
Load section of 320 x 230 mm, 8 positions, disc cutters, taps and bevel drives

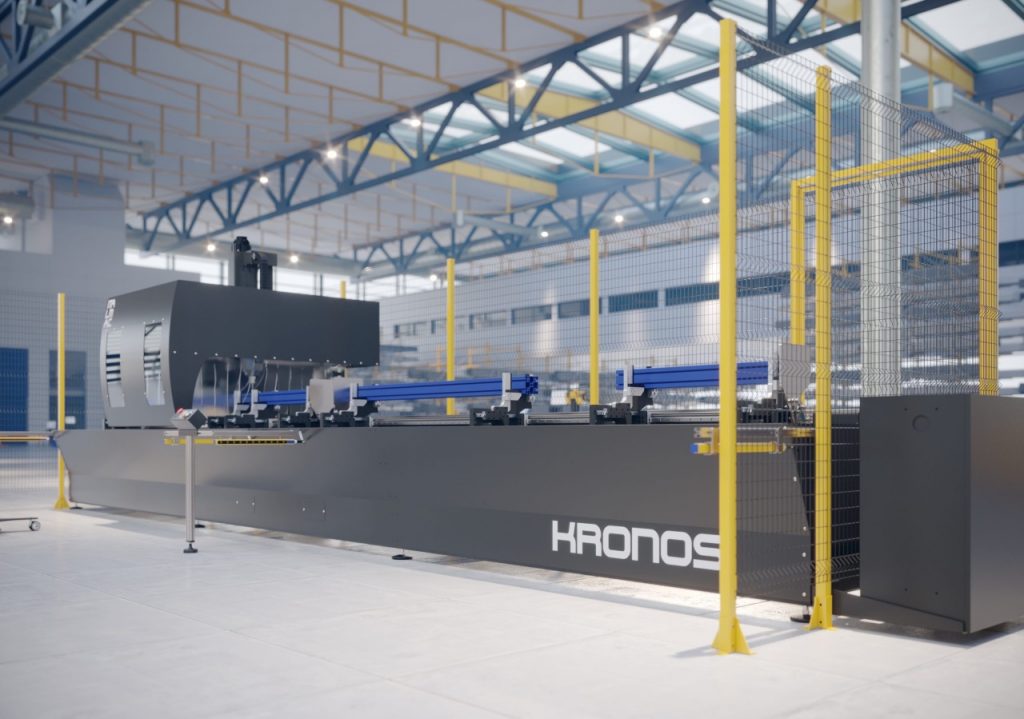

Kronos 4-axis CNC machining centre was designed for multiple manufacturing processes. For this reason, different machine versions have been created, all supplied with a cabin and equipped with soundproofing or suction systems.
Kronos is available in versions of 11, 9, 7 and 4 meters long. For those who do not have much space, we can supply the compact version of only 3 meters long. The top-of-the-range version is equipped with a 450 mm circular blade for cutting and end milling different types of profiles. This is an exclusive solution created by Italmac.
Kronos CNC is suitable for processing any type of material. Thanks to its simple and intuitive elements, allows you to easily manage all your production needs.
Strengths:
- Load section of 320 x 230 mm, 8 positions, disc cutters, taps and bevel drives.
- State-of-the-art 3D program ideal for the window sector.
- 450 mm circular blade and 3 kW motor that allows you to cut and end milling all kinds of profiles.
- Available in a sound-absorbing cabin version with a suction system.
| Data | Value |
|---|---|
| Dimensions | model 4.0: 4,900 X 2,000 X 2,200 model 7.0: 8,900 x 2,000 x 2,200 |
| Weight | model 4.0: 2,400 kg model 7.0: 3,400 kg |
| Power of the electric spindle | 6.6 kW |
| N. references of zero | model 4.0: 2 pneumatic model 7.0: 4 pneumatic |
| N. standard clamps | model 4.0: 6 / model 7.0: 8 |
| Tool storage | 8 positions tool holder fixed on the carriage |
| X axis | model 4.0: 4,200 mm model 7.0: 7,200 mm |
| Y axis | 985 mm |
| Z axis | 490 mm |
| Axis speed | X 80 m/min, Y 60 m/min, Z 30 m/min |
| A axis rotation | From -90 ° to +90 ° |
