Pegaso

Load section of 320 x 230 mm, 8 positions, disc cutters, taps and bevel drives

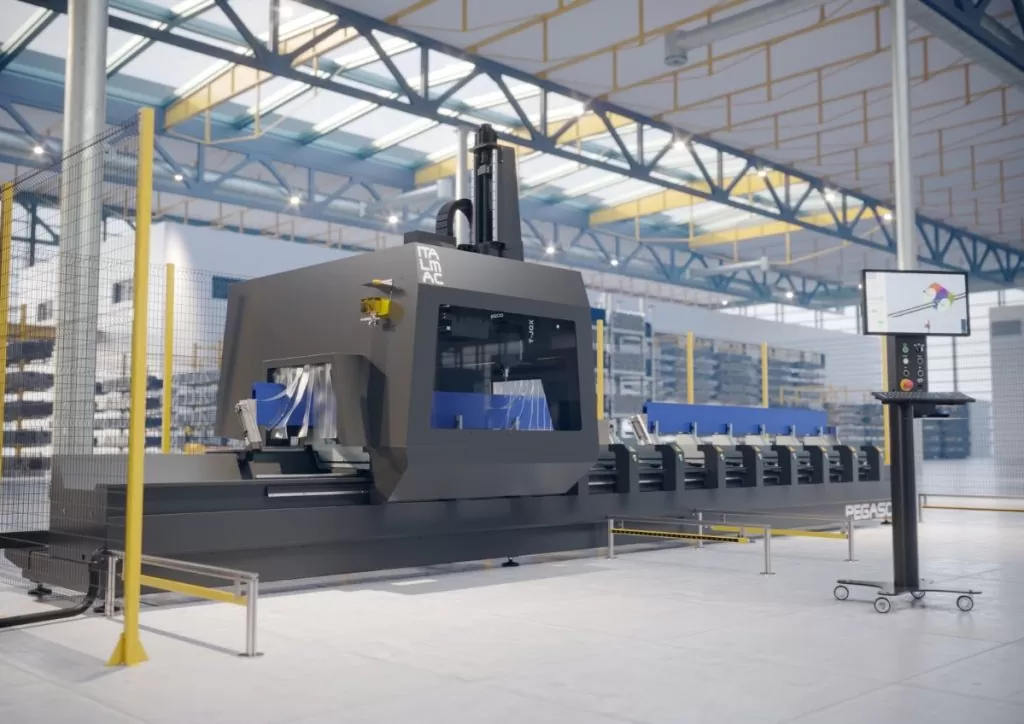

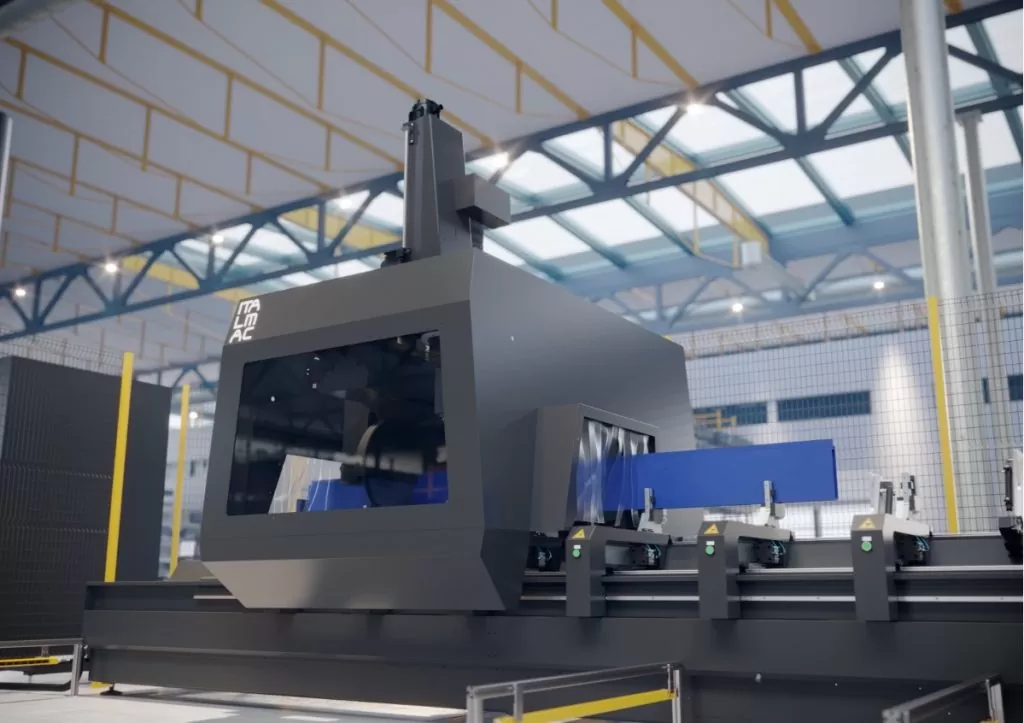

Pegaso 5-axis CNC machine is particularly suitable for the light industry and suitable for machining steel, aluminium and alloys.

Ask about product

The machine is provided with a wide range of 8, 12 and 16 kW electro spindles and high-performance clamps with automatic movement through the carriage (or through the quick rearrangement of the loading surface). Available in 4, 7, 9, 11 and 13-meter versions also with double clamping and with supports for angular heads for specific processes.

Pegaso basic tool change includes 15 positions, but on request, it can be extended to up to 30. The machinable working section of 300 x 640 mm allows a wide range of operations to satisfy every need. Among its outstanding features, Pegaso includes a 400 mm blade and a tool blade that can be combined with the 500 mm accessory blade assembly. Pegaso is perfect for facades, construction profiles, automotive industry, railway sector, lighting engineering and all kind of light industries in general.

Strengths:

  • Electrospindles of different power of 8, 12 and 16 kW.
  • Machinable section of 300 x 640 mm, ideal for light industrial machining.
  • 500 mm saw blade in fixed 90° version and mobile for sectioning also vertically.
  • 400 mm tool blade ideal for facades, construction profiles, automotive, railway and lighting industries.



Characteristic data
DataValue
Dimensionsmodel 4.0: 6,800 x 3,100 x 2,500 mm
model 7.0: 9,800 x 3,100 x 2,500 mm
model 9.0: 11,800 x 3,100 x 2,500 mm
Weightmodel 4.0: 3,200 kg
model 7.0: 4,300 kg
model 9.0: 5,400 kg
Power of the electric spindle10 or 12 kW
N. references of zeromodel 4.0: 2 pneumatic
model 7.0: 4 pneumatic
model 9.0: 4 pneumatic
N. standard clampsmodel 4.0: 6 automatic
model 7.0: 8 automatic
model 9.0: 10 automatic
Tool storage15 positions tool holder fixed on the carriage (expandable up to 30)
X axismodel 4.0: 4,470 mm
model 7.0: 7,470 mm
model 9.0: 9,470 mm
Y axis1,325 mm
Z axis600 mm
A axis rotationFrom -120 ° to + 120 °
C axis rotationFrom -240 ° to + 240 °
Axis speedX 100 m/min, Y 60 m/min, Z 30 m/min
