Perfect for rail, transportation, aerospace, electrical pipelines and tensile structures

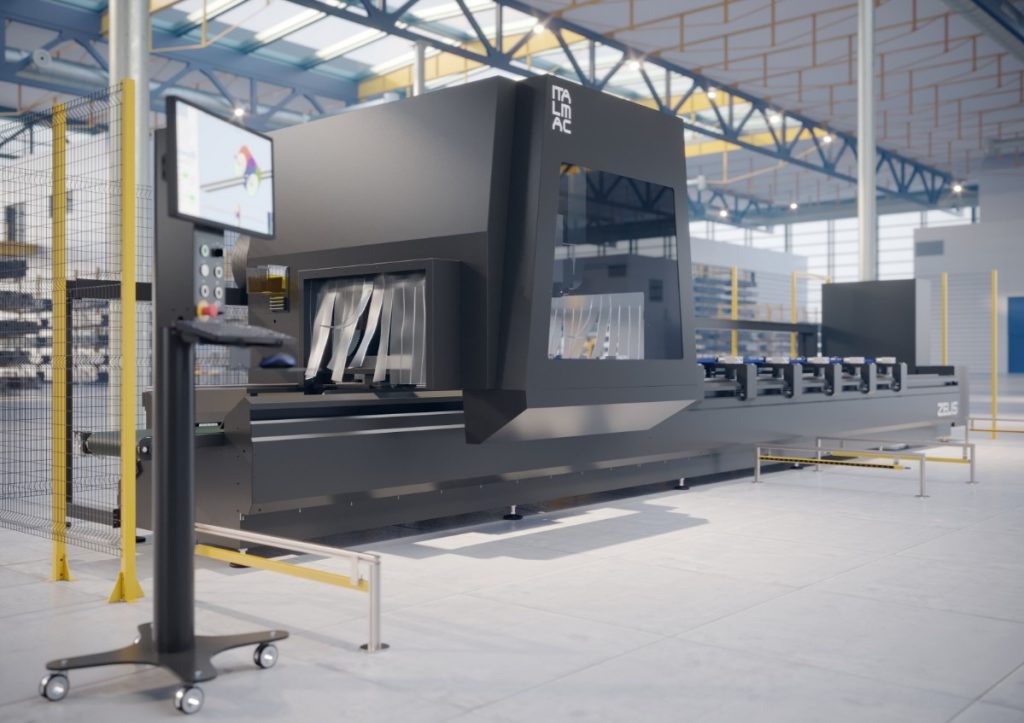

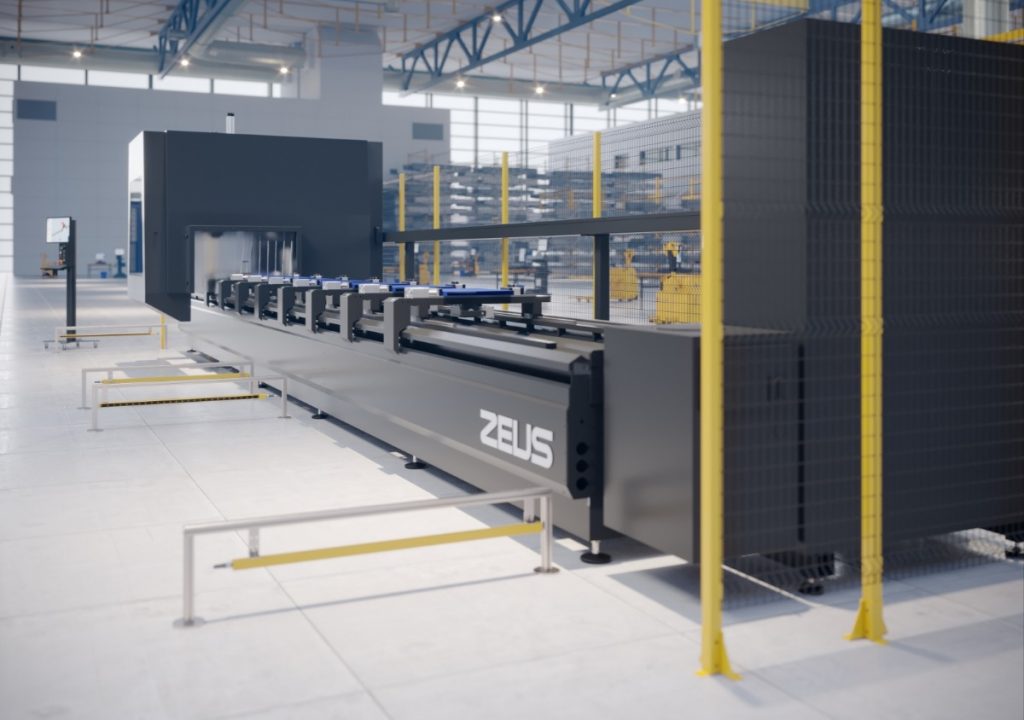

Zeus is a robust and precise 5-axis machining centre, mainly used in the railway, automotive, aerospace and transport industries in general. With its rigidity, it allows to process steel easily and have a diversified applications in various sectors.
Zeus is equipped with a heavy base made of a woven frame and is available in 4, 7, 9 or 11 meters versions, with or without a cabin. Special versions have been created – such as the one dedicated to tensile structures. In this case, a solution with rollers and angular heads is offered to allow the work on all six sides of the profile.
A large mobile carriage ensures an accuracy starting from 0.07 mm with a machinable section from 400 mm to 680 mm. The intuitive CAD/CAM is the tool designed by Italmac specifically for this category of machines, which allows the customer to have access to all available technologies. In fact,Zeus is able to connect with any CAD, and at the same time provides the ERP software with the necessary to organize and plan production.
Zeus means having power under control.
Strengths:
- Perfect for rail, transportation, aerospace, electrical pipelines and tensile structures.
- Effective cooling system that allows quick processing.
- Internal magazine including 30 positions with saw blades from 500 to 800 mm for large sections.
- Intuitive and dedicated software for use in the industrial and automotive sectors.
| Data | Value |
|---|---|
| Dimensions | model 4.0: 7,900 x 3,150 x 3,100 mm model 7.0: 10,900 x 3,150 x 3,100 mm model 9.0: 1,000 x 3,700 x 3,300 mm |
| Weight | model 4.0: 5,500 kg model 7.0: 7,000 kg model 9.0: 8,600 kg |
| Power of the electric spindle | 10 , 12, 16 or 22 kW |
| N. references of zero | model 4.0: 2 pneumatic model 7.0: 4 pneumatic model 9.0: 4 pneumatic |
| N. standard clamps | model 4.0: 4 automatic model 7.0: 8 automatic model 9.0: 10 automatic |
| Tool storage | 15 positions tool holder fixed on the carriage (expandable up to 30) |
| X axis | model 4.0: 5,450 mm model 7.0: 8,300 mm model 9.0: 10,250 mm |
| Y axis | 1,550 mm |
| Z axis | 790 mm |
| A axis rotation | From -120 ° to + 120 ° |
| C axis rotation | From -240 ° to + 240 ° |
| Axis acceleration | X 100 m/min, Y 65 m/min, Z 40 m/min |
