EASY JET

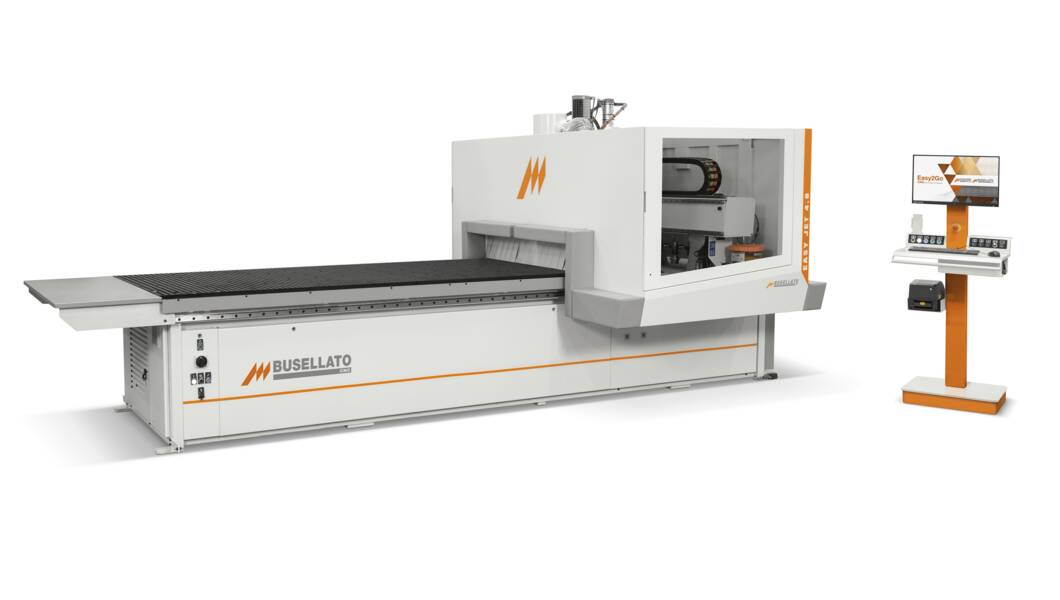

EASY JET CNC Machining Centre for Woodworking and Nesting Applications

The EASY JET CNC machining centre is designed for intuitive and efficient operation, making it ideal for craftsmen, joinery workshops, and specialised woodworking technicians. Compact, versatile, and accessible from three sides, the EASY JET combines the performance of larger CNC woodworking machines with a space-saving design that reduces installation requirements and improves operator accessibility.

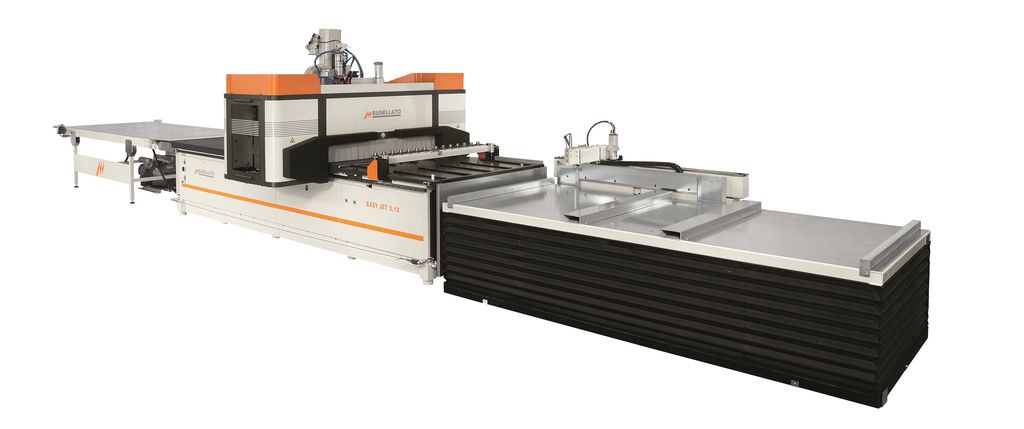

Engineered for furniture manufacturing, interior doors, panel processing, routing, drilling, and nesting applications, the EASY JET range delivers reliable and cost-effective CNC machining performance for modern production environments. The machine is also available with the automatic loading and unloading system, “Cella Nesting”, for increased automation and productivity.

The EASY JET series is available in multiple working field sizes. All models offer 150 mm workpiece clearance and are equipped with powerful electrospindles delivering 6.6 kW as standard, with optional 9.5 kW configurations available. Depending on the setup, the machines can be fitted with 7, 12, 11, or 18 spindles and automatic tool changers supporting up to 19 tools for maximum machining flexibility and reduced downtime.

The EASY JET range provides compact CNC performance without compromising precision, efficiency, or production capability.

Working field X – Y

Easy Jet	Value
4.8	2486 mm x 1255 mm
5.12	3686 mm x 1555 mm
6.12	3686 mm x 1855 mm
7.10	3086 mm x 2155 mm
7.14	4286 mm x 2155 mm

Tool changer

Easy Jet	Value
4.8	8 std – 11 opt
5.12	10 std – 14 opt
6.12	11 std – 16 opt
7.10	13 std – 19 opt
7.14	13 std – 19 opt

Technical data

Data	Value
Workpiece clearance	150 mm
Electrospindle power (S6)	*Version A-B: 6,6 kw (std) *Version C-D: 9,5 kw (opt)
Spindles	7 or 12 (std) 11 o 18 (opt)

•
•
•
•
