High-Performance CNC Routing, Drilling, and Nesting Machine

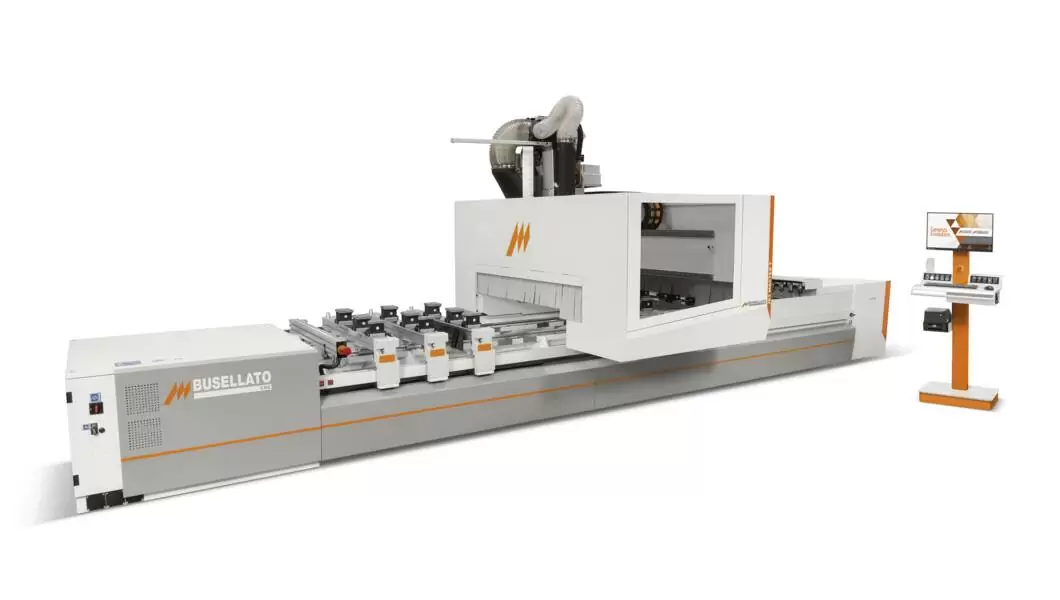

The Jet Master T is an advanced CNC machining centre designed to deliver outstanding performance, flexibility, and precision for modern woodworking production. Available in a range of sizes and configurations, the Jet Master T with panel support table provide versatile solutions for routing, drilling, grooving, and complex machining applications.
Equipped with a wide selection of boring heads, powerful 3, 4, and 5-axis electrospindles, and single or double-outlet horizontal routing units, these CNC woodworking machines are built to handle a wide variety of machining requirements with maximum efficiency and accuracy.
Jet Master T/C CNC Machining Centre for Woodworking and Panel Processing
The Jet Master T/C range is a high-performance CNC machining centre designed for precision woodworking, panel processing, routing, drilling, grooving, and nesting applications. Combining advanced CNC technology with flexible configurations, the T series delivers exceptional productivity, accuracy, and reliability for furniture manufacturers, joinery workshops, and industrial woodworking production.
The Jet Master T features a panel support working table, while the wide range of equipment and machining options makes the series highly versatile and competitive for demanding production environments.
The machines are equipped with powerful 3, 4, and 5-axis electrospindles, delivering outstanding machining flexibility for complex operations and precision component manufacturing. Depending on the configuration, the 3/4-axis electrospindle provides 9.5 kW or 15 kW power, while the 5-axis version delivers 10 kW or 13.5 kW for advanced multi-angle machining applications.
The range is available with working fields up to 5515 mm in X and 1620 mm in Y, making it suitable for both standard and large-format panel processing. Piece clearance options of 180 mm or 250 mm allow efficient machining of a wide range of materials and components.
For maximum productivity, the machines can be equipped with boring heads featuring 18 to 30 spindles, automatic tool changers supporting up to 54 tools, and single or double-outlet horizontal routing units. This flexible configuration ensures efficient CNC woodworking performance for every machining requirement.
| Data | Value |
|---|---|
| Working field X | 3115 mm |
| Working field Y | 1320 mm |
| Piece clearance | 180 mm |
| Power electrospindle 3/4 axis (S6) | 9,5/15 kW |
| Power electrospindle 5 axis (S6) | 10/13,5 kW |
| Spindles | from 18 to 26 |
| Tool changer | until 54 |
| Data | Value |
|---|---|
| Working field X | 3715 mm |
| Working field Y | 1320/1620 mm |
| Piece clearance | 180/250 mm |
| Power electrospindle 3/4 axis (S6) | 9,5/15 kW |
| Power electrospindle 5 axis (S6) | 10/13,5 kW |
| Spindles | from 18 to 30 |
| Tool changer | until 54 |
| Data | Value |
|---|---|
| Working field X | 5515 mm |
| Working field Y | 1320/1620 mm |
| Piece clearance | 180/250 mm |
| Power electrospindle 3/4 axis (S6) | 9,5/15 kW |
| Power electrospindle 5 axis (S6) | 10/13,5 kW |
| Spindles | from 18 to 30 |
| Tool changer | until 54 |
