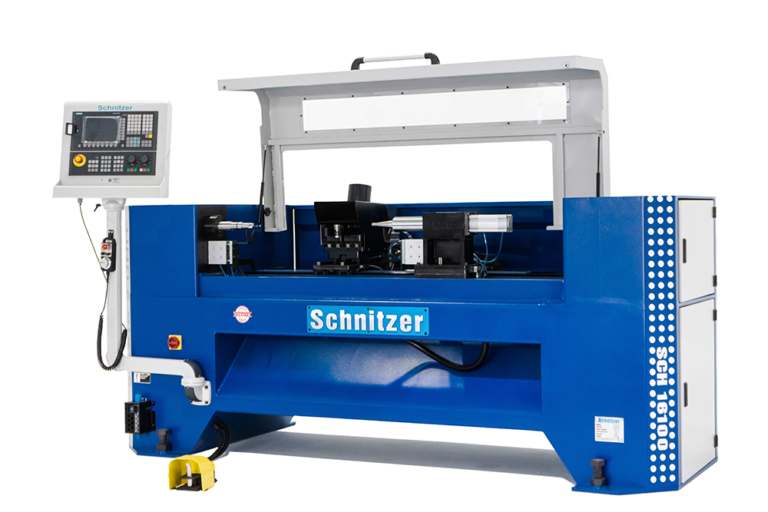

Tel: +44 (0) 197 825 4472Schnitzer Eco Classic
2 axis CNC lathe
Eco Classic is a high-class 2-axis lathe developed on the basis of a proven German patent. A machine that will be used in every plant dealing with wood processing. The machine is ideally suited to the performance of short series of turned elements as well as the production of elements on a special request. Perfect for the production of balustrade elements and furniture components.

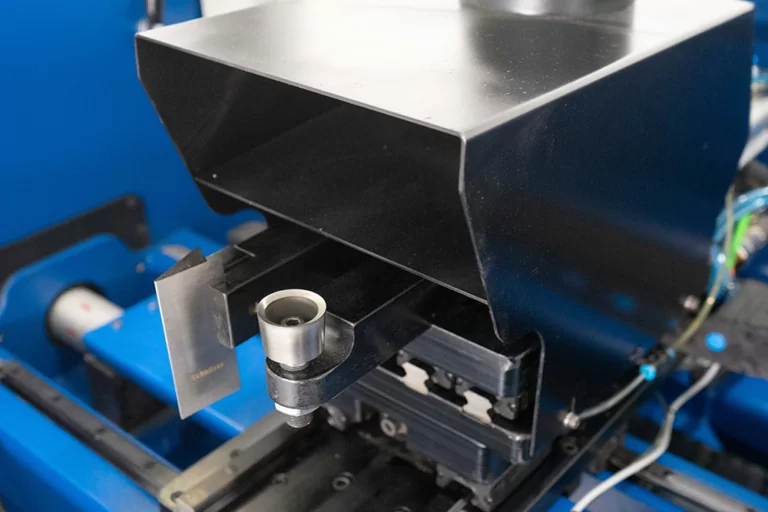

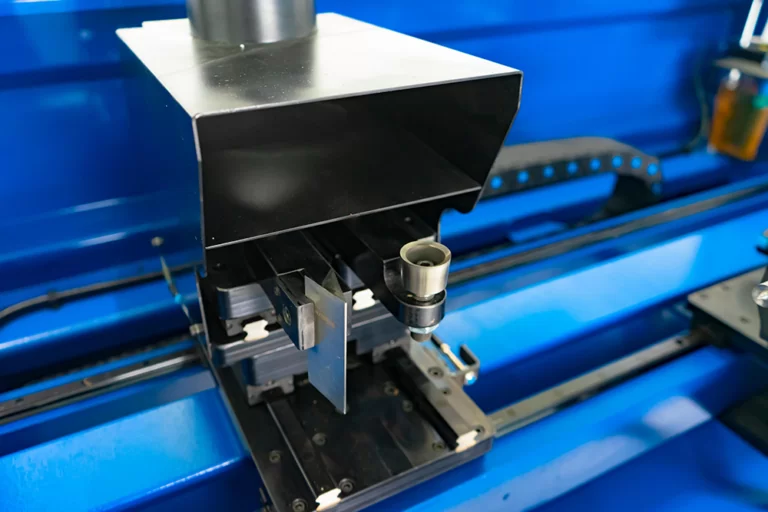

Tool units
Superior Features of 2 Axis CNC Wood Lathe Machine
| Unit 1 | Cup Knife |
| Unit 2 | Triangle Blade |
| Data | Value |
|---|---|

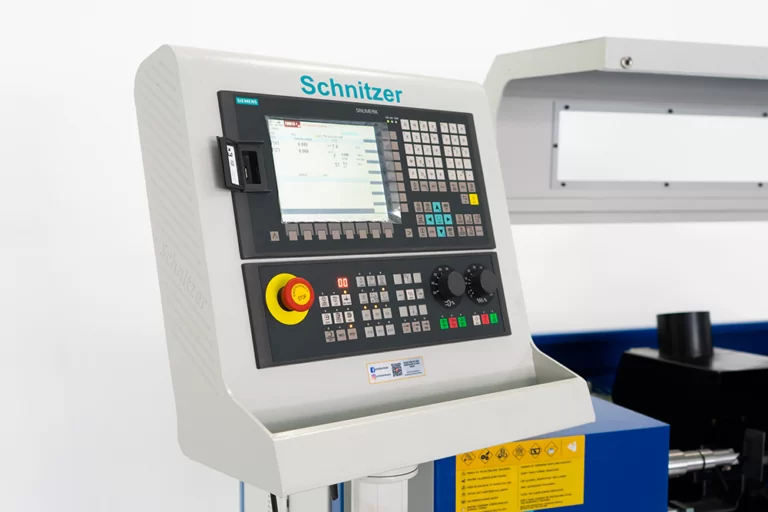

| Siemens control unit | ✔ |
| Maximum Square | 160 X 160 mm |
| Maximum Length | 1000 mm |
| Long Axis Speed | 96 m/min. |
| Short Axis Speed | 15 m/min. |
| Operating Power | 6 kW |
| X-Axis | 0.75 kW. Servo Motor (Siemens) |
| Z Axis | 1 kW Servo Motor (Siemens) |
| Spindle | 4 kW 5000 rpm Asynchronous motor |
| Weight | 1500 kg |
| Part Centering | Pneumatic |
| Linear Motion System | PMI |
| Clamping piece | Pneumatic |
| Centering Section | ✔ |
| Auto Centering | ✔ |

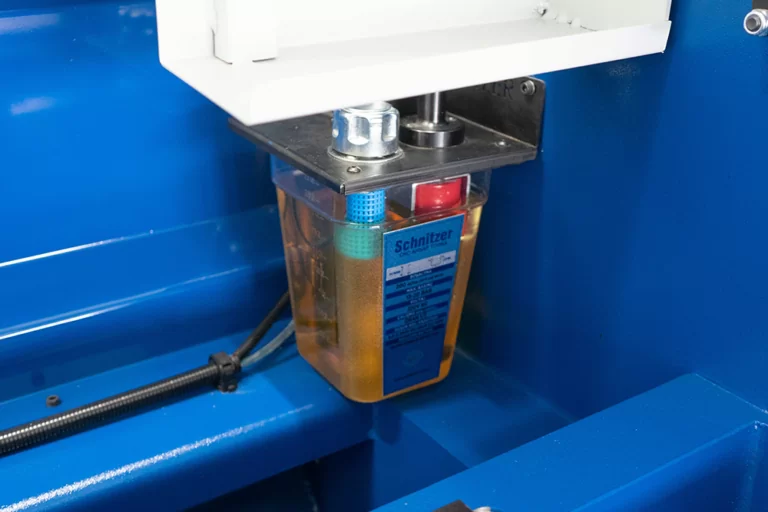

| Automatic Lubrication | ✔ |
| Handwheel | ✔ |
