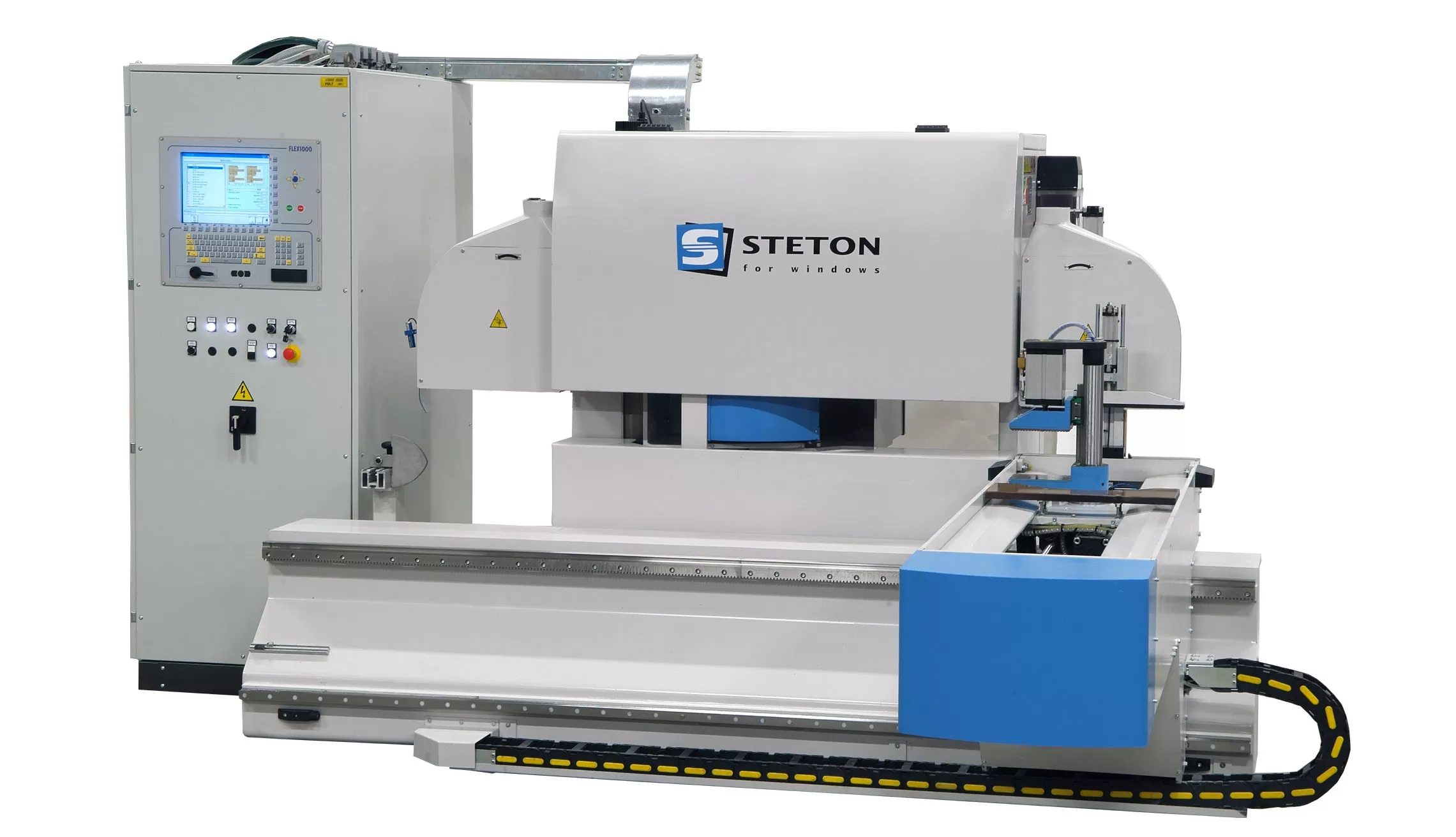

Electronic tenoning machine model POWER. Pc Flex 1000 with 15″ TFT monitor for general control of machine functions, comlete with USB port. Storage of machine data, tools and programs. Control of electronic fence (optional) according to working program with angle display of tenoning carriage and automatic calculation of piece length properly adjusted according to tilting.
Optional:
- Electronic high-speed vertical adjustment of tenoning shaft with brushless motor.
- Cut off saw Ø 450 mm. with motor HP 5,5 for working height 140 mm.
- Laser device to show cut line of cut-off saw
- Tenoning shaft motor 20 HP.
- Possibility to use tenoning tools max. diameter 370 mm.
Technical data
| Data | Value |
|---|---|
| Blade diameter Cut off saw shaft | 400 mm, bore 30 mm |
| Tenoning shaft | useful length 620 mm with top fixing contra-point bearing |
| Motor power | 15 HP, with POLY-V belts |
| Tenoning carriage “Power Table” guided into precise linear THK bearings with integrated rack and pinion | ✔ |
| 2nd cut off saw shaft to cut workpiece on return stroke | Ø 400 mm |
