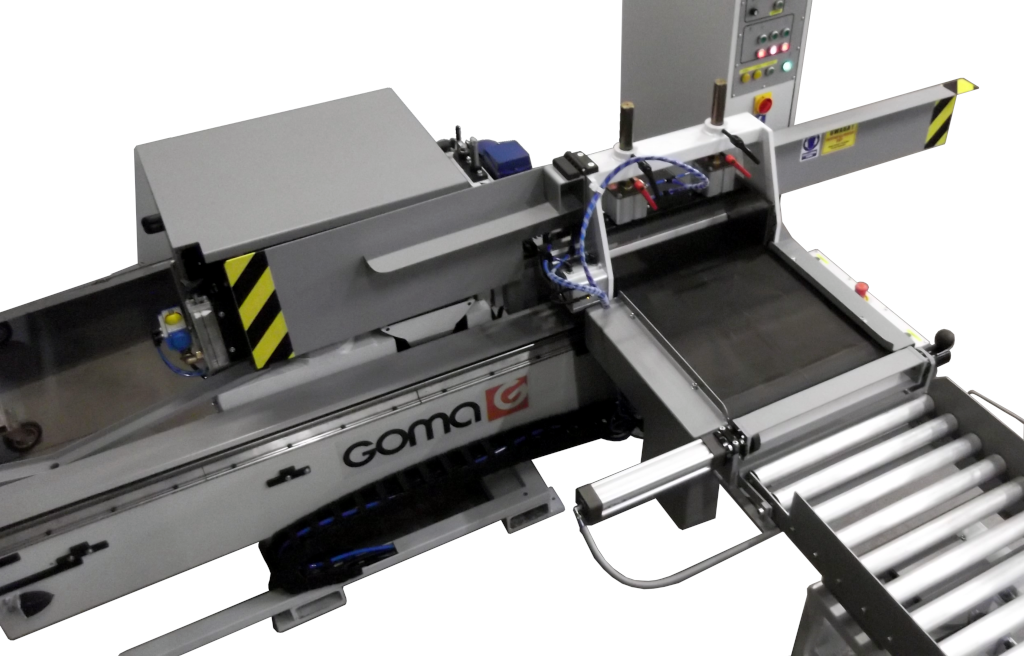

FC-10 MLKT ECO Finger Jointing Line

Economical Micro-Jointing Tenoning Machine for Small Batch Production – 2-Operator System

This economical yenoning machine  is designed for small batch wood production, requiring operation by two people. It provides an efficient solution for precise wood micro-joining applications, ensuring strong and reliable bonds in a compact production setup.

The press is used for joining pre-milled and glue-coated slats, boards, and similar timber components. The input material consists of sawn or planed wood, with end surfaces specially prepared for joining, such as micro-dovetail profiles, ensuring accurate alignment and strong adhesion.

Ideal for small-scale woodworking and wood processing operations, this system delivers consistent results while maintaining cost efficiency and production flexibility.

CHARACTERISTICS:

• the highest productivity in this class of machine tools,
• intuitive operation of the press,
• hydraulic press with the qualities of industrial presses,

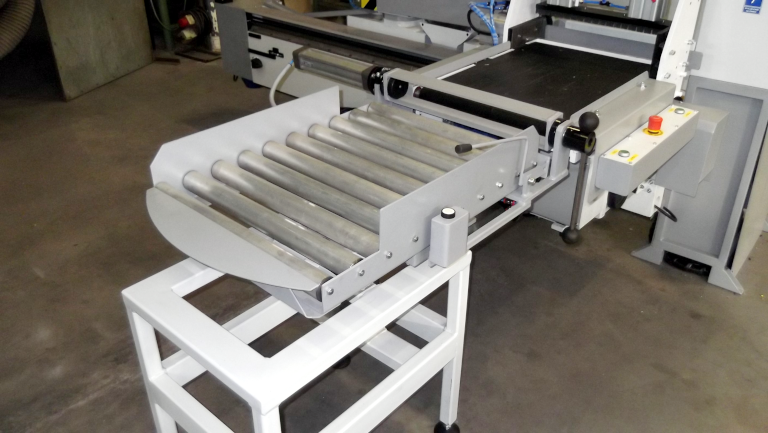

• rotation of the package on the rotary table (connection to a typical micro-detachment) or turning the package on its back when connecting on the dash.

TENONER

Data	Value
Spindle	fi 50×190
Maximum milling height	120 mm
Tool	fi 160

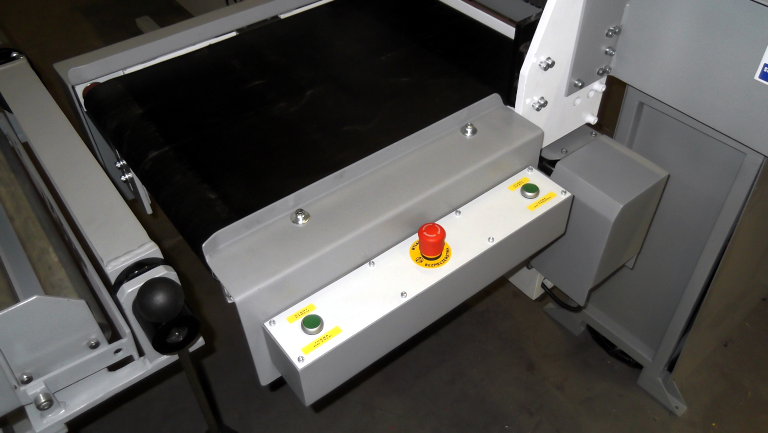

The width of the conveyor belt in the table	510 mm
Possibility to use undercutters when connecting “on the line”	✔

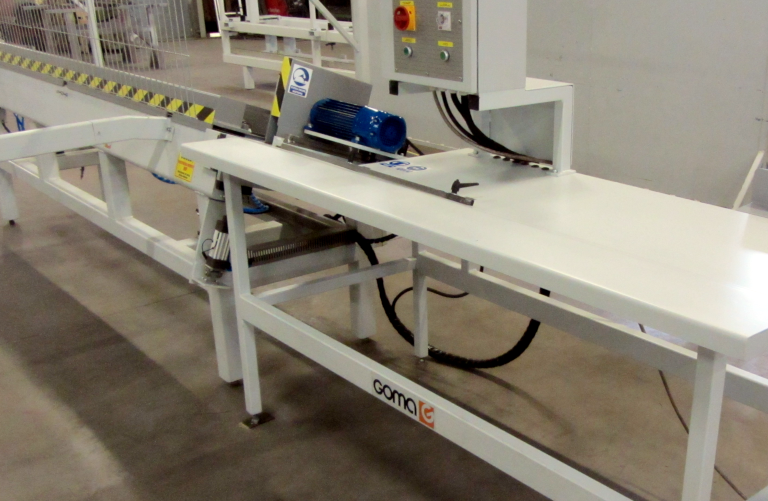

PRESS FC-10HK6

Data	Value
Press force	10T
Maximum width, height	120 mm, 60 mm
Working length	6 m (other on request)
Number of cycles on average	1 cycle / min
Capacity	up to 2 cycles / min

•
•
•
•
•
