Presses for joining wood to thickness

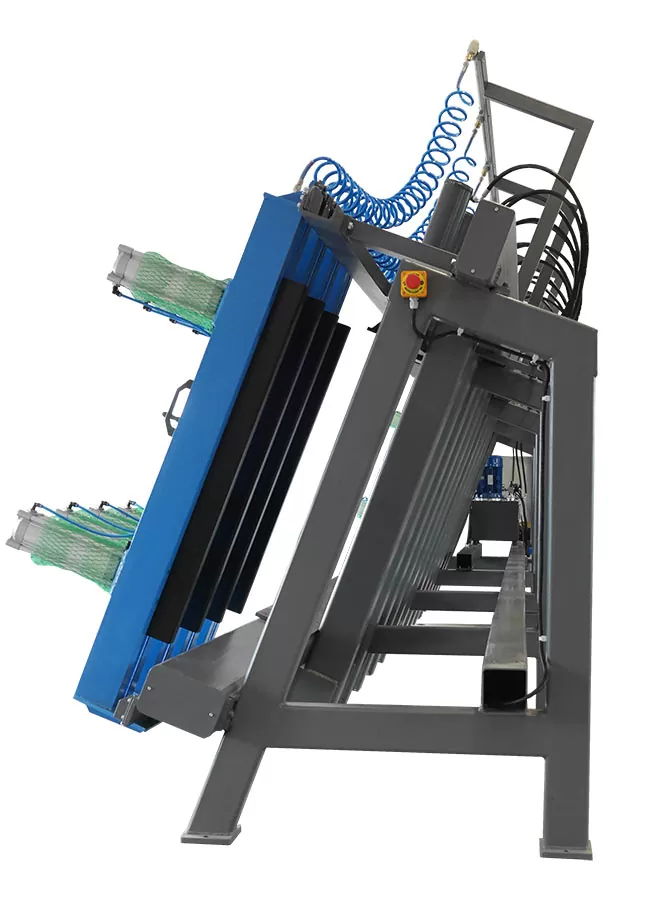

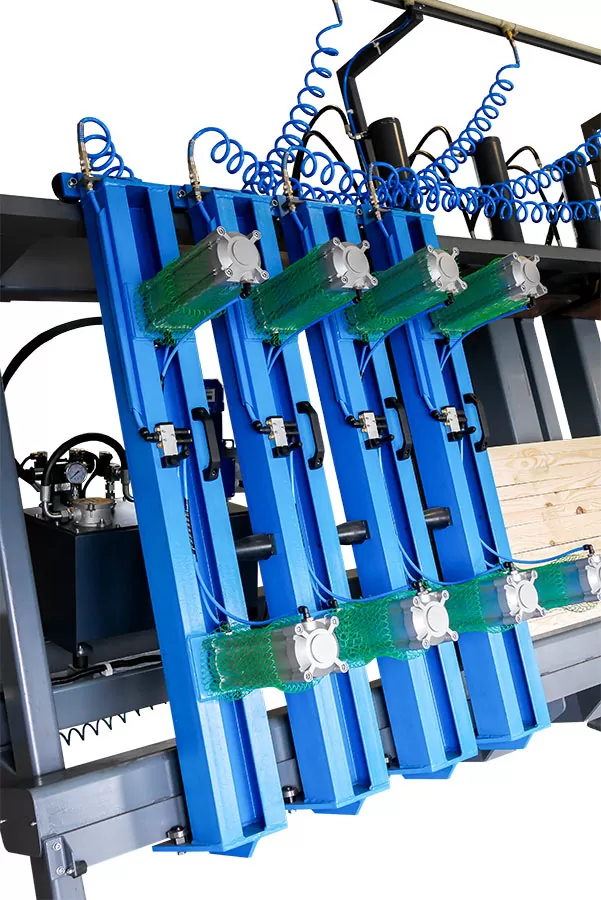

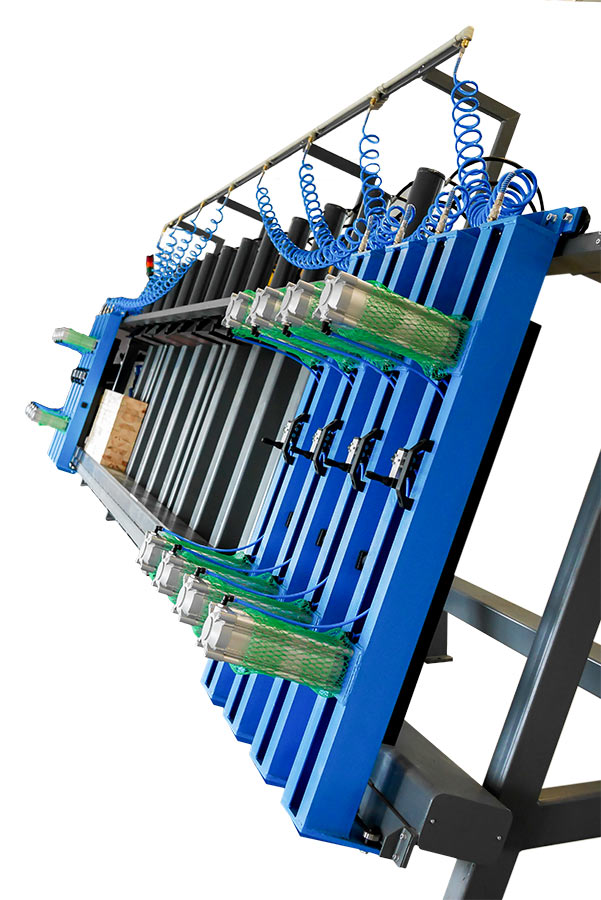

The hydraulic press is designed to compress longitudinal wooden parts for gluing them together.
Hydraulic Compression is designed for layered compression and gluing of wooden parts in layers into friezes. It is ideal for gluing floorboards, beams, countertops and other materials. Under the high pressure of the work of the cylinders, any profile is shaped.
Upon customer request, wood presses are made and put together to any length.
Technical data
| Data | Value |
|---|---|
| Total length | 9500 mm |
| Height | 2250 mm |
| Width | 1600 mm |
| Weight | 2600 kg (8 pressure beams – standard) |
| Working length | 4 × 1550 = 6200 mm |
| Working width | from 120 mm to 220 mm |
| Loading height | 1200 mm |
| Number of pressing cylinders | 4 × 3 pcs. |
| Number of pressure beams (standard) | 8 |
| Max. actuator pressing force (at 50 bar) | 4000 kG – max 10000 kG |
| Hydraulic cylinder stroke | 300 mm |
