Universal Oscillating Belt Sander – Versatile Solution for Joinery and Woodworking
The universal oscillating belt sander LEVEL 150 is an extremely versatile and practical wood sanding machine, designed for joineries, workshops, and DIY woodworking applications. It is suitable for sanding a wide range of materials, including solid wood, fibre panels, particle boards, and plywood panels, making it a flexible solution for various woodworking and wood finishing tasks.
Key Advantages of the LIBRA 150 Wide Belt Sander for Wood Sanding
- Sturdy structure
- Worktable tilting
- Oscillating belt handling
- Motor and gearmotor for oscillation
- Separate motor for sanding
- Two belt working speeds
- In compliance with EU regulations
- Machine body internal manufacturing

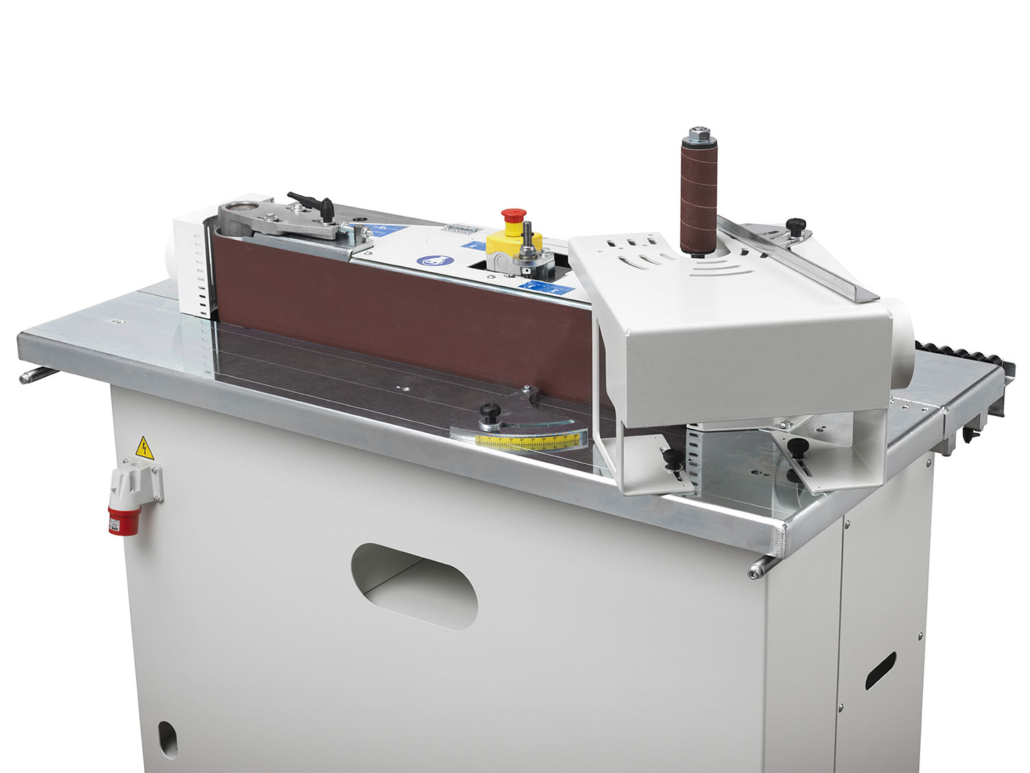

WORKTABLE
Tilting worktable from 0° to 45° degrees by handwheel.
The tilting value can be detected on a digital protractor.
SEPARATED MOTORS
Separated motors for sanding and belt oscillation.
A motor with a dedicated gearmotor for the belt oscillation management and another one for the sanding belt driving are fitted into the sander in the revision of the original project.
SUPPLEMENTARY TABLE
Supplementary table and rubber rollers, ideal for sanding shaped wood.
The rollers are available with a 20-30-40-50 mm diameter.
Complete with ER32 collet chuck to install the rollers.
(optional)
DUST SUCTION
In addition to the supplementary table, a suction hood (suitably drilled to make it even more efficient) is available for dust suction.
(optional)
PNEUMATIC TYRE ROLLER
Upon request, the machine can be equipped with a 70 mm diameter pneumatic tyre roller with pressure air chamber.
(optional)
WORKRTABLE EXTENSION
This is an extendable roller support for processing wide workpieces.
The 500 mm long extensions increase the worktable up to 750 mm from the sanding belt.
For fast processing, concealed hinges close the extensions, without removing them when not operating.
(optional)
MACHINE HANDLING
Level 150 can be moved by pallet truck, allowing easy handling within the factory.
| Data | Value |
|---|---|
| Abrasive belt width | 150 mm |
| Abrasive belt length | 2170 mm |
| Worktable length | 1440 mm |
| Two worktables’ width | 750 mm |
| Worktable tilting | 0° – 45° |
| Vertical movement of the oscillating unit | 130 mm |
| Vertical oscillation | 20 mm |
| Belt speed | 12-24 m/sec |
| Belt motor power | 2.2 / 3.3 kw |
| Dust extraction outlet diameter | 120 mm |
| Net weight | 416 kg |
| Optional features | worktable extension for wide workpieces |
