Brand:

Futura

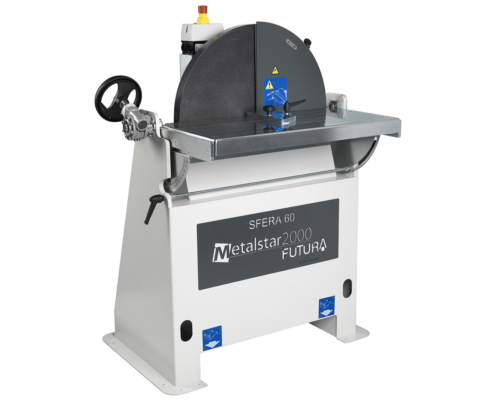

Wood Sander SFERA 60

Wood sander for edges and surfaces, practical and reliable over time. The model includes two different versions: with only the sanding disc or with disc and sanding belt. Machine designed according to EC standards and completely produced in Italy.

Ask about product

Advantages in wood sanding

  • Worktable
  • Stable structure
  • Two different versions
  • Squaring on the worktable
  • In compliance with EU regulations
  • In-house manufacturing of the machine body

Worktable

Tilting worktable from 0° to +/-45° by handwheel.
The tilting could be detected on a graduated rod placed on the rotation sector.

Disc Unit

The sanding disc has a 600mm diameter with a rotation speed of 900 rpm.
The disc has a closing sheet metal for operator safety as required by European standards.

Belt Unit

Sfera 60 can be demanded with sanding disc unit only or with sanding disc and belt units.
The belt unit is very functional for template sanding.
The belt can be tilted from 0° to 90°.

Pneumatic Tyre Roller

The machine functions can be extended, upon request, thanks to a 70 mm diameter pneumatic tyre roller with pressure air chamber.

Technical data
DataValue
Worktable dimensions700 x 350 mm
Disc diameter600 mm
Fence tilting0° – 45°
Worktable tilting0° – 45°
Disc speed900 rpm
Motor powerhp 3 / kw 2.2 – hz 50
Belt length1860 mm
Belt unit vertical tilting0° – 90°
Motor power (belt unit)hp 3 / kw 2.2 – hz 50
Optional features70 mm diameter pneumatic tyre roller
