Tel: +44 (0) 197 825 4472SUPER PROGRAM Four Sided Planer Moulder
The Industrial Standard for Planing & Moulding
The SUPER PROGRAM is a high-performance four-sided planer moulder designed for industrial woodworking and large-scale joineries. Built to handle high workloads and large volumes of timber, it ensures maximum speed, reliability, and safety. Ideal for processing multiple boards efficiently, this robust machine delivers precise, consistent results while optimising workflow in busy woodworking operations.

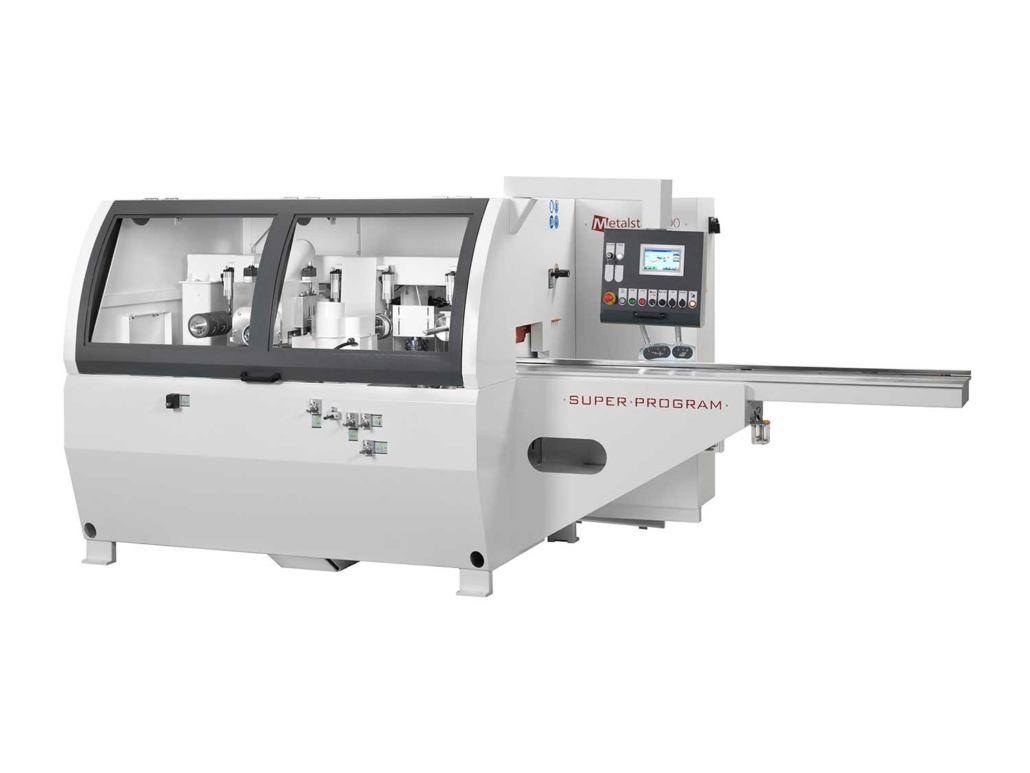

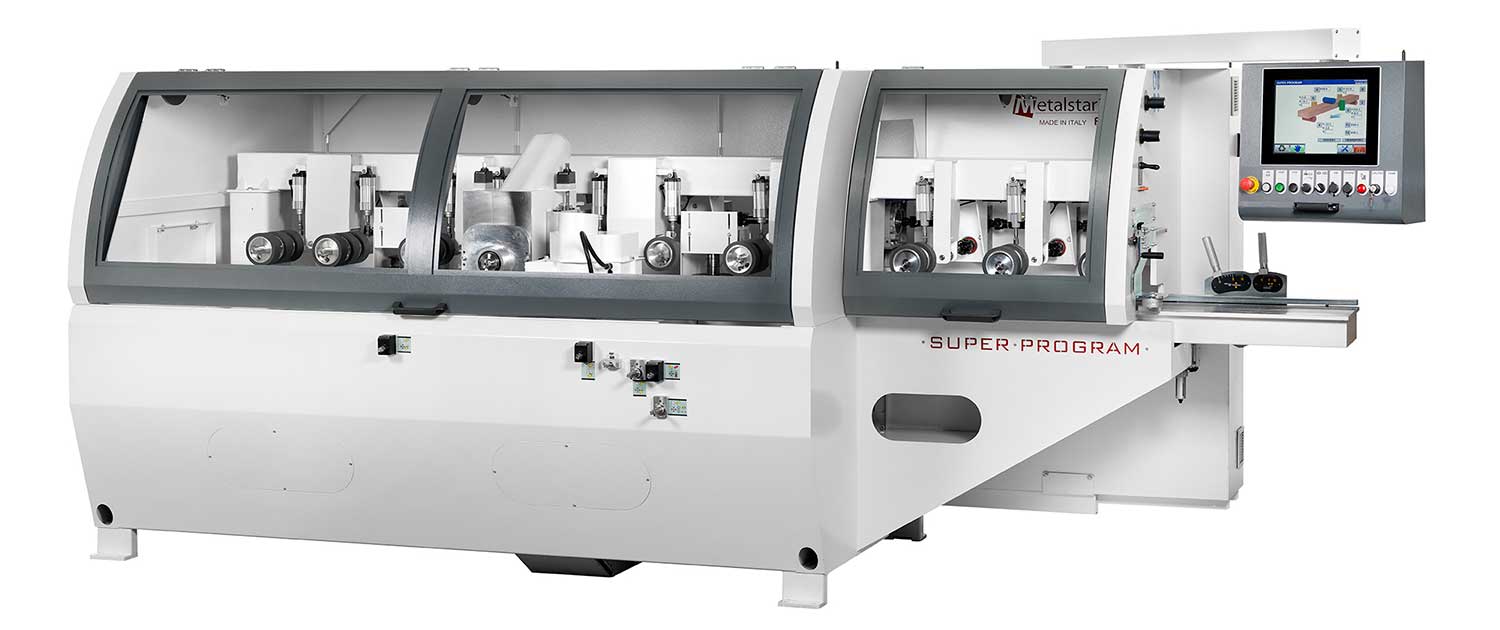

SUPER PROGRAM – High-Performance Four-Sided Planer Moulder
The SUPER PROGRAM is a high-capacity four-sided planer moulder designed for industrial woodworking and large-scale joineries. Perfect for processing beams, parquet flooring, large frames, coffins, and prismatic or semi-finished wood products, it ensures speed, precision, and maximum reliability even under continuous, high-volume workloads.
With a working width of 350 mm and vertical shaft stroke up to 90 mm, it can handle large boards and profiles while providing fast, accurate setups thanks to the integrated PLC touch control panel. This system allows quick calibration, tool changes, and transition between production processes, ensuring high output with minimal downtime.
Key Advantages
- Maximum working width: 350 mm, height up to 180 mm (200 mm optional)

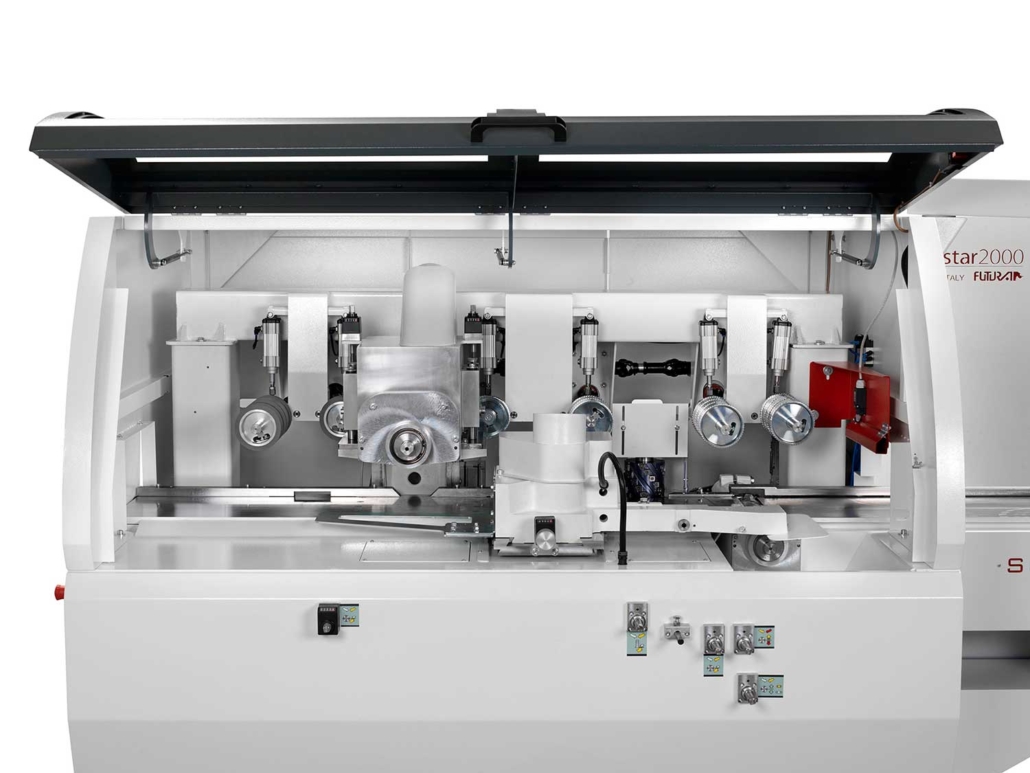

- Horizontal counter-supported shafts for vibration-free machining

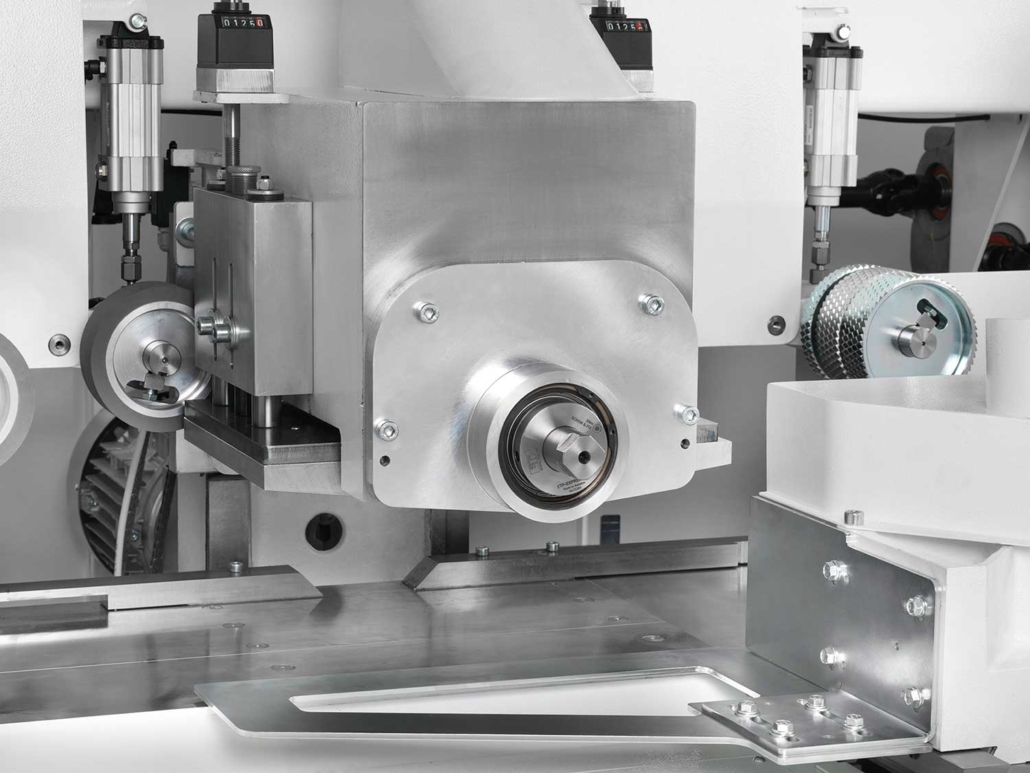

- Precision spindle holders: 120 mm diameter standard, 6000 rpm (optional 8000 rpm)
- Independent drive system for upper shafts to prevent strain
- High-quality linear guides and ball runner blocks for smooth, low-noise operation
- Hardox HB400 worktable for durability and friction-free material handling

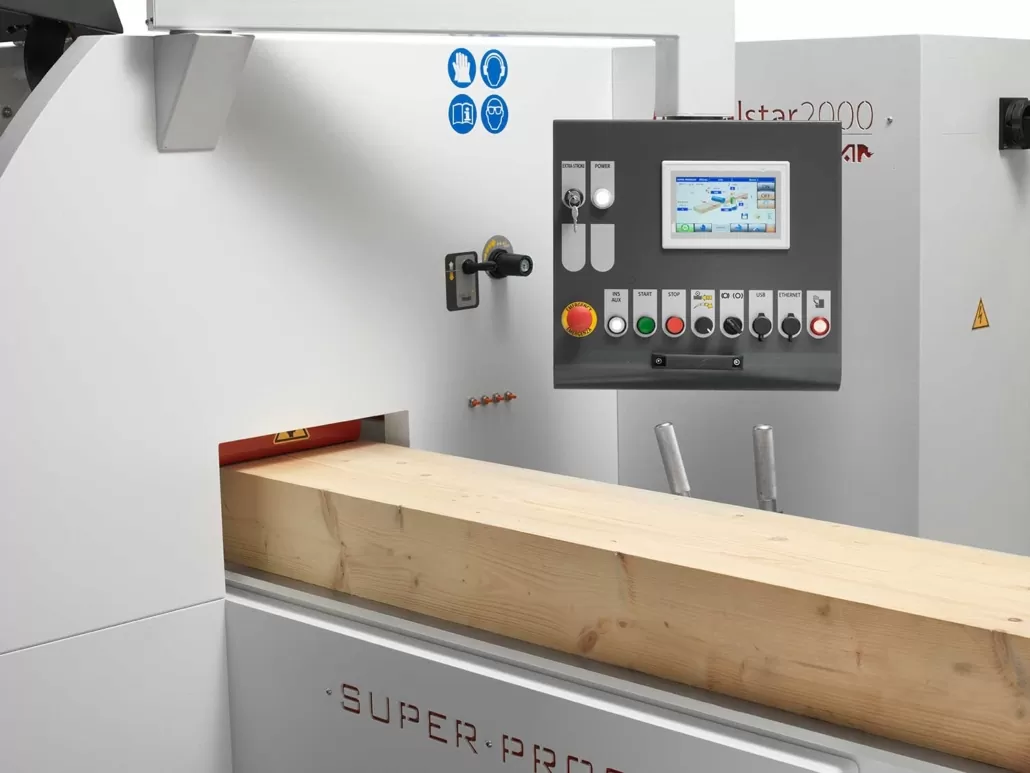

- Touch screen control with PLC for easy programming, multi-axis control, and fast setup
- Customisable software for rapid adjustment of milling cutter diameter and machining parameters
- Optional air cushion and oil atomisation system for improved feeding and wood handling
- Ergonomic mobile console for convenient operator control
Performance & Versatility
The SUPER PROGRAM can machine a wide range of workpieces, from small profiles to large industrial boards. Its modular, robust design guarantees stability, precise machining, and consistent high-quality finishes, making it ideal for both large industrial plants and smaller automated joinery workshops.
Optional Features
- Extended vertical shaft stroke for extra tools
- Air and oil atomisation feeding system
- Customised control software and operator interface
- Integration with high-output automatic production lines
This four-sided planer moulder combines solid engineering, advanced technology, and user-focused automation to deliver exceptional efficiency, precision, and productivity in any woodworking environment.
| Data | Value |
|---|---|
| Max working width (with 125mm/140mm diam. Tools) | 350 mm |
| Min. Working width (with 125mm/140mm diam. Tools) | 25 mm |
| Max working height (with 125 mm/140 mm diam.Tools) | 180 mm |
| Min. Working height (with 125mm/140mm diam. Tools) | 12 mm |
| Minimum working length of a single piece | 550 mm |
| Feed speed with inverter | 4-30 m/min |
| Shaft rotation speed | 6000 rpm |
| Vertical-horizontal shafts diameter | ø 40 mm |
| Length of infeed worktable | 2500 mm |
| 1st and 4th unit motor power supply | hp20 – kw 15 |
| Vertical spindle moulder motor power supply | hp12 – kw 9 |
| Upper/lower 2nd shaft motor power supply | hp12 – kw 9 |
| Universal shaft motor power supply | hp10 – kw 7,5 |
| Y/d automatic start-up | standard |
| Vertical shaft axis adjustment | -90 mm |
| 1st unit tool diameter | ø 125/140 mm |
| Min and max tool diameters (excluding 1st unit and universal) | ø 110/230 mm |
| Min and max tool diameters on universal shaft | ø 110/200 mm |
| Horizontal counter-supported shafts | Controlled 6 axis / 7 axis programmer (depending on the model selected) |
| Pneumatic pre-planer roller with exclusion from control panel | Pneumatic pressure |
| Manual lubrication of the worktable | Gearbox drive |
| Manual lubrication of the vertical spindle moulders | Hardox HB400 worktable |
| Manual lubrication of the guides | Drive shaft extensions for left spindle moulder complete with 45 mm toothed roller |
| Air-cushion worktable | Each tool holder shaft is equipped with an independent motor |
| Poly-V belt drive system on every tool holder shaft guarantee maximum motor power supply performance | Y/D automatic motor start-up |
| Automatic lubrication of the worktable | Automatic lubrication of the guides |
| Automatic lubrication of the vertical spindle moulders | Automatic device to search for width of the piece |
