Carousel saw for pallet cubes

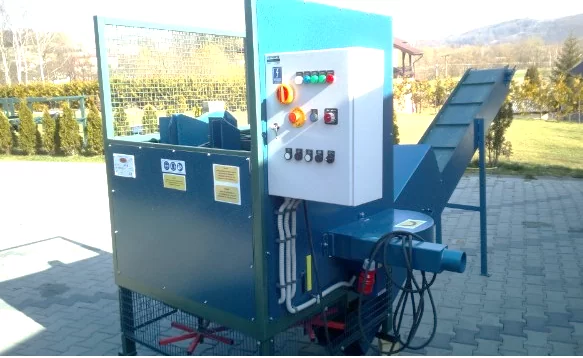

The carousel pallet block saw is a machine designed for cross-cutting wooden square timber into distancing pallet blocks.

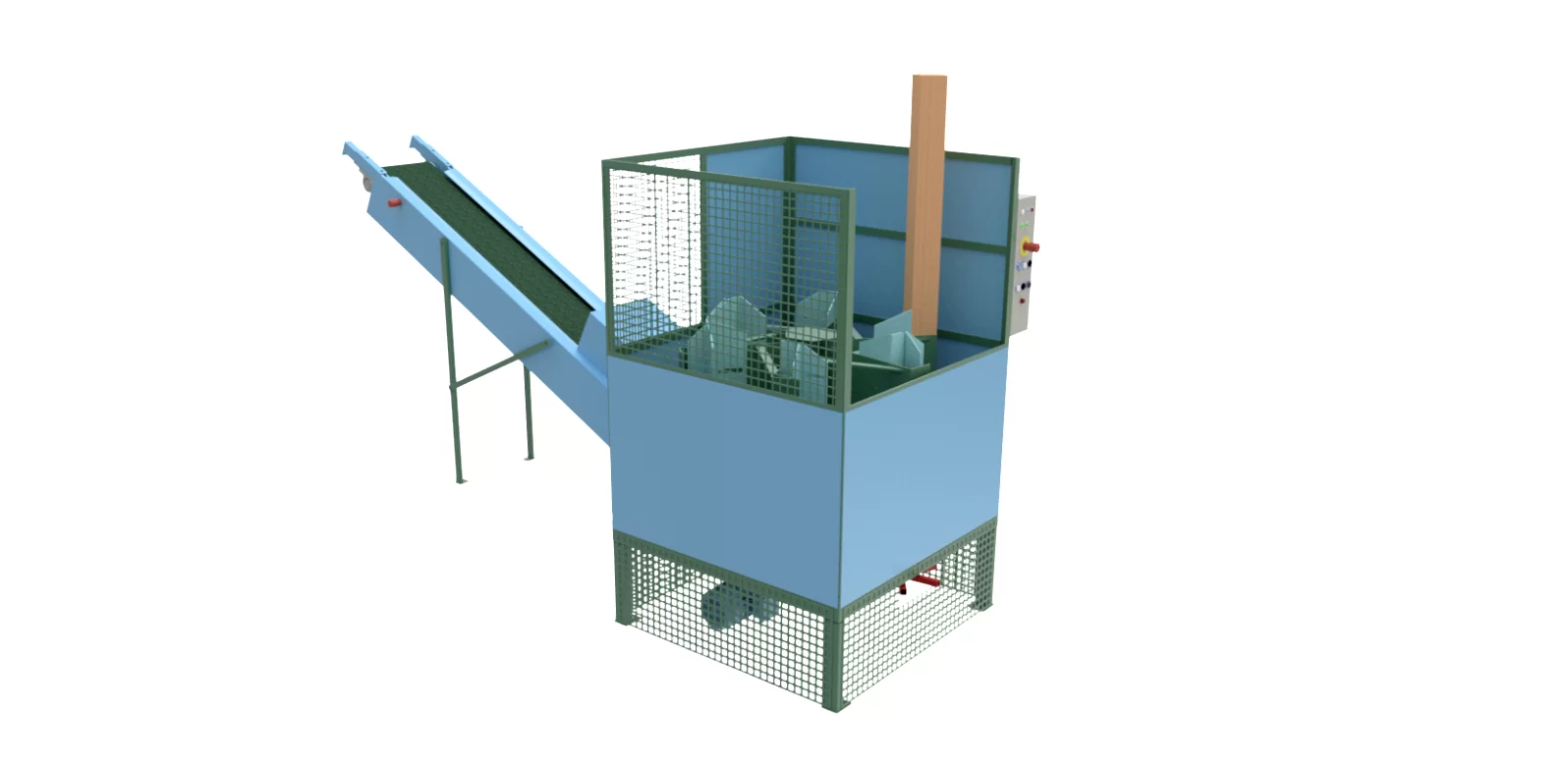

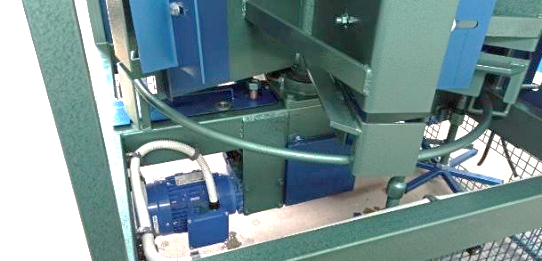

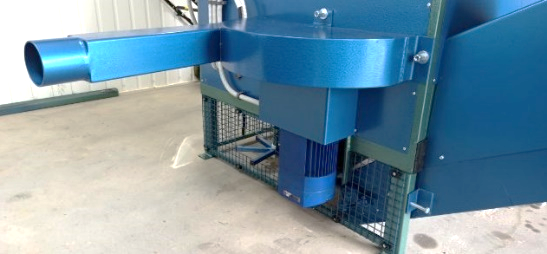

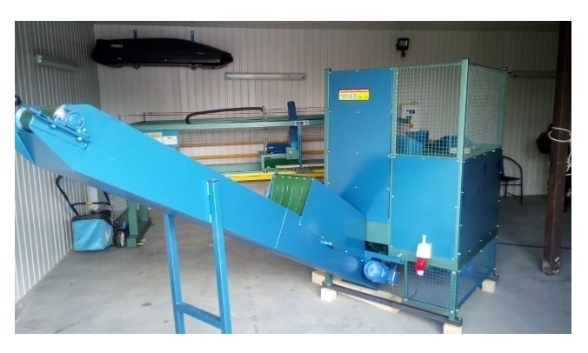

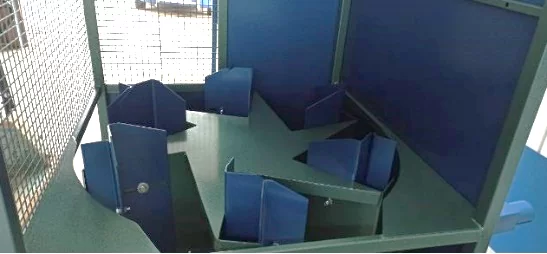

The cutting system of the device is a single circular saw placed on the spindle of the electric motor. The processed material is fed towards the cutting zone of the carousel pallet block saw by a rotary feeder with six pockets. The finished pieces are collected from the cutting zone by belt conveyor.
Type O1p-500
Carousel saw for pallet blocks – Model O1p-500
| Data | Value |
|---|---|
| Number of circular saws | 1 |
| Circular saw diameter | Ø 500 mm |
| Cutting height adjustment range | 5 – 14 cm |
| Min. Square timber size | 6 x 6 cm |
| Max. square timber dimensions | 11 x 11 cm |
| Infinitely adjustable feed speed | ✔ |
| Spindle motor power | 5.5 kW |
| Feed motor power | 0.74 kW |
| Data | Value |
|---|---|
| Total power | 9 kW |
| Power supply | 3 x 400 V |
| Circular saw | Ø 500 x 30 |
