Störi Mantel – DYNAMIC 1 Pallet Nailing Line

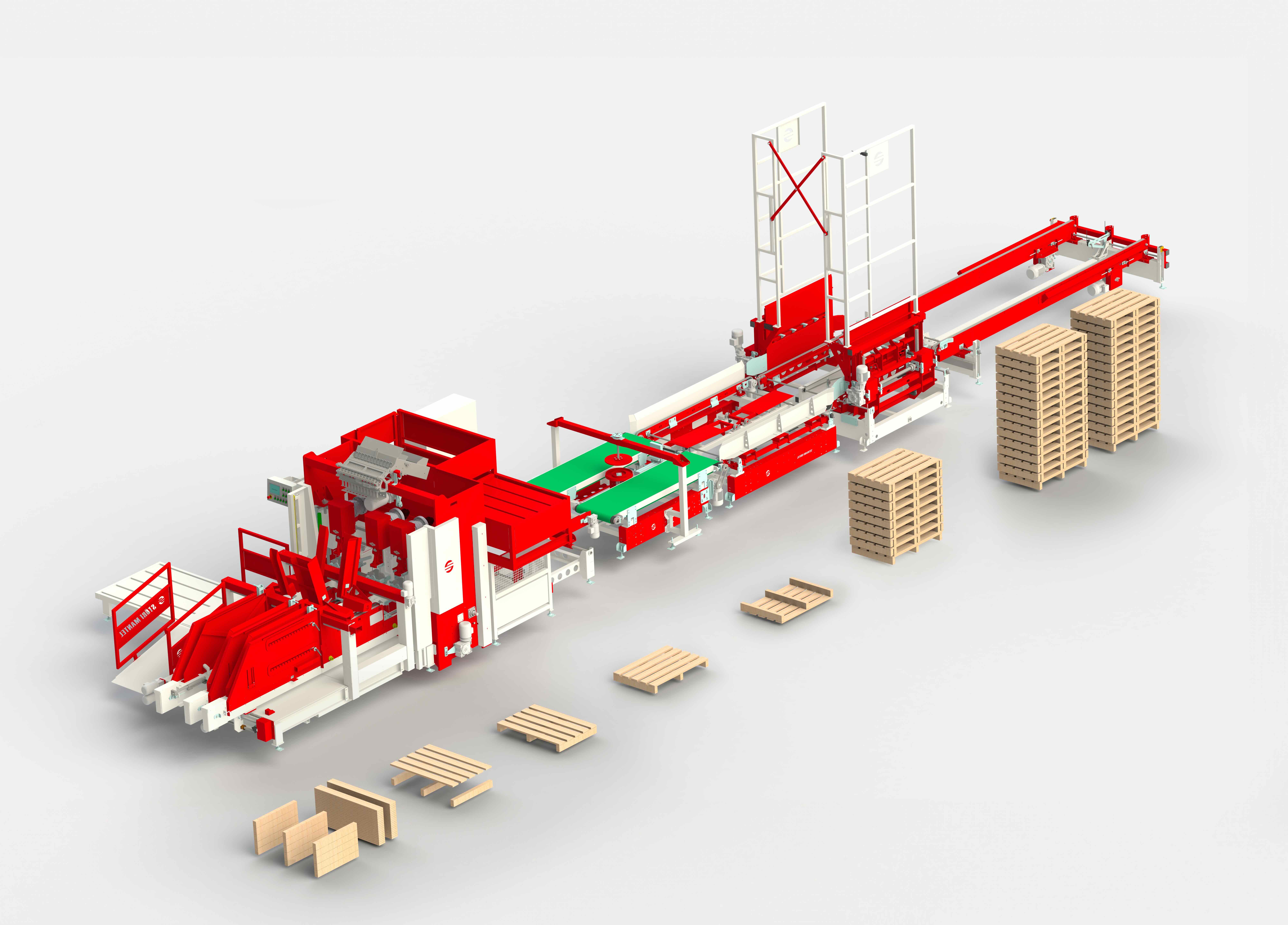

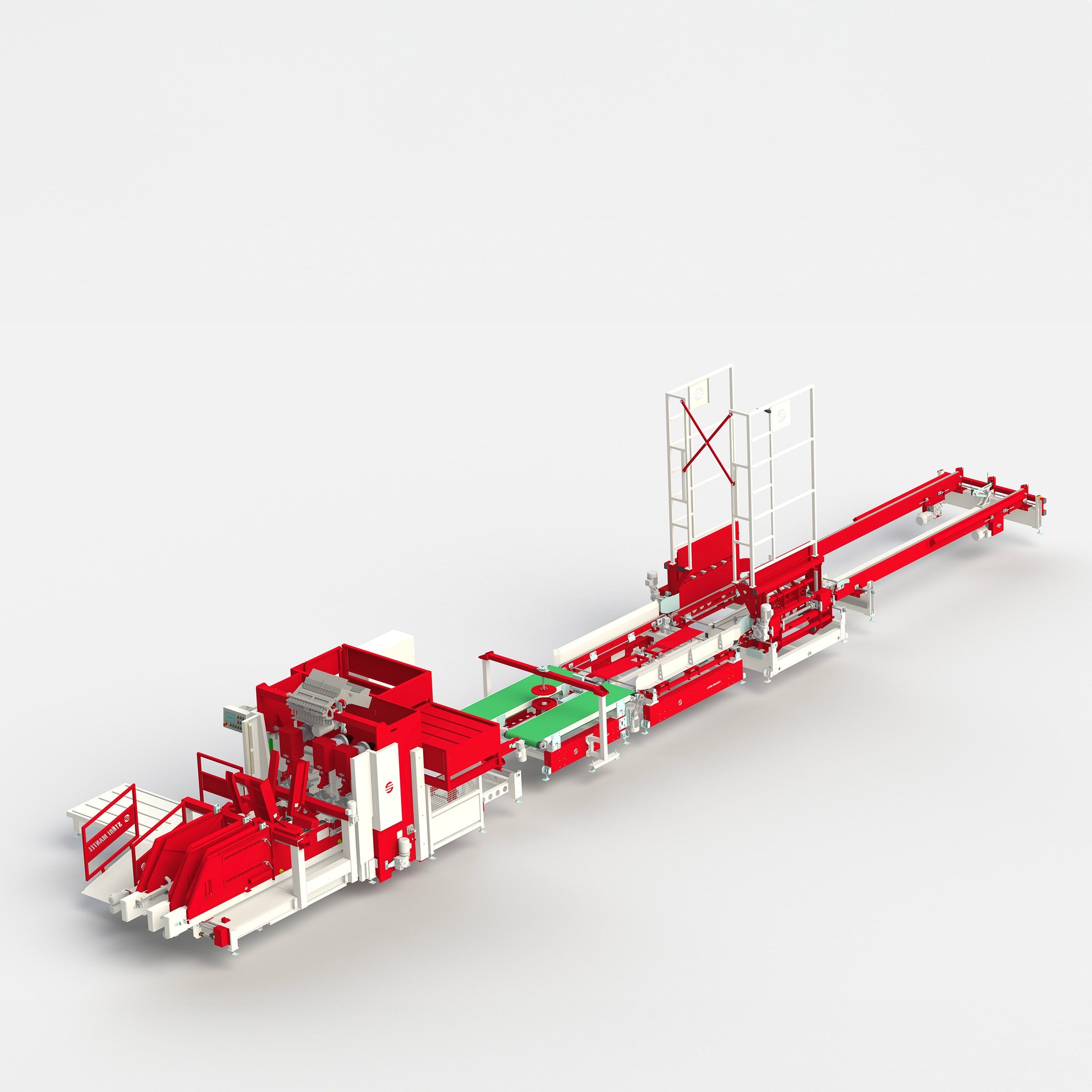

Dynamic 1 DM1 – High-Performance Pallet Nailing Line for Automated Production

The Störi Mantel Dynamic 1 (DM1) pallet nailing line is a high-speed, automated pallet production system designed for efficiency and flexibility. Optimized for simple or locked pallet stacking, the DM1 differs from the DM3 in its advanced mechanization behind the nailing station, enabling smooth operations with just two workers.

Lower Operational Costs with Electric Nailing

Equipped with the patented electromechanical nailing system, the DM1 offers one of the lowest energy consumptionsin its class. Unlike hydraulic systems, it eliminates the need for oil refills, replacements, or disposal, providing quiet, low-maintenance, and cost-effective pallet production.

Custom Layouts to Fit Your Facility

Every manufacturing space is unique. By providing your facility dimensions, the DM1 pallet nailing line can be custom-designed to fit seamlessly, optimizing workflow and maximizing production efficiency.

Reduce Material Costs with Loose Nails

The Störi Mantel Dynamic 1 works with loose nails of all types, including EPAL nails, eliminating the higher cost of collated nails. Supporting nail lengths from 27 mm to 90 mm, it ensures flexible, cost-efficient pallet manufacturingwithout compromising quality.

Upgrade to the Störi Mantel DM1 pallet nailing line for a high-efficiency, scalable, and cost-saving solution that maximizes productivity and streamlines your pallet production process.

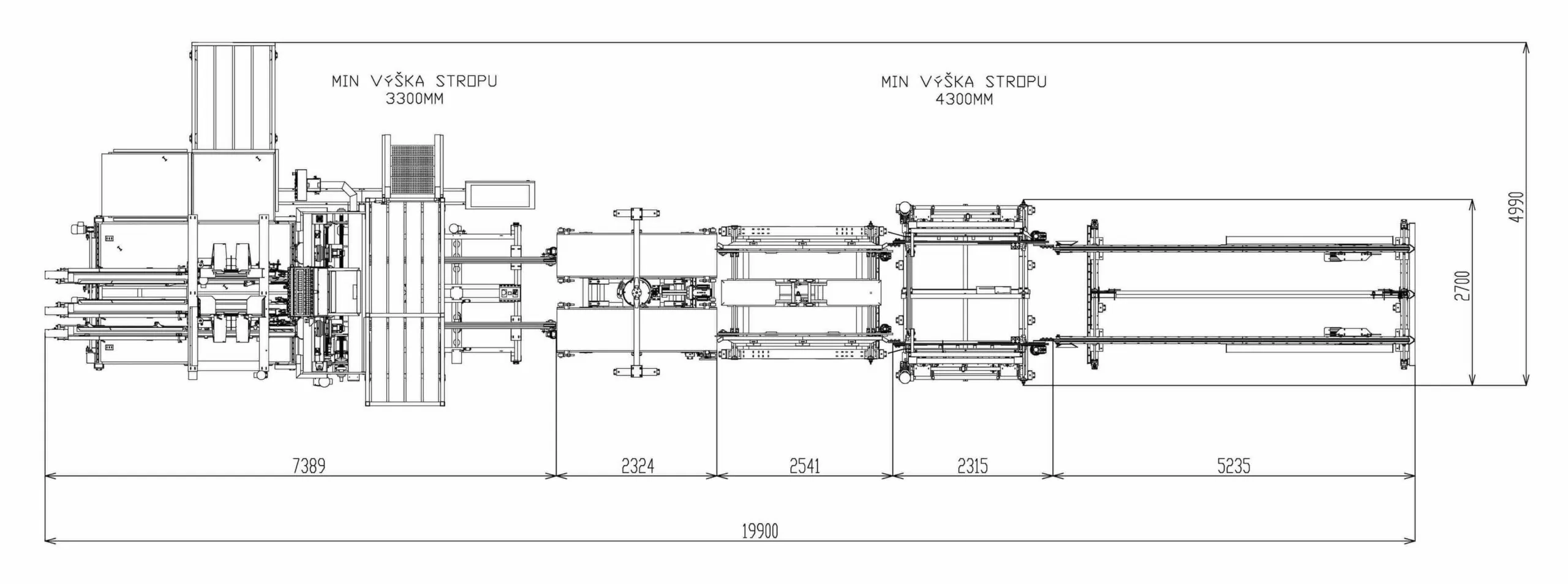

Dimensions parameters

Data	Value
Length	20 000 mm
Width including service ramp	5 250 mm
Height of the nailing machine (minimum ceiling height)	3 200 mm (3 300 mm)
Stacker height (minimum ceiling height)	4 200 mm (4 300 mm)

Pallet size

Data	Value
Length min. – max.	600 – 1 500 mm
Width min. – max.	600 – 1 500 mm
Height min. – max.	30 – 130 mm
Pallet Types	2 ways; single-operational

Dimension of the upper planks

Data	Value
Length min. – max.	600 – 1 500 mm
Width min. – max.	50 – 150 mm
Height min. – max.	15 – 30 mm

Dimension of lower prisms

Data	Value
Length min. – max.	600 – 1 500 mm
Width min. – max.	50 – 150 mm
Height min. – max.	15 – 100 mm

Nails

Data	Value
Length min. – max.	27 – 90 mm; EPAL nails
Shank diameter min. – max.	2.24 – 4.2 mm
Head diameter max.	9 mm
Type of nails	for machine nailing, loose
Polarization	non-magnetized
Precision nailing	+/- 1 mm
Nail spacing in a shape	min. 25 mm

Connection

Data	Value
Dust extraction (number of extraction points according to the composition of the line)	Ø 100 mm – 25-30 m/s
Compressed air	min. 0,6 MPa – max. 1 MPa
Voltage	~ 3×400 V/50 Hz

Machine Performance

Number of top planks	Theoretical/Real output min.
5	9/6
6	7,5/5,3
7	6,6/4,6
8	6/4,2
9	5,5/3,8
10	5/3,5
11	4,6/3,2
12	4,2/3

•
•
•
•
•
•
•
•
