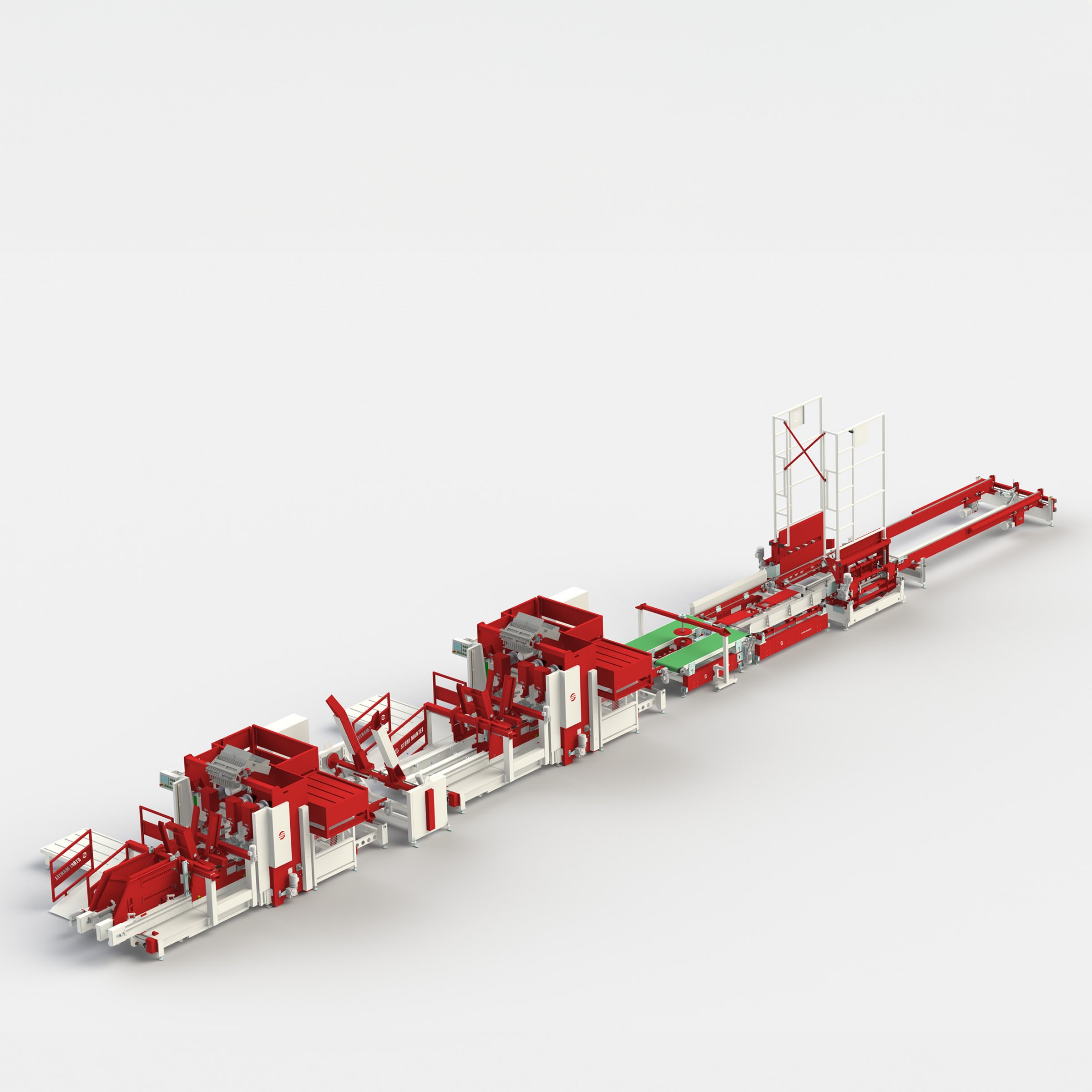

Störi Mantel – DYNAMIC 2

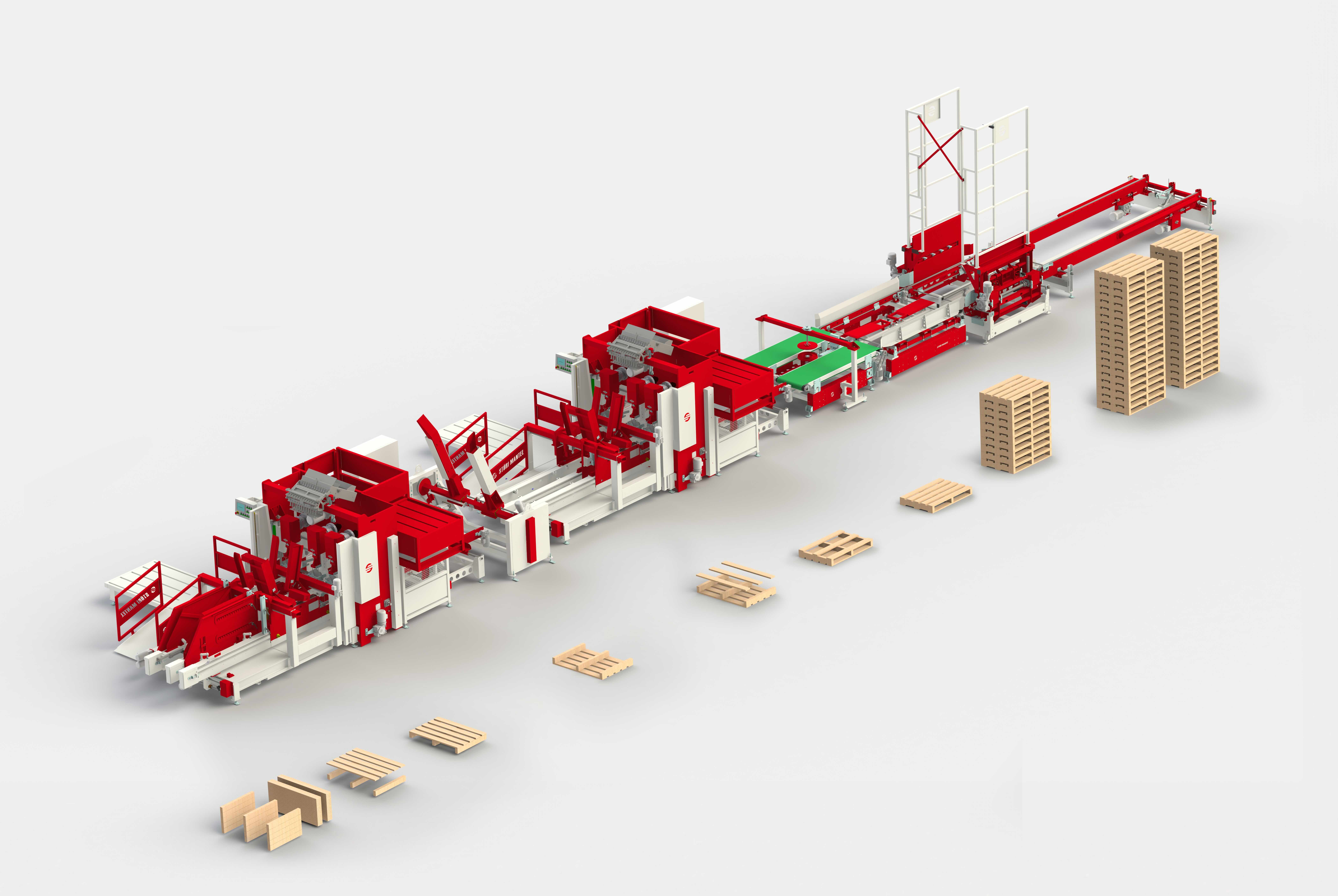

The DM2 line differs from the DM1 by incorporating two nailing machines and requires only three workers to operate.

Reduce energy costs with our patented electric nailing system

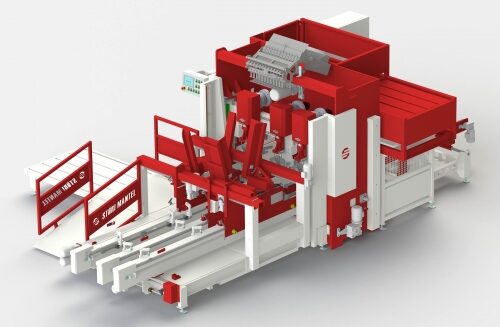

Our nailing system uses an electromechanical drive, offering the lowest energy consumption in its class. It also eliminates the need for maintenance typically associated with hydraulic systems, such as oil replenishment, replacement, and disposal, as well as excessive noise. Only three workers are needed to run the palletizing line efficiently.

Adapt to your space
The DM2 line offers complete flexibility in design. If we know the available space dimensions, we can customize the layout to fit perfectly, whether in an “I” or “L” shape.

Save smartly on production materials
With Störi Mantel Dynamic 2 naling machine that work with freely scattered nails of all available and suitable types, including EPAL nails, you avoid the unnecessary cost of banded nails, which are typically more expensive and suited for other equipment. The system accommodates nail lengths ranging from 27 mm to 90 mm.

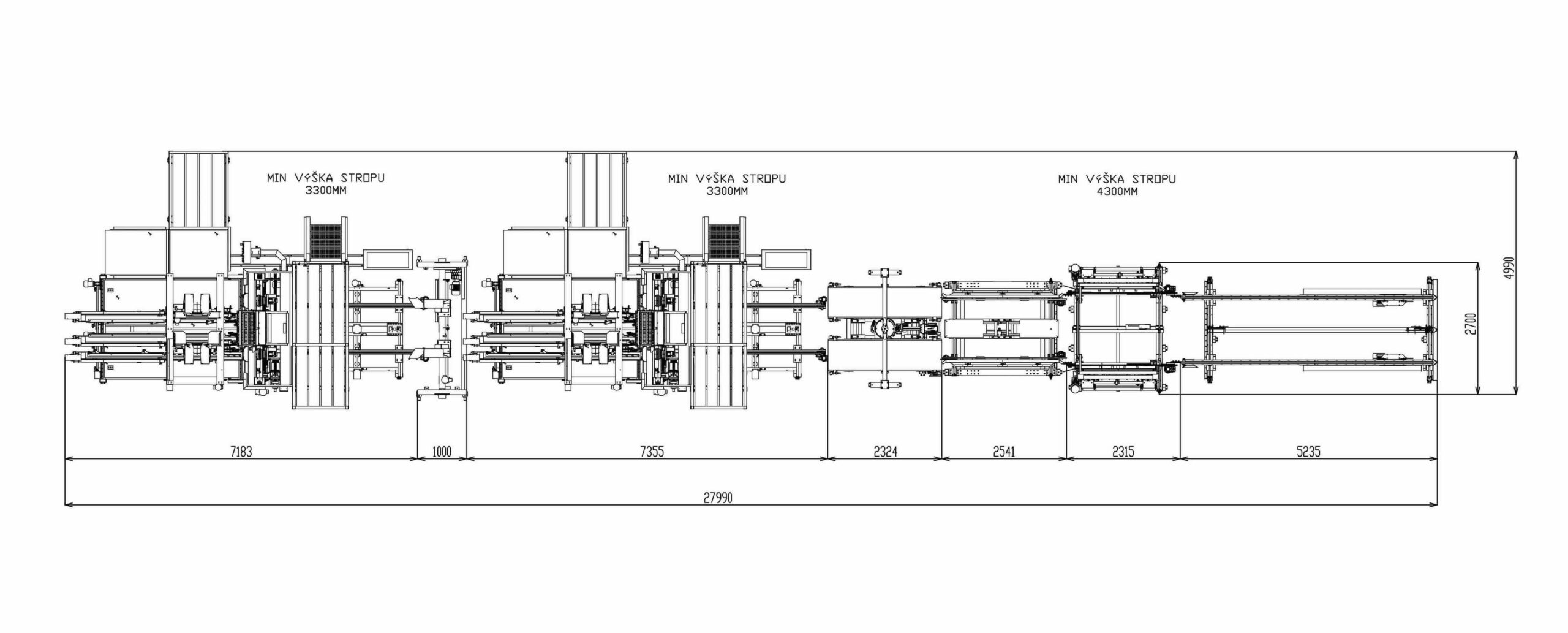

Dimensions parameters

Data	Value
Length	28 000 mm
Width including service ramp	5 250 mm
Height of the nailing machine (minimum ceiling height)	3 200 mm (3 300 mm)
Stacker height (minimum ceiling height)	4 200 mm (4 300 mm)

Pallet size

Data	Value
Length min. – max.	600 – 1 500 mm
Width min. – max.	600 – 1 500 mm
Height min. – max.	60 – 160 mm
Pallet Types	2 ways; Dual-operation

Dimension of the upper planks

Data	Value
Length min. – max.	600 – 1 500 mm
Width min. – max.	50 – 150 mm
Height min. – max.	15 – 30 mm

Dimension of prisms

Data	Value
Length min. – max.	600 – 1 500 mm
Width min. – max.	50 – 150 mm
Height min. – max.	30 – 100 mm

Dimension of the bottom planks

Data	Value
Length min. – max.	600 – 1 500 mm
Width min. – max.	50 – 150 mm
Height min. – max.	15 – 100 mm

Nails

Data	Value
Length min. – max.	27 – 90 mm; EPAL nails
Shank diameter min. – max.	2.24 – 4.2 mm
Head diameter max.	9 mm
Type of nails	for machine nailing, loose
Polarization	non-magnetized
Precision nailing	+/- 1 mm
Nail spacing in a shape	min. 25 mm

Connection

Data	Value
Dust extraction (number of extraction points according to the composition of the line)	Ø 100 mm – 25-30 m/s
Compressed air	min. 0,6 MPa – max. 1 MPa
Voltage	~ 3×400 V/50 Hz

Machine Performance

Number of top planks	Theoretical/Real output min.
5	9/6
6	7,5/5,3
7	6,6/4,6
8	6/4,2
9	5,5/3,8
10	5/3,5
11	4,6/3,2
12	4,2/3

•
•
•
•
•
•
•
•
•
•
