Störi Mantel – DYNAMIC 3 Pallet Nailing Line

Dynamic 3 DM3 – High-Performance Pallet Nailing Line for Automated Production

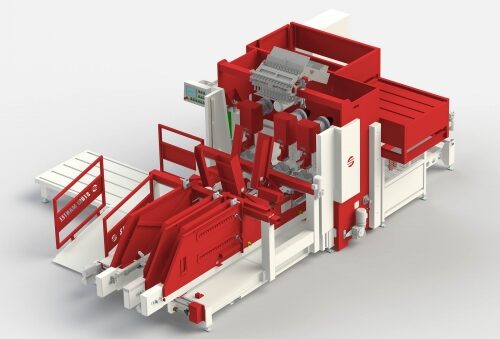

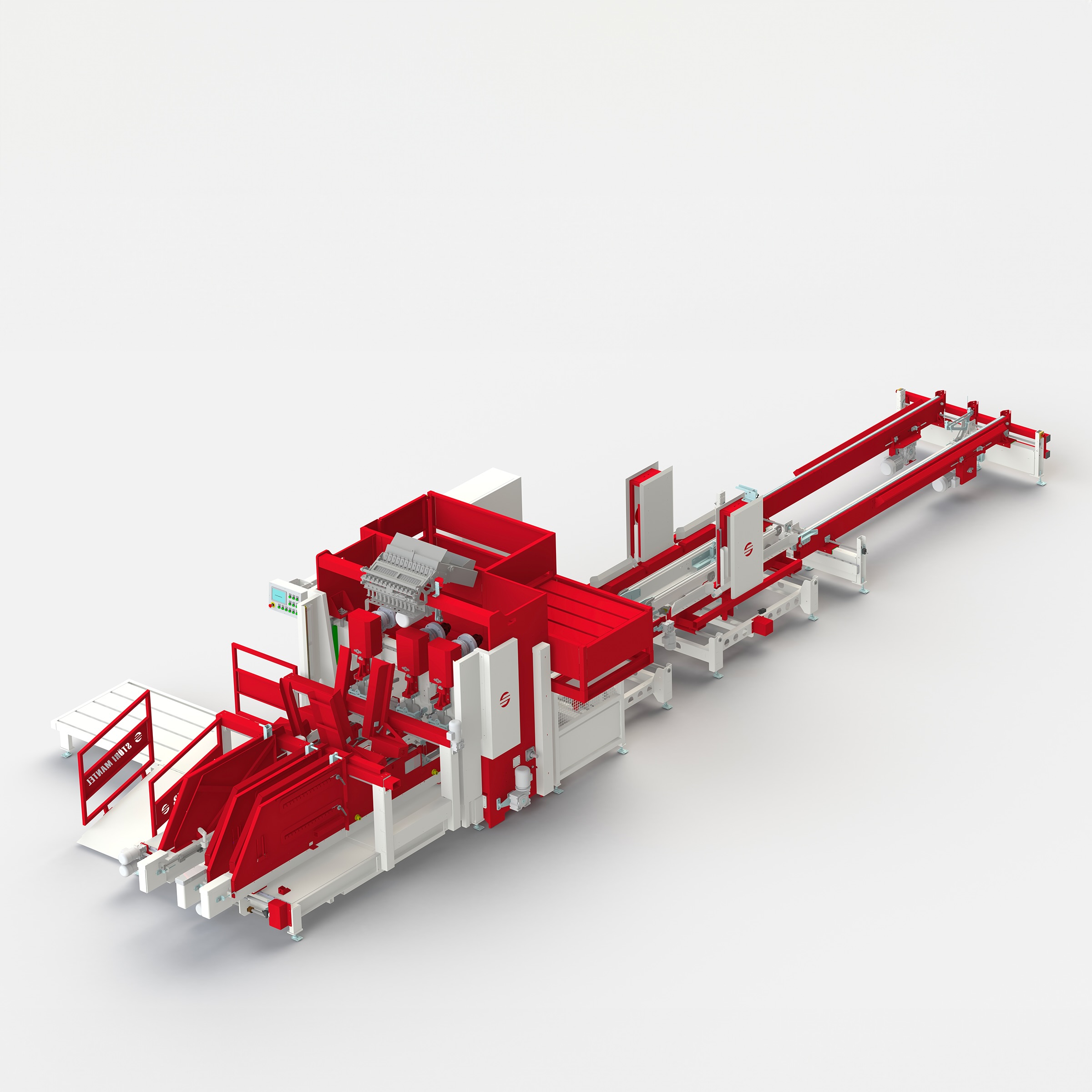

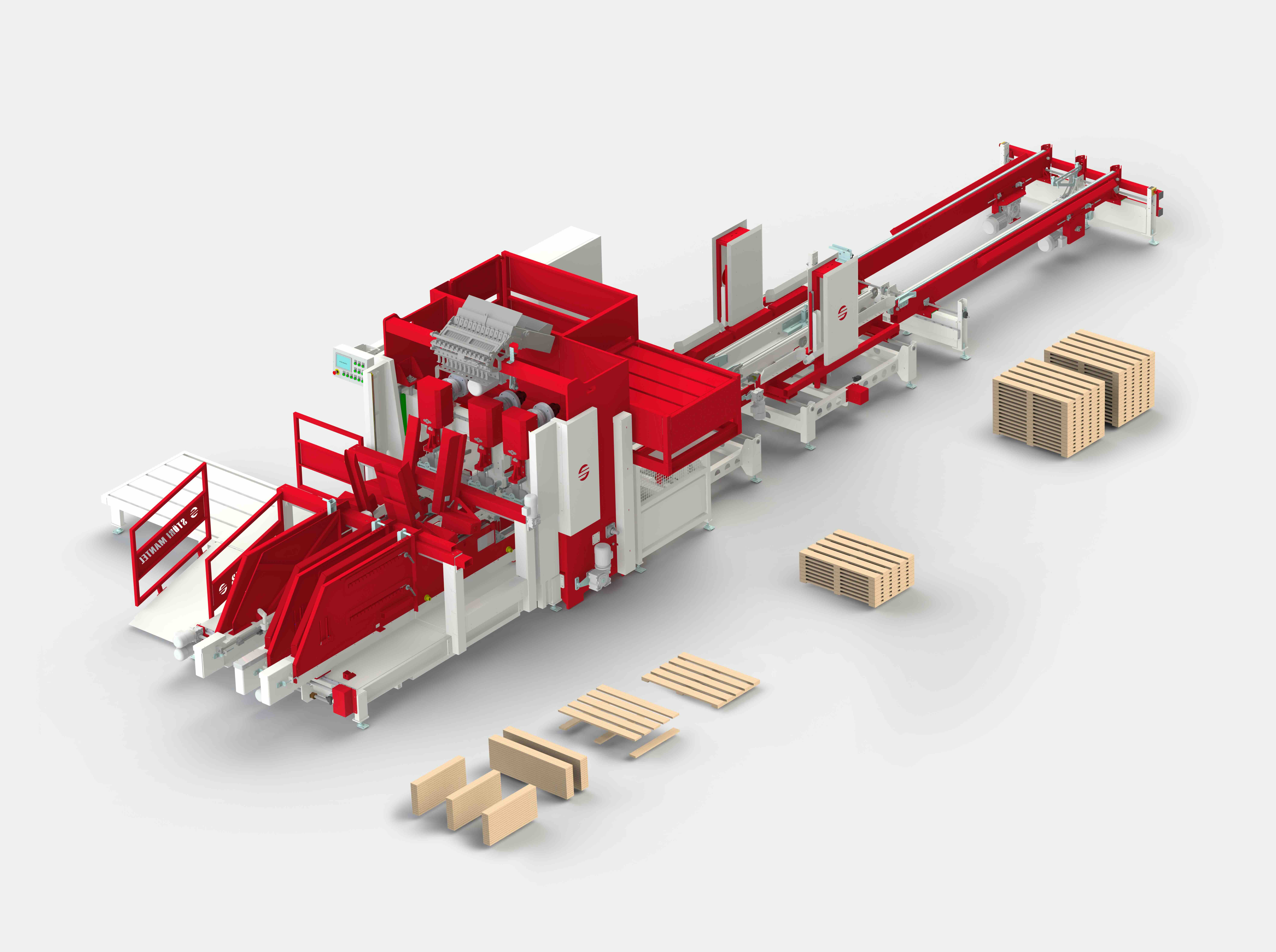

The Störi Mantel Dynamic 3 (DM3) pallet nailing line is a high-speed, automated pallet production system designed for efficiency and precision. Featuring two advanced nailing machines, the DM3 can be operated by just 2 workers, making it ideal for cost-effective, high-output pallet manufacturing.

Reduce Energy Costs with Electric Nailing

Equipped with the patented electromechanical nailing system, the DM3 delivers one of the lowest energy consumptions in its class. Unlike hydraulic systems, it eliminates oil refills, replacements, and disposal, while reducing noise. This ensures low-maintenance, energy-efficient, and budget-friendly pallet production.

Flexible Layouts to Fit Any Facility

Every facility is unique. The Dynamic 3 pallet nailing line can be custom-designed to fit your available space, maximizing workflow efficiency. By providing your workspace dimensions, our team will create a layout that integrates seamlessly into your production area.

Save on Material Costs with Loose Nails

The DM3 works with loose nails of all suitable types, including EPAL nails, eliminating the need for costly collated nails. Supporting nail lengths from 27 mm to 57 mm, this system ensures flexible, efficient, and cost-effective pallet manufacturing without compromising quality.

Upgrade to the Störi Mantel DM3 pallet nailing line for a high-performance, energy-efficient, and scalable pallet production solution that maximizes throughput, reduces labour, and lowers operational costs.

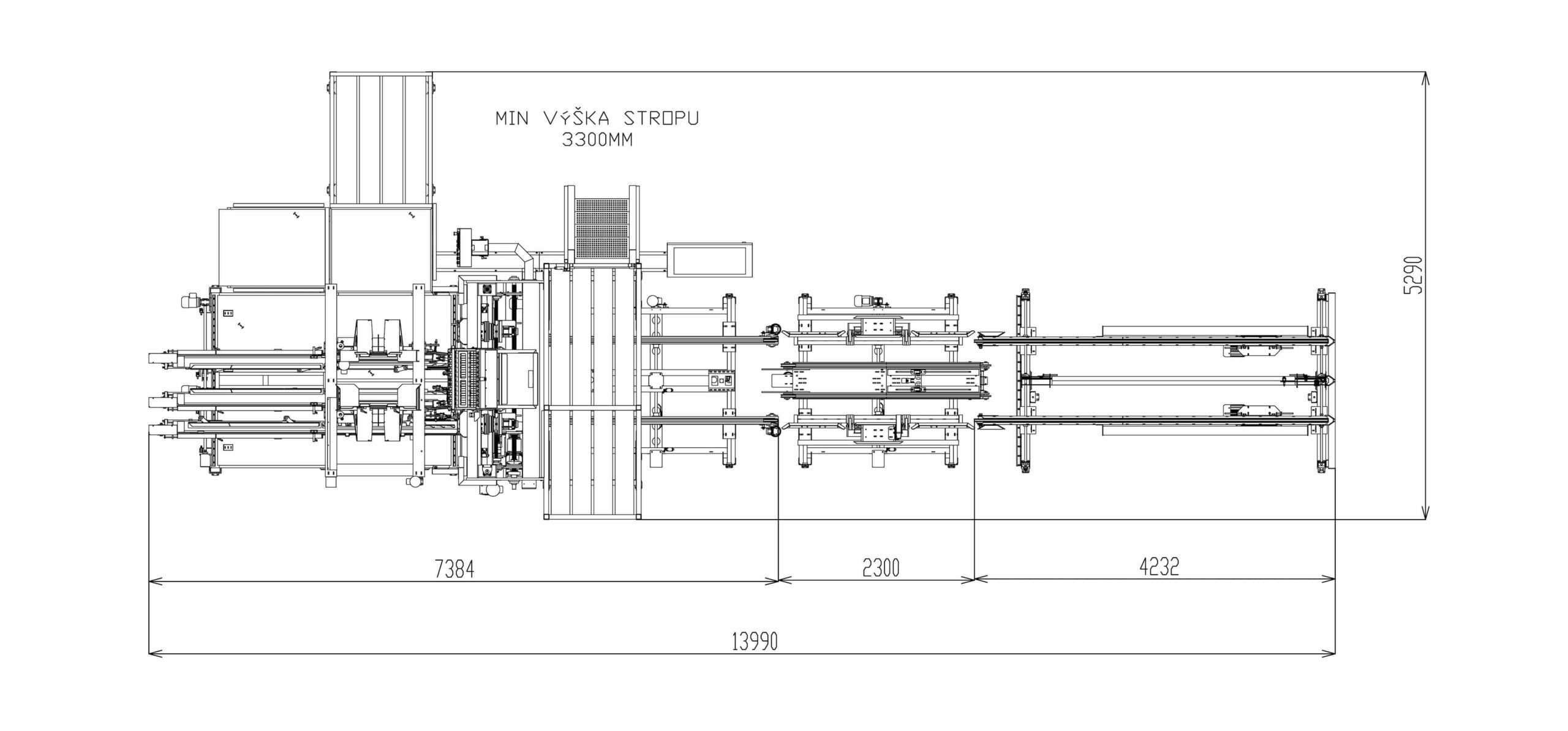

Dimensions parameters

Data	Value
Length	15 000 mm
Width including service ramp	5 250 mm
Height of the nailing machine (minimum ceiling height)	3 200 mm (3 300 mm)

Lid size

Data	Value
Length min. – max.	600 – 1 500 mm
Width min. – max.	600 – 1 500 mm
Height min. – max.	30 – 130 mm

Dimension of the upper planks

Data	Value
Length min. – max.	600 – 1 500 mm
Width min. – max.	50 – 150 mm
Height min. – max.	15 – 30 mm

Dimension of the bottom planks

Data	Value
Length min. – max.	600 – 1 500 mm
Width min. – max.	50 – 150 mm
Height min. – max.	15 – 30 mm

Nails

Data	Value
Length min. – max.	27 – 57 mm; EPAL nails
Shank diameter min. – max.	2.24 – 4.2 mm
Head diameter max.	9 mm
Type of nails	for machine nailing, loose
Polarization	non-magnetized
Precision nailing	+/- 1 mm
Nail spacing in a shape	min. 25 mm

Connection

Data	Value
Dust extraction (number of extraction points according to the composition of the line)	Ø 100 mm – 25-30 m/s
Compressed air	min. 0,6 MPa – max. 1 MPa
Voltage	~ 3×400 V/50 Hz

Machine Performance

Number of top planks	Theoretical/Real output min.
5	9/6
6	7,5/5,3
7	6,6/4,6
8	6/4,2
9	5,5/3,8
10	5/3,5
11	4,6/3,2
12	4,2/3

•
•
•
•
•
•
