Störi Mantel – Standard Dual Pallet Nailing Line

Efficient and Versatile Palletizing Lines by Störi Mantel

Störi Mantel palletizing lines deliver high-performance, energy-efficient pallet production with a fully customisable design tailored to your facility and workflow. Requiring only four operators, these lines maximise efficiency, reduce labour costs, and provide exceptional cost savings for businesses of all sizes.

Effortless Production of Standard and Custom Pallets

Störi Mantel palletizing lines allow the easy manufacture of both common and custom pallet types. With a universal/fixed template and simple manual reconfiguration, the system adapts seamlessly to different pallet sizes. The high-precision nailing pattern (+/- 1 mm) ensures consistent, durable, and high-quality pallets every time.

Reduce Operational Costs with Electric Nailing

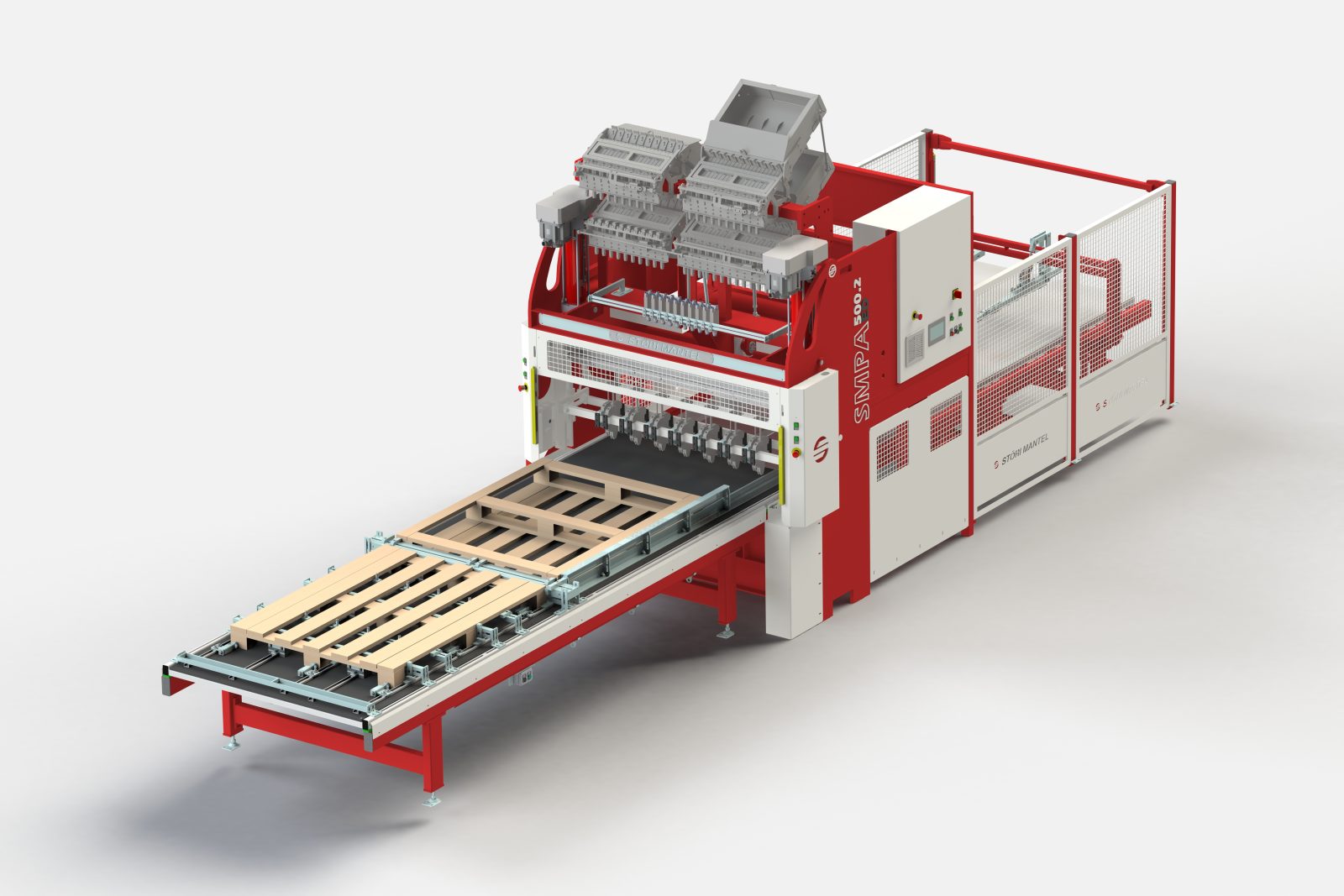

The patented electric nailing system consumes just 1.2 kWh per 100 pallets, making it one of the most energy-efficient pallet nailing solutions available. Unlike hydraulic systems, the electromechanical drive eliminates maintenance requirements such as oil refills and replacements, reduces noise, and lowers operational costs.

Scalable Investment Options

The modular design allows you to start with essential components and expand the line gradually as production demands grow. This makes it ideal for businesses seeking a flexible, scalable pallet production solution that aligns with their budget.

Adaptable Layouts for Any Facility

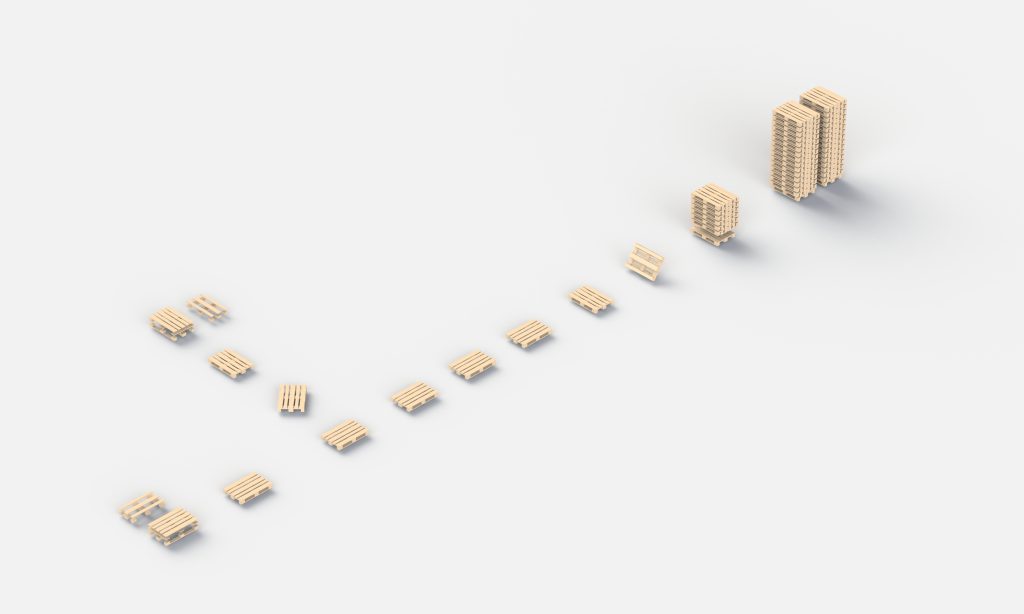

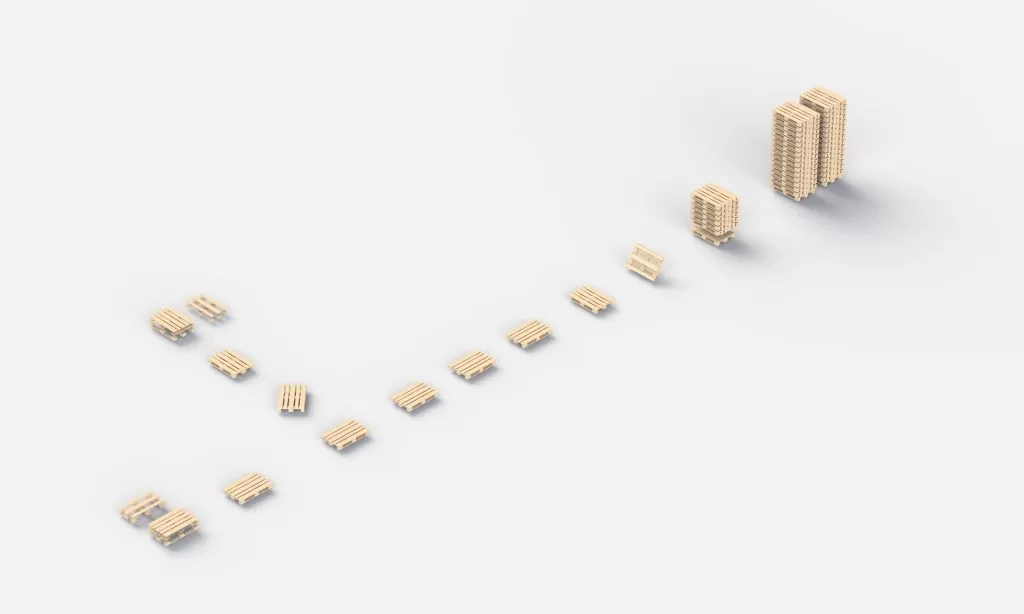

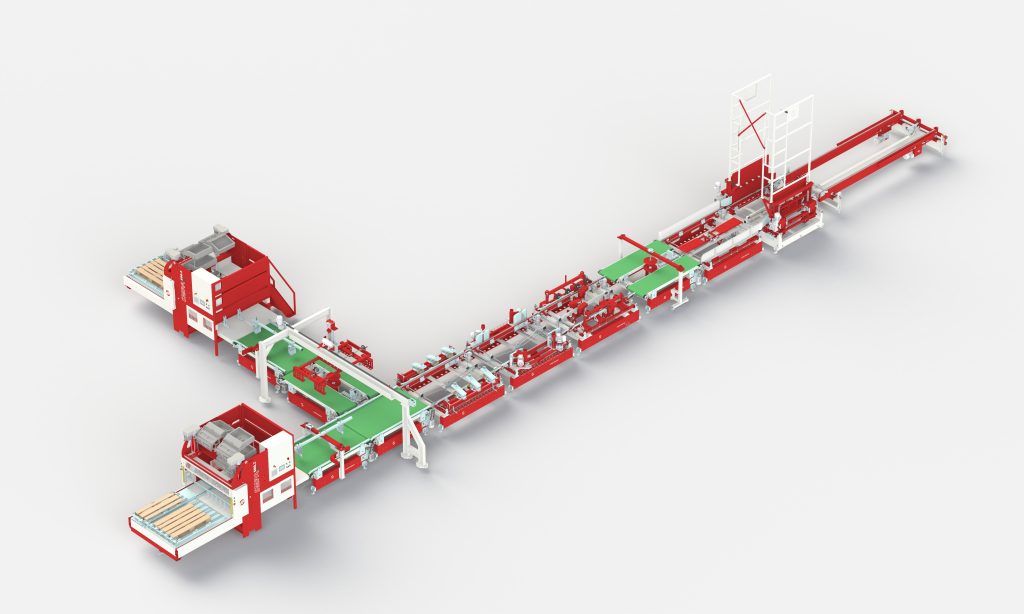

Störi Mantel palletizing lines can be configured in “I” or “L” layouts, designed to fit your workspace perfectly. By providing your facility dimensions in advance, our team can create a customised production line layout optimised for efficiency.

Save on Material Costs with Loose Nails

All Störi Mantel nailing machines work with loose nails, including EPAL nails, eliminating the need for costly collated nails. They accommodate nail lengths from 27 mm to 90 mm, offering flexibility while reducing material costs.

The Smarter Choice for Pallet Production

The Störi Mantel Standard Dual Pallet Nailing Line combines precision, efficiency, and flexibility, providing a cost-effective solution for automated pallet production. Transform your pallet manufacturing process with Störi Mantel and achieve higher throughput, lower costs, and consistent quality.

Feed material

Data	Value
Cube size (W x H x D)	min. 60 x 60 x 60 mm/max. 145 x 100 x 145 mm
Transverse Stringer Plates (W x H x L)	min. 60 x 16 x 600 mm/max. 150 x 25 x 1200 mm
Longitudinal top plates (W x H x L)	min. 60 x 16 x 600 mm/max. 150 x 25 x 1500 mm (2000, 2500, 3000 mm)
Longitudinal bottom plates (W x H x L)	min. 60 x 16 x 600 mm/max. 150 x 25 x 1500 mm (2000, 2500, 3000 mm)

Pallet dimensions

Data	Value
Two-way, four-way (W x H x L)	min. 600 x 100 x 600 mm/max. 1200 x 160 x 1500mm (2000, 2500, 3000 mm)

Parameters of loose nails

Data	Value
Types of nails	Convex, Screw, Machine Smooth
Nail length min.-max.	27 – 90 mm
Shank diameter	2.5 – 4.2 mm
Head diameter	5.5 – 9 mm
Min. nail spacing	25 mm

Operation

Data	Value
Number of employees	4

Production capacity

Data	Value
Number of pallets per minute	3 pcs

Connection

Data	Value
Dust extraction (number of extraction points according to the composition of the line)	Ø 100 mm – 25-30 m/s
Compressed air	pressure min. 0,6 MPa – 1 MPa
Voltage	~ 3×400 V/50 Hz

•
•
•
•
•
•
•
•
•
•
•
•
