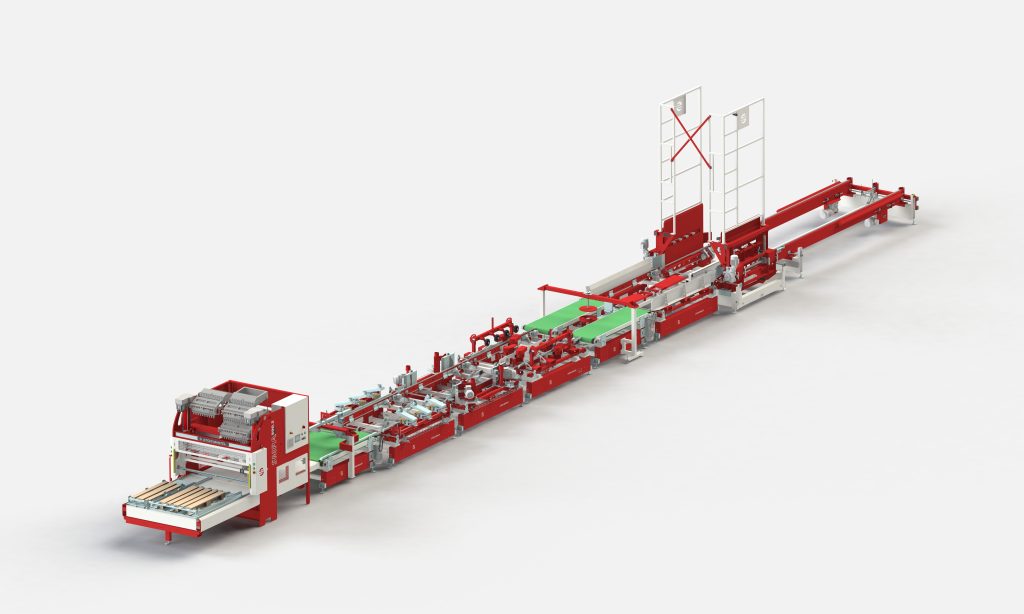

Complete pallet production line
The Standard Nailing and Processing Line is a reliable and cost-effective solution for manufacturing a variety of pallet types. With a production capacity of 1-2 pallets per minute, this line is ideal for businesses seeking to balance efficiency and affordability in their pallet production processes.
Standard Nailing Line: Efficient, Adaptable, and Cost-Effective Pallet Production
The Standard Nailing Line is available in four foundation table sizes: 1500 mm, 2000 mm, 2500 mm, and 3000 mm. These dimensions determine the maximum pallet length the line can handle, making it adaptable to various production needs. Designed for efficiency, this line requires only two operators, ensuring reduced labor costs and smooth operation.
Effortless Pallet Production
With Störi Mantel palletizing lines, you can easily manufacture the most common and even atypical pallets. Thanks to the universal/fixed template, manual reconfiguration is simple and quick, allowing for seamless transitions between different pallet types. The nailing precision, accurate to +/- 1 mm, ensures consistent, high-quality results for every pallet.

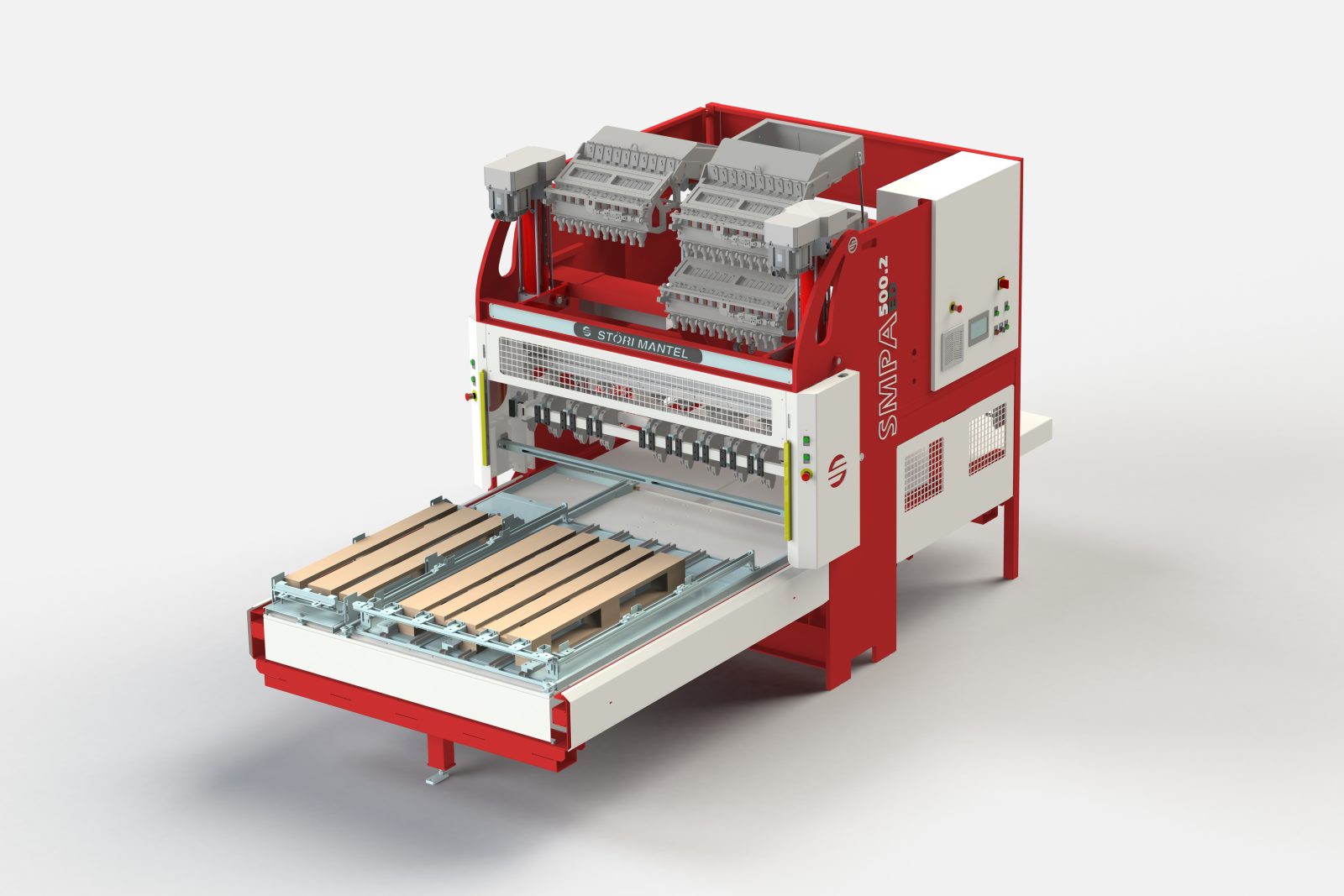

Reduce Costs with the Patented Electric Nailing System
The electromechanical nailing drive is the most energy-efficient system in its class, consuming just 1.2 kWh per 100 pallets. Unlike hydraulic systems, this innovative technology eliminates the need for oil refills, maintenance, and disposal, significantly lowering operational costs while reducing noise.
Invest at Your Own Pace
If purchasing the entire line upfront isn’t feasible, the Standard Line offers a modular design. You can start with the most critical components and expand the system incrementally as your production needs grow.
Customizable for Any Space
The Standard Line is highly versatile, with configurations available in “I,” “L,” or “U” shapes to fit your facility layout. By providing your workspace dimensions in advance, we can design a setup tailored to your specific requirements.
Save on Material Costs
Störi Mantel’s nailing machines work with freely poured nails of various types, including EPAL nails, eliminating the need for expensive collated nails. Suitable nail lengths range from 27 mm to 90 mm, offering flexibility while keeping material costs low.
Why Choose the Standard Nailing Line?
- Four size options for diverse production requirements.
- Energy-efficient technology for cost savings.
- User-friendly design, requiring only two workers.
- Precision engineering for consistent quality.
- Scalable investment options to suit your budget.
Transform your pallet production today. Contact us to learn more about how the Standard Nailing Line can elevate your operations.
Standard Nailing Line: Efficient, Adaptable, and Cost-Effective Pallet Production
The Standard Nailing Line is available in four foundation table sizes: 1500 mm, 2000 mm, 2500 mm, and 3000 mm. These dimensions determine the maximum pallet length the line can handle, making it adaptable to various production needs. Designed for efficiency, this line requires only two operators, ensuring reduced labor costs and smooth operation.
Effortless Pallet Production
With Störi Mantel palletizing lines, you can easily manufacture the most common and even atypical pallets. Thanks to the universal/fixed template, manual reconfiguration is simple and quick, allowing for seamless transitions between different pallet types. The nailing precision, accurate to +/- 1 mm, ensures consistent, high-quality results for every pallet.
Reduce Costs with the Patented Electric Nailing System
The electromechanical nailing drive is the most energy-efficient system in its class, consuming just 1.2 kWh per 100 pallets. Unlike hydraulic systems, this innovative technology eliminates the need for oil refills, maintenance, and disposal, significantly lowering operational costs while reducing noise.
Invest at Your Own Pace
If purchasing the entire line upfront isn’t feasible, the Standard Line offers a modular design. You can start with the most critical components and expand the system incrementally as your production needs grow.
Customizable for Any Space
The Standard Line is highly versatile, with configurations available in “I,” “L,” or “U” shapes to fit your facility layout. By providing your workspace dimensions in advance, we can design a setup tailored to your specific requirements.
Save on Material Costs
Störi Mantel’s nailing machines work with freely poured nails of various types, including EPAL nails, eliminating the need for expensive collated nails. Suitable nail lengths range from 27 mm to 90 mm, offering flexibility while keeping material costs low.
Why Choose the Standard Nailing Line?
- Four size options for diverse production requirements.
- Energy-efficient technology for cost savings.
- User-friendly design, requiring only two workers.
- Precision engineering for consistent quality.
- Scalable investment options to suit your budget.
Transform your pallet production today. Contact us to learn more about how the Standard Nailing Line can elevate your operations.
| Data | Value |
|---|---|
| Cube size (W x H x D) | min. 60 x 60 x 60 mm/max. 145 x 100 x 145 mm |
| Transverse Stringer Plates (W x H x L) | min. 60 x 16 x 600 mm/max. 150 x 25 x 1200 mm |
| Longitudinal top plates (W x H x L) | min. 60 x 16 x 600 mm/max. 150 x 25 x 1500 mm (2000, 2500, 3000 mm) |
| Longitudinal bottom plates (W x H x L) | min. 60 x 16 x 600 mm/max. 150 x 25 x 1500 mm (2000, 2500, 3000 mm) |
| Data | Value |
|---|---|
| Two-way, four-way (W x H x L) | min. 600 x 100 x 600 mm/max. 1200 x 160 x 1500mm (2000, 2500, 3000 mm) |
| Data | Value |
|---|---|
| Types of nails | Convex, Screw, Machine Smooth |
| Nail length min.-max. | 27 – 90 mm |
| Shank diameter | 2.5 – 4.2 mm |
| Head diameter | 5.5 – 9 mm |
| Min. nail spacing | 25 mm |
| Data | Value |
|---|---|
| Number of employees | 2 |
| Data | Value |
|---|---|
| Number of pallets per minute | 1 – 2 pcs |
| Data | Value |
|---|---|
| Dust extraction (number of extraction points according to the composition of the line) | Ø 100 mm – 25-30 m/s |
| Compressed air | pressure min. 0,6 MPa – 1 MPa |
| Voltage | ~ 3×400 V/50 Hz |
