Störi Mantel – Tandem

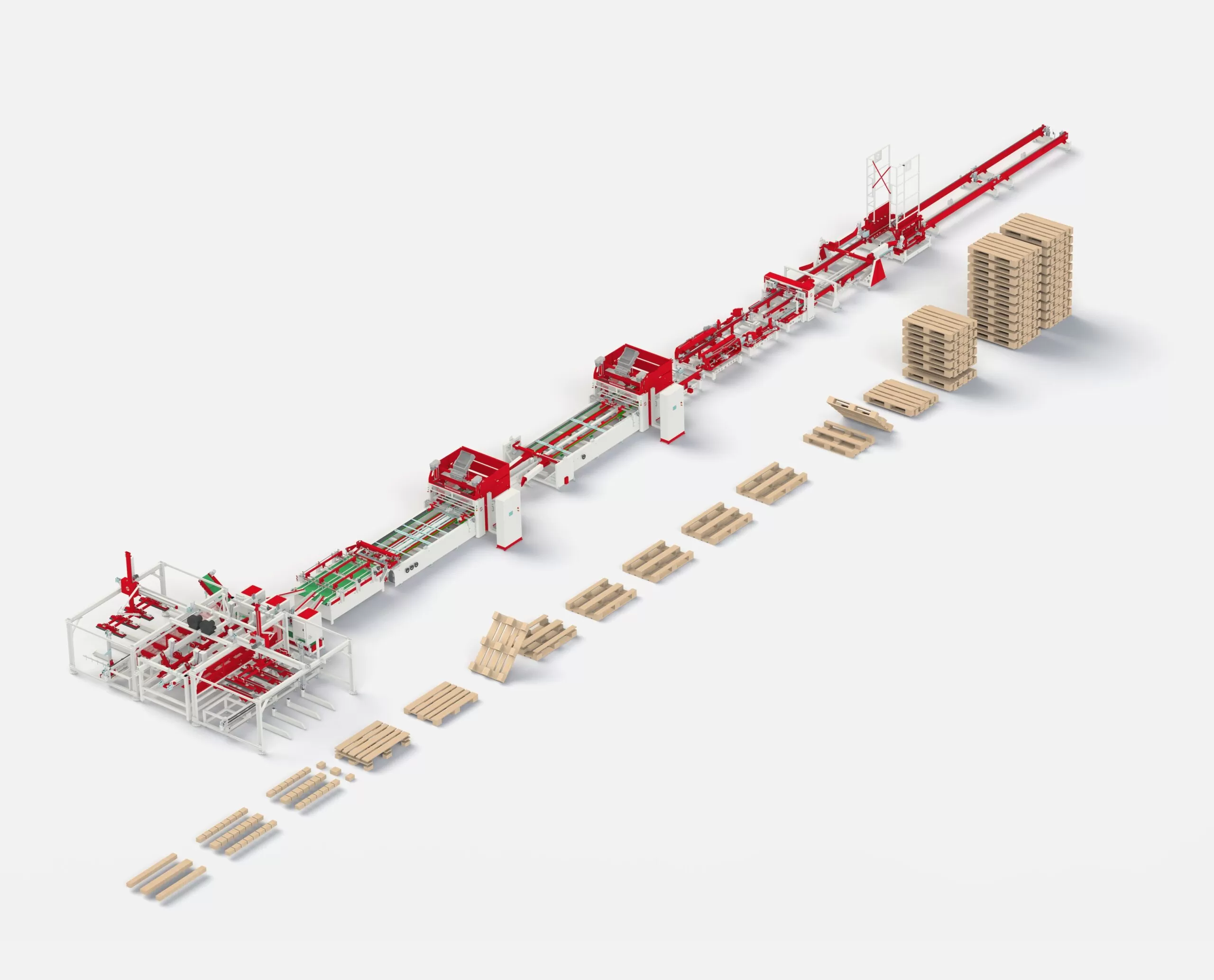

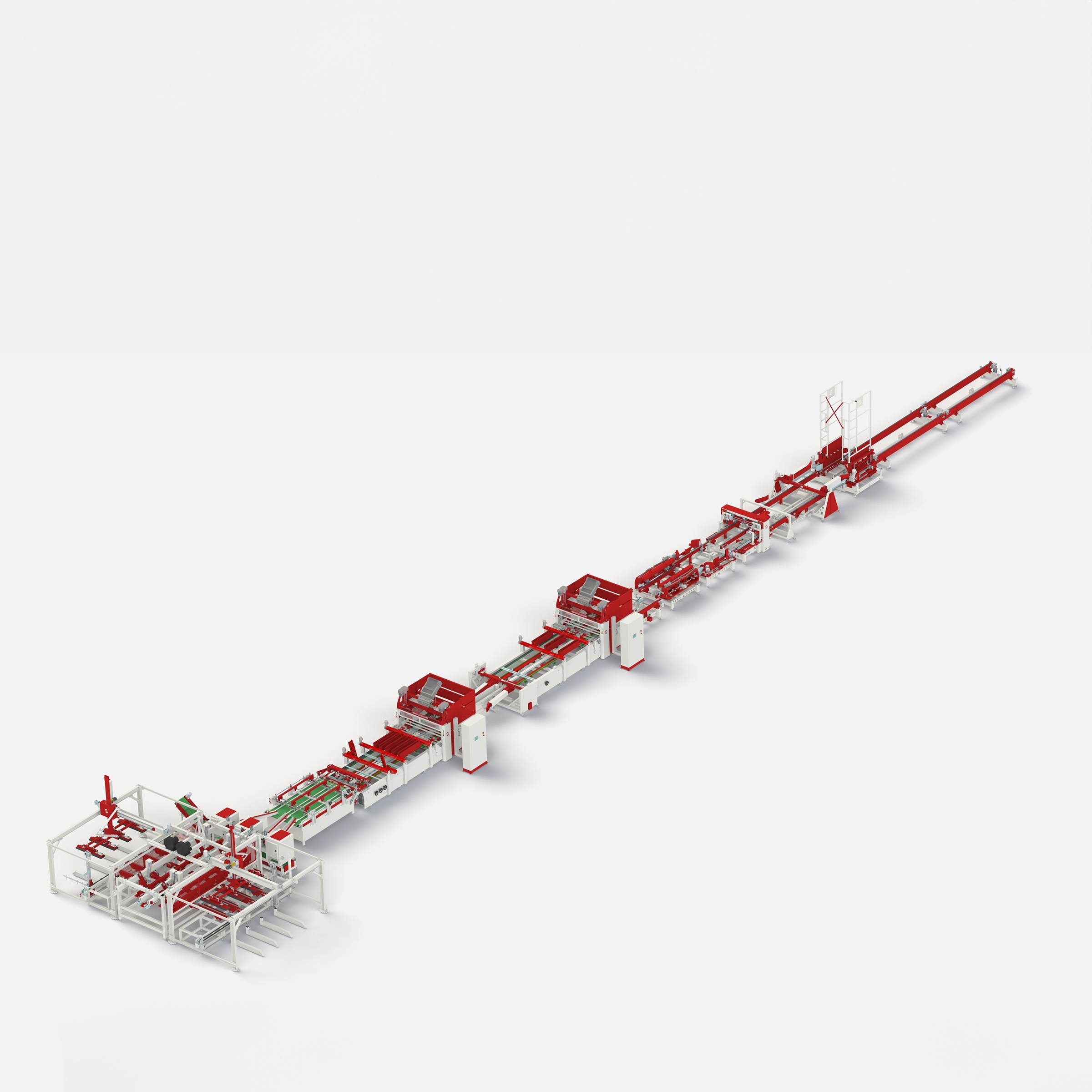

The production line reaches a capacity of 4-5 pallets per minute and is characterized by a high degree of automation, thanks to which the operator’s work is narrowed down to only the smooth replenishment of the necessary material into individual containers and the balancing of finished stacks of pallets. The line is operated by 2-3 workers.

Produce the most common types of pallets effortlessly

With Störi Mantel palletizing lines, you can manufacture all types of common and most atypical pallets found in the market. Thanks to the universal/fixed template, easy manual reconfiguration for a different type of pallet, and the precision of the nailing pattern (within +/- 1 mm tolerance), nothing will catch you off guard.

Reduce your costs not only for energy with the patented electric nailing system

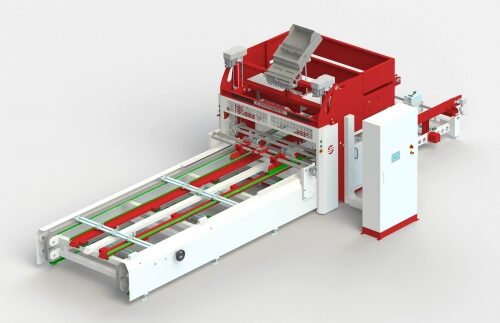

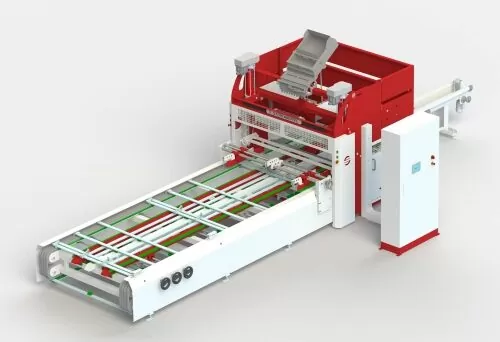

The nailing system utilizes an electromechanical drive and has the lowest energy consumption in its class (1.2 kWh per production of 100 pallets). Additionally, you don’t have to worry about maintenance and operation of the hydraulic nailing system (refilling, oil replacement, disposal, excessive noise, etc.). The palletizing line can be operated by only 2-3 workers.

Invest only in what you need

Is investing in the entire line at once too high for you? Not a problem. You can purchase the nailing line in individual segments and start with what you need most urgently, gradually improving it.

We’ll adapt to the space

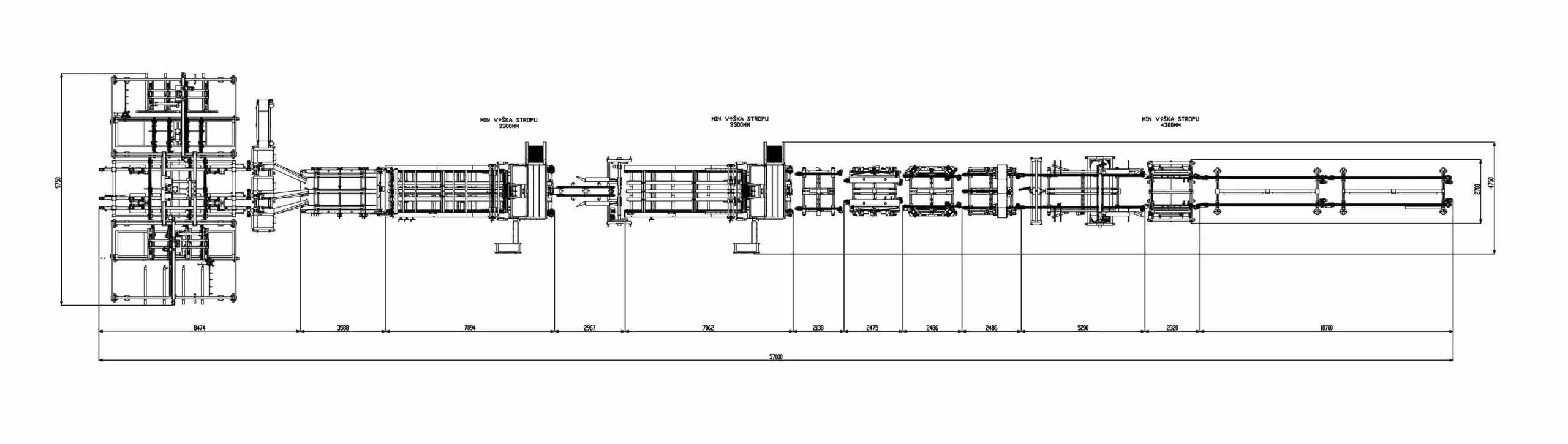

There are no limits to variability, and if we know the dimensions of the space where the line will be placed in advance, we can design it in a suitable way to fit in.

Smartly save on production material in the form of loose nails

Because the Störi Mantel nailing machines work with freely poured nails of all available and suitable types, including EPAL nails, you don’t have to unnecessarily pay for collated nails, which are generally more expensive and more suitable for other equipment. The suitable nail lengths range from 27 mm to 90 mm.



Feed material

Data	Value
Cube size (W x H x D)	min. 60 x 60 x 60 mm/max. 145 x 100 x 145 mm
Transverse Stringer Plates (W x H x L)	min. 60 x 16 x 600 mm/max. 150 x 25 x 1200 mm
Longitudinal top plates (W x H x L)	min. 60 x 16 x 600 mm/max. 150 x 25 x 1500 mm
Longitudinal bottom plates (W x H x L)	min. 60 x 16 x 600 mm/max. 150 x 25 x 1500 mm

Pallet dimensions

Data	Value
Two-way, four-way (W x H x L)	min. 600 x 100 x 600 mm/max. 1200 x 160 x 1500mm

Parameters of loose nails

Data	Value
Types of nails	Convex, Screw, Smooth machine
Nail length min.-max.	27 – 90 mm
Shank diameter	2.5 – 4.2 mm
Head diameter	5.5 – 9 mm
Min. nail spacing	25 mm

Operation

Data	Value
Number of employees	2-3

Production capacity

Data	Value
Number of pallets per minute	4 – 5 pcs

Connection

Data	Value
Dust extraction (number of extraction points according to the composition of the line)	Ø 100 mm – 25-30 m/s
Compressed air	min. 0,6 MPa – max. 1 MPa
Voltage	~ 3×400 V/50 Hz

•
•
•
•
•
•
•
•
•
•
•
•
•
•
