Tel: +44 (0) 197 825 4472Störi Mantel – Universal

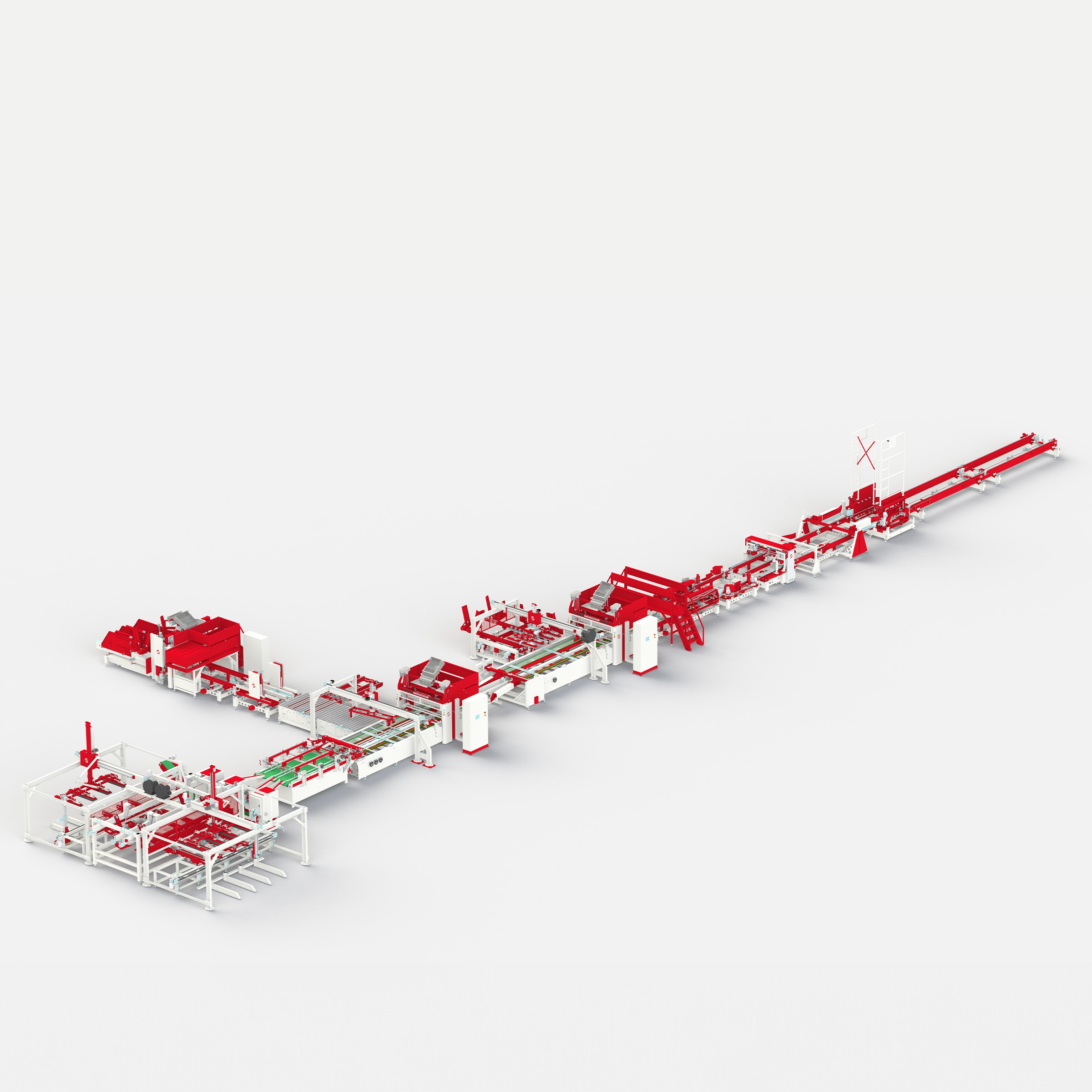

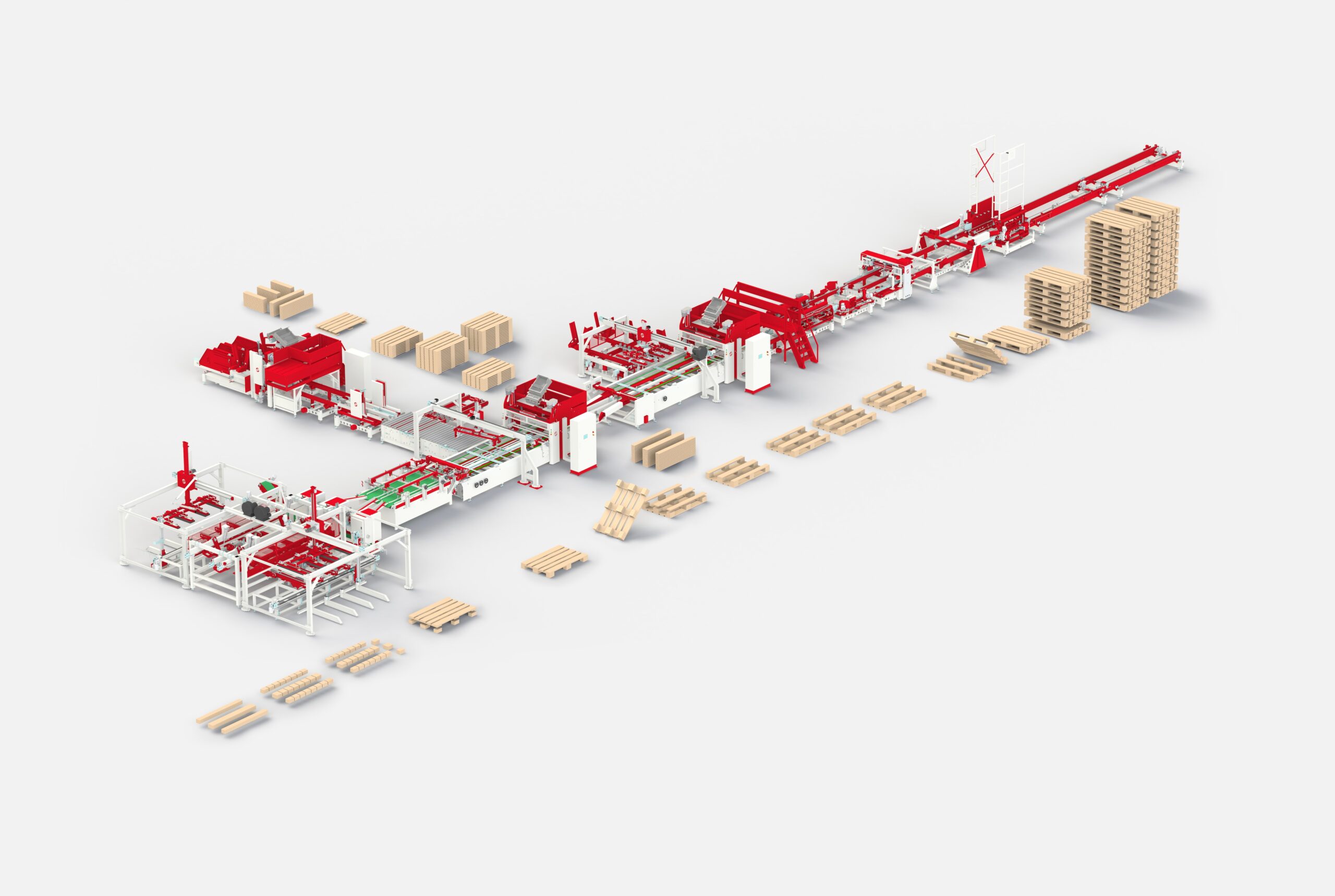

Complete high capacity pallet production line
The universal high-capacity pallet nailing line is designed for efficient and precise pallet production in three operations across three nailing machines. One of the machines fully assembles the pallet lids, ensuring seamless workflow and consistency. Ideal for companies specializing in large-scale pallet manufacturing, this line enables fast daily changeoversto different pallet types and sizes, maximizing productivity and flexibility.
High-Performance Pallet Nailing Line for Efficient Production
The Störi Mantel pallet nailing line delivers high-speed production, reaching 4-5 pallets per minute with a high level of automation. Operators only need to replenish materials and manage finished pallet stacks, reducing labor requirements to just 2-3 workers.
Seamless Production of Various Pallet Types
The Störi Mantel pallet nailing line enables the efficient manufacturing of both standard and custom pallets. Thanks to a universal/fixed template, manual reconfiguration for different pallet sizes is quick and hassle-free. The precision nailing system ensures +/- 1 mm accuracy, maintaining consistency across all production batches.
Energy-Efficient Pallet Nailing System
The patented electromechanical nailing system offers the lowest energy consumption in its class, using just 1.2 kWh per 100 pallets. Unlike hydraulic systems, this innovative technology eliminates the need for oil refills, disposal, and maintenance, reducing operational costs and noise levels.
Scalable Investment – Expand as Needed
Not ready to invest in a full pallet nailing line? No problem. The modular design allows you to purchase individual segments and expand your system as needed, ensuring cost-effective scalability.

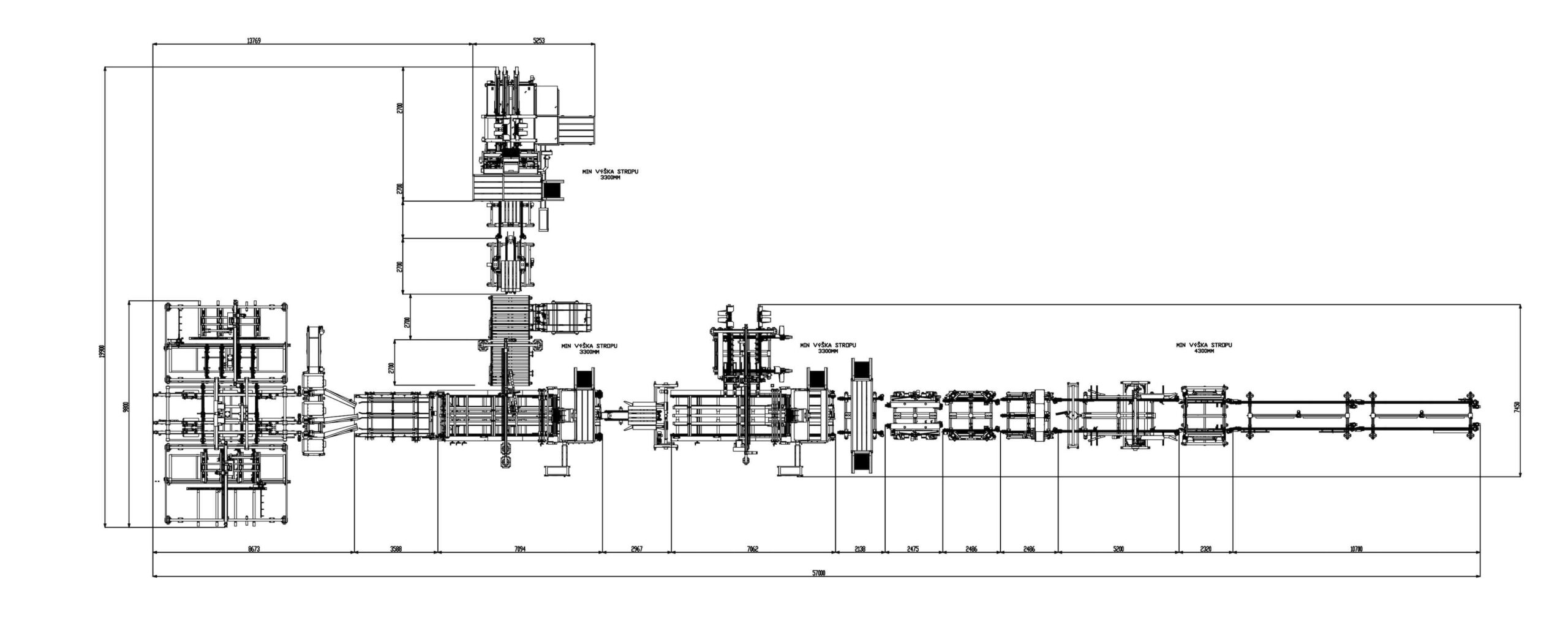

Customizable Layout to Fit Your Space
Every facility is different, which is why the Störi Mantel pallet nailing line can be tailored to fit your available space. Our team ensures an optimized layout for maximum efficiency.
Save on Production Costs with Loose Nails
Störi Mantel pallet nailing machines are designed to use loose nails of all types, including EPAL nails, eliminating the need for costly collated nails. Supported nail sizes range from 27 mm to 90 mm, offering flexibility and significant cost savings.
Upgrade your pallet manufacturing process with the Störi Mantel pallet nailing line—a high-efficiency, cost-effective, and scalable solution for modern production needs. Contact us today to learn more!
| Data | Value |
|---|---|
| Cube size (W x H x D) | min. 60 x 60 x 60 mm/max. 145 x 100 x 145 mm |
| Transverse Stringer Plates (W x H x L) | min. 60 x 16 x 600 mm/max. 150 x 25 x 1200 mm |
| Longitudinal top plates (W x H x L) | min. 60 x 16 x 600 mm/max. 150 x 25 x 1500 mm |
| Longitudinal bottom plates (W x H x L) | min. 60 x 16 x 600 mm/max. 150 x 25 x 1500 mm |
| Data | Value |
|---|---|
| Two-way, four-way (W x H x L) | min. 600 x 100 x 600 mm/max. 1200 x 160 x 1500mm |
| Data | Value |
|---|---|
| Types of nails | Convex, Screw, Smooth machine |
| Nail length min.-max. | 27 – 90 mm |
| Shank diameter | 2.5 – 4.2 mm |
| Head diameter | 5.5 – 9 mm |
| Min. nail spacing | 25 mm |
| Data | Value |
|---|---|
| Number of employees | 2-3 |
| Data | Value |
|---|---|
| Number of pallets per minute | 4 – 5 pcs |
| Data | Value |
|---|---|
| Dust extraction (number of extraction points according to the composition of the line) | Ø 100 mm – 25-30 m/s |
| Compressed air | min. 0,6 MPa – max. 1 MPa |
| Voltage | ~ 3×400 V/50 Hz |
