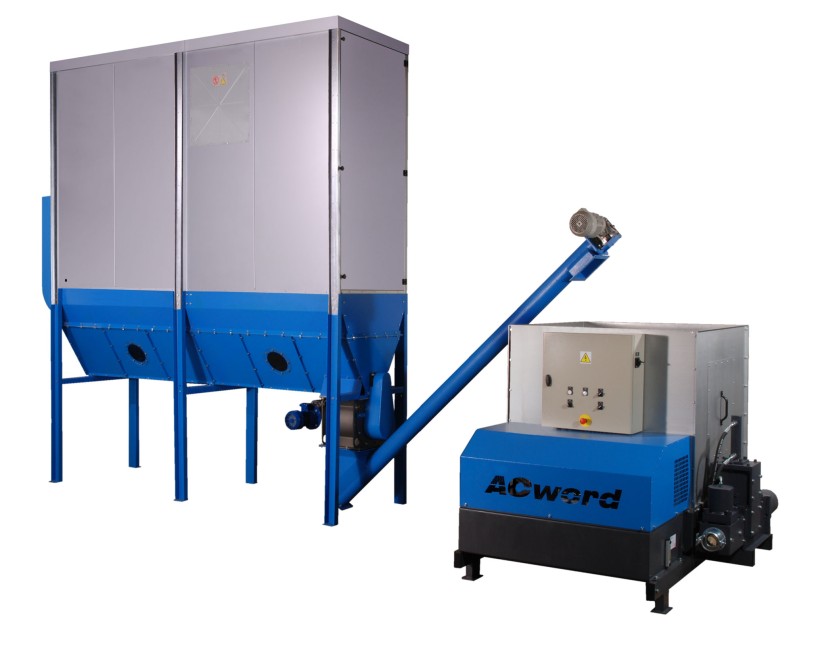

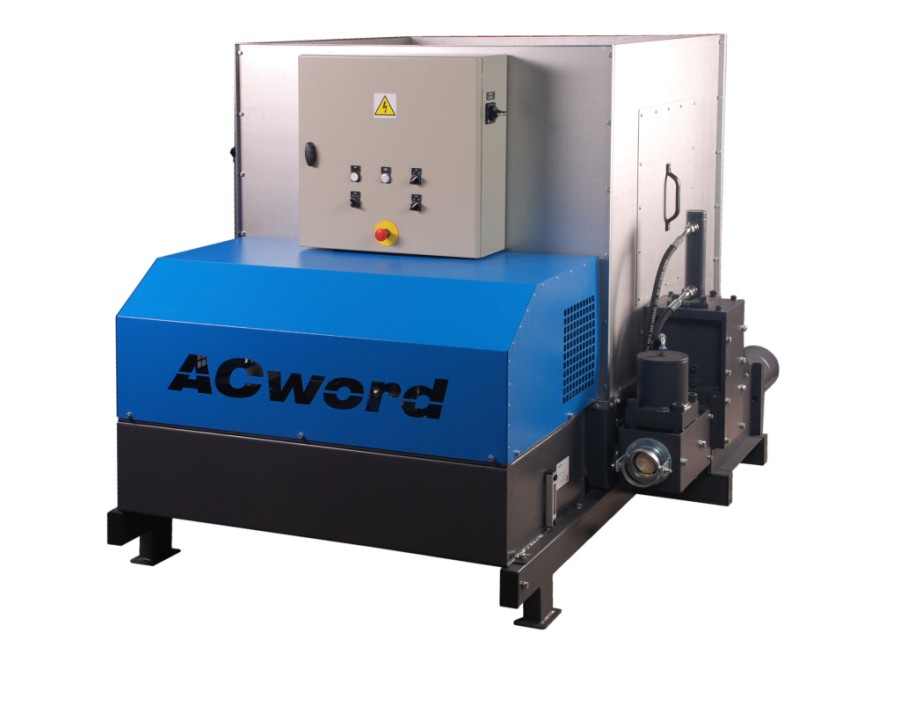

AECO Hydraulic Briquette Press

AECO Hydraulic Briquette Press – High Efficiency & Fully Automated

The AECO hydraulic briquette press produces fuel-efficient briquettes with an energy content of 15–18 MJ/kg, making it an ideal solution for converting wood waste, sawdust, and other biomass into high-quality fuel.

These modern, fully automated briquetting machines feature a computer-controlled system that ensures consistent briquette quality and seamless operation. Equipped with a level sensor, the press automatically monitors the material in the feeding hopper and stops or resumes operation as needed. The hopper is designed to integrate with filtration systems and a ventilator, enabling dust-free waste extraction directly from your machinery into the briquette press for maximum convenience.

Suitable Materials for Briquetting

• Sawdust and wood shavings
• Wood and paper dust
• Milled paper and biomass
• Chaff and straw
• Waste from impregnated materials (DTM, MDF)

Key Advantages of AECO Briquette Presses

• High-quality briquettes: Efficient combustion, minimal residue, and maximum fuel efficiency
• Durable & reliable: Robust design, high-quality components, and precision manufacturing
• Ease of operation: Fully automated process managed via control computer
• Low operating costs: Energy-efficient motors reduce electricity consumption

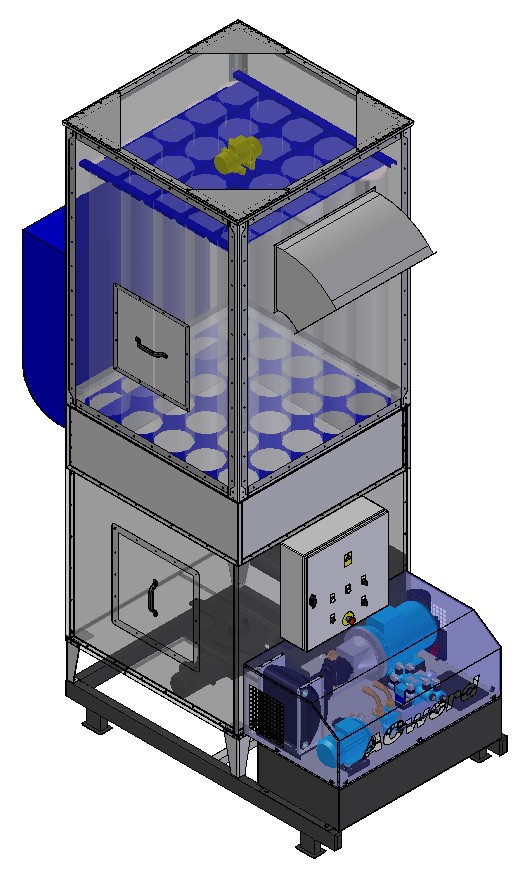

• Flexible hopper design: Supports filtration, ventilators, and inspection doors
• Outdoor-ready: Special oil enables operation at temperatures as low as –25 °C
• Smart automation: Low-level sensor ensures continuous, unmanned operation

Standard Equipment

• Electrical switchboard with control computer for fully automated operation
• Automatic regulation of briquette length and quality
• Piping system for transporting briquettes to packing (up to 1,200 mm height)
• Oil thermostat and cooler for hydraulic system
• Pressure gauge for working cycle control
• Material screw feeder and bottom extraction cutter
• Emergency hopper access port
• Operation hours counter and oil level monitor
• Hopper material level sensor for automatic press control

This AECO briquette press provides a reliable, energy-efficient solution for workshops and manufacturing facilities seeking to turn wood waste and biomass into high-value, eco-friendly fuel briquettes.

AECO 30

Press capacity [kg/h]	20-40*
Briquett diameter [mm]	65
Power input [kW]	4,4
Weight [kg]	880
Hopper volume [m³]	1,7
Oil cooling system	Optional
Filtration superstructures	Optional

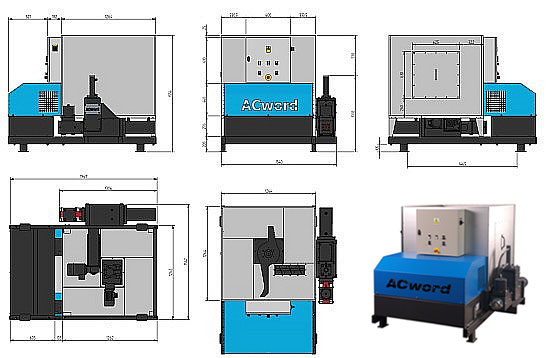

Height [mm]	1556
Width [mm]	1542
Length [mm]	1967

AECO 50

Press capacity [kg/h]	40-60*
Briquett diameter [mm]	65
Power input [kW]	5,4
Weight [kg]	890
Hopper volume [m³]	1,7
Oil cooling system	Optional
Filtration superstructures	Optional
Height [mm]	1556
Width [mm]	1542
Length [mm]	1967

AECO 70

Press capacity [kg/h]	50-80*
Briquett diameter [mm]	65
Power input [kW]	6,9
Weight [kg]	945
Hopper volume [m³]	1,7
Oil cooling system	Optional
Filtration superstructures	Optional
Height [mm]	1556
Width [mm]	1542
Length [mm]	1967

AECO 100

Press capacity [kg/h]	90-120*
Briquett diameter [mm]	65
Power input [kW]	9,3
Weight [kg]	1205
Hopper volume [m³]	1,7
Oil cooling system	Optional
ltration superstructures	Optional
Height [mm]	1556
Width [mm]	1542
Length [mm]	1967

•
•
•
•
