Automated Heat & Shrink Wrap Packing Machine
Briquetting is a cost-effective solution for reducing waste and improving efficiency in production. For enhanced packing performance, the APS-4 system offers high-quality shrink wrapping for both single and multi-row products, ensuring reliable and efficient packaging across a wide range of applications.

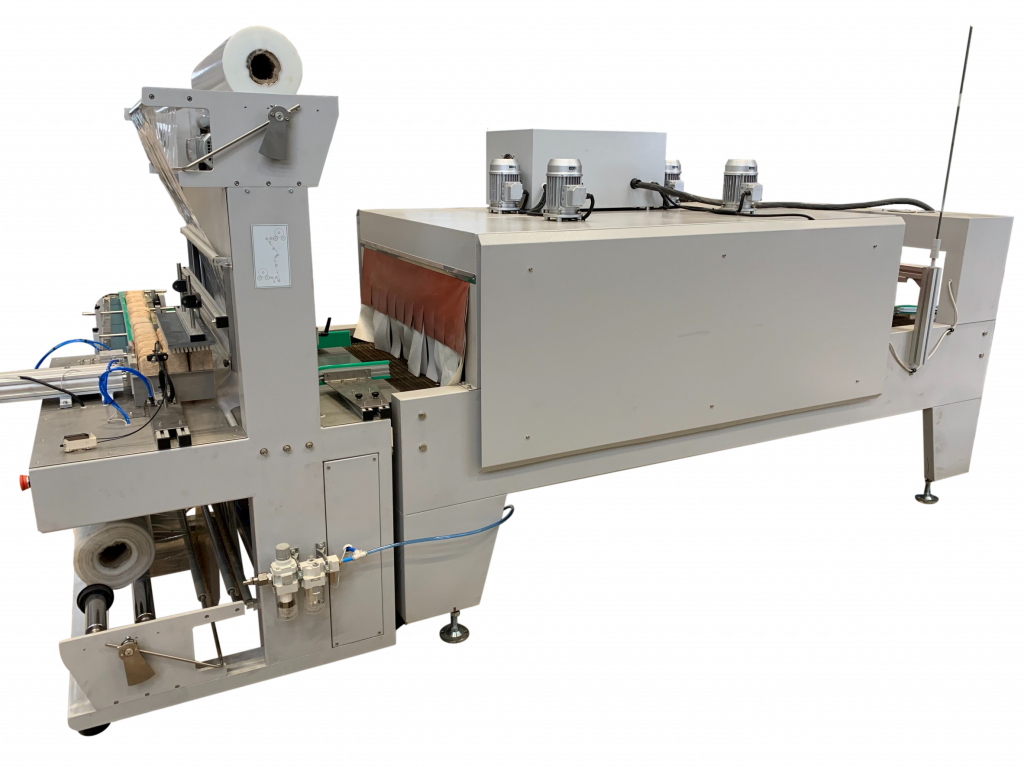

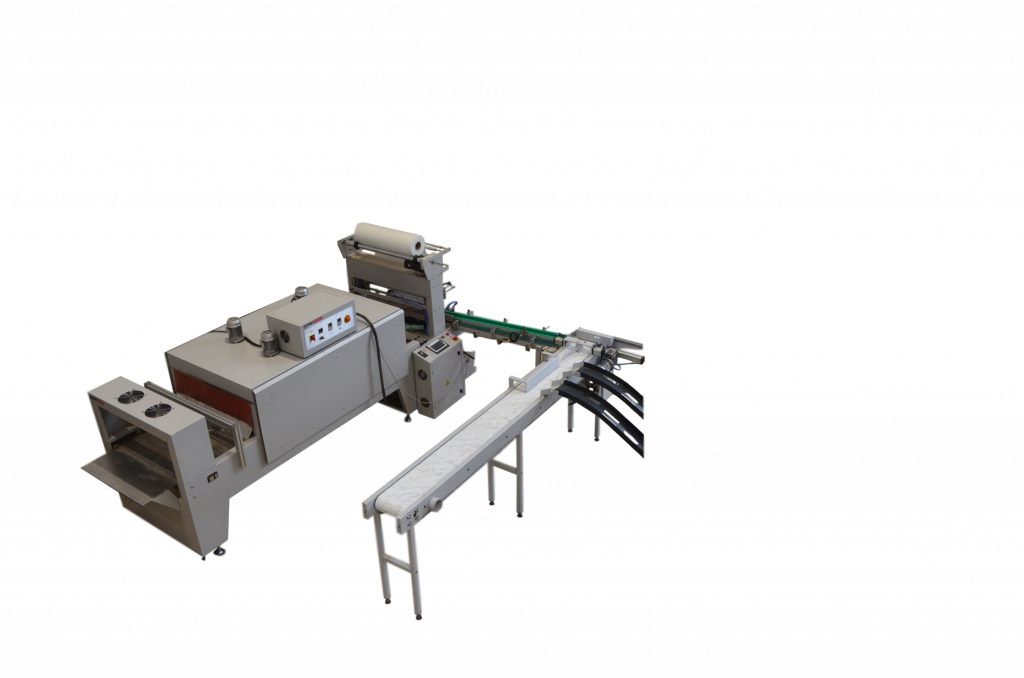

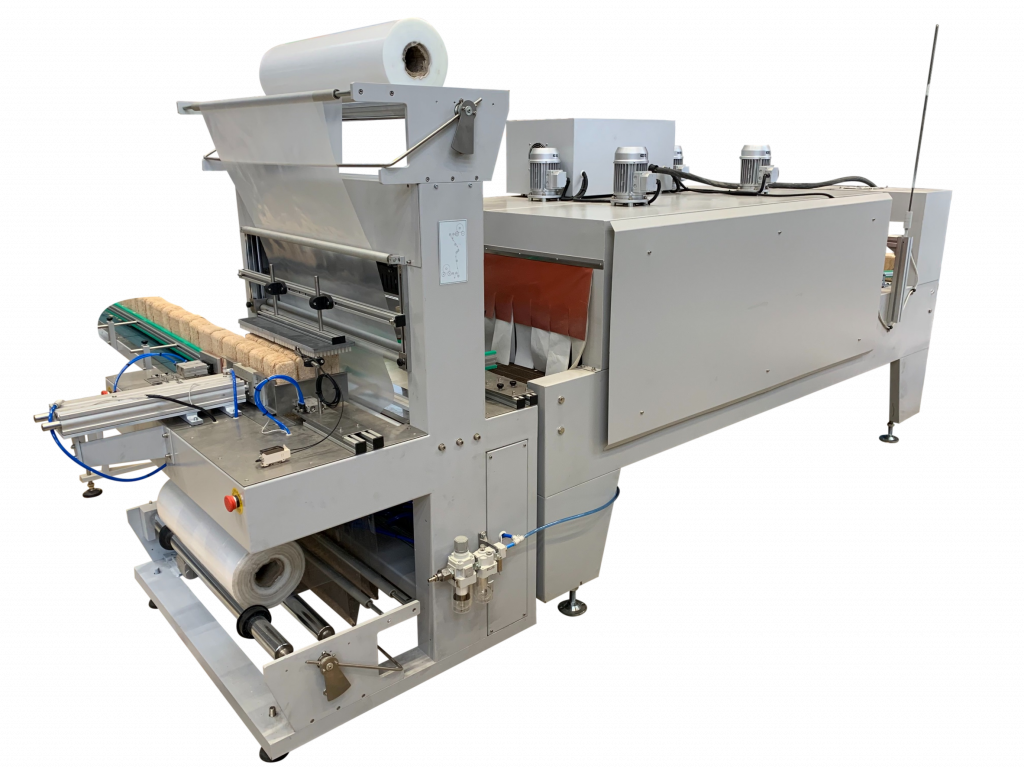

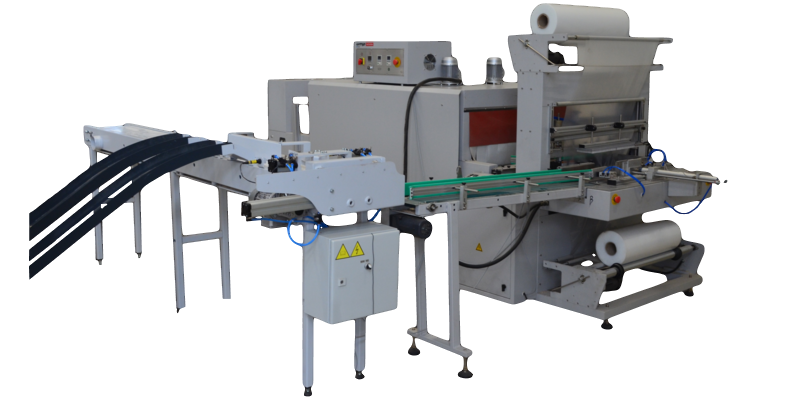

APS-4 Automated Briquette Packing System
The automated briquette packing system is designed to maximise efficiency, reduce labour, and ensure consistent, high-quality output. This advanced briquette packaging machine features automated alignment and placement, enabling continuous 24/7 operation with minimal operator input.

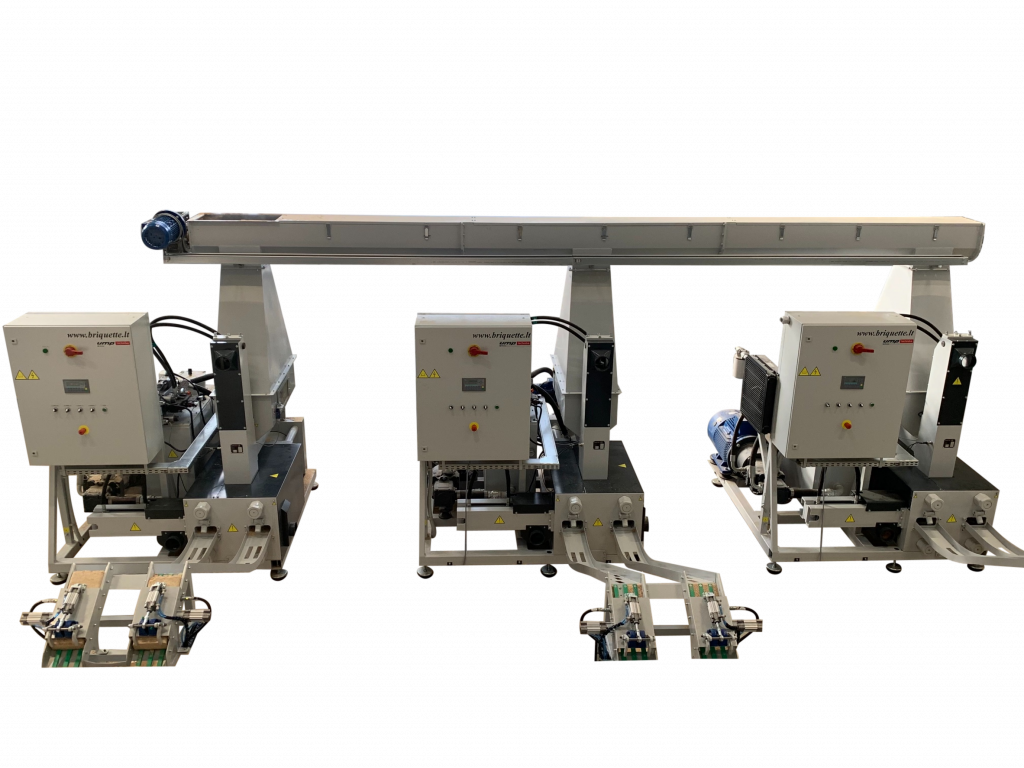

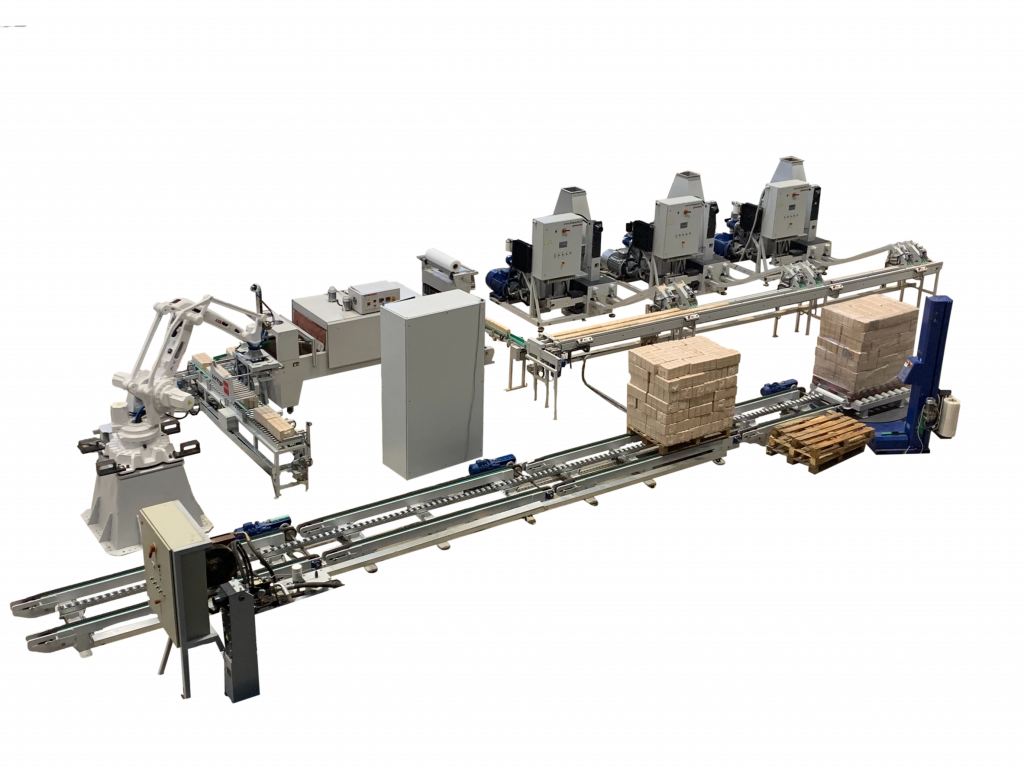

When integrated with UMPT briquette presses and a transport table, the system can support up to four BPA500A presses, producing up to five packs per minute, making it an ideal solution for high-volume briquette production.
Using briquette shrink wrapping, the system packs briquettes in durable polyethylene film, creating compact, secure, and visually appealing packages. Unlike traditional bags, shrink-wrapped briquettes remain tightly fixed, preventing movement and reducing damage during handling and transport.
The result is improved product quality, moisture resistance, and transport safety, with the added benefit of outdoor storage capability. Optional carry handles can be applied to enhance usability and customer convenience.
Key Features of the Briquette Packaging Machine
- Automated briquette de-dusting
- Automated alignment and packing
- Automated sealing and heat shrinking
- Integrated quality control with rejection recycling
- Optional leaflet insertion

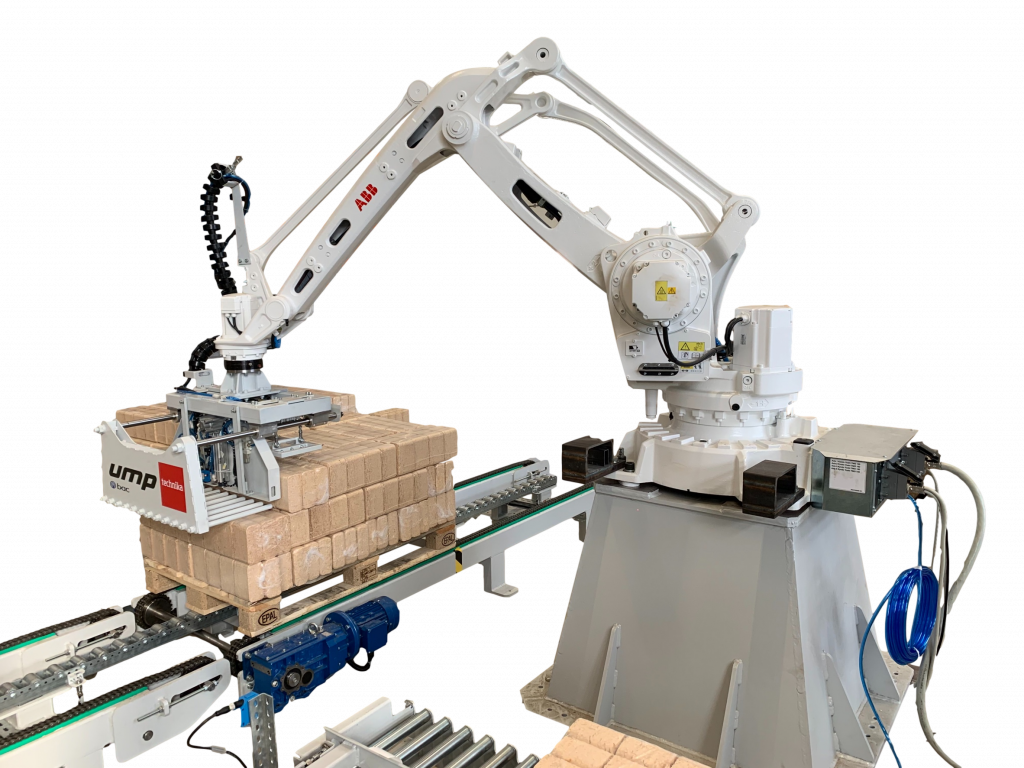

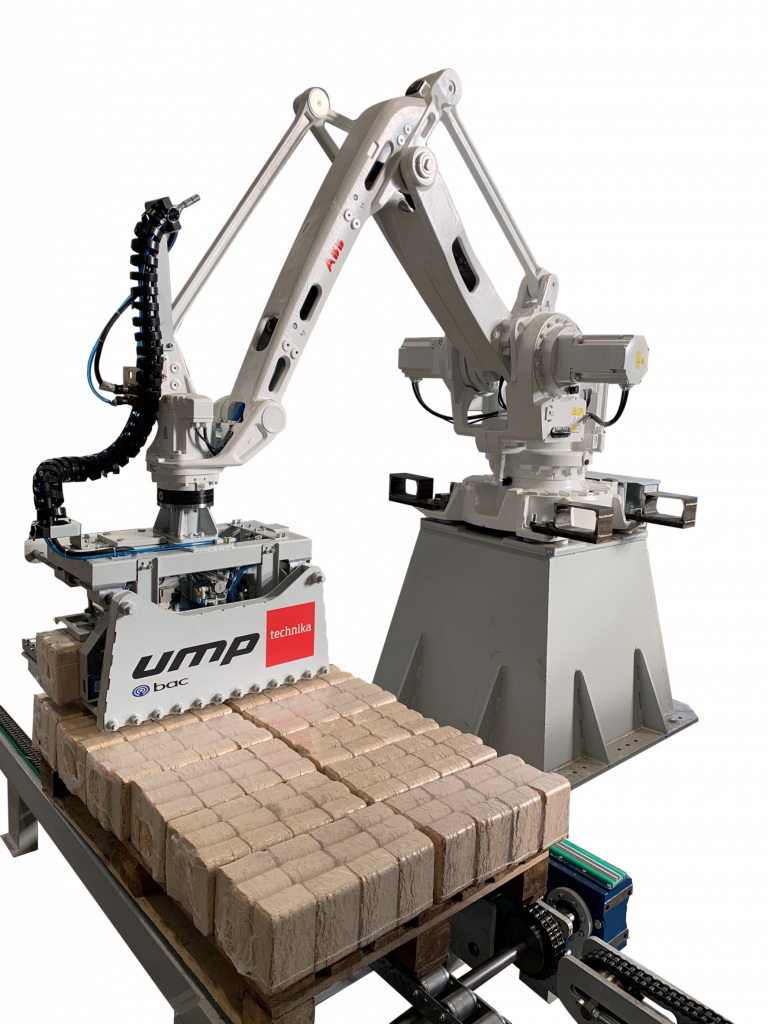

- Automated palletising and pallet wrapping
This briquette packing system ensures accurate de-dusting, optional weighing, precise alignment, and consistent briquette shrink wrapping, delivering uniform, high-quality packaging every time.
Benefits
- Continuous 24/7 automated production
- Compatible with 2–6 briquette presses
- Central control panel for easy operation
- Automated labelling options
- Increased pack durability and quality
Available Options
- Briquette weighing systems

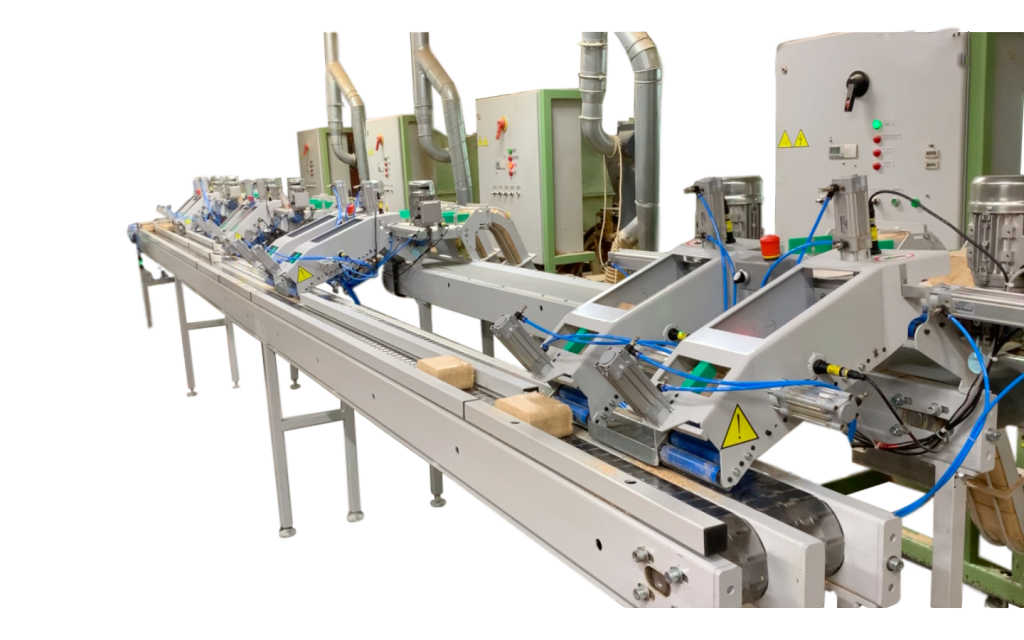

- Conveyors and transport systems
- Adjustable shrink film thickness
- Label and leaflet applicators
- Handle applicators
- Automated palletising systems
- Pallet transporters, buffers, and wrappers
This briquette packaging machine is the ideal solution for manufacturers looking to improve efficiency, reduce waste, and deliver high-quality, market-ready briquette products.
| Data | Value |
|---|---|
| Sealing type | Sleeve |
| Packing capacity | <5 packs/min |
| Shrinking Tunnel speed | Variable, ≤15 m/min |
| Shrinking Tunnel size | Depends on the size of the product |
| Working height | 780-850 mm |
| Sealing knife width | 880 mm |
| Air pressure | ≤0.5MPa (5 bar) |
| Power supply | 380V 50-60Hz |
| Installed power | ≤30 kW |
| Film type | Polyethene (PE) |
| Max film size | 850mm (width) x 280mm (outer diameter) |
