Tel: +44 (0) 197 825 4472CZ-1/M mobile

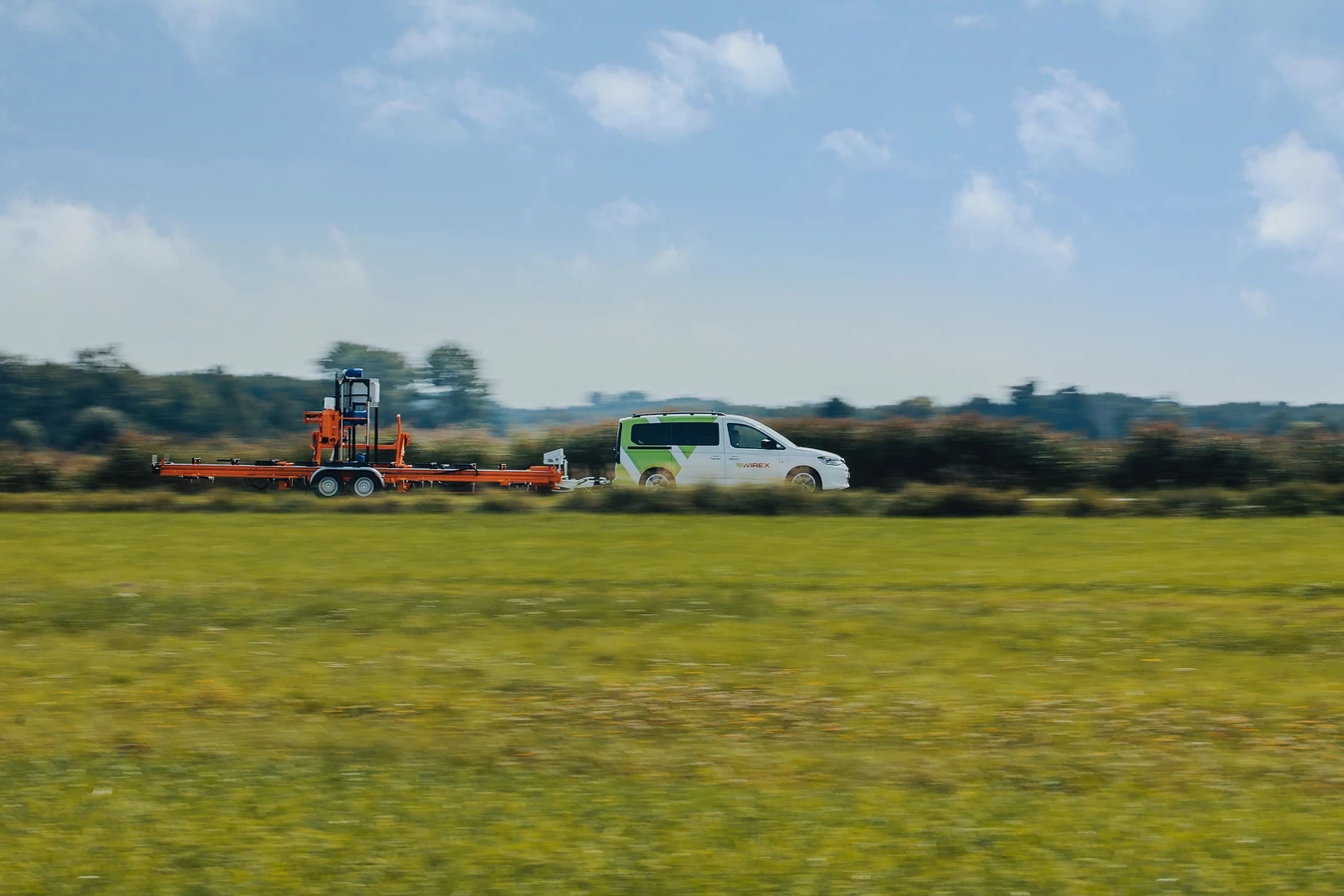

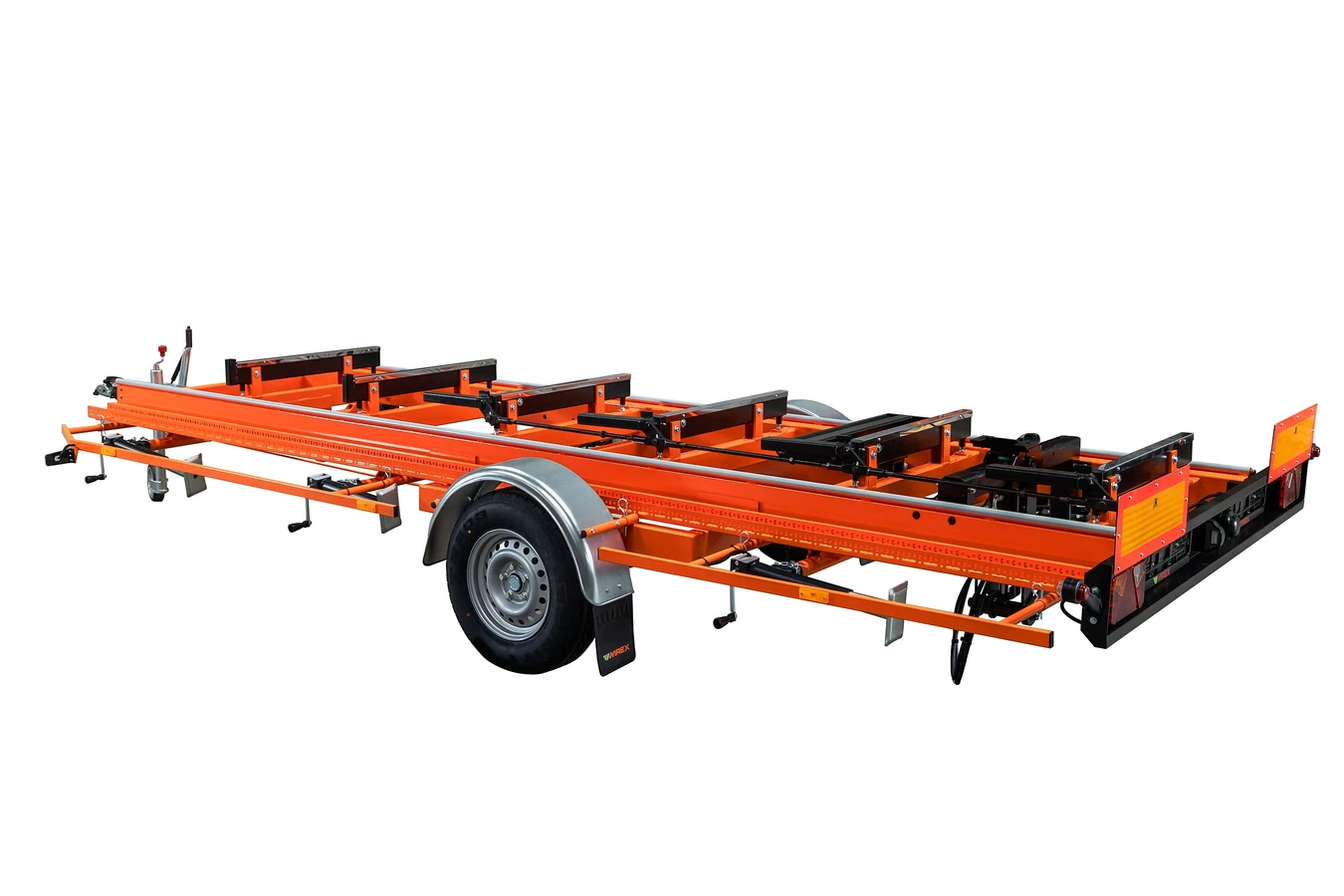

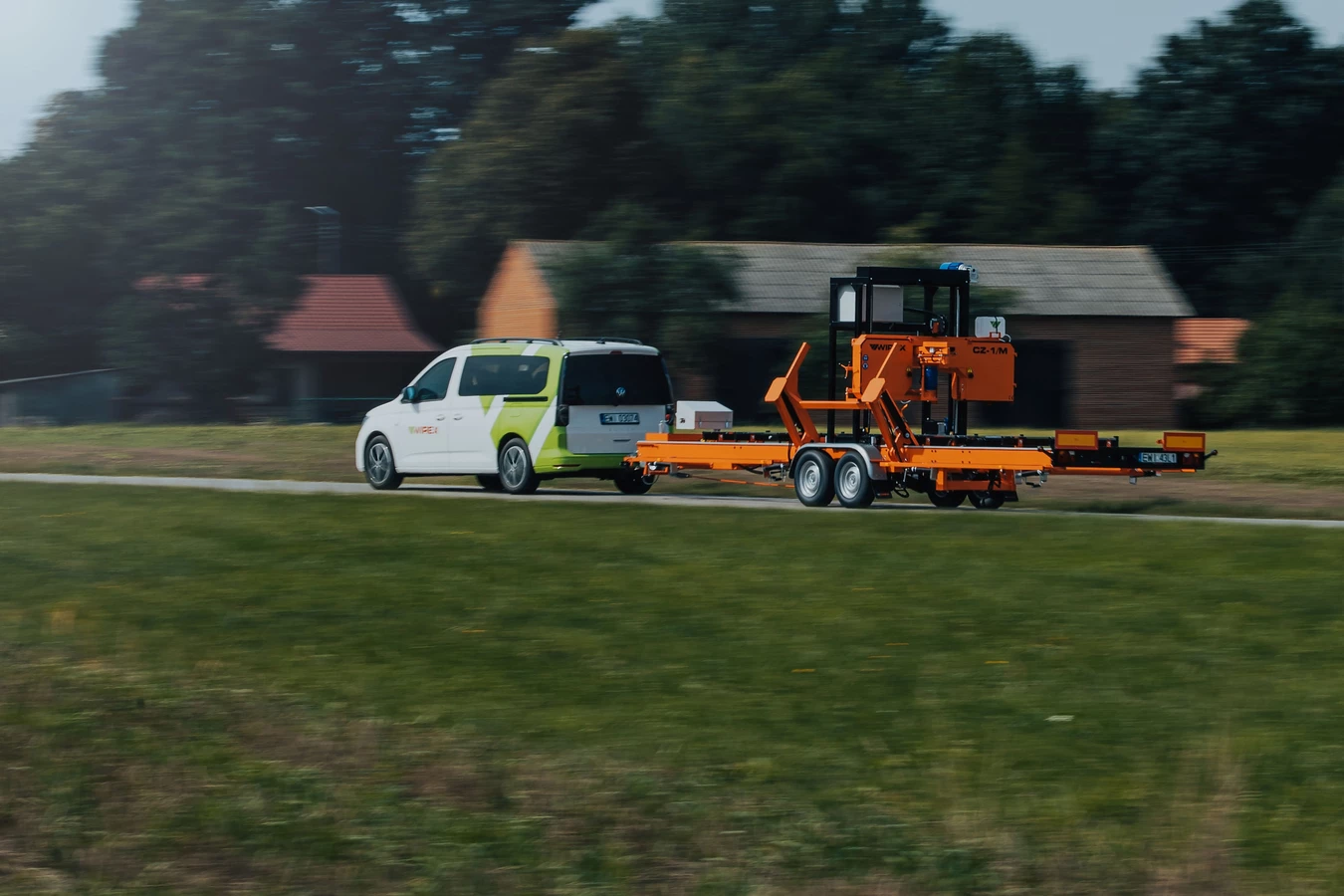

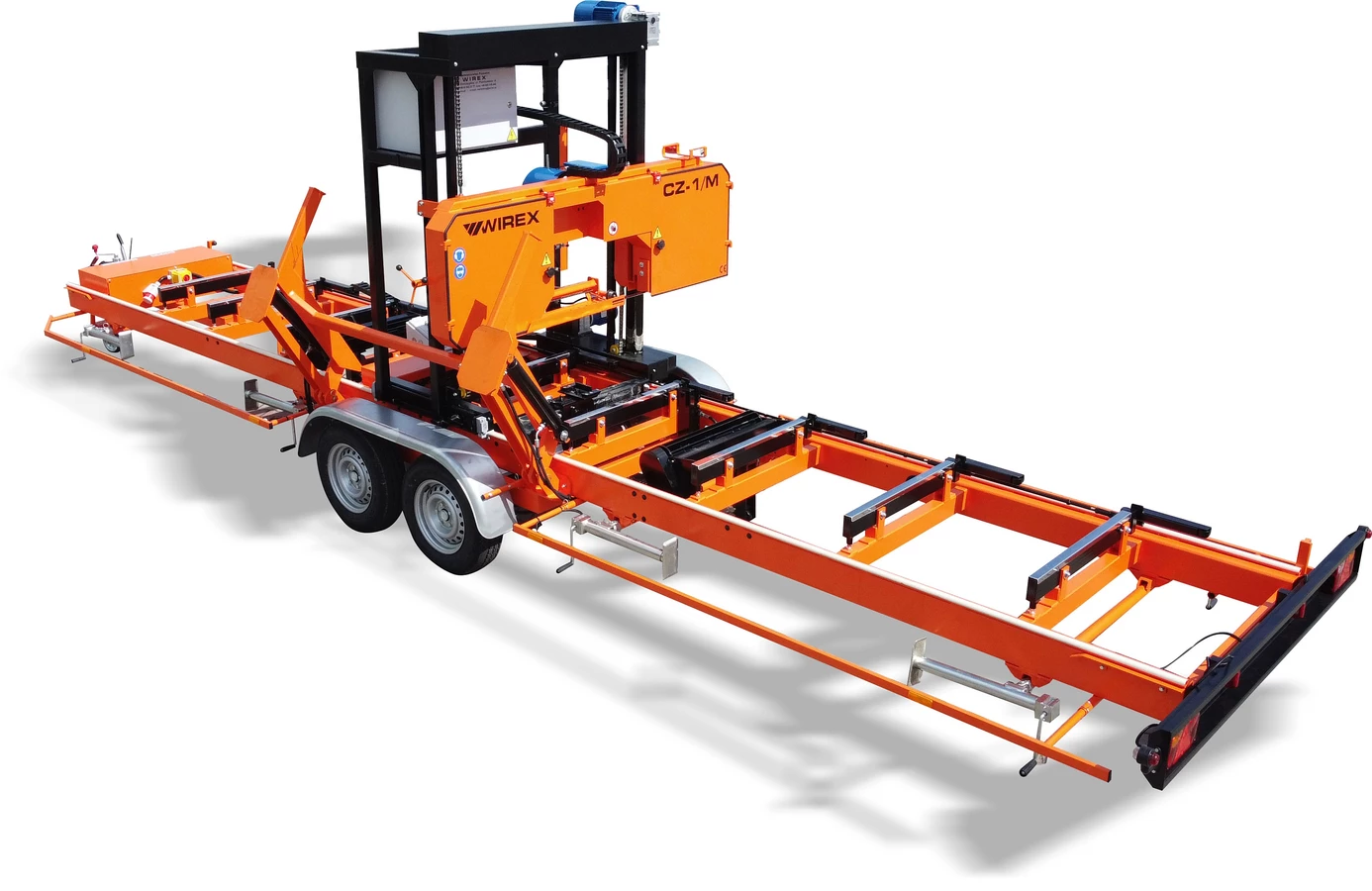

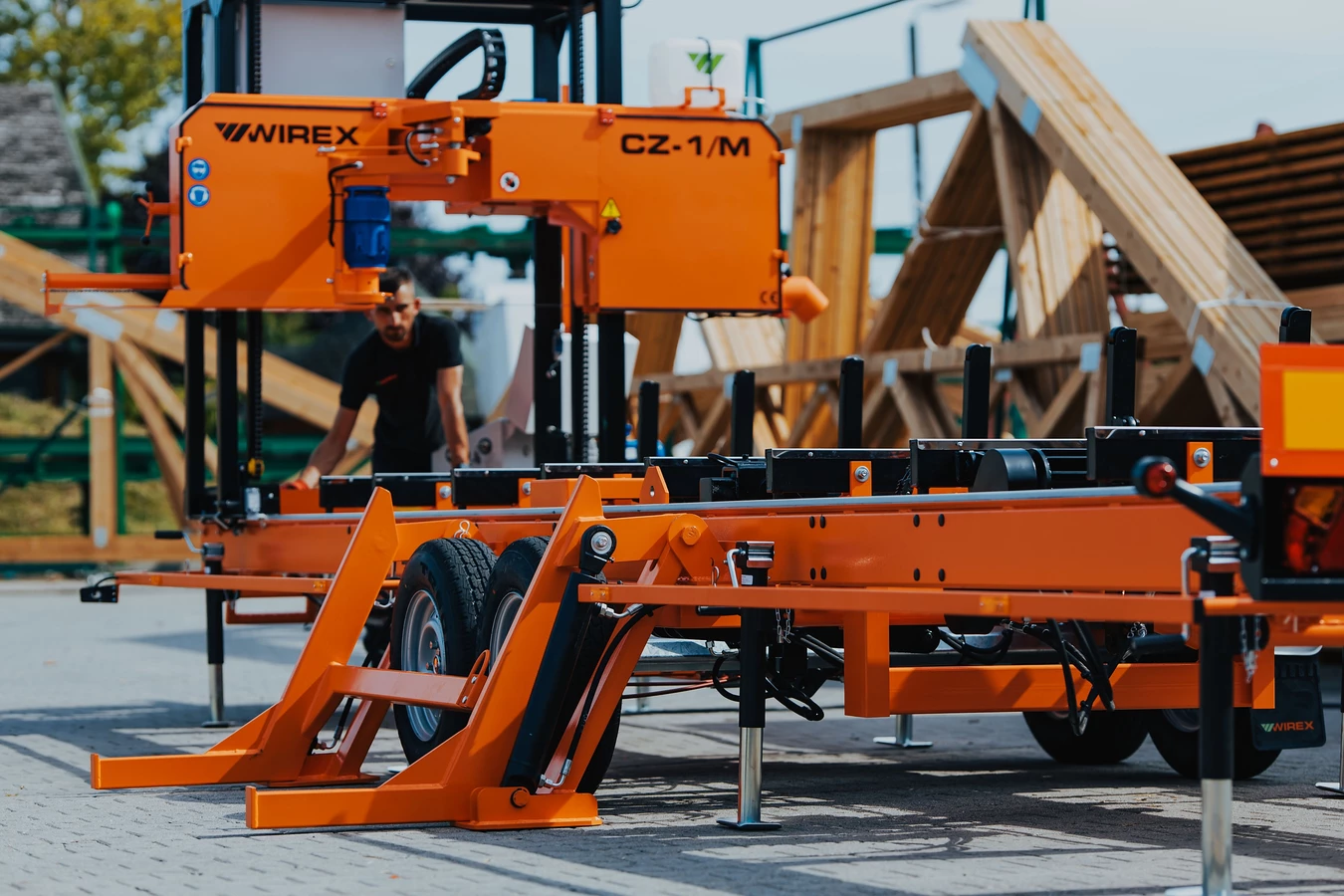

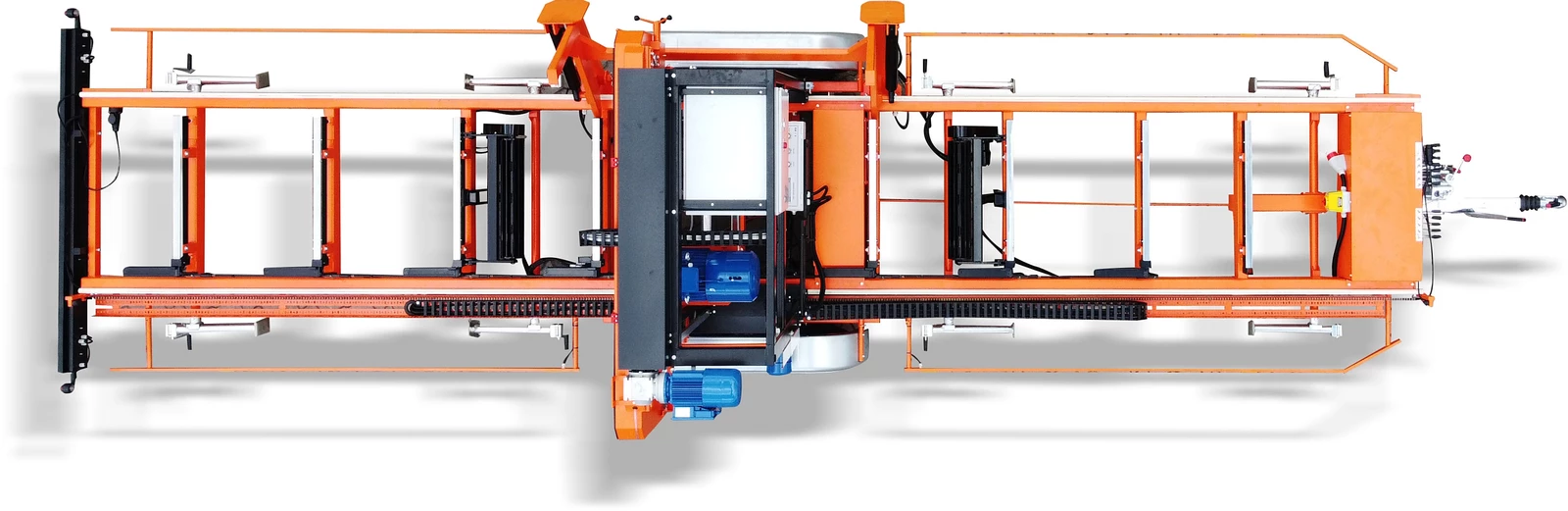

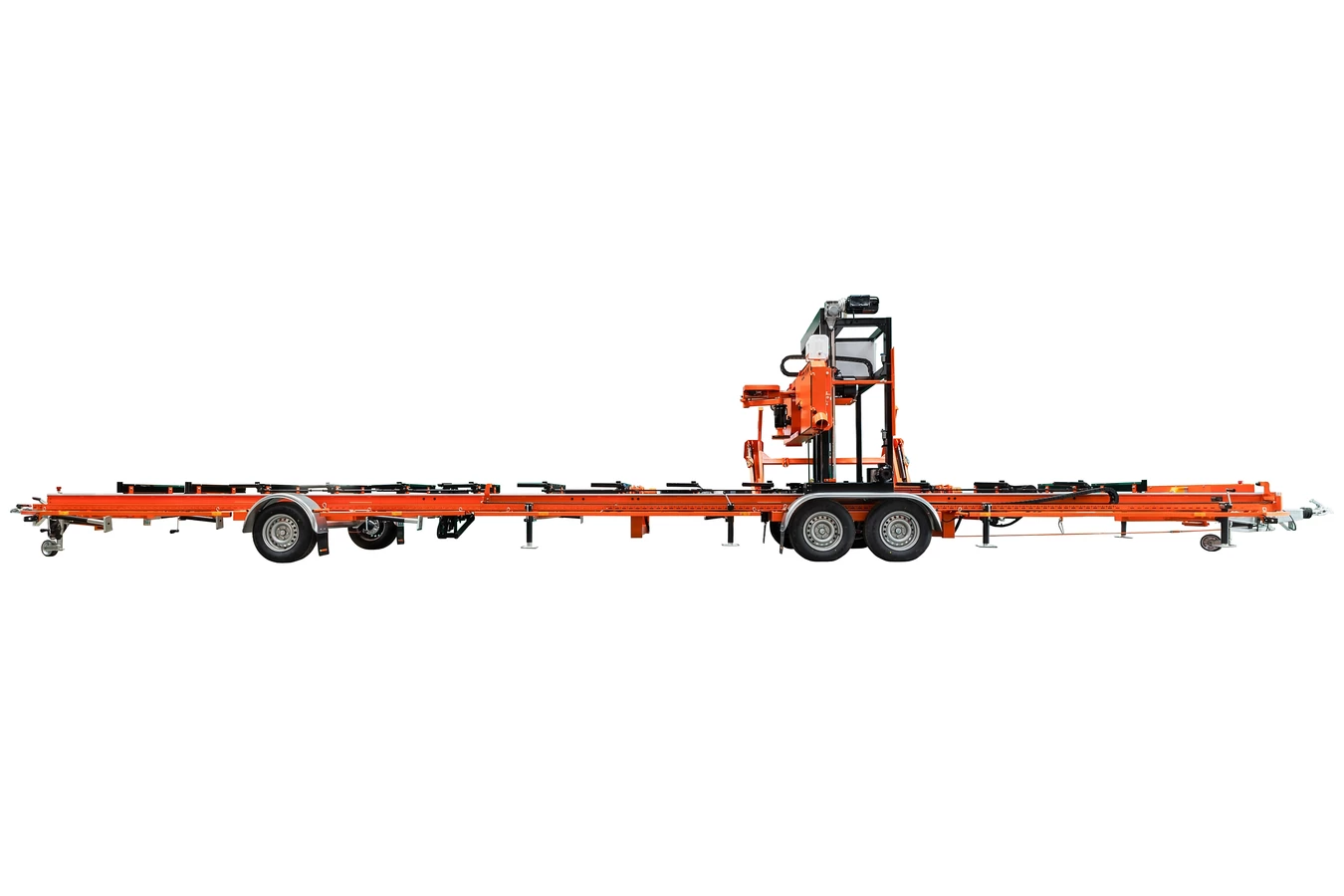

The CZ-1/M mobile sawmill is a professional wheeled and fully portable device designed for processing round wood. The basic version includes hydraulic elements that simplify log handling, making it easy to manage even heavy logs. This versatile machine can operate not only at your facility but also at various locations such as forests, construction sites, and remote job sites. The sawmill is approved for legal road transportation once registered.
With its robust design and efficient features, the CZ-1/M ensures optimal performance regardless of the environment. Its mobility guarantees a smooth and quick transition to any required destination, allowing you to set up and start working in no time. Additionally, the sawmill can be customized with various attachments to enhance its capabilities, making it an ideal choice for contractors, lumber producers, and anyone needing reliable wood processing on the go. Whether for commercial use or personal projects, the CZ-1/M mobile sawmill offers the flexibility and efficiency you need.
Optional equipment
- bed extension 3 m long (length of cut 9,2 m)
- controller ISP-010
- debarker

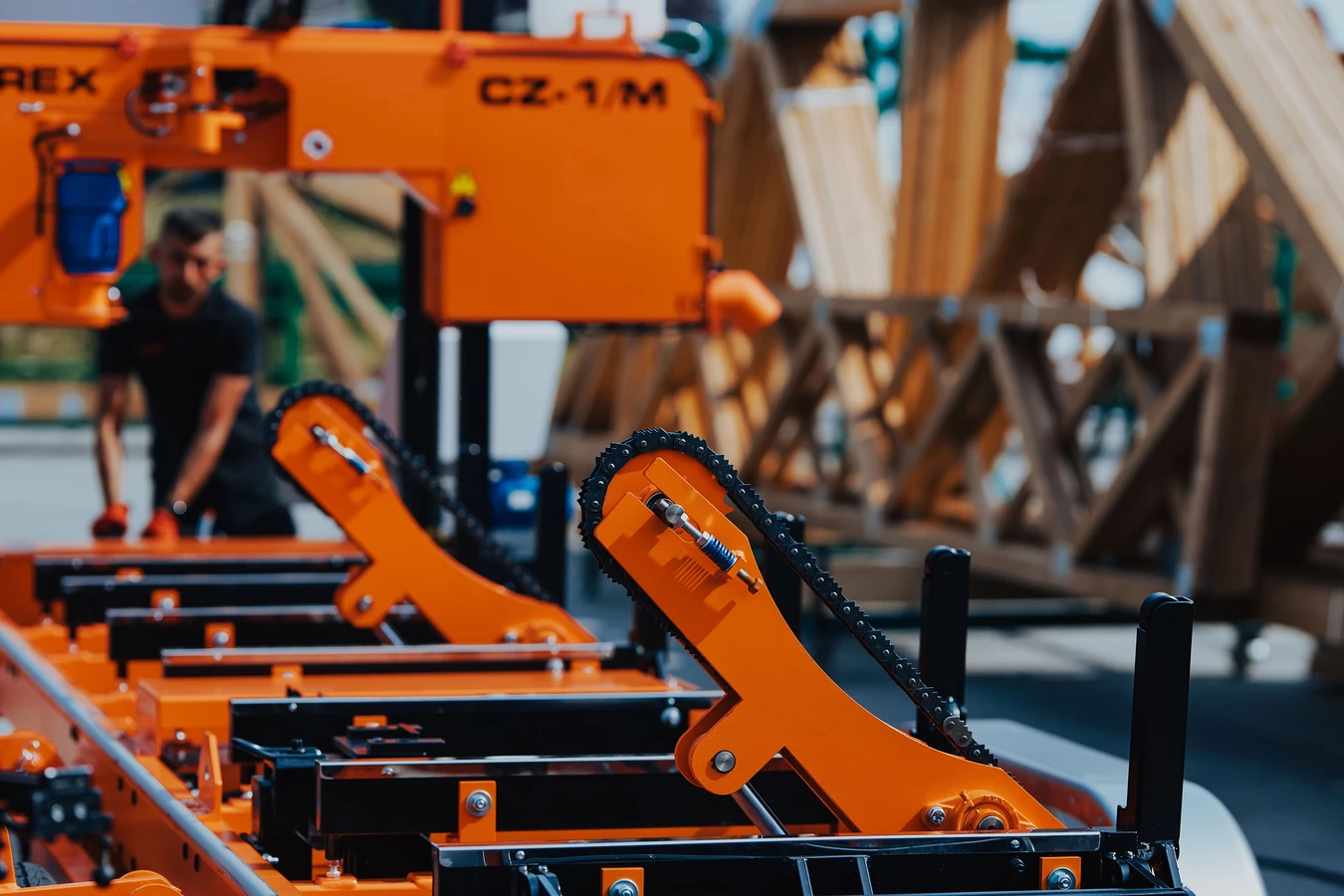

- chain log turner
- claw log turner
- leveling roller, standard (up/down)
- leveling roller with drive (up/down & forward/backward)
- hydraulic clamp
- shock absorber (2 units)
- main motor shift to 16,2 kW
- laser
- stationary control panel (fixed by hydraulic divider)
| Data | Value |
|---|---|
| Dimensions |
|
| Weight | 2350 kg |
| Log diameter | 900 mm |
| Length of cut (standard) | 6200 mm |
| Main motor power | 12 kW |
| Power supply | 400 V (3 phase) |
| Cutting head |
|
| Band wheels diameter | 600 mm |
| Band saw specification |
|
| Blade tension roller slide | electrical – joystick controlled |
| Thickness of cut setting | measuring strip via up/down buttons |

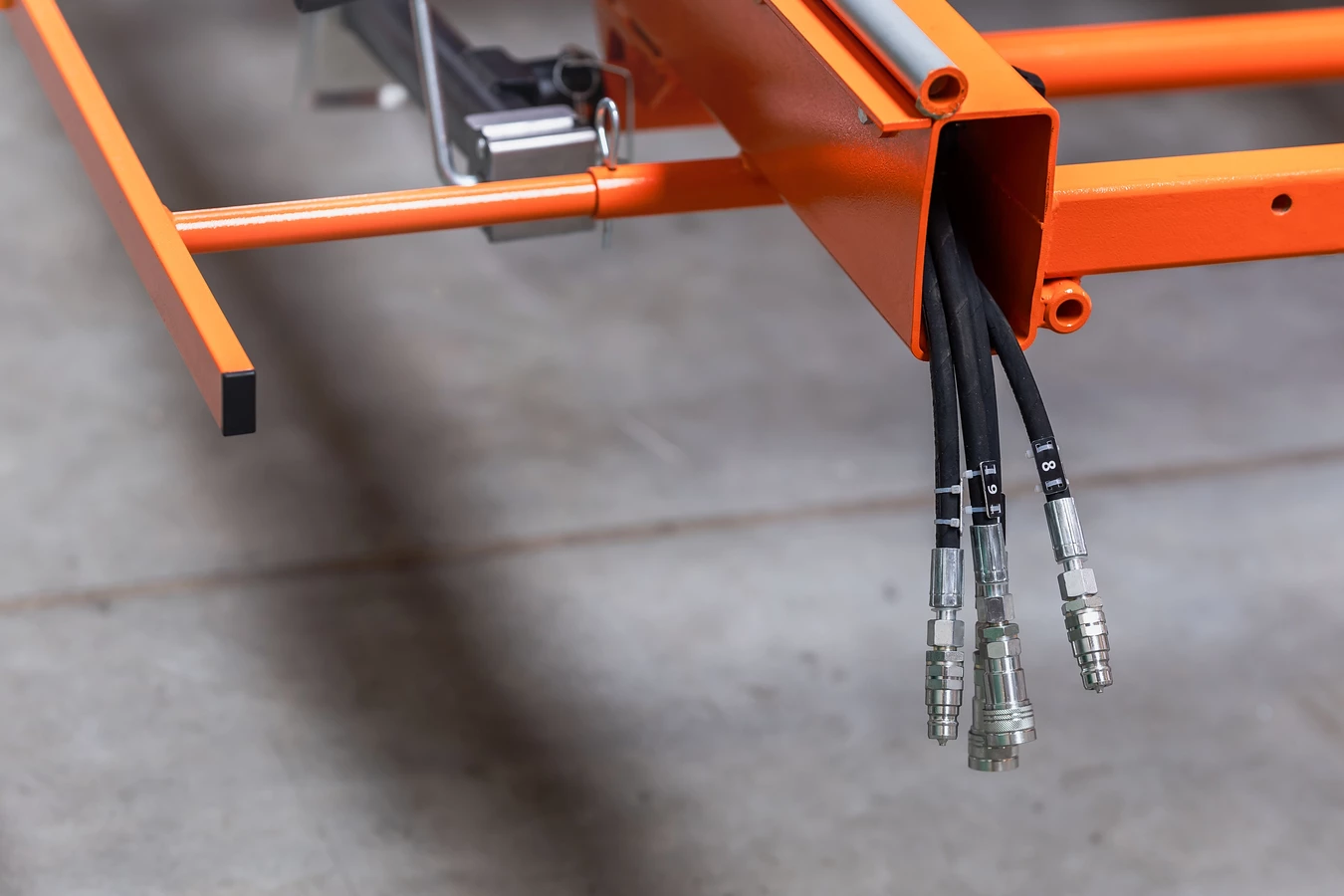

| Hydraulic |
|
| Operator control panel | by the vertical support with cutting head |
| Capacity per hour | up to 3,5 m3 |
