Affordable Manual Sawmill for Timber Processing

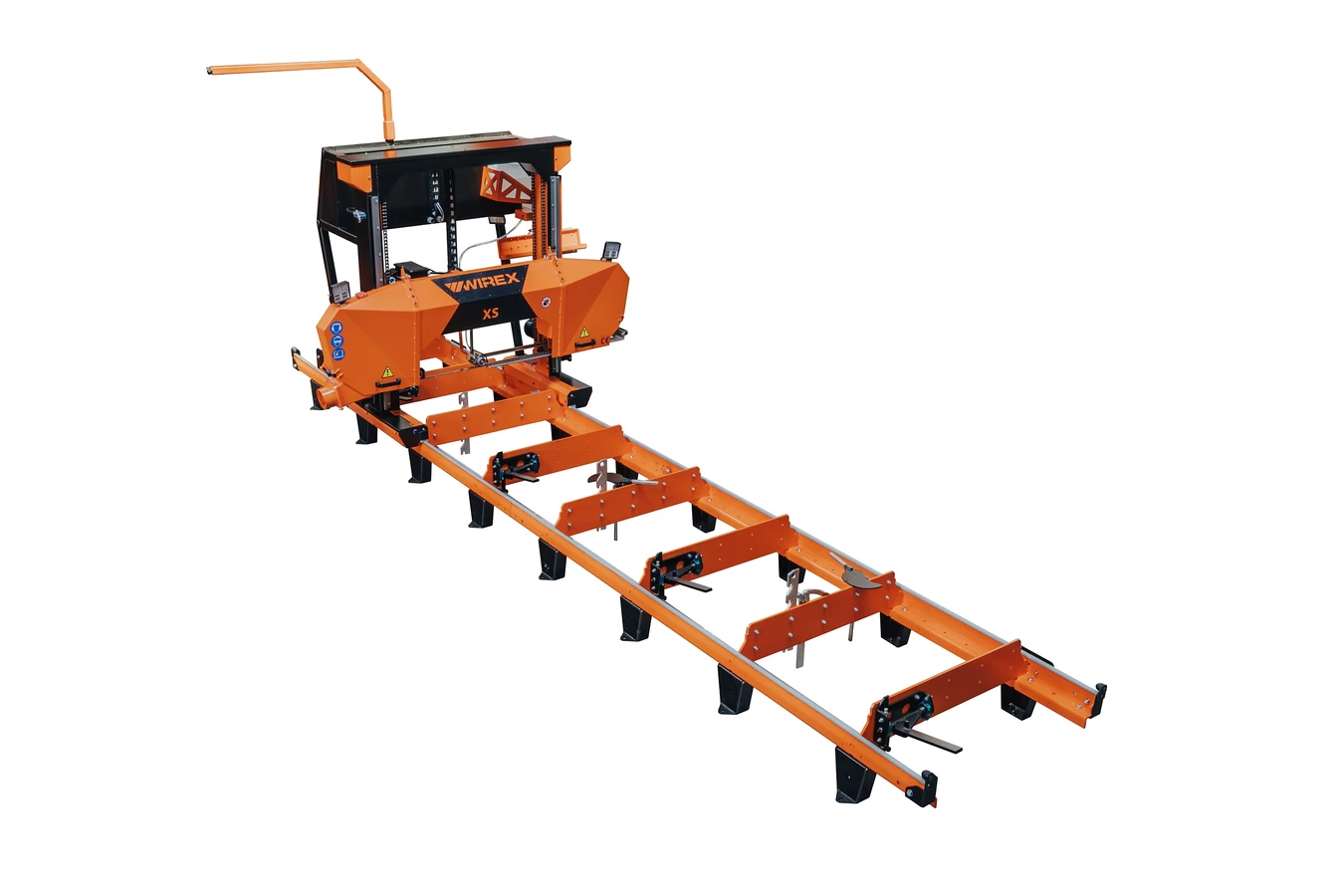

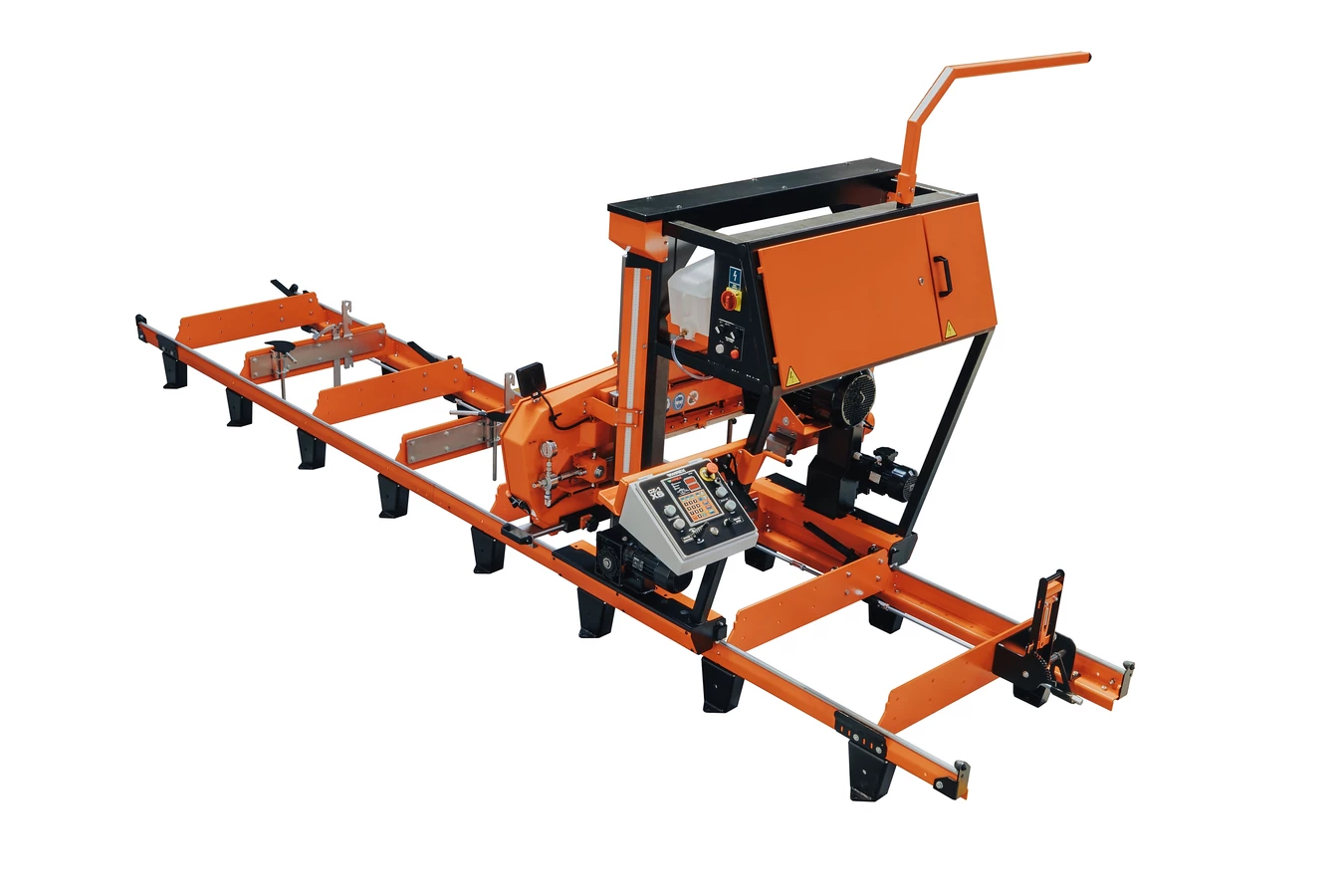

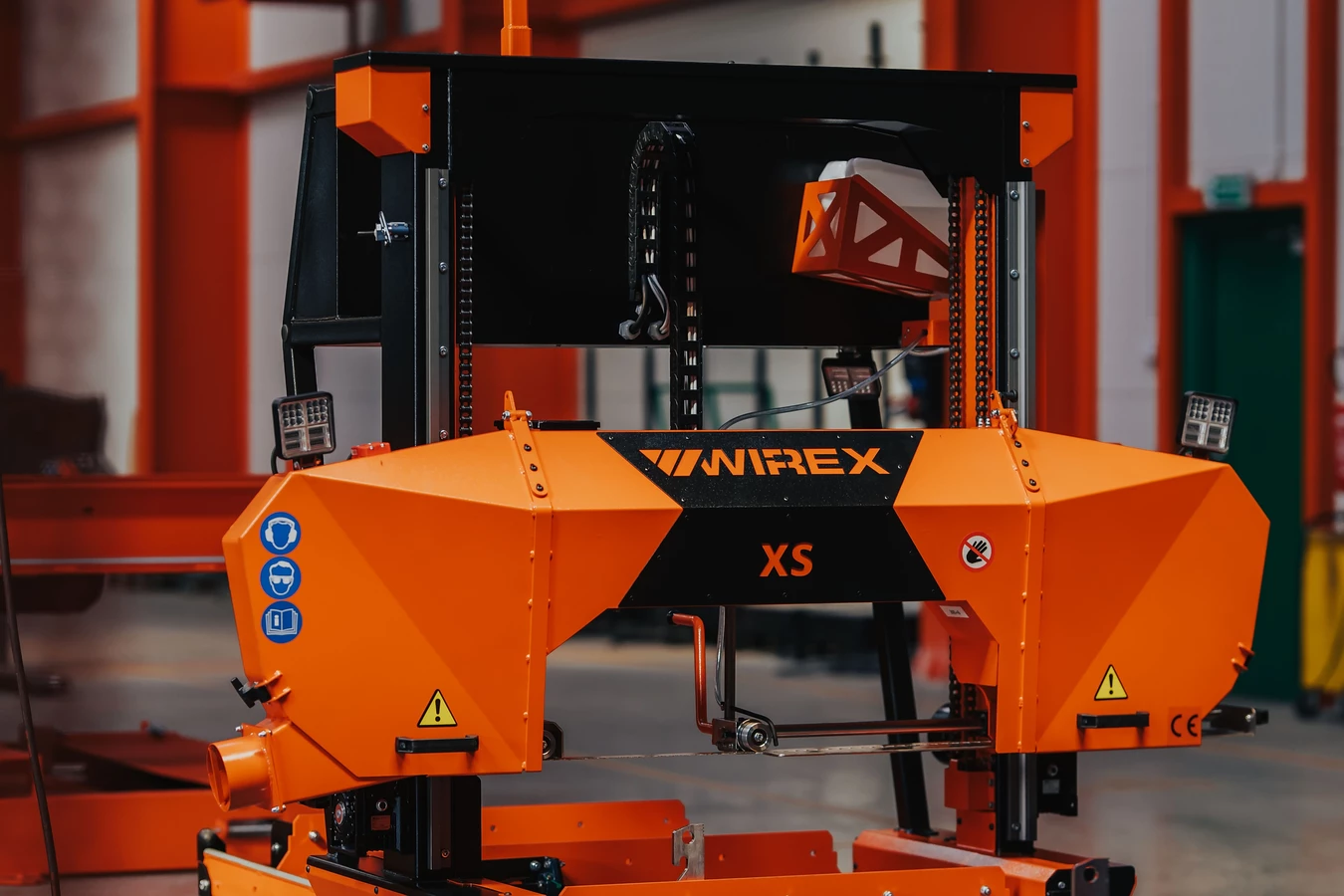

The CZ-1/XS band sawmill is a simplified, entry-level manual sawmill designed for efficient and reliable timber processing. Featuring manual log handling and no hydraulic systems, it offers a cost-effective solution for businesses and individuals seeking dependable wood processing equipment. Reliable, adaptable, and upgrade-ready, the CZ-1/XS is the smart choice for anyone looking for a flexible and scalable band sawmill solution.
CZ-1/XS Band Sawmill – Cost-Effective Timber Cutting for Workshops and Farms
Ideal for hobbyists, carpenters, farmers, and small to medium-sized sawmills, the CZ-1/XS band sawmill is perfect for processing medium-sized timber, with the capability to handle logs up to 800 mm in diameter.
With a wide range of optional accessories, the CZ-1/XS is a highly versatile woodworking machine that can be tailored to match your production needs and budget. Its modular design allows for future upgrades, enabling you to increase capacity and enhance performance as your operation grows.
Optional equipment:
- bed extension 2,9 m long
- electrical up/down drive of cutting head with thickness of cut controller ISP-010
- main motor shift to 8,1 kW
- main motor shift to 12 kW
- electrical forward/reverse drive inverter-controlled

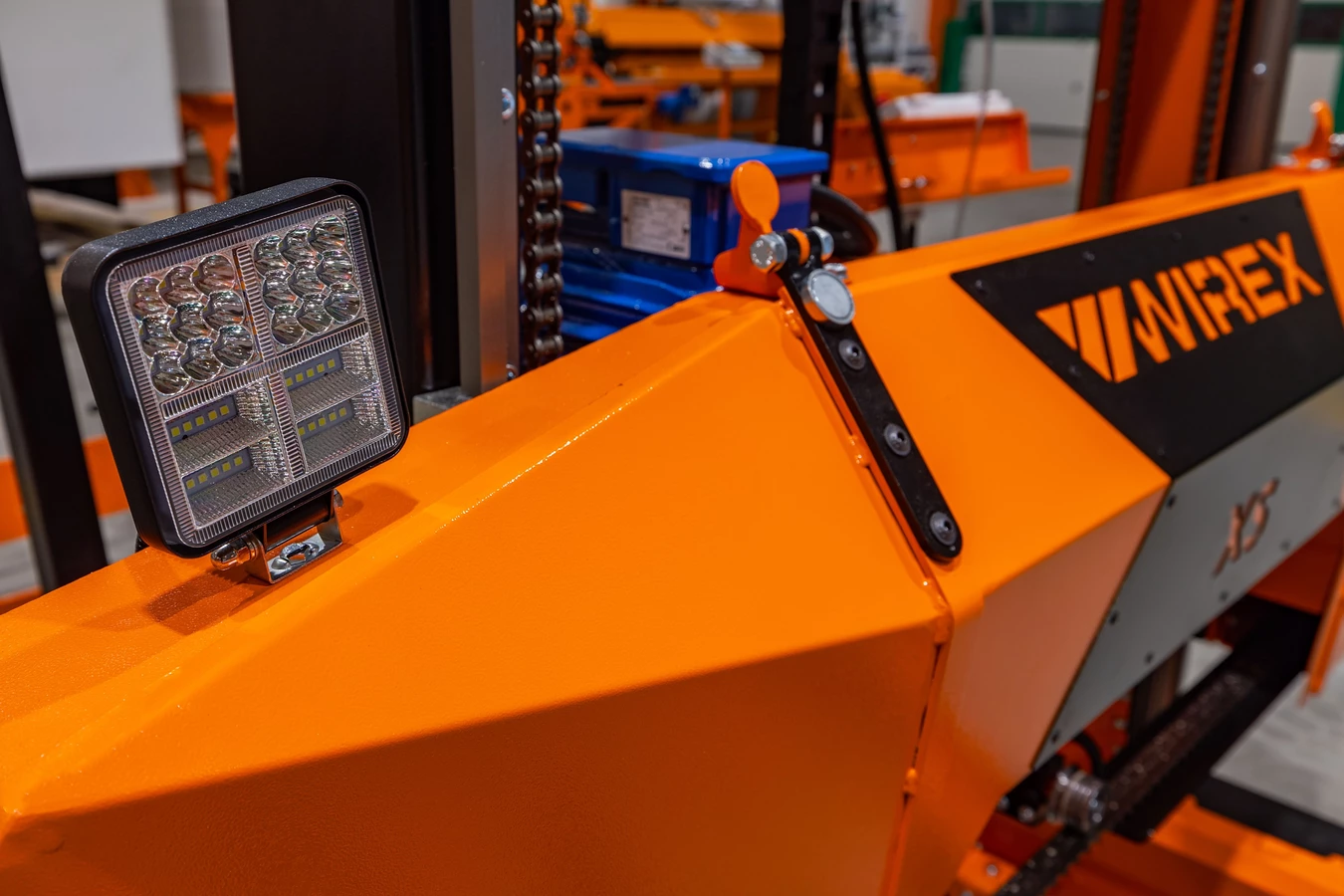

- LED lightining system (3 lamps)
- set of lifted side supports – 4 units
- screwed feet for sawmill frame elevation – 16 units (for basic frame length)

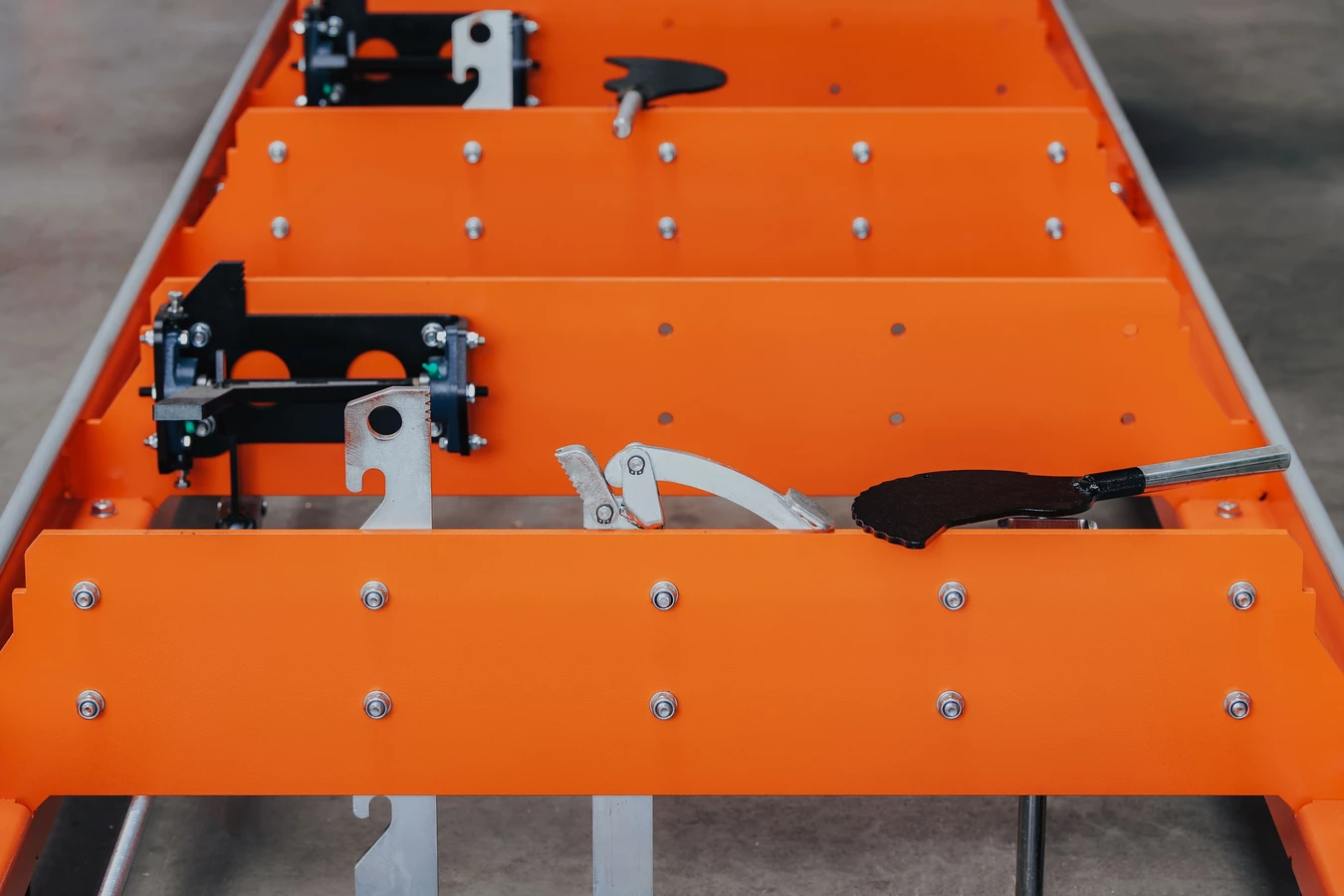

- scissor clamp
- manual log turner
- manual side support

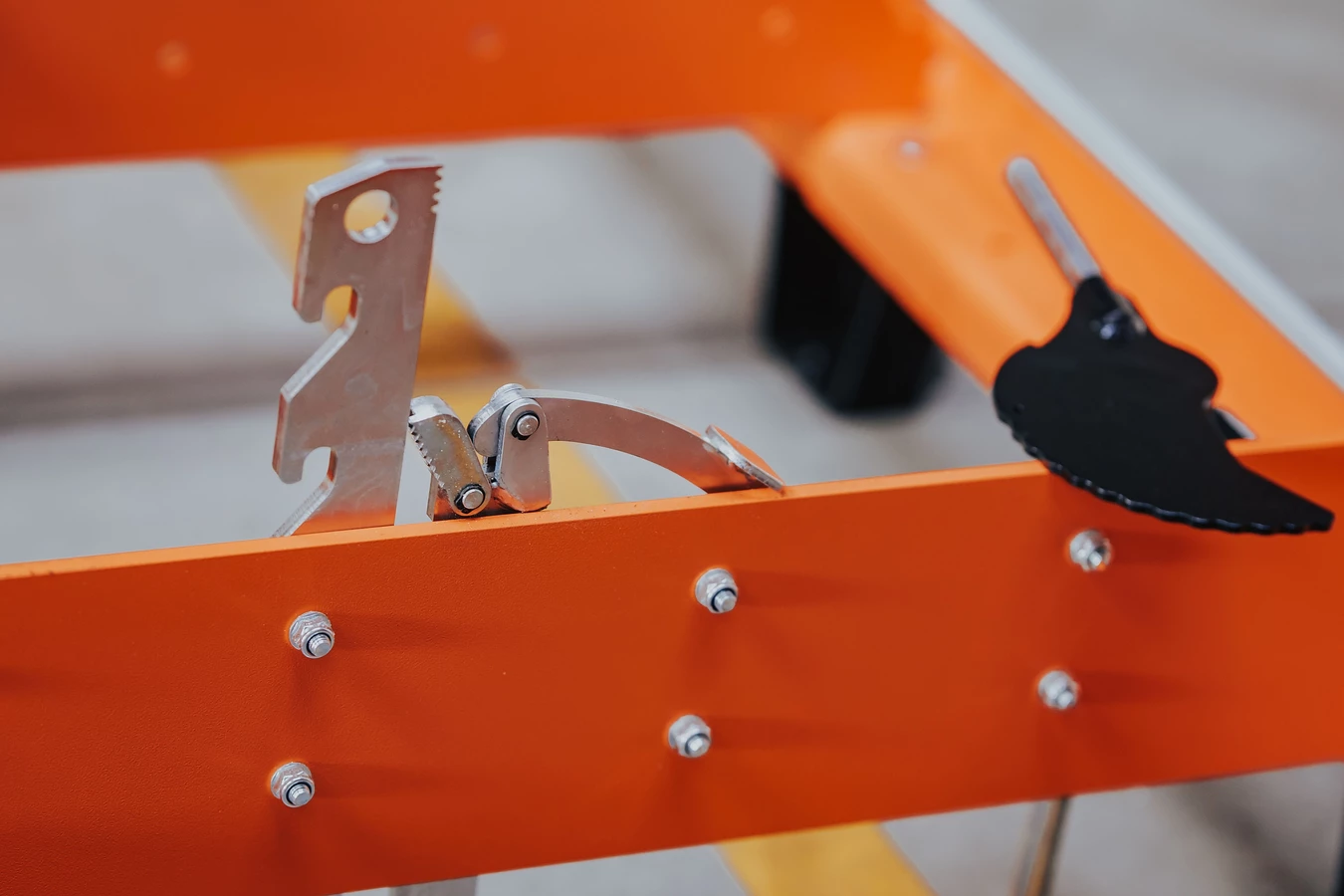

- manual eccentric log clamp
- long mounting plate (installation of additional components on the frame)
| Data | Value |
|---|---|
| Length | 5800 mm (two sections 2900 mm long) |
| Width | 2100 mm |
| Height | 1800 mm |
| Weight | 1000 kg |
| Log diameter | max. 800 mm (distance between blade guide rollers: 890 mm) |
| Length of cut (standard) | 4600 mm (may be individually extended) |
| Min. thickness of obtained plank | 25 mm last board thickness |
| Main motor power | 6,1 kW |
| Power supply | 400 V (3-phase) |
| Cutting head |
|
| Band wheels diameter | 475 mm |
| Band saw specification |
|
| Blade tension roller slide | manually adjusted |
| Thickness of cut setting | manual set on scale |

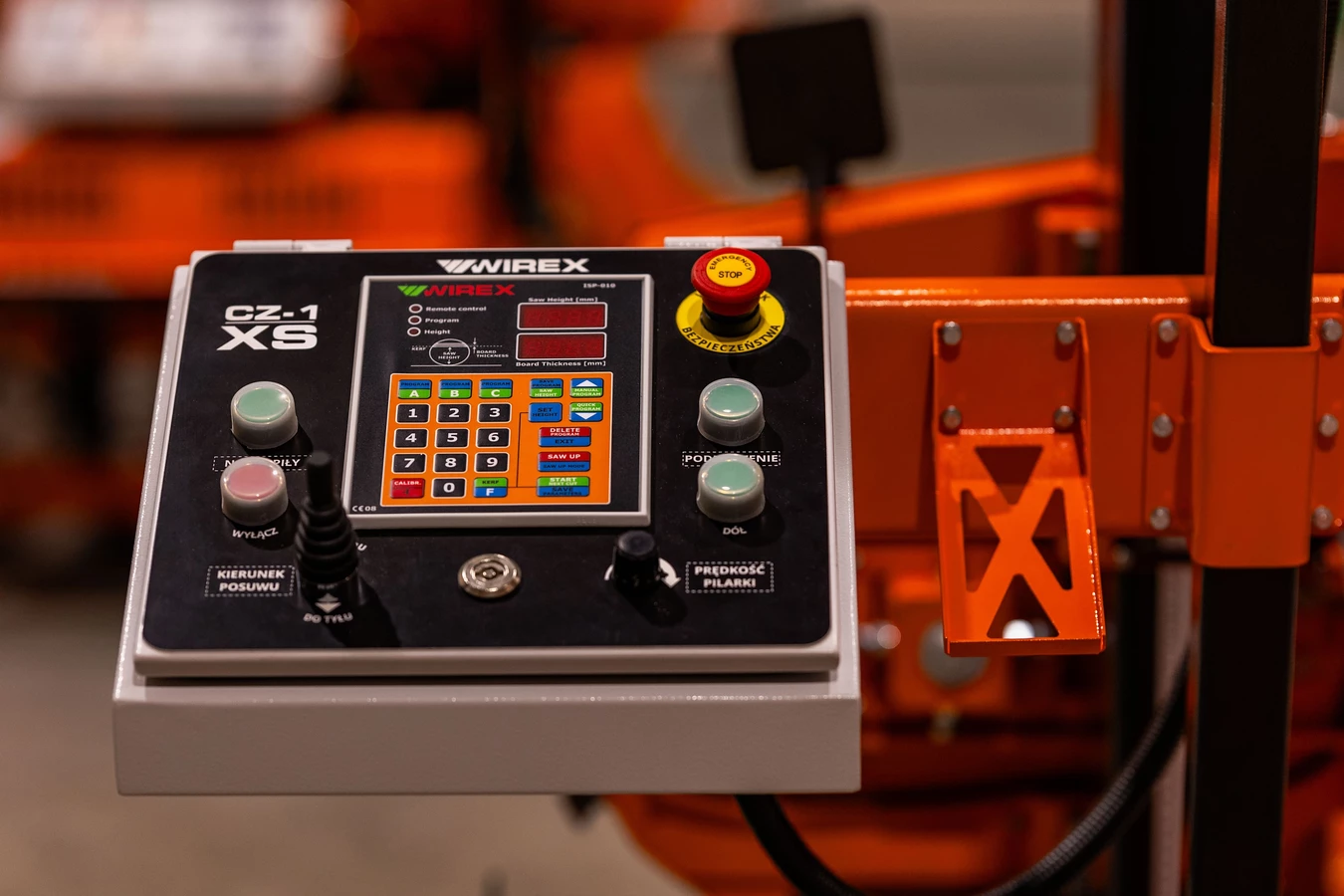

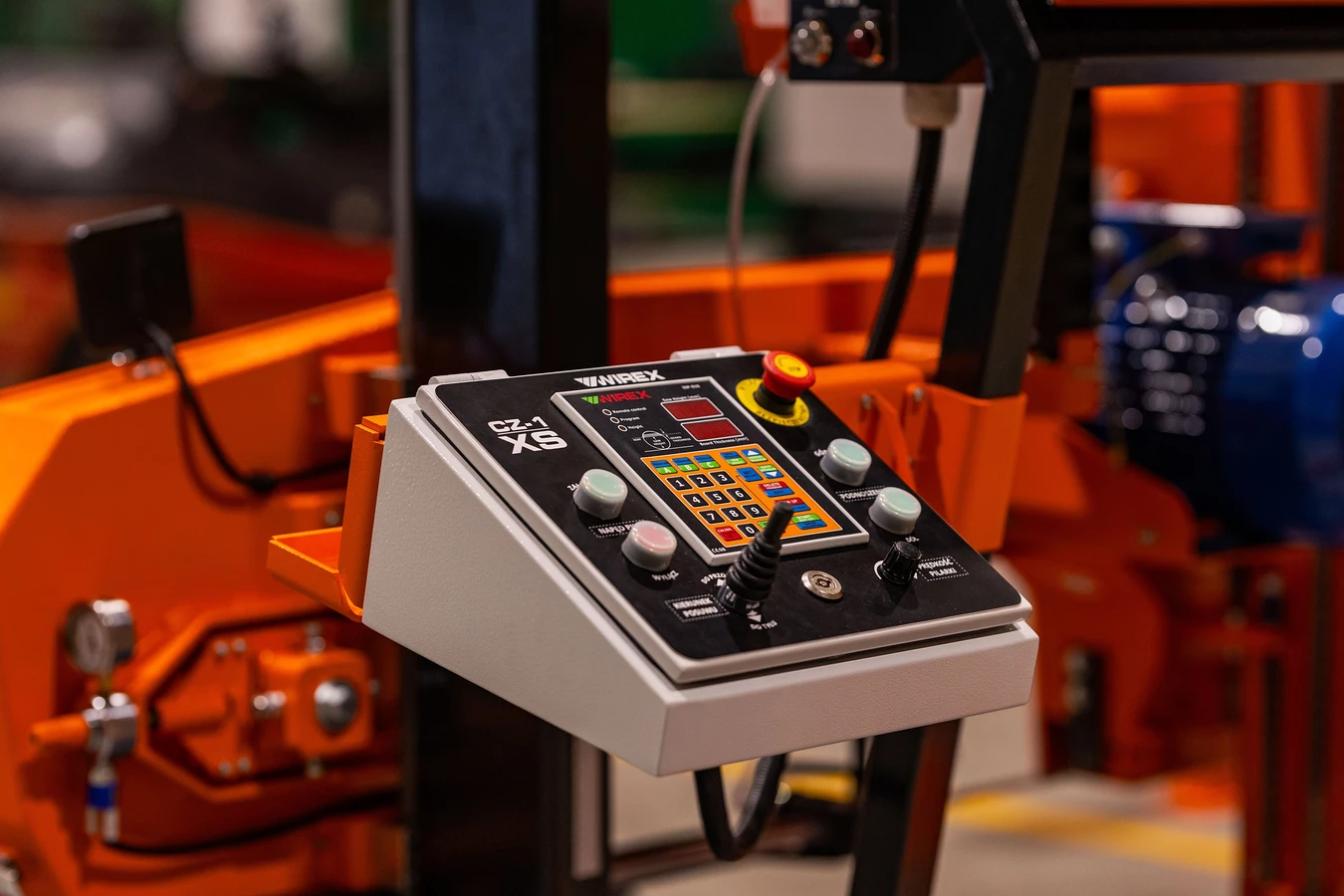

| Operator control panel | fitted to the moving head rig |
| Workpiece handling |
|
| Capacity per hour | up to 1,5 m3 |
