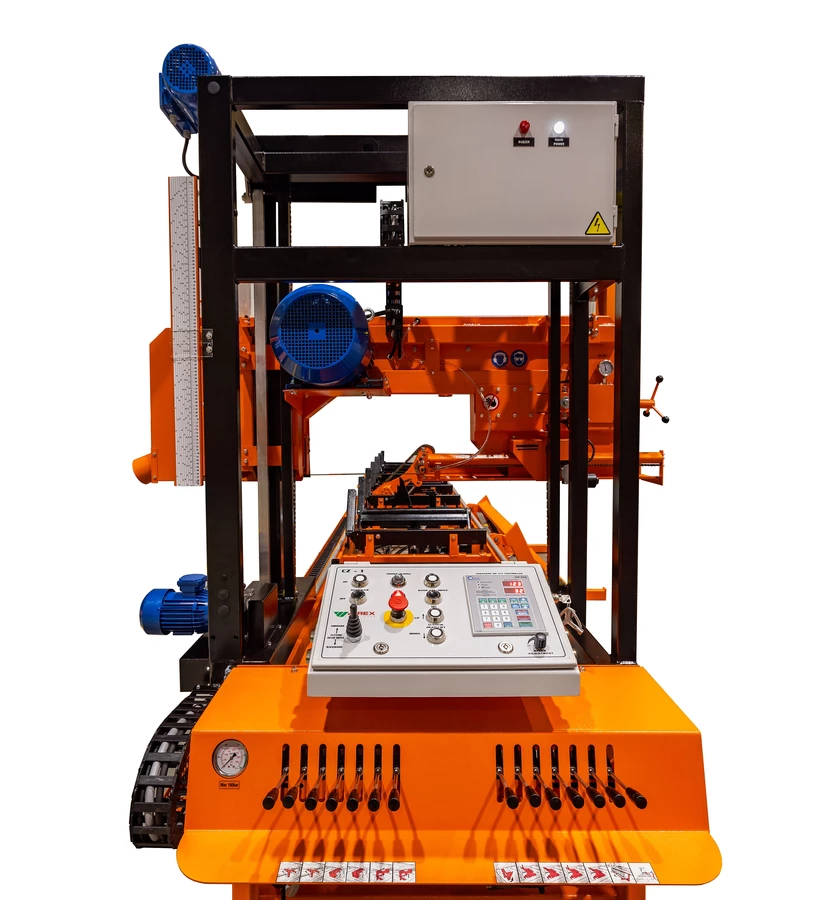

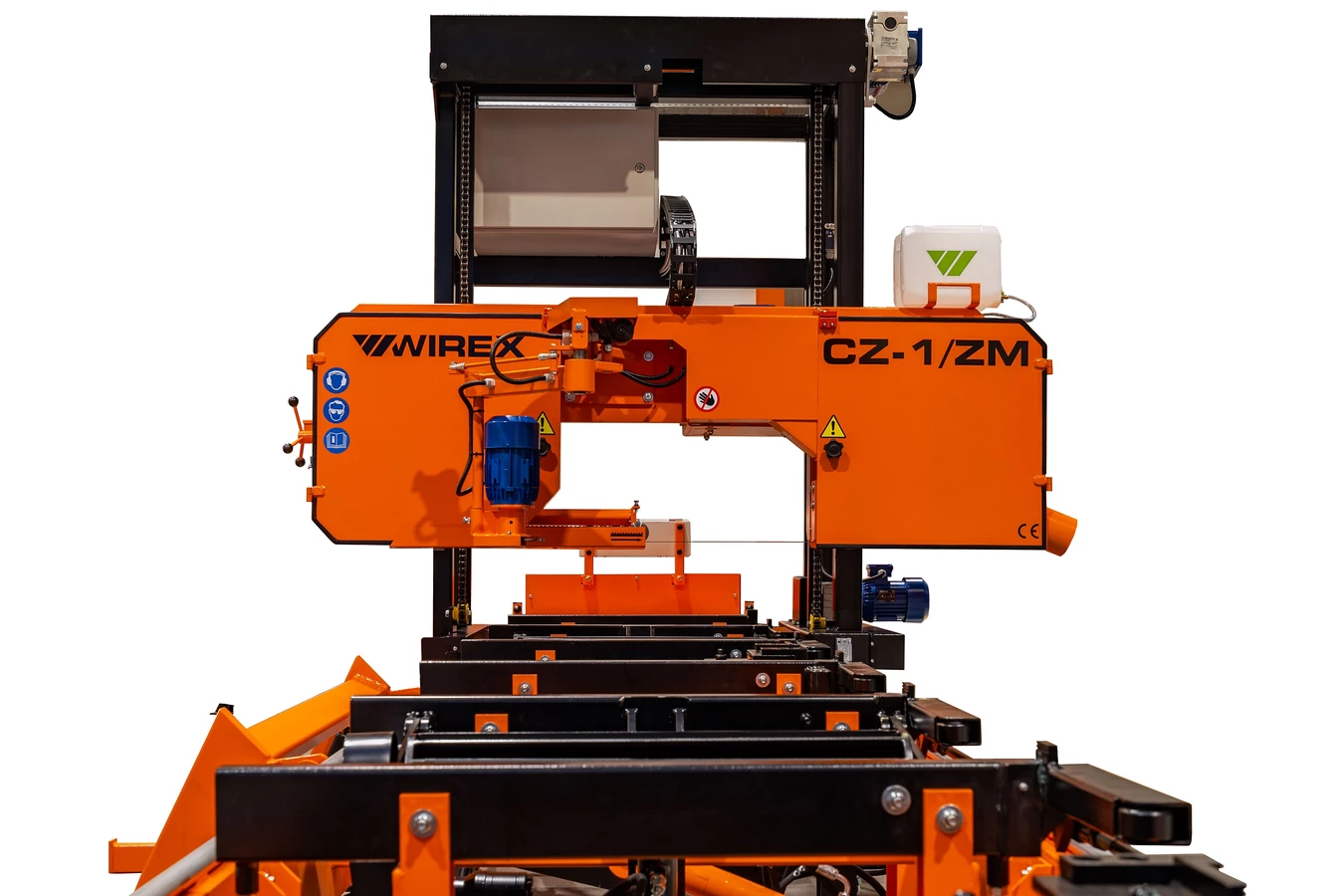

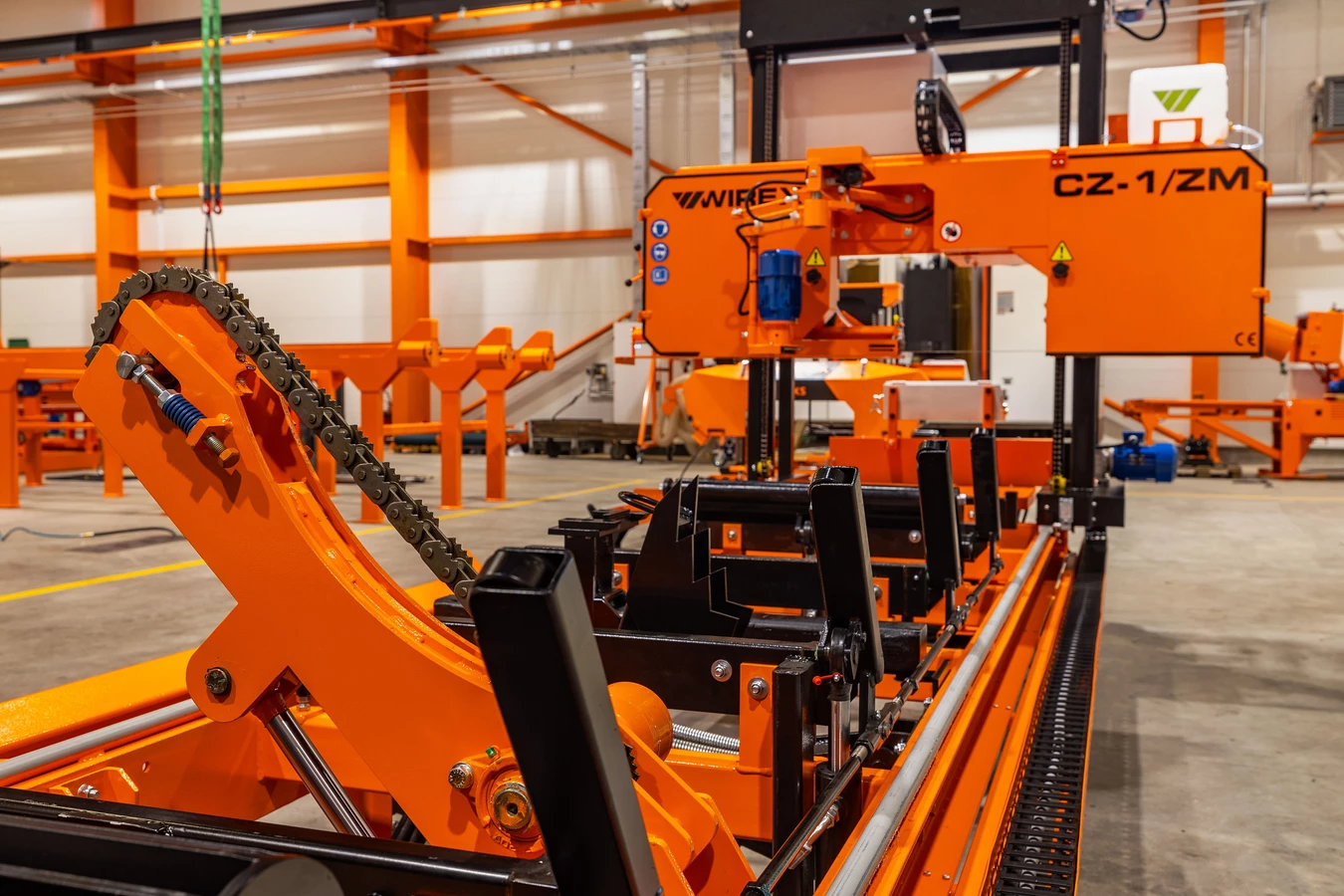

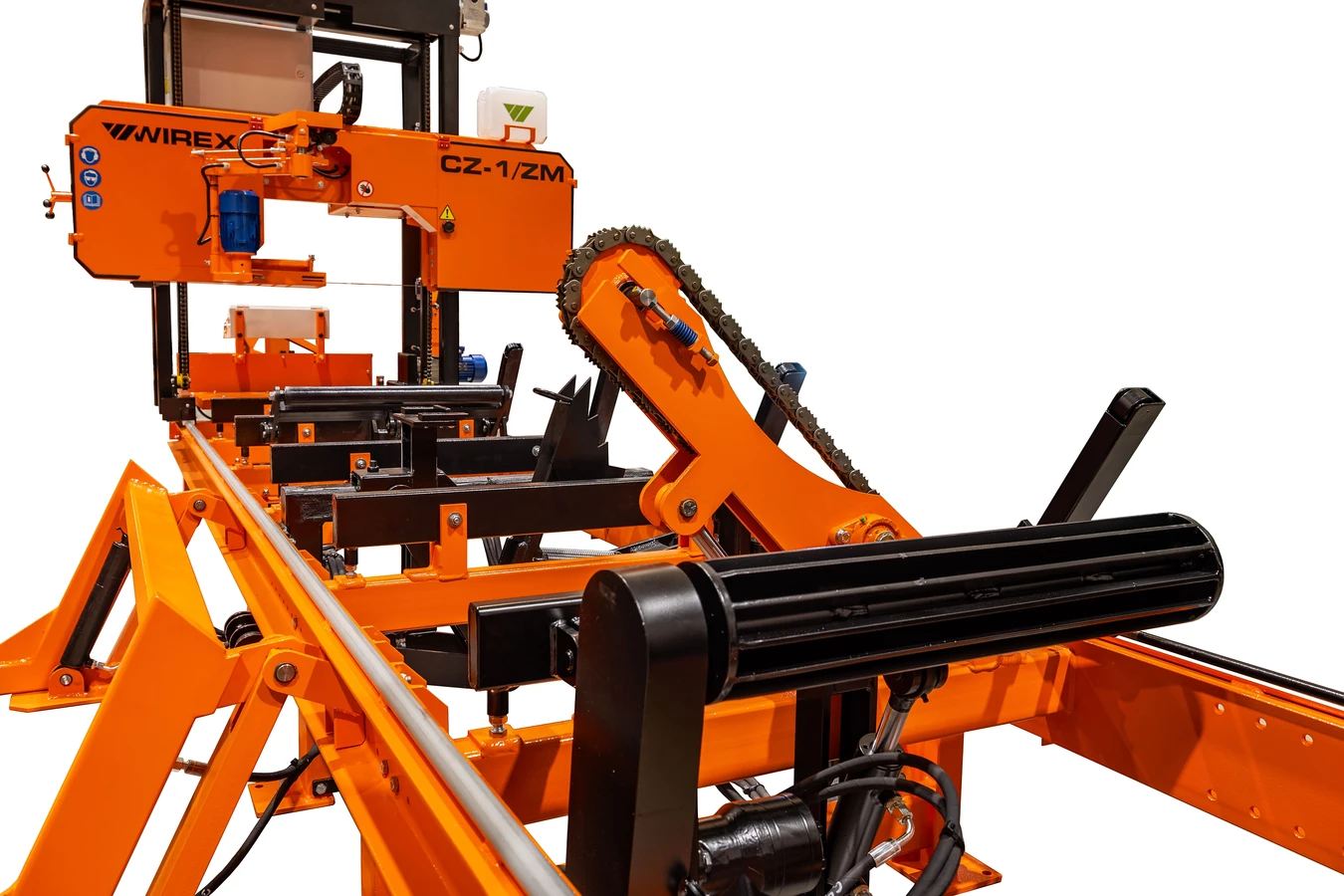

CZ-1/ZM Sawmill

Sawmill

Brand:

WIREX

Efficient Wood Processing for Timber and Construction

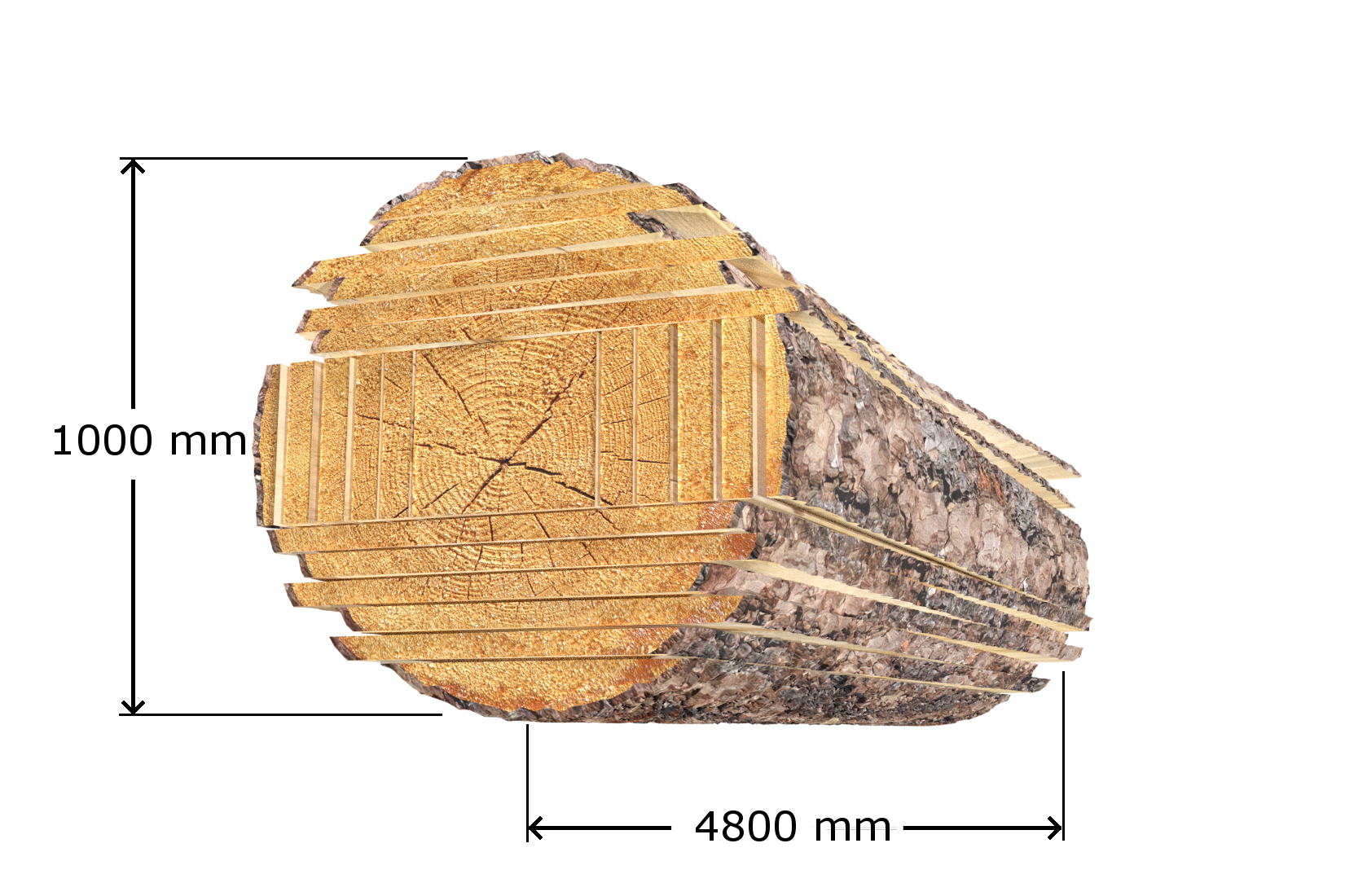

The CZ-1/ZM sawmill from WIREX delivers a complete solution for converting logs into planks, beams, battens, roofing trusses, and other woodworking or construction products. Its versatile design, combined with optional accessories, allows for quick adaptation to a wide range of tasks in the woodworking industry.

Ask about product

CZ-1/ZM Sawmill – Advanced Wood Processing Equipment for Timber Professionals

Boost your productivity with features such as an additional log loading ramp and an automatic plank ejection system, streamlining operations and maximizing timber processing efficiency. Reliable, high-performance, and easy to operate, WIREX sawmills ensure your business achieves consistent results, making them the go-to choice for anyone searching for efficient wood processing equipment.

Optional equipment

bed extension 3 m or 6 m long
controller ISP-010
debarker
chain log turner
claw log turner
leveling roller, standard (up/down)
leveling roller with drive (up/down & forward/backward)
hydraulic clamp 2-cylinders
hydraulic clamp 3-cylinders
shock absorber (2 units)
loading arm – assistant
main motor shift to 16,2 kW
laser
stationary control panel (by hydraulic divider)
loading ramp RZ/CZ-1
low-level loading ramp (3 chain tracks)

Technical data

Data	Value
Dimensions	length 6 000 mm width 2300 mm height 2650 mm
Weight	1 700 kg
Log diameter	1000 mm (band saw guiding rollers inter-distance 740 mm)
Length of cut (standard)	4800 mm
Main motor power	12 kW
Power supply	400 V (3-phases)
Cutting head	up/down feed electrical on chains smooth forward/backward feed inverter controlled feed speed rate 4 ÷ 30 m/min
Band wheels diameter	600 mm
Band saw specification	length 4800 mm width 38 ÷ 42 mm thickness up to1,1 mm
Implemented technologies	sawmill control solved on multifunctional joystics system of automatic workpiece cutting band wheels cleaning system hydraulic system of band saw tension pneumatic system of feeding cooling liquid all feeds solved on servo drives motors band saw waving sensor band saw and side supports collision detecting sensor operator’s cabin with seat and touch panel automatic drag-back boards system camera fitted withing cutting head screen with recorder suspended power supply and control cables up/down feed electrical on chains solved on servo drive motor smooth forward/backward feed inverter controlled solved on servo drive motor feed speed rate 0 ÷ 120 m/min
Blade tension roller slide	adjustable – joystick controlled
Hydraulics	loading arm – basic (1 unit) claw log turner (1 unit) hydraulic clamp (1 unit) levelling roller, standard (2 units) side supports (6 units)

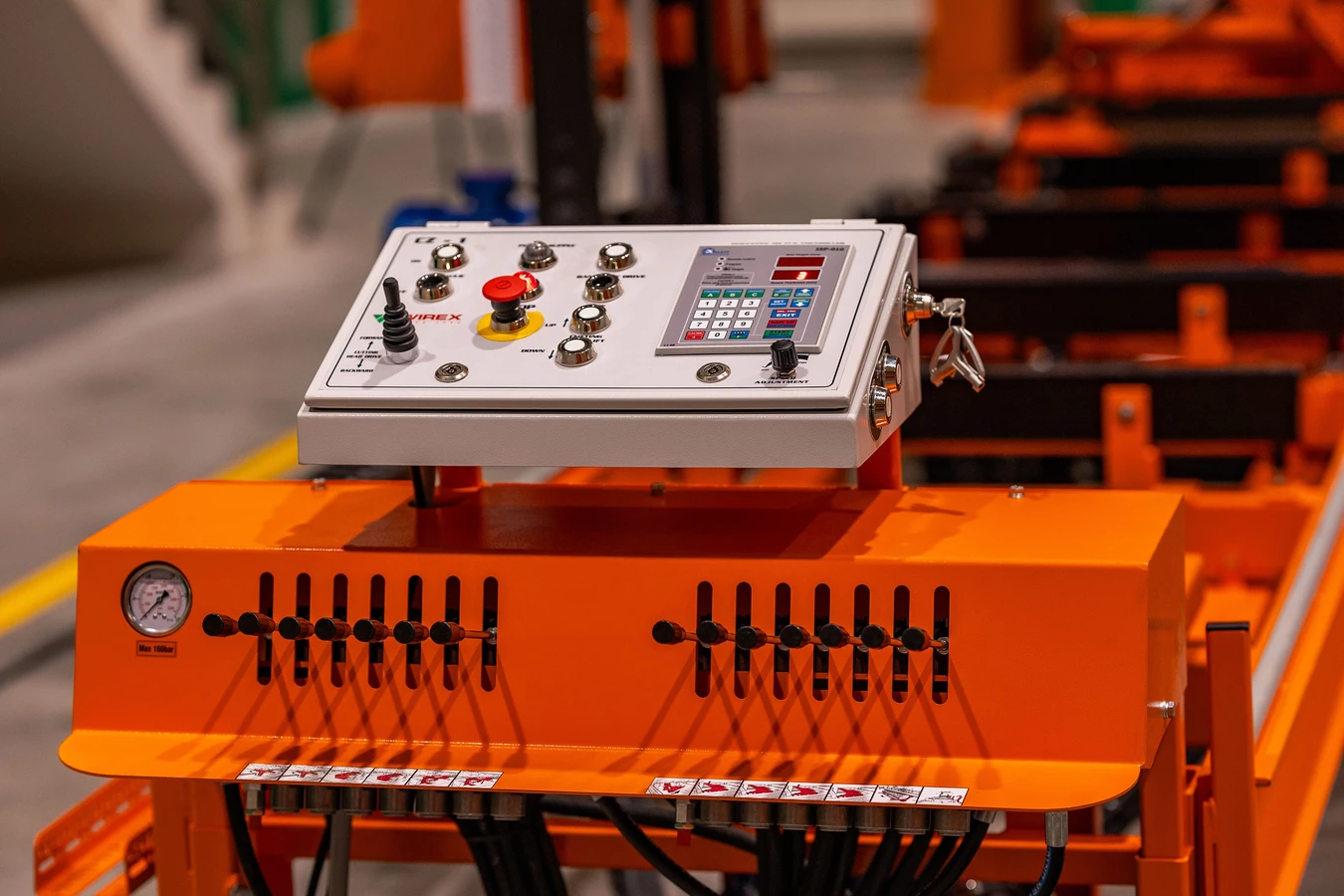

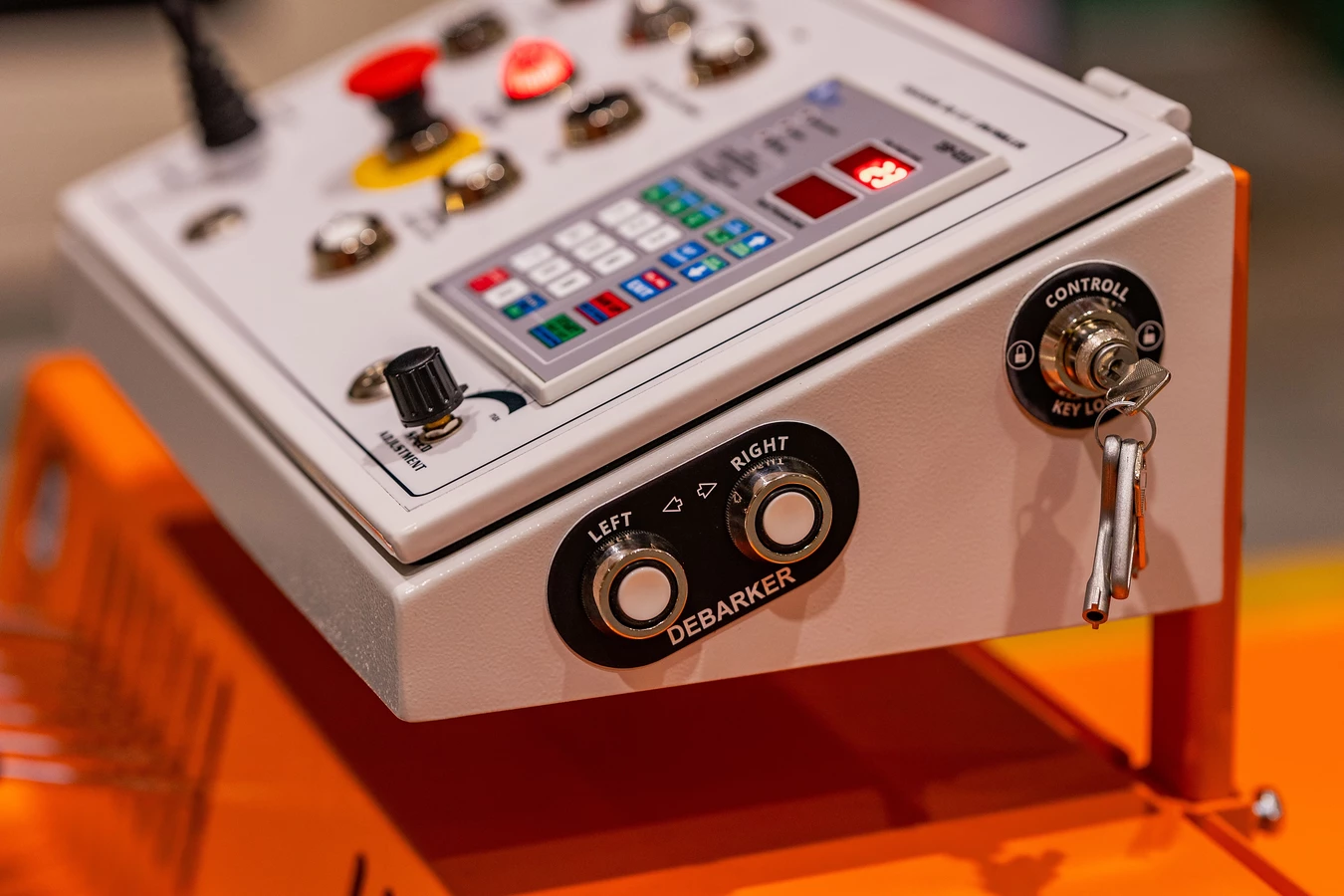

Operator control panel	by the vertical support with cutting head
Capacity per hour	up to 3,5 m³
