Tel: +44 (0) 197 825 4472Vertical CZP-3 with Belt Conveyor
precise, High-Efficiency Cutting of Pallet Boards, Battens, and Floorboards

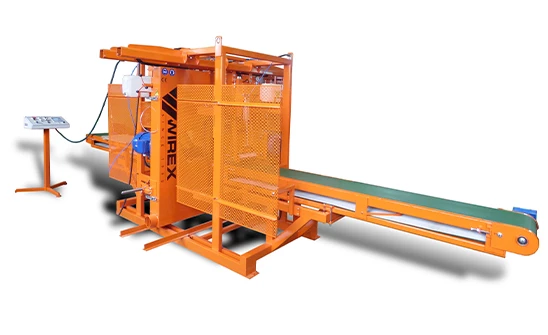

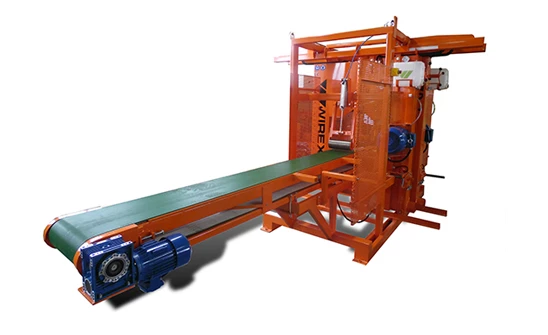

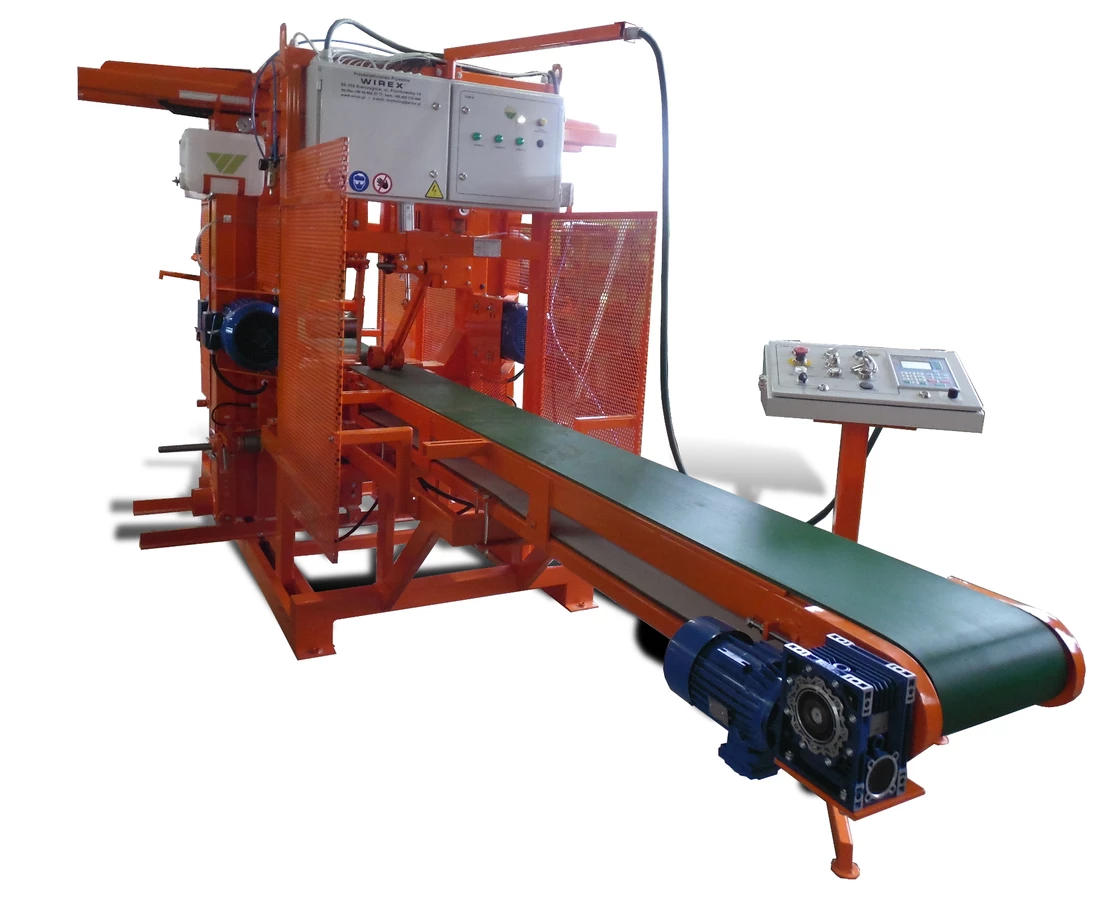

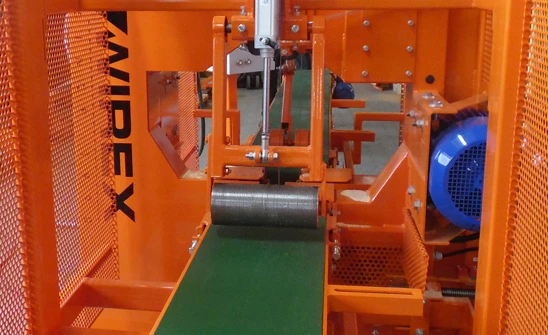

The CZP-3 vertical triple band sawmill, equipped with an integrated belt conveyor, is engineered to efficiently process one- or two-sided flitches into high-quality products such as pallet boards, battens, and floorboards. Capable of handling input widths up to 500 mm and cutting head extensions up to 350 mm, this sawmill delivers precise, consistent cuts for modern woodworking operations.
CZP-3 Vertical Triple Band Sawmill with Belt Conveyor – Efficient Wood Processing for Pallets, Battens, and Floorboards
Built for high efficiency and durability, the CZP-3 with belt conveyor features a robust construction that ensures reliable performance in demanding production environments. The belt conveyor enhances workflow by reducing manual log handling and increasing throughput, allowing your facility to maximize productivity.
With intuitive controls, the CZP-3 is easy to operate for both seasoned sawmill operators and newcomers, making it a versatile and valuable addition to any woodworking or timber processing facility. Ideal for businesses seeking a high-performance vertical band sawmill, it combines precision, efficiency, and reliability to elevate your production capabilities.
Optional equipment
- Shift of main motors to 8,1 kW
- Spring down-holder, additional
- Automatic head extension mechanism with controller
- Shift of belt conveyor into chain feeder (possible to cut round wood)
If required, the belt conveyor can be converted into a chain feeder for processing round wood. After this modification, the machine produces two flitches along with two off-cuts.
| Data | Value |
|---|---|
| Dimensions |
|
| Weight | 2000 kg |
| Dimensions of infeed workpiece |
|
| Min. thickness of obtained plank | 25 mm |
| Main motors power | 3 x 6 kW |
| Power demand | 18 kW |
| Power supply | 400 V (3 phase) |
| Cutting heads slide in/out | manual |
| Conveyor feed |
|
| Main belt conveyor width | 300 mm |
| Band wheels diameter | 600 mm |
| Band saw specification |
|
| Workpiece down-holder |
|
| Capacity per hour | up to 4,5 m3 |
